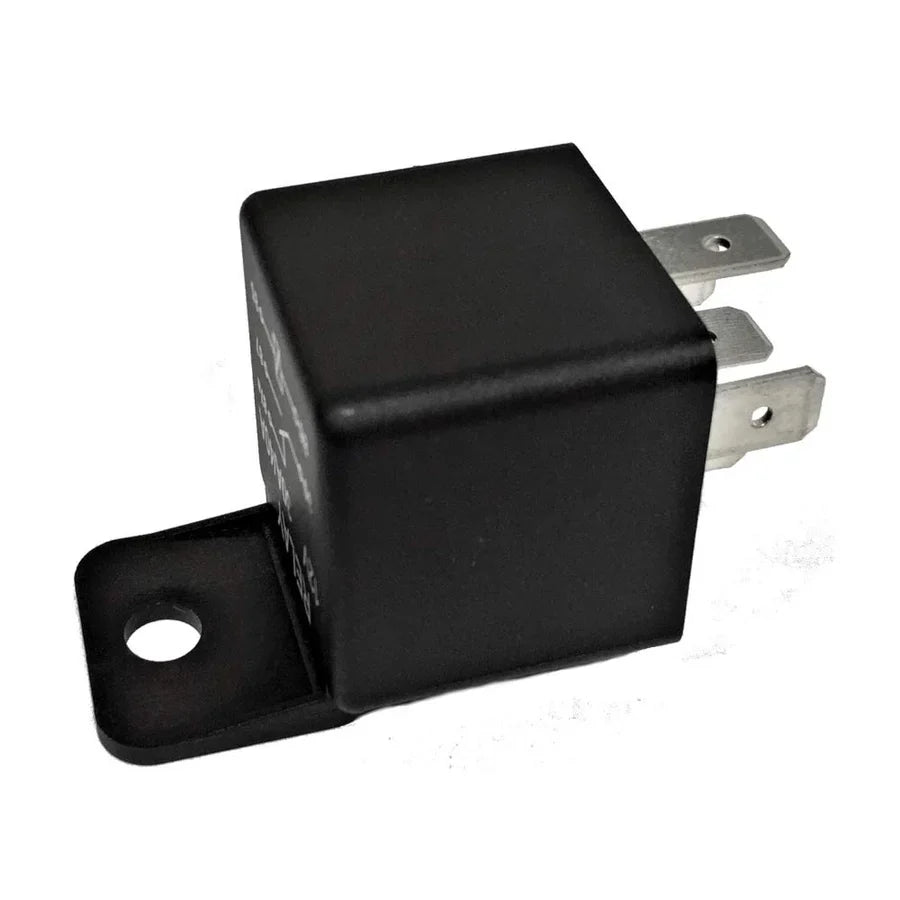

10 PACK Bosch Styl 12 VOLT DC 40 AMP SPTD AUTOMOTIVE RELAY 5 PIN W/ MOUNTING TAB

10 PACK Bosch Styl 12 VOLT DC 40 AMP SPTD AUTOMOTIVE RELAY 5 PIN W/ MOUNTING TAB

by Absolute USA
Save 50%
$59.99
$29.99
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

Notify me when back in stock

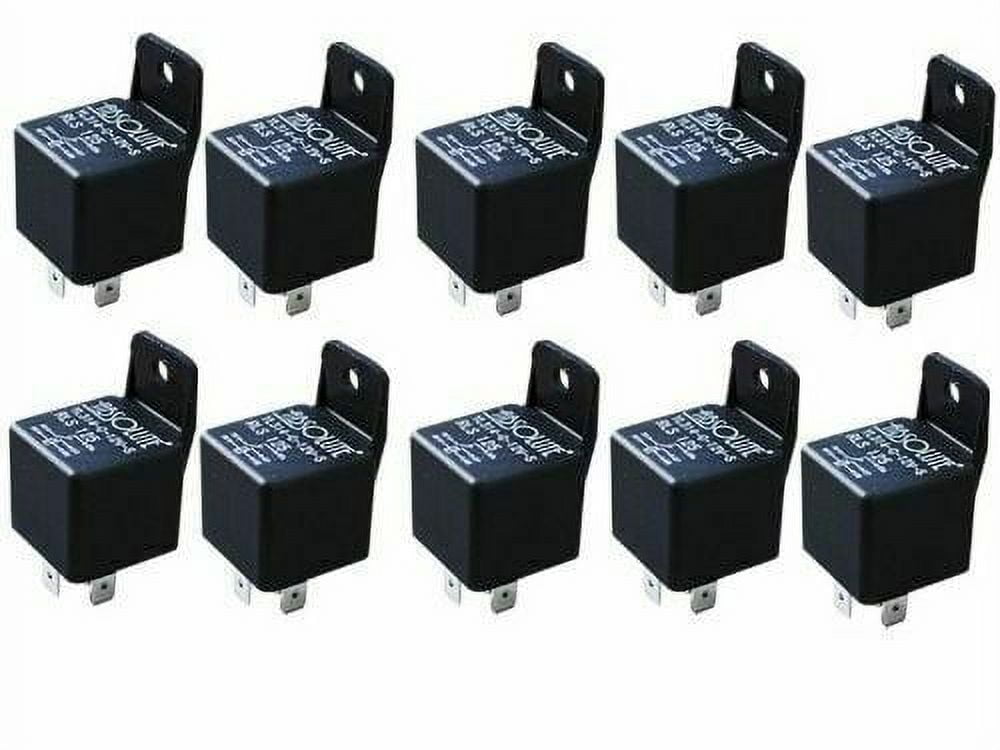

10 Pack Absolute RLS125 12-VCD Automotive Marine Bosch / Tyco Style Relay SPDT 30/40 AMP

Used for numerous electrical applications on automotive, marine, homes, and more!

General Features:

  • General Purpose Relay
  • Automotive Bosch Tyco Style Relay
  • Single Pole Double Throw
  • 30/40 Amps
  • 12V DC
  • Useful for integrating your vehicle alarm system
  • Control power windows, door locks, lights, etc. from your security system
  • Can be used with the Absolute SRS105 relay socket
  • Authorized Internet Dealer
  • Outline Dimensions: 28.0*28.0*25.0mm

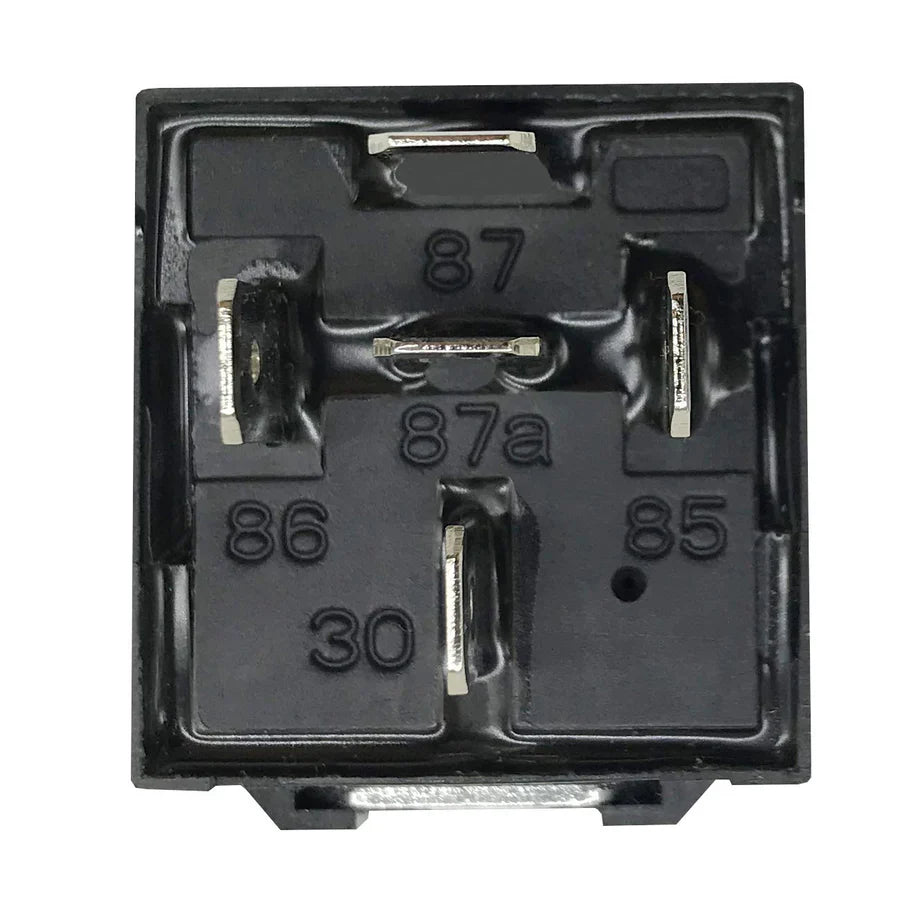

  • Relay Sockets Are 5 Wires. Yellow (Pin87 Light/Accessory), Red (Pin87a), White (Pin86 Switch), Blue (Pin30 Positive), Black (Pin85 Ground)
  • 40A No/30A NC High Switching Capability Auto Relay-Harness
  • Including 5 Prong Relays, 5 Prong Sockets & Wires. Relays and Sockets Are Separated for Various Usages. English Manual Attached
  • For Automotive Electrical Appliances Such as Lights, Air conditioners, Windshield Wiper and Others, turn ON/Off Almost Any Device.
  • 12v 5 Prong Relays With 5 Prong Sockets Wires (Pigtails)
  • Package Including 5 Relays And 5 Sockets with Wires for Car Electronic Applications to Turn-On/Off Almost Any Device
  • Heavy-Duty Impact Molded Relay Socket With 5 Wires. Yellow (Common), Red (Normally Closed), And Blue (Normally Open)
  • 40a/30a High Switching Capability
  • General Purpose Relay
  • Automotive Bosch / Tyco Style Relay
  • Single Pole Double Throw
  • 5 Pin
  • 30/40 Amps
  • 12v Dc
  • Useful for Integrating Your Vehicles Alarm System
  • Control Power Windows, Door Locks, Light, Etc. From Your Security System
  • Can Be Used with The Absolute Srs105 0r Srs103 Relay Socket

Specification:

  • No 40a 14vdc
  • Nc 30a 14vdc
  • Max Operating Current: 40a
  • Max Operating Voltage: 27v
  • Insulation Resistance: 100mω
  • Dielectric Strength (Coil and Contact): 500vac
  • Ambient Temperature: -40°C~+85°C
  • Operate/Release Time: 10ms/10ms
  • Mechanical Life: 1000000min
  • Electrical Life: 100000min
