12V 5 Pin SPDT 30/40 Amp Relay Socket Metal Tab Auto Marine homes Truck RV ATV

Save 50%
Original Price $17.99
Current Price $8.99
Availability: Translation missing: en.general.icons.icon_check_circle icon 300 in stock, ready to be shipped

Notify me when back in stock

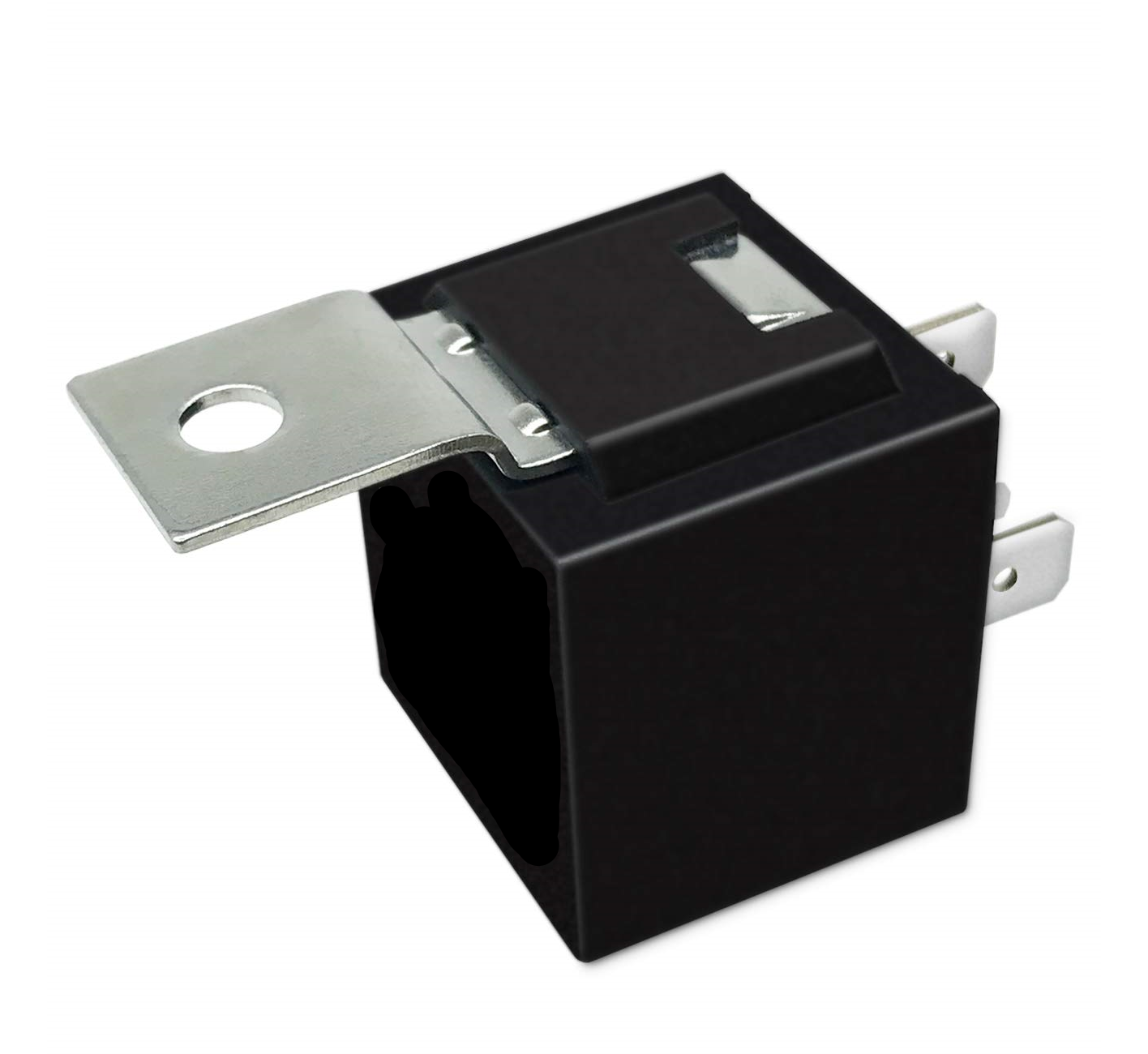

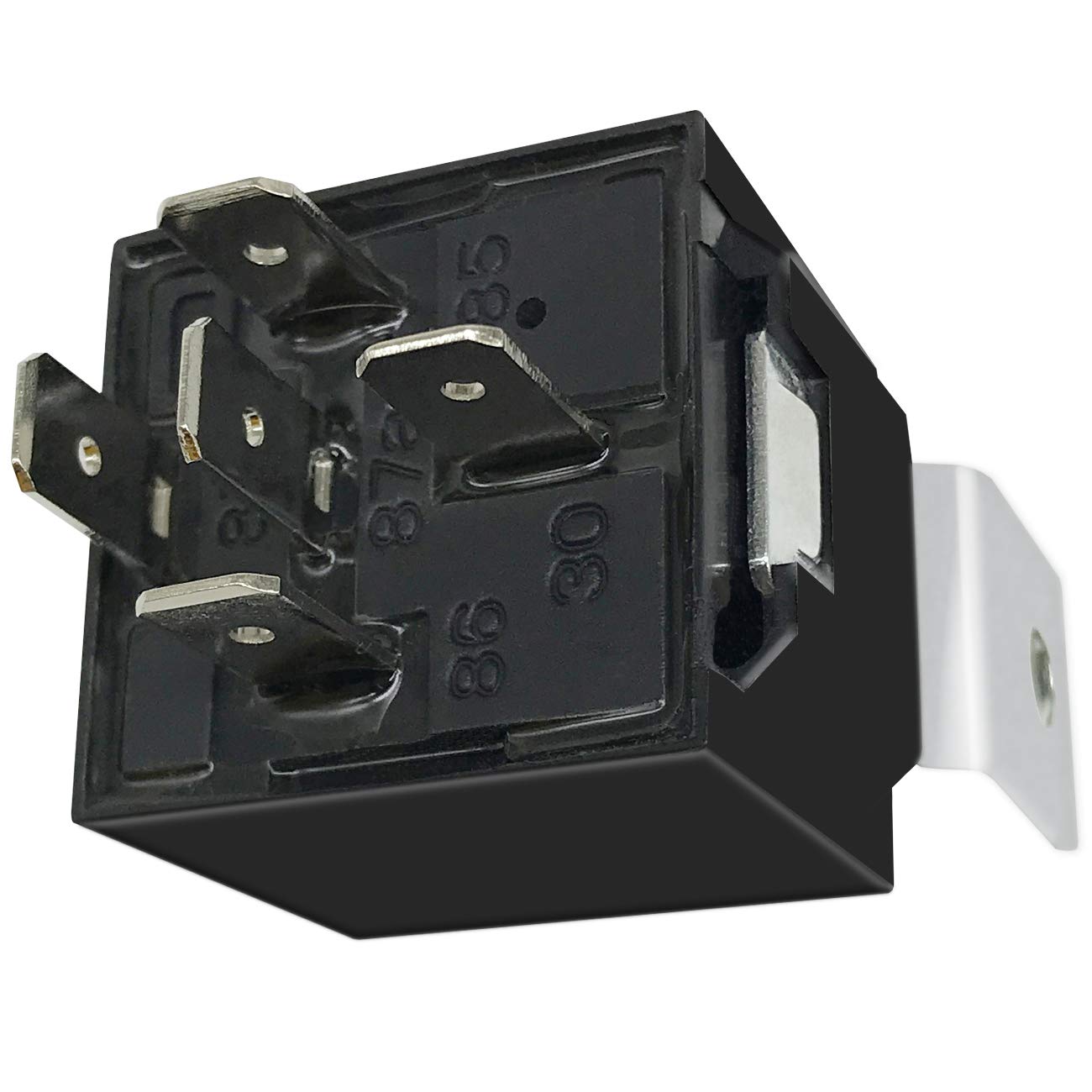

American Terminal REALYM 12V 5 Pin SPDT 30/40 Amp Relay Socket Metal Tab Auto Marine homes Truck RV ATV
30/40 Amp Sealed Relay Rating Metal Mounting Tab Zinc Plated 5 Pin Prongs Used for numerous electrical applications on automotive, marine, homes, and more!
General Features:
  • Sealed Relay
  • 40A / 30A high switching capability
  • Bosch style 5-prong universal relay, SPDT (Single Pole Double Throw)

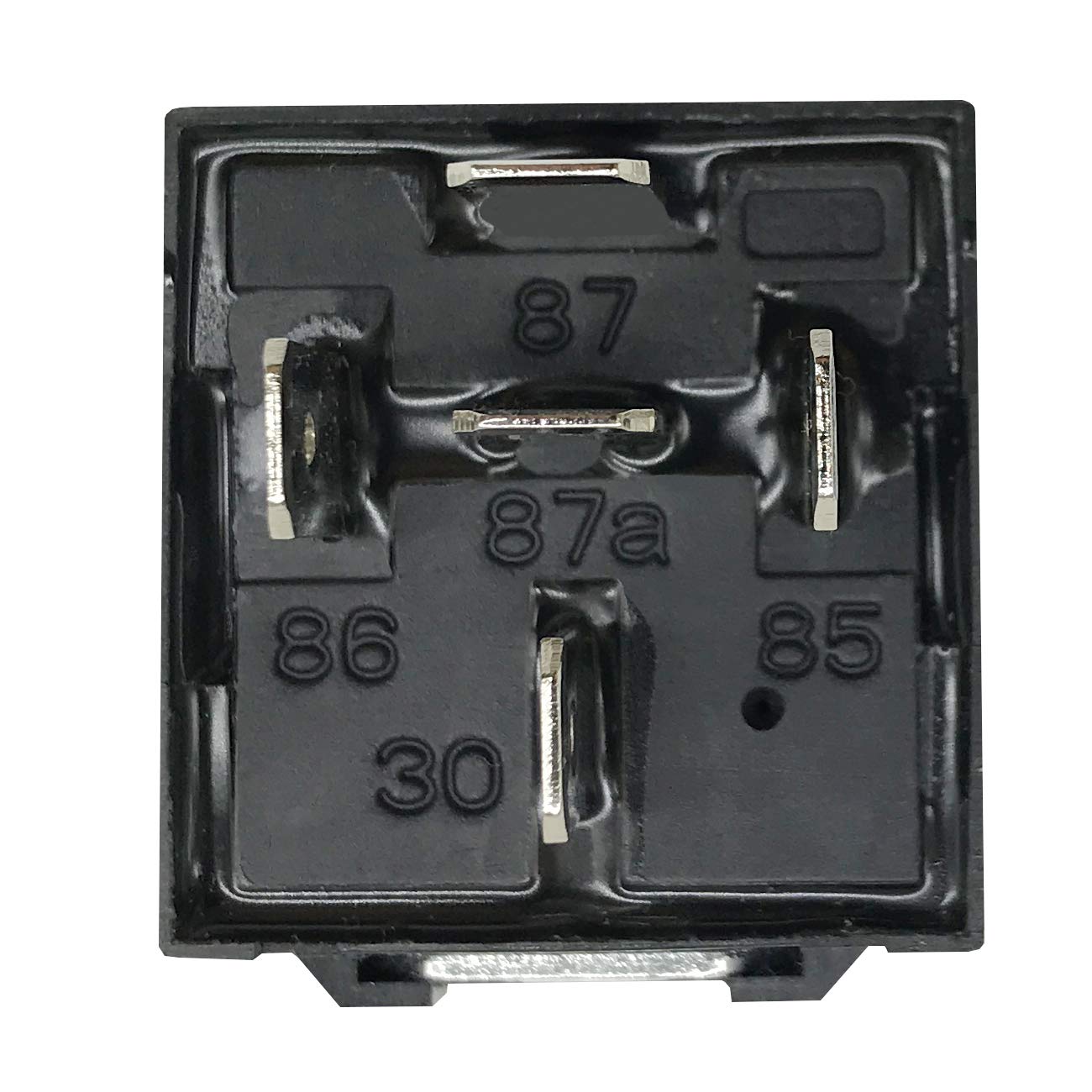

  • Pin Specifications: 30-VDC, 85-Ground, 86-Trigger, 87-Output N/O, 87a-Output N/C
  • Nominal Coil Voltage: 12 V DC; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC; Coil Power: 1.8 W; Coil Resistance: 80 Ω
  • Wide Application: All automotive and devices equipped with a 12 Volt DC power source (car sound systems, security systems, and various other applications)
  • Rating Metal Mounting Tab Zinc Plated 5 Pin Prongs
  • Used for numerous electrical applications on automotive, marine, homes, and more!
