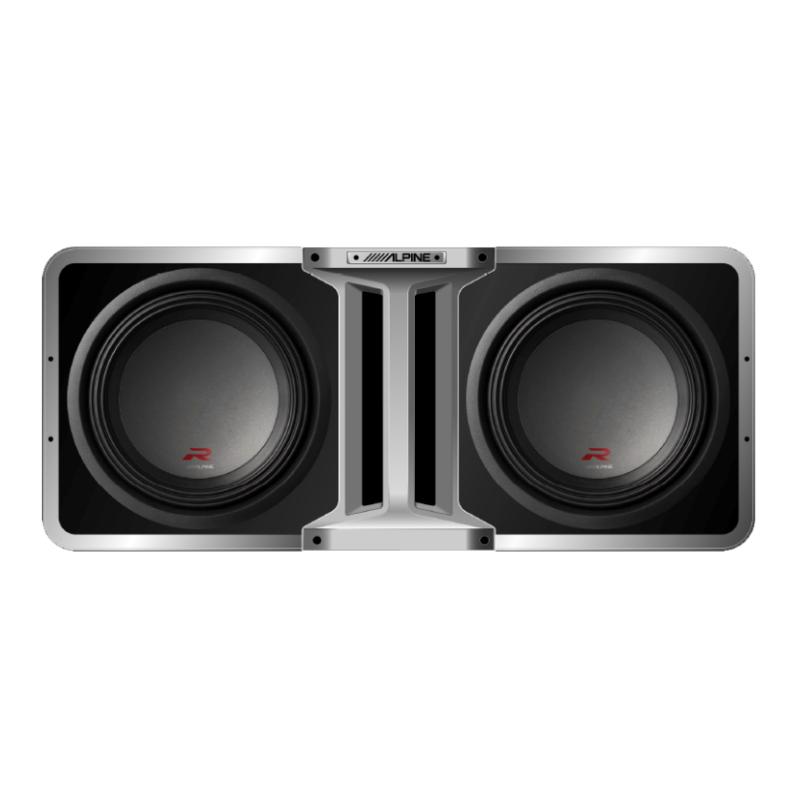

2 Alpine R-SB10V Pre-Loaded R-Series 10-inch Sub Enclosures + KTX-H10 Linking Kit

2 Alpine R-SB10V Pre-Loaded R-Series 10-inch Sub Enclosures + KTX-H10 Linking Kit

by Alpine
Save 10%
$1,200.00
$1,080.85
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 13 left!

Notify me when back in stock

2 Alpine R-SB10V Pre-Loaded R-Series 10-inch Sub Enclosures + KTX-H10 Linking Kit


Alpine R-SB10V Pre-Loaded R-Series 10-inch Subwoofer Enclosure

Enclosure Stacking Features
Unique to Alpine, the subwoofer 10-inch and 12-inch enclosures are available in a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.
The optional mounting bracket (sold separately) is available in a 10-inch KTX-H10 or 12-inch KTX-H12 solution that mounts to the face of the subwoofer and links for a sturdy, dual-subwoofer enclosure. The silver enclosure trim matches the steel bracketing and Halo display trim for a synergized look.
Optimized Performance
The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction, and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz while the 12-inch enclosure is tuned to 35 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.
General Features:

  • Includes R-W10D4 wired in parallel
  • 750W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 26-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D
  • Authorized Dealer
  • 1-year Warranty

Alpine KTX-H10 Linking Kit Heavy-duty steel front and rear linking brackets for connecting two Alpine Halo

Linking Kit for Dual 10" Alpine Halo Preloaded Subwoofer Enclosures with ProLink, Heavy-duty steel front and rear linking brackets for connecting two Alpine Halo 10" subwoofer enclosures

Add more bass to your sound system with the Linking Kit for Dual 10" Alpine Halo Preloaded Subwoofer Enclosures, featuring Alpine's new ProLink™ technology.

General Features:

  • Aluminum rear link plate
  • 10-inch Front ABS / Steel reinforced the port link
  • Center link stabilizing dowels
  • Alpine logo plate
  • All hardware included
  • Authorized Internet Dealer

What is in the KTX-H10 box:

  • Front port-link
  • Two 9" front port braces
  • 23.25" Rear link-plate
  • Four 25mm hex-socket screws
  • Eight 14mm hex-socket screws
  • Four 20mm threaded alignment posts
  • 3mm Allen-key
  • Installation instructions
  • Safety warnings
  • KTX-H10 Linking Kit owner's manual
