Absolute USA KITCAP0GABL 4.0 Farad Power Capacitor 0 Gauge Car Amplifier (Blue)

Save 50%
Original Price $199.99
Current Price $99.99
Availability: Translation missing: en.general.icons.icon_check_circle icon 299 in stock, ready to be shipped

Notify me when back in stock

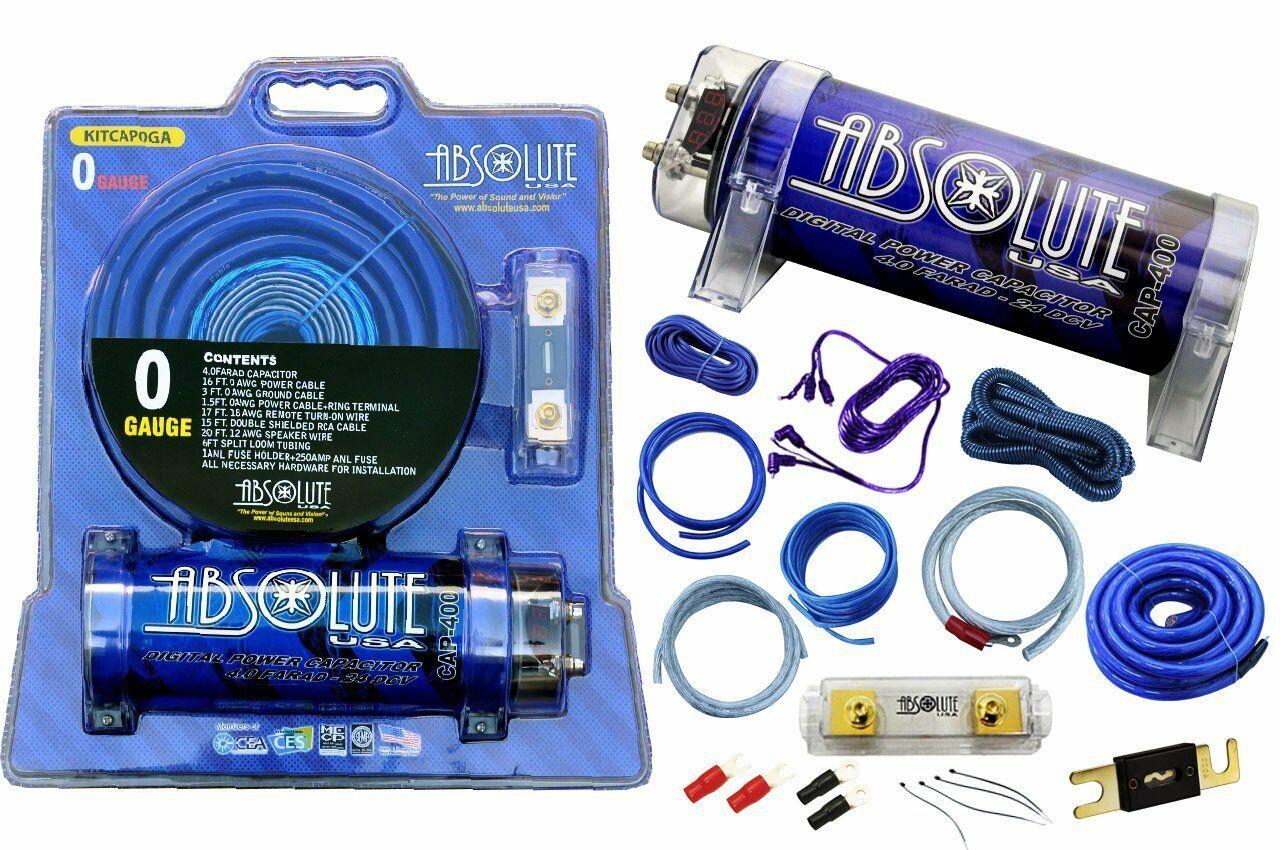

Absolute USA KITCAP0GABL Combined Amp Kit & Capacitor Package, 4.0 Farad Power Capacitor 0 Gauge Car Amplifier Installation Wiring Complete Kit

Combined Universal Amp Kit & Capacitor Package Include 3.0 Farad Power Capacitor and Complete Amplifier 0 Gauge Kit

ABSOLUTE CAP400 1.0 Farad 20V Digital Capacitor with Digital Read-Out Built-in Distribution Block

A capacitor is a passive (a component that consumes but does not produce energy) two-terminal electrical component. In building a sound system for your car, you would want to use a capacitor for a couple of different reasons. The main reason a capacitor is always recommended is for power reserve. The capacitor stores energy and releases it very quickly to the amplifier(s). How does this help? It’s very simple: Music is dynamic, no matter what type you listen to. The dynamics in musical content can vary from soft voices, and very quickly transition to thundering bass notes. These moments are where the benefit of having a capacitor is heard. The amplifier requires a constant amount of steady power to function efficiently and power the speakers. A capacitor will keep the power going to the amplifier consistent and stabilized, which means a better sounding system. IMPORTANT: The remote output of the head unit is connected to the remote turn-on of the capacitor. The capacitor will not function if the remote wire is not connected to your head unit.

CHARGING THE CAPACITOR

First, make sure that all the connections according to the diagrams in the instruction manual are correct. Pick up the cable coming from the POSITIVE (+) battery terminal. Place the supplied charging resistor between the end of this cable and the positive terminal of the capacitor. The capacitor will begin charging. Charging generally takes 5 to 60 seconds. During charging, the voltage shown in the 3 digit display will rise rapidly, then slow as it approaches the voltage of your vehicle’s battery. When fully charged, the display voltage will stop rising. If you have a voltmeter, you can first measure the voltage of your car battery. Then you will know with accuracy that the capacitor is fully charged. CAUTION!! During charging, the resistor will become hot. This is normal, but exercise caution during the charging process. After charging is complete, remove the resistor from the incoming positive cable, and IMMEDIATELY connect it to the positive terminal of the capacitor.

General Features:

  • 4 Farad Digital Capacitor With 4000 Watts
  • Runs On 10-16 Volts DC
  • Audible Warning Tone for Reverse Polarity, Voltage Overload, and Low Battery Voltage
  • Capacitance: 4,000,000,
  • Capacitance Tolerance: + / - 10%,
  • Voltage Measurement Accurate To + / - 0.1 VDC
  • Equivalent Series Resistance: 0.00195 Mw @ 120 Hz / 25°C
  • You May Also Hook Up as Many as You Like in Parallel to Make a Bank of Power
  • Stabilizing Amplifier Flow Capacity
  • High Strength Cylindrical Aluminum Housing
  • Soft Turn-On/Off Power Surge
  • Bright Charging Status L.E.D.
  • Digital Over-Voltage Protection System
  • Perfect for Systems Up to 4000W Max
  • Increases Level of Bass, And the Peak Power of Your Amp
  • Features Audible Warning Indicators
  • Runs On 10-16 Volts Dc
  • Equipped with Automatic Shutoff Protection
  • Accepts Any Gauge of Wire with Ring Terminals
  • 3 Farad Digital Power Capacitor
  • 24 Volts Surge Ultra-Low ESR (Super Low Internal Resistance )
  • 3 Digit Bright Red Digital Led Voltage Display
  • Audible Warning Tone for Reverse Polarity, Voltage Overload, And Low Battery Voltage
  • Capacitance: 4,000,000
  • Capacitance Tolerance: + / - 10%,
  • Voltage Measurement Accurate To + / - 0.1 VDC
  • Working Voltage: 10-16 VDC,
  • Automatic Shutoff Protection
  • Includes Clear Mounting Brackets
  • Includes the Resistor for Charging
  • Reduce or Stop the Dimming of Your Headlights
  • Accepts any gauge of wire with ring terminals
  • Width of Mounting Bracket Base: 5-1/2"
  • Dimensions: 11-3/4"H X 3-1/2"W X 3-1/2"D
  • 3 Year Warranty

Equivalent Series Resistance:

You May Also Hook Up as Many as You Like in Parallel to Make A Bank of Power.

Absolute Kit 0 Complete 0 Gauge Amplifier Kit with RCA Interconnect Cable

Amplifier installation kits can save you time & money when installing an amplifier in your vehicle. Instead of purchasing everything you need separately like power/ground cables, remote turn-on cable, fuse blocks, fuses, and more, you can get an amp kit that already has the cables & accessories in one package. Amplifier wiring kits come in various gauge configurations depending on the wattage of your sound system and include all the necessary components you need to successfully install an amplifier.

This Absolute 0 Gauge Complete Amplifier Wiring Kit includes all the necessary hardware and wire to power one amplifier and is designed specifically for car audio systems 1000 watts and over. The included premium power/ground cable is made from 100% oxygen-free copper for ultimate power transfer. This ABS-KIT-0 complete amp kit includes 17-feet of 0 gauge red power cable, 3-feet of 0 gauge black ground cable, 17-feet of 16 gauge blue remote turn-on wire, 17-feet of gold-plated RCA interconnect cables, and more.

General Features:
  • Complete 0 Gauge Amplifier Kit
  • Designed specifically for car audio systems 1000 watts and up
  • Premium power and ground wire provides optimal power transfer
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals are gold-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection for high powered systems
  • For use in any car, truck, RV, or boat
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. 17 ft. of red 0 gauge high current OFC super flex power cable
  2. 3 ft. of black 0 gauge ground cable
  3. 17 ft. of blue 16 gauge remote turn-on lead
  4. 17 ft. of gold double shielded RCA cable
  5. 20 ft. of speaker wire
  6. 3 ft. of split loom tubing
  7. ANL Gold plated fuse holder
  8. ANL 250 Amp fuse
  9. 2 Ring terminals
  10. 3 Red butt connectors
  11. 10 Cable ties
