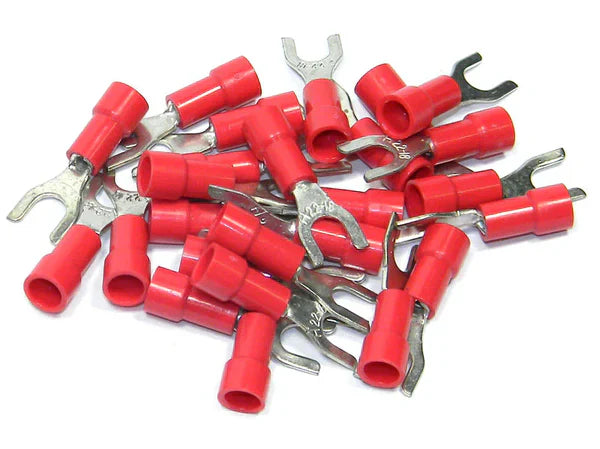

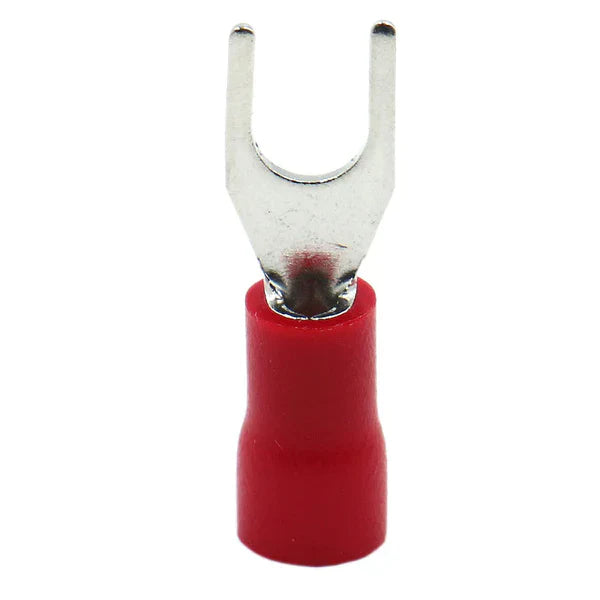

Absolute USA RS8-100 Red Insulated Fork Spade Wire Connector Electrical Crimp Terminal (22/18-Gauge, #8)

These premium spade connectors are made of insulated vinyl and copper. The flared barrel of the insulated butt crimp connectors is easy to insert. The wire-stop structure of the wire butt connectors is conductive to insert the wire into the right place to ensure the effect of compression. Easy to connect with electrical wire and strengthen its reliability. Widely applied in the electric and electronic industry, electric equipment, Industrial automation, street lighting, and power control system in traffic and transportation, posts and telecommunication, petrol chemical industry, industrial building machine-building, etc.

General Features:

  • Cable size: 0.5-1.5mm² (AWG 22-18)
  • Max current: Imax=19A
  • Insulation: Vinyl, Terminal Body: Tinned Copper

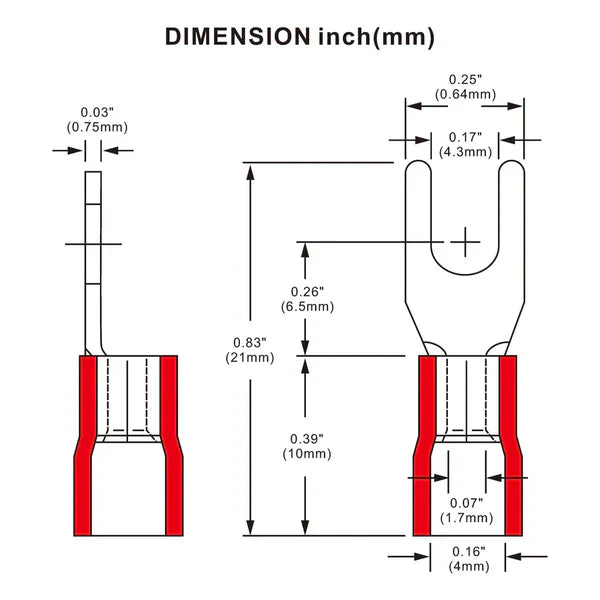

  • USA screw: #8 Hole Size
  • screw dia.(mm): 4.3(.169")

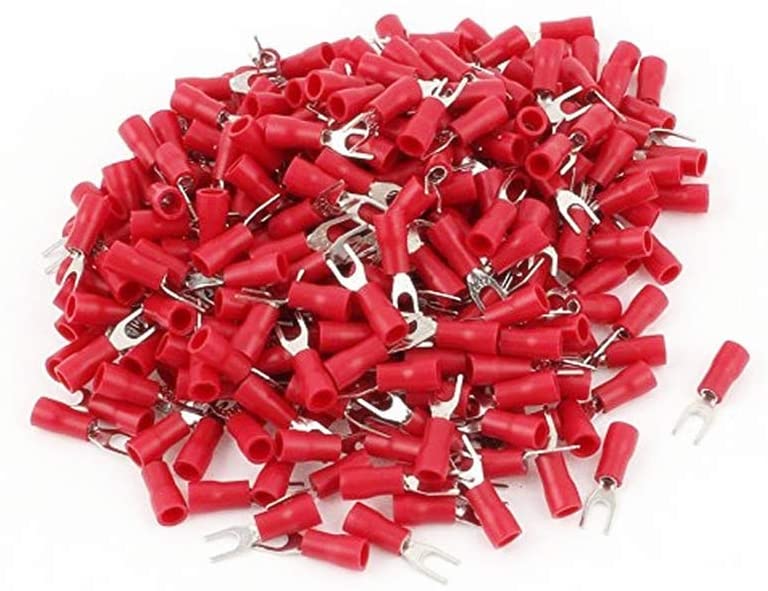

  • Package Content: 100 Terminal
  • 100% brand new and high-quality
  • Insulated crimp terminals
  • Ideal for the greatest variety of applications
  • Material: Copper + PVC + Tinplate
  • Color: Red
  • Type: Fork Terminal
