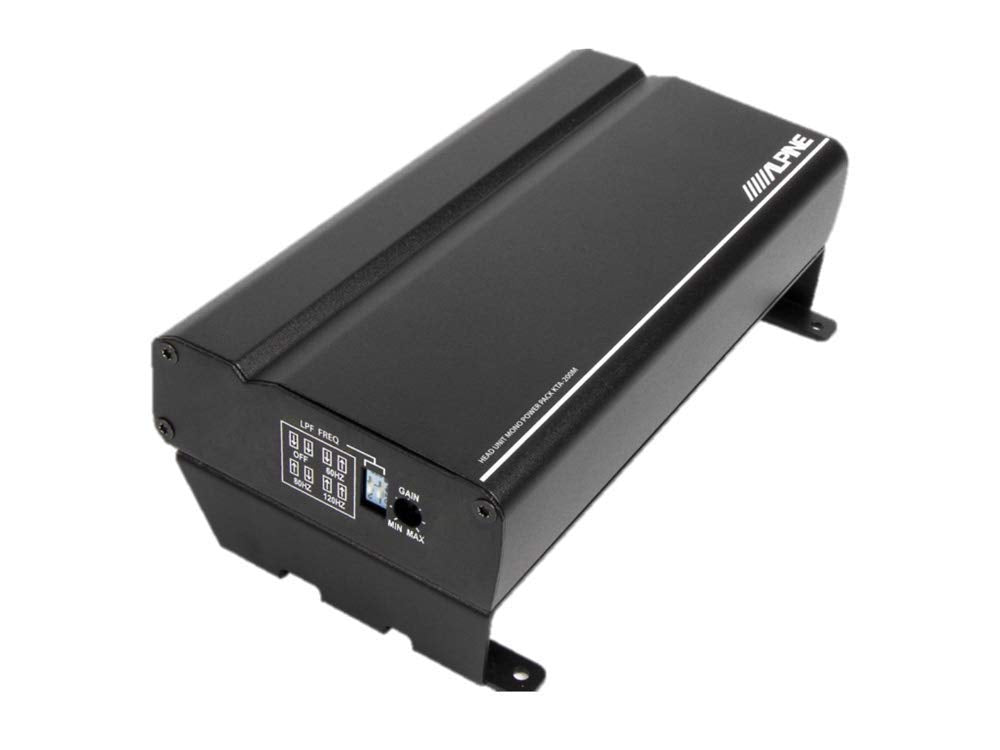

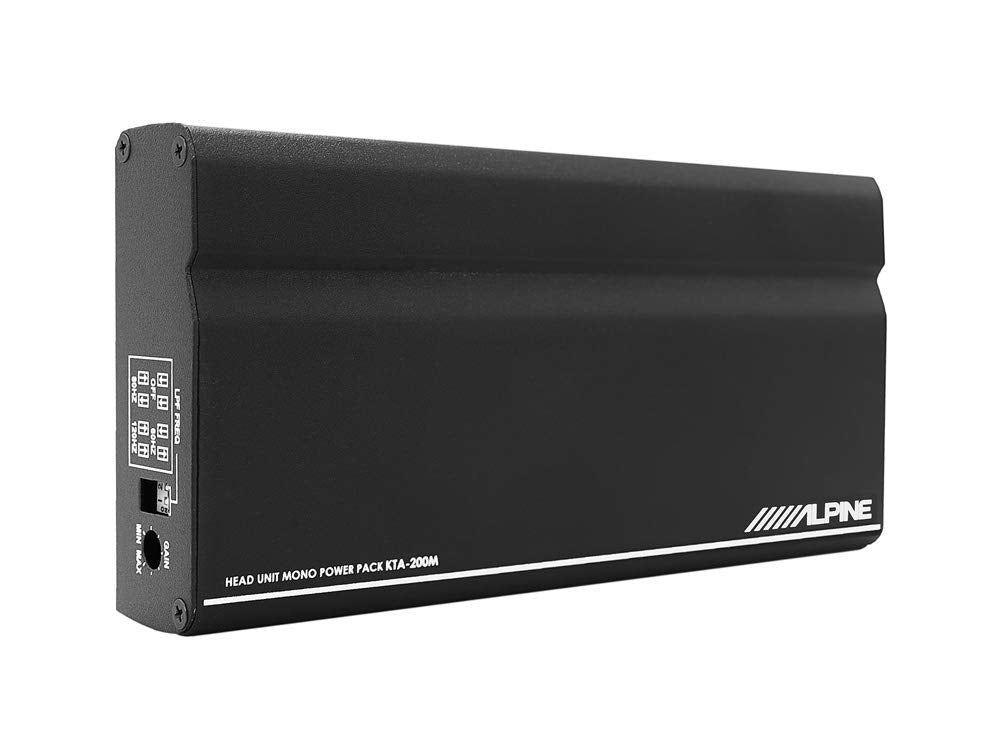

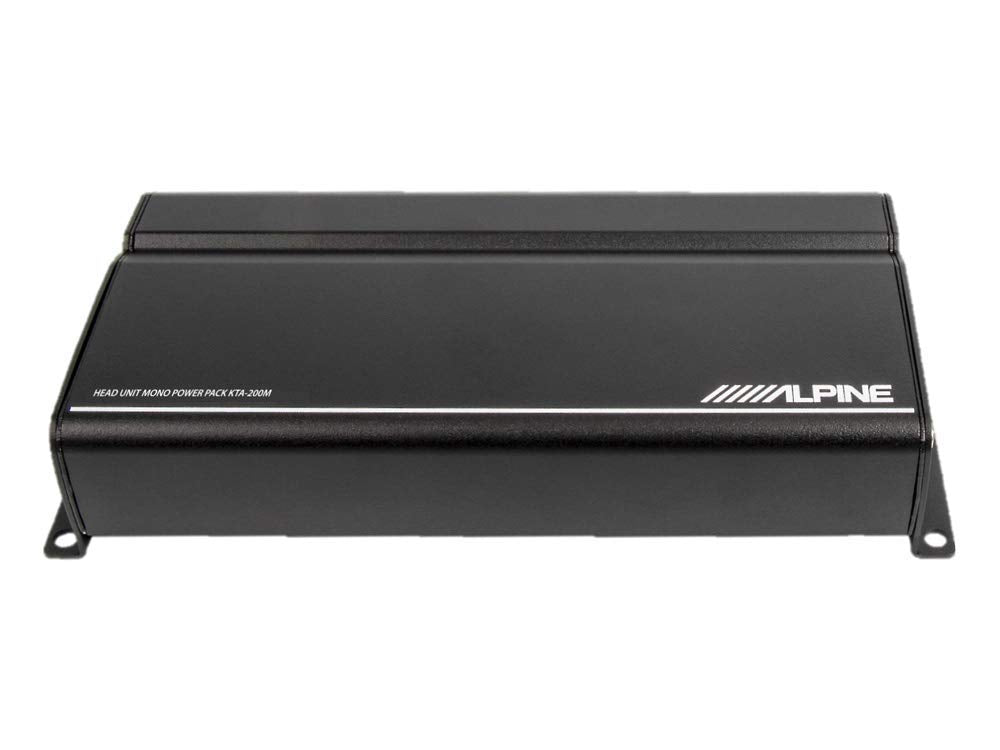

Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier
Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier
The KTA-200M fits in the open space behind Alpine’s iLX-W670 or iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W670 (1.9-inch D), occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space. The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier in a compact size, easy installation, and overall power. While designed to “stack” behind the iLX-W670 iLX-W650, or similar 2-DIN radio, both amplifiers can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier. The KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful or “dynamic” passages of music, DPP will adapt to the music's needs by adjusting the amplifier's gain and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage-adapting input circuit to maintain the maximum source signal level without clipping.
General Features:
- Power Stack capable with the Alpine iLX-W670 iLX-W650
- compact mono subwoofer amplifier
- Alpine’s Class D Amplifier Circuit with DPP
- Dynamic Peak Power (DPP) technology adds a burst of power when needed
- CTA-2006 compliant
- 100W x 1 RMS @ 4Ω, Power Outputs
- 200W x 1 RMS @ 2Ω, Power Outputs
- 400W x 1 DPP @ 4Ω, Power Outputs
- Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
- ≤0.1% THD+N (ref. 10W into 2Ω)
- Single-side 22-pin connector

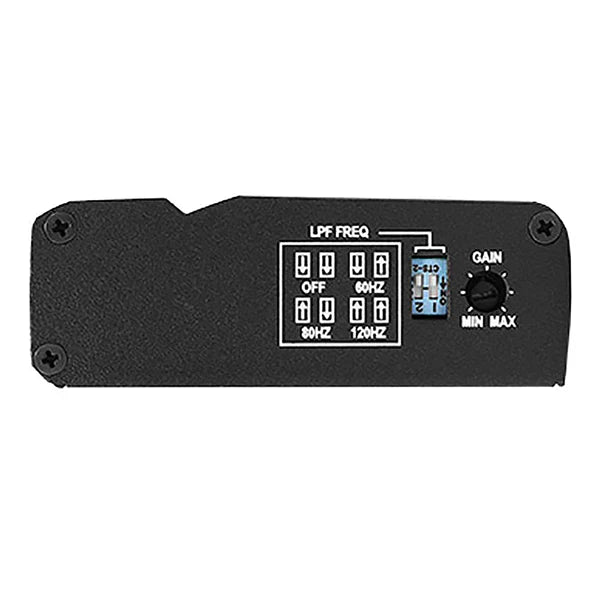

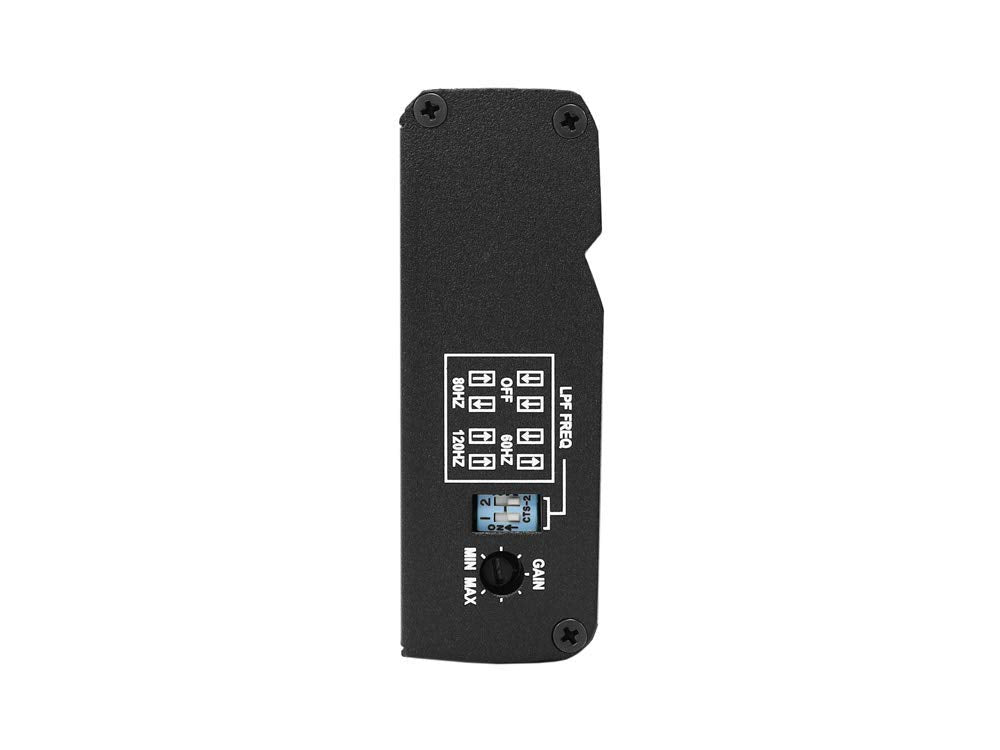

- selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
- preamp and speaker-level inputs
- RCA inputs (selectable, Low range=0.2-4V)
- Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
- wiring, hardware, and fuse not included with the amplifier
- Power Stack bracket included for mounting amp behind Alpine iLX-W650 digital multimedia receiver
- Authorized Dealer
- 1-year Warranty

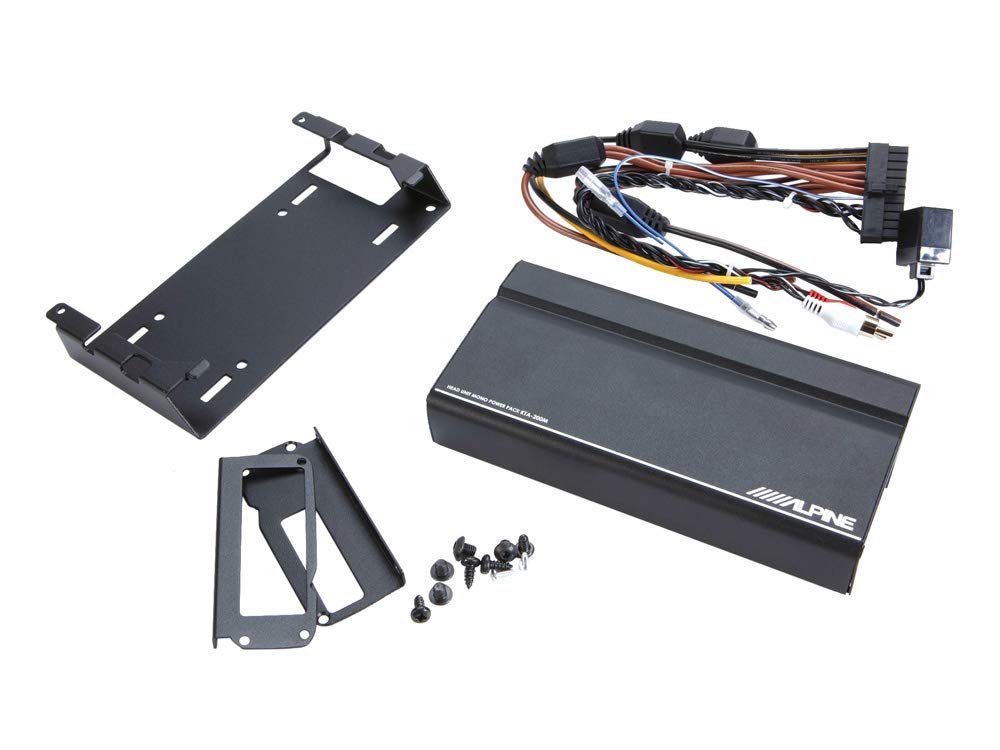

What is in the KTA-200M package:
- KTA-200M Owner's Manual
- Mono amplifier
- 12" Input/Output/Power harness
- 1 Head unit (iLX-W650) mounting bracket
- 2 Universal mounting brackets
- Four M5x6mm Allen head machine screws (3mm)
- Two M2.6x8mm Machine screws
- Four 3/8" Screws
- Warranty information
- Online product registration information
- FCC Compliance Statement
Warning:
This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
