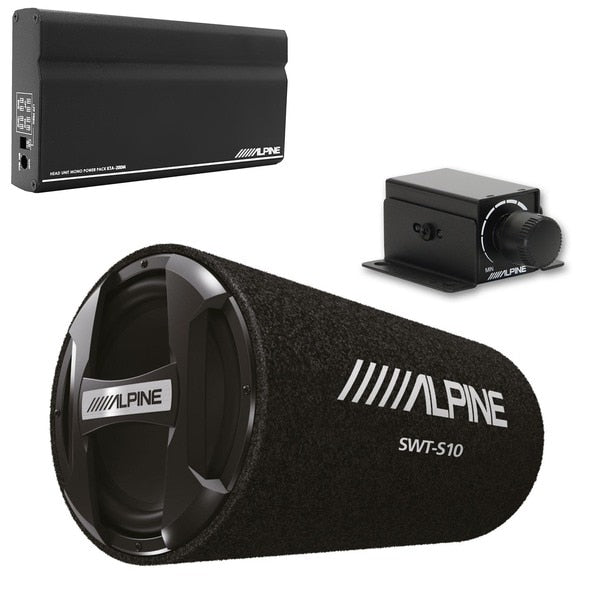

Alpine KTA-200M Mono Power Pack Amp with SWT-S10 10" Loaded Tube Subwoofer and Bass Knob

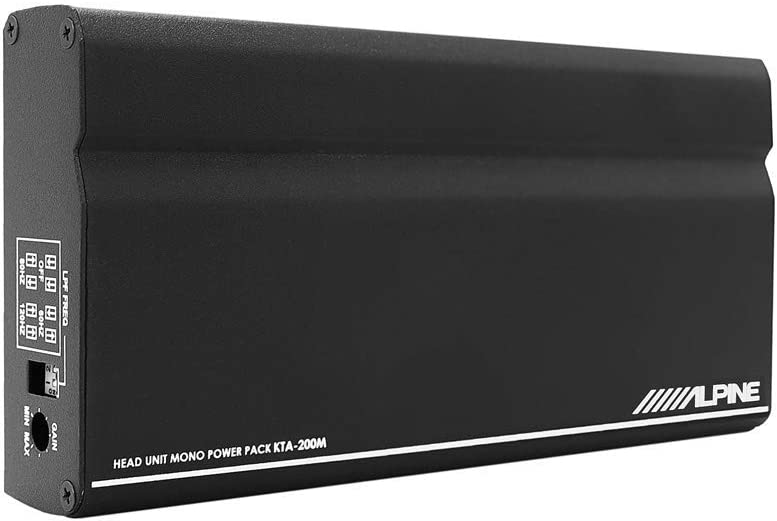

Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D), occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space. The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier in a compact size, easy installation, and overall power. While designed to “stack” behind the iLX-W650, or similar 2-DIN radio, both amplifiers can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier. The KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful or “dynamic” passages of music, DPP will adapt to the music's needs by adjusting the amplifier's gain and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage-adapting input circuit to maintain the maximum source signal level without clipping.

General Features:

• Power Stack capable with the Alpine iLX-W650
• compact mono subwoofer amplifier
• Alpine’s Class D Amplifier Circuit with DPP
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• CTA-2006 compliant
• 100W x 1 RMS @ 4Ω, Power Outputs
• 200W x 1 RMS @ 2Ω, Power Outputs
• 400W x 1 DPP @ 4Ω, Power Outputs
• Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)
• Single-side 22-pin connector
• selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
• preamp and speaker-level inputs
• RCA inputs (selectable, Low range=0.2-4V)
• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
• wiring, hardware, and fuse not included with the amplifier

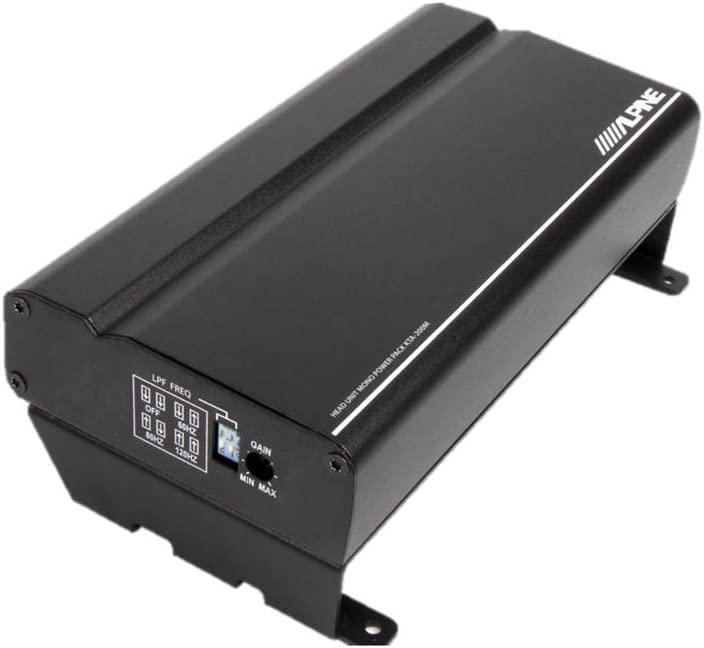

• Power Stack bracket included for mounting amp behind Alpine iLX-W650 digital multimedia receiver
• Authorized Dealer
• 1-year Warranty

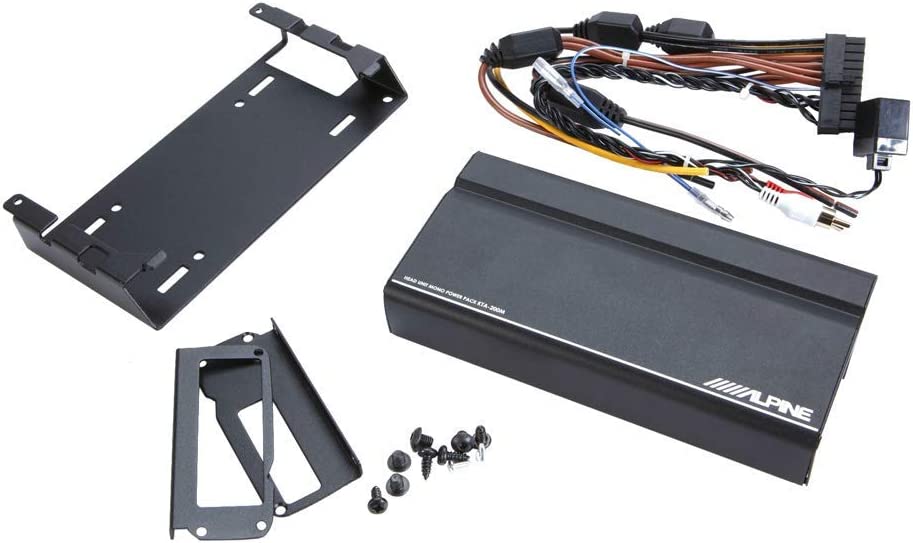

What is in the KTA-200M package:

• KTA-200M Owner's Manual
• Mono amplifier
• 12" Input/Output/Power harness
• 1 Head unit (iLX-W650) mounting bracket
• 2 Universal mounting brackets
• Four M5x6mm Allen head machine screws (3mm)
• Two M2.6x8mm Machine screws
• Four 3/8" Screws
• Warranty information
• Online product registration information
• FCC Compliance Statement

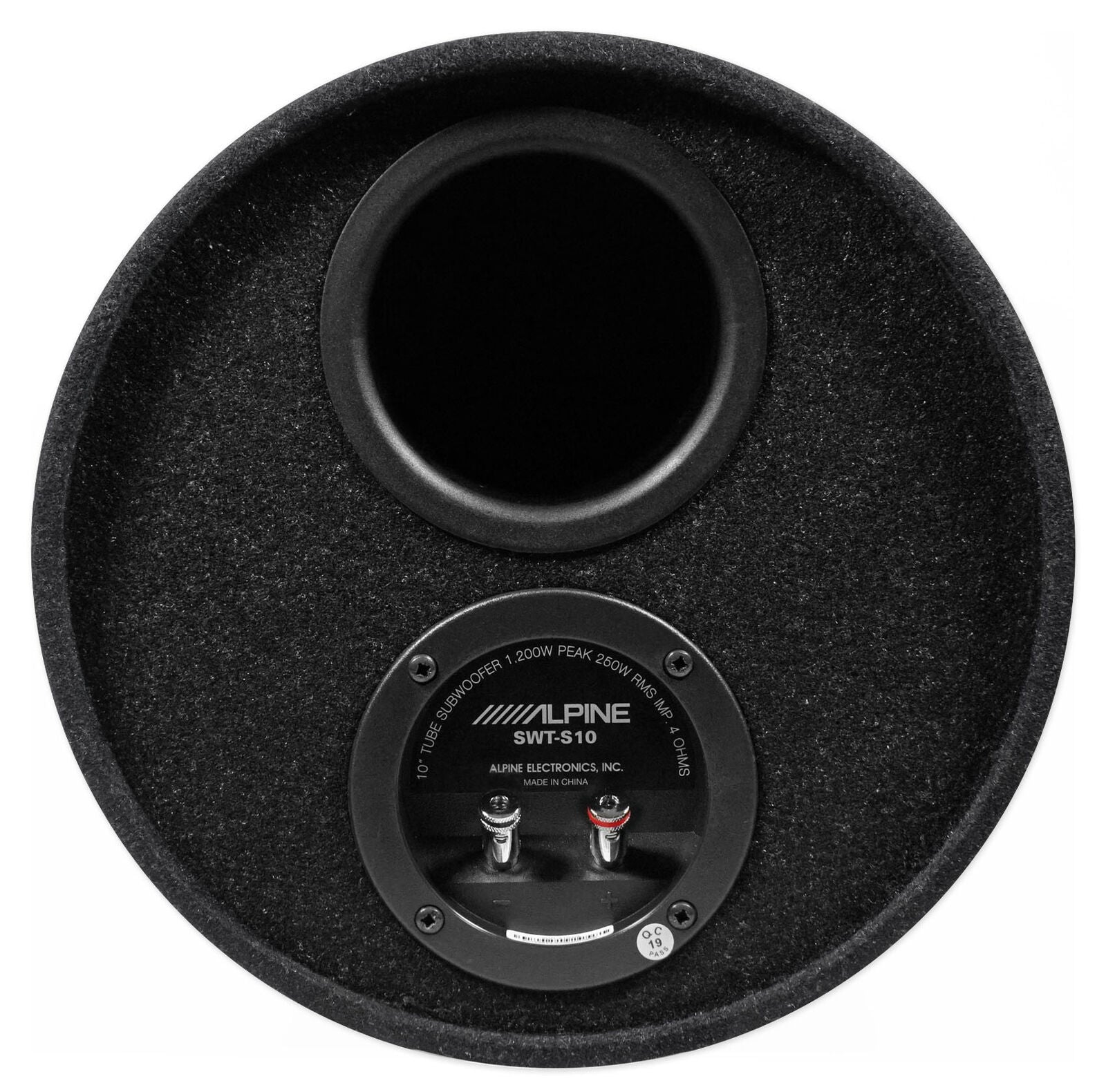

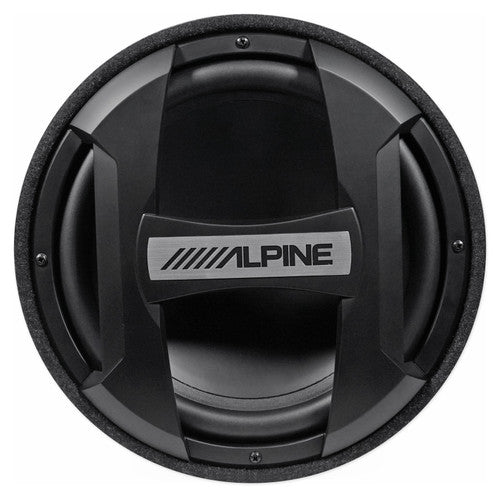

Alpine SWT-S10 1200W Max Single 10" Sealed Subwoofer Bass Tube Enclosure

Combining the intense low-bass performance and ground-shaking output of the traditional Type-R subwoofers in a thin package optimized for tiny enclosures. The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing enormous output to build the ideal sound system for your truck. At 4-1/8” deep. These subs provide deep bass performance where it usually couldn’t fit in a car or truck. And the vented pole optimized for a 4-1/8” deep box is the ideal enclosure size, meaning excellent bass performance can fit just about anywhere in your truck.

General Features:

• Single 10" Sealed Subwoofer Tube Enclosure
• 1200 Watts MAX Power Handling
• 250 Watts RMS Power Handling
• Final Impedance: 4 ohms
• Preloaded with a single 10" Subwoofer
• Sealed enclosure with embroidered black carpet
• Enclosure Dimensions: 11.25"W x 23.65" D
• 1-year Manufacturer's Warranty

Subwoofer Features:

• 10" Passive Subwoofer
• Push SPK Terminal
• Frequency Response: 35-200 Hz
• Sensitivity: 90dB

Enclosure Features:

• Tube enclosure
• Black Carpet Finish with White Alpine Logo
• Grille included

What is in the SWT-S10 package:

• W10S4 owner's manual
• One 10" Subwoofer per box
• Adhesive-backed foam gasket
• Application Guide
• Online product registration information
• Warranty Information

Alpine RUX-KNOB.2 Remote Bass Knob
With the RUX-KNOB, you conveniently get control over your amplifier from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.
