Alpine KTA-30FW Car Amplifier 600W Max, 300W RMS KTA Series 4 ohm Stable 4-Channel Class-D Tough Power Pack Amplifier

Alpine KTA-30FW Car Amplifier 600W Max, 300W RMS KTA Series 4 ohm Stable 4-Channel Class-D Tough Power Pack Amplifier

by Alpine
Save 40%
$700.95
$419.95
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 12 left!

Notify me when back in stock

Alpine KTA-30FW 600W Max, 300W RMS KTA Series 4 ohm Stable 4-Channel
Class-D Tough Power Pack Amplifier

Half The Size, Double The Power Get a huge increase in sound performance over your factory system. With Alpine’s exclusive technology, Dynamic Peak Power (D.P.P.), the KTA-30FW Weather Resistant Tough Power Pack is sure to add higher output and increased dynamic range for those open cab vehicles and toys. The KTA-F30W is perfect for when you want to boost your sound system but don’t have space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.

The KTA-30FW is ready for your adventures. It is weather-resistant, rated at IP66 for protection against dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open-top vehicles. and motorcycles.

General Features:

  • Alpine KTA-30FW
  • Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
  • Designed for use in Side-by-Sides, Boats, Open-Top Vehicles, and Motorcycles
  • RMS Power Rating: 4 ohms: 75 watts x 4 Channel
  • RMS Power Rating: 2 ohms: 75 watts x 4 Channel
  • 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
  • Total power output: 600 watts
  • CEA-2006 Compliant Amplifier
  • Power Wire Harness Included
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Soft start turn-on
  • Switchable 4 or 2 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy-duty aluminum alloy heat-sink
  • IP66 Waterproof Rating
  • Input sensitivity: Low level: 0.2V-4V
  • Input sensitivity: High level: 0.5V-10V
  • Frequency Response: 15 - 36000 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: >98 dB
  • Variable high-pass filter: 50 - 400 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 400 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Dimensions: 9-3/16"W x 3-3/4"D x 1-3/4"H
  • Authorized Dealer
  • 1-year Manufacturer's Warranty
What is in the box:

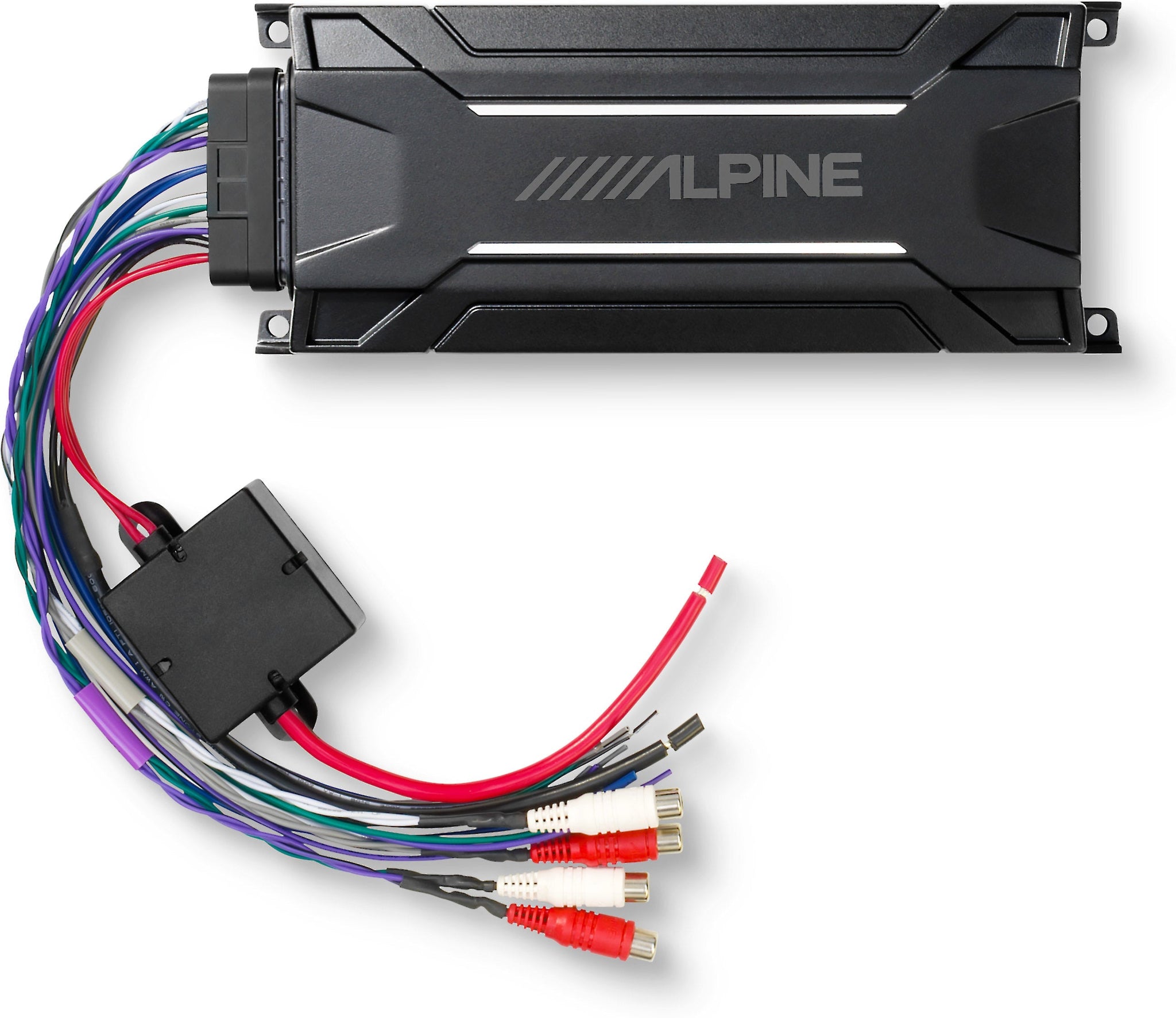

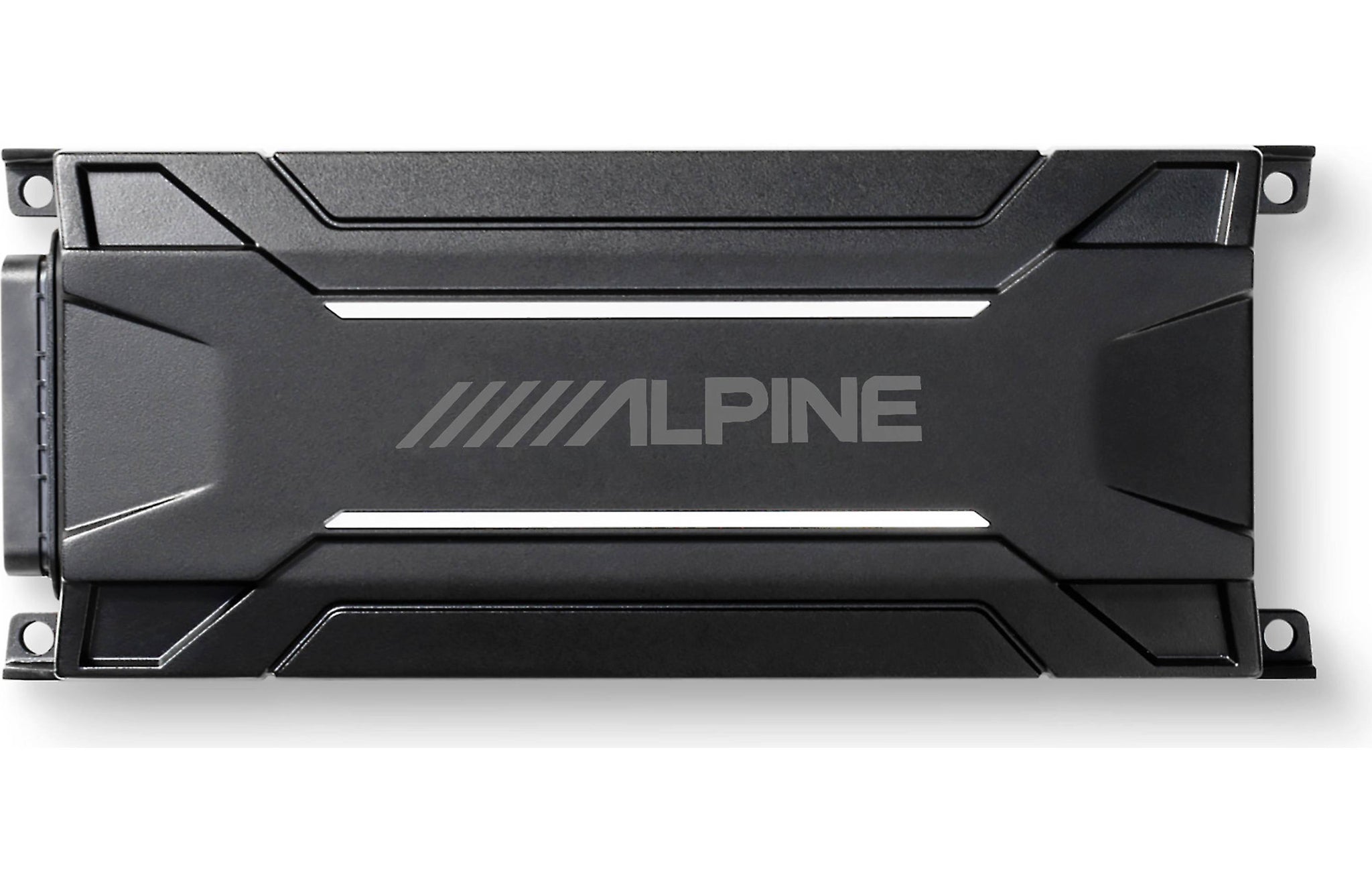

  • 4-Channel amplifier

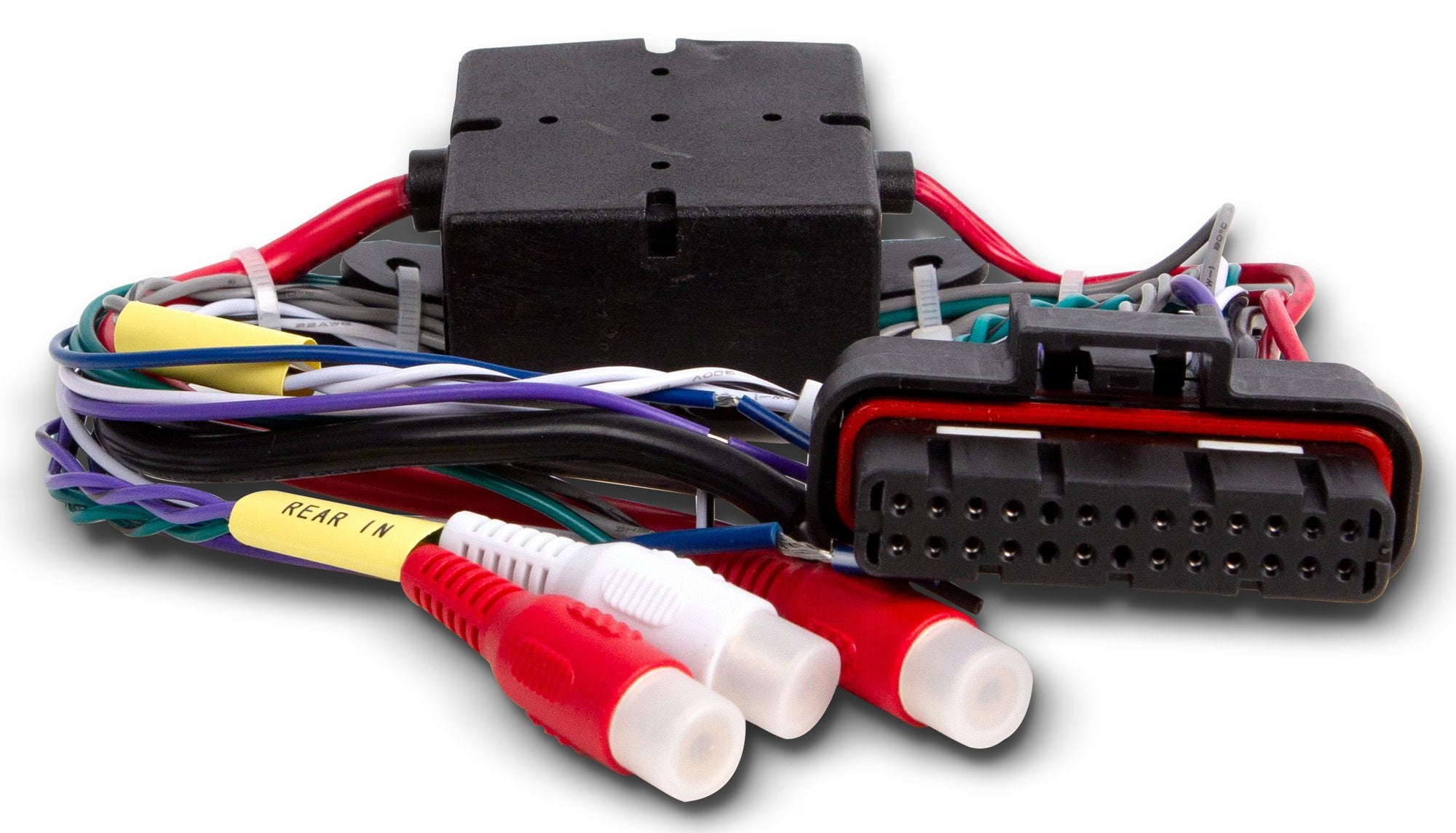

  • 14" Power/signal harness (26-pin connector on one end and bare wires + RCAs on other ends)
  • 4 Self-tapping screws (Length 3/4")
  • Connection sheet
  • Limited Warranty sheet
  • Thank you letter
  • Alpine KTA-30FW Tough Power Pack owner's manual
