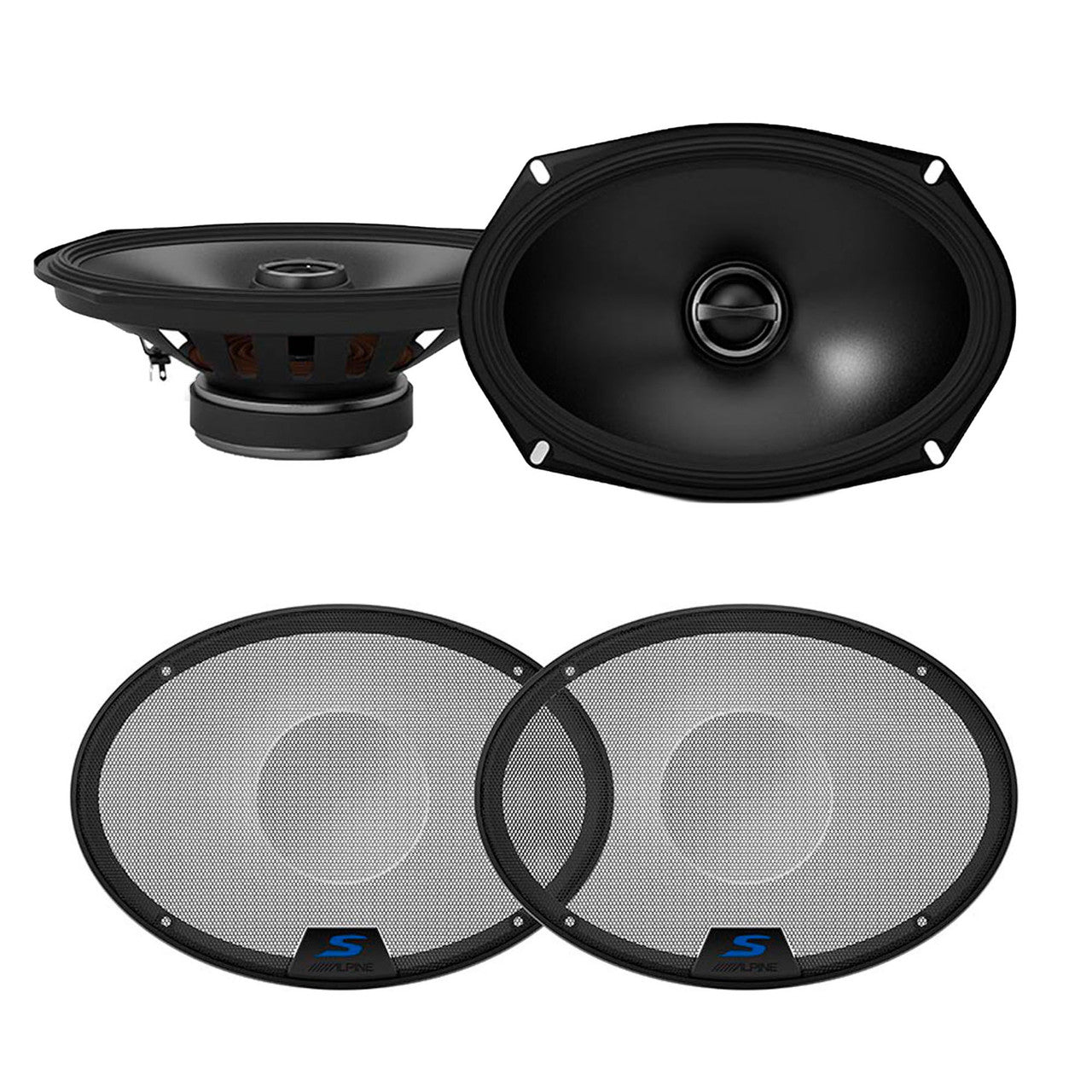

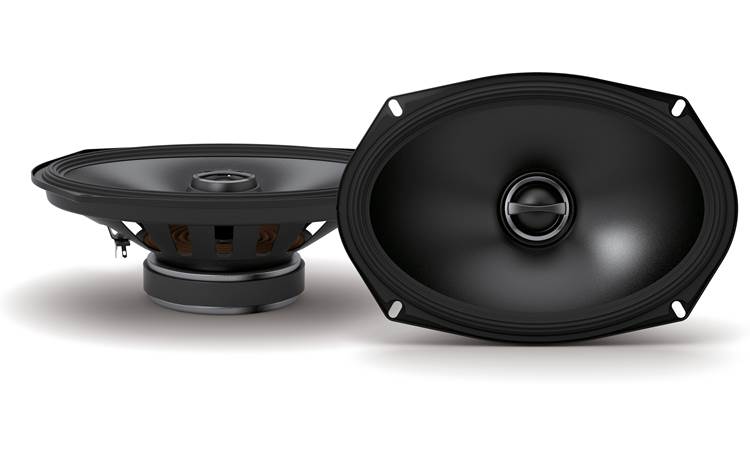

Alpine S-S69 6x9" Car Speaker 520W Coaxial Car Speakers with KTE-S69G 6x9" Speaker Grills

by Alpine
Save 41%
Original Price $250.00
Current Price $147.95
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 11 left!

Notify me when back in stock

Alpine S-S69 520W Max (170W RMS) 6" x 9" Type S Series 2-Way Coaxial Car Speakers with KTE-S69G 6x9" Speaker Grills

FITS IN MOST COMMON APPLICATIONS

To meet the needs of the most common applications in speaker replacement today, we've introduced a 6x9-inch component set to offer newer domestic trucks and cars the ability to upgrade the sound quality of their vehicle. With its innovative technology, this component set makes it a simple solution to getting Alpine sound in many of these vehicles on the road today.

INCREASED DRIVING POWER AND CONTROL

The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. The edges are naturally weaker than the center on a standard, off-the-shelf oval cone due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are generally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during molding is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.

General Features:

  • 6" x 9" Type S Series 2-Way Coaxial Car Speakers
  • Power Handling: Peak: 520 watts per pair / 260 watts each
  • Power Handling: RMS: 170 watts per pair / 85 watts each
  • Recommended Power Range: 10 - 85 watts RMS per channel
  • Carbon Fiber Reinforced Plastic (CFRP) Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • 1" Silk Dome Tweeter
  • Rubber magnet boot cover
  • CEA-2031 compliant speakers
  • 35mm Voice Coil
  • Top-mount Depth: 2-15/16"
  • Cutout Dimensions: 5-29/32" x 8-3/4"
  • 4 ohms Impedance
  • Frequency Response: 65 - 22000 Hz
  • Sensitivity: 90dB
  • Compatible with the Alpine KTE-S69G Grille
  • Authorized Dealer
  • 1-year Manufacturer's Warranty

What is in the S-S69 package:

  • S-S69 owner's manual
  • Two 2-way speakers
  • 2 Bottom mount brackets
  • Two 12" Lengths of speaker wire
  • Eight 1-3/16" Screws
  • Eight M4x60mm Machine screws
  • Eight M4 Nuts
  • 8 Speed clips
  • 16 Flat washers
  • 8 Split lock washers
  • 8 Spacers
  • Warranty information
  • Online product registration information
  • Important Notice sheet
  • Template and specs on the box
