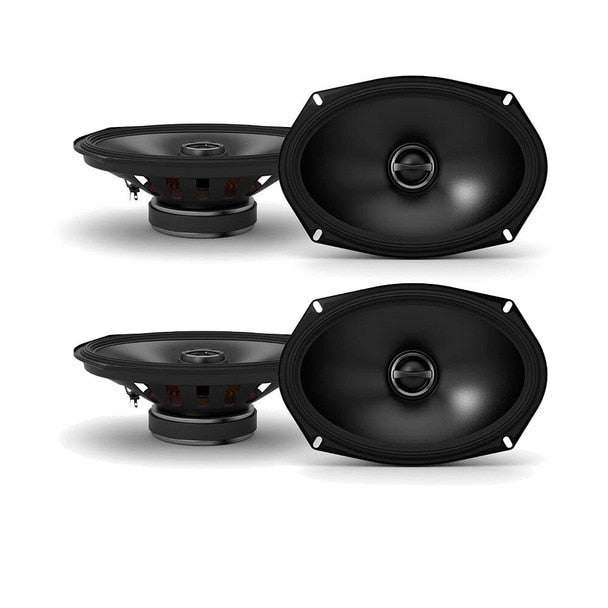

Alpine S-S69 6x9" Speaker Bundle - Two Pairs of 6x9" S-Series S-S69 2-Way Coaxial Speakers

by Alpine
Save 29%
Original Price $349.99
Current Price $246.90
Availability: Translation missing: en.general.icons.icon_check_circle icon 50 in stock, ready to be shipped

Notify me when back in stock

2 Alpine S-S69 520W Max (170W RMS) 6" x 9" Type S Series 2-Way Coaxial Car Speakers


To meet the needs of the most common applications in speaker replacement today, we've introduced a new 6x9-inch component set to offer newer domestic trucks and cars the ability to upgrade the sound quality in their vehicle. This component set with its innovative technology makes it a simple solution to getting Alpine sound in many of these vehicles on the road today


The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are generally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.

General Features:

  • 6" x 9" Type S Series 2-Way Coaxial Car Speakers
  • Power Handling:
    • Peak: 520 watts per pair / 260 watts each
    • RMS: 170 watts per pair / 85 watts each
  • Recommended Power Range: 10 - 85 watts RMS per channel
  • Carbon Fiber Reinforced Plastic (CFRP) Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • 1" Silk Dome Tweeter
  • Rubber magnet boot cover
  • CEA-2031 compliant speakers
  • 35mm Voice Coil
  • Top-mount Depth: 2-15/16"
  • Cutout Dimensions: 5-29/32" x 8-3/4"
  • 4 ohms Impedance
  • Frequency Response: 65 - 22000 Hz
  • Sensitivity: 90dB
  • Compatible with the Alpine KTE-S69G Grille
  • Authorized Dealer
  • 1-year Manufacturer's Warranty

What is in the S-S69 package:

  • Two 2-way speakers
  • 2 Bottom mount brackets
  • Two 12" Lengths of speaker wire
  • Eight 1-3/16" Screws
  • Eight M4x60mm Machine screws
  • Eight M4 Nuts
  • 8 Speed clips
  • 16 Flat washers
  • 8 Split lock washers
  • Warranty information
  • Online product registration information
  • Template and specs on the box
  • S-S69 owner's manual
