Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-200M Power Stack Amplifier

by Alpine
$599.90
Availability: Translation missing: en.general.icons.icon_check_circle icon 331 in stock, ready to be shipped

Notify me when back in stock

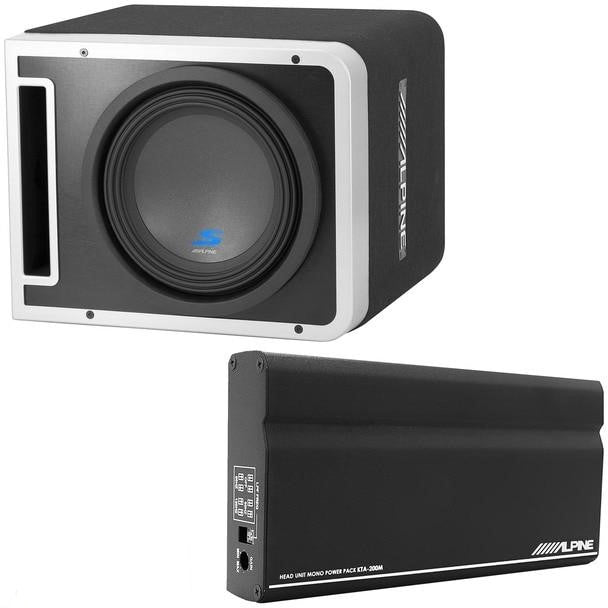

Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-200M Amplifier
Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-200M Amplifier - This bundle includes an Alpine S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure, an Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier

Alpine S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure
Alpine Electronics of America, Inc. introduced a new sound system lineup for the Halo category that includes a 10-inch enclosure and remote bass knob. The enclosures are pre-loaded with S-Series and R-Series subwoofers.

This sound system was designed to complement the Halo display in both power and performance for a premium sound experience. With the new modular design, customers can enjoy a single box design but have a flexible upgrade path. A single box can be used, or two enclosures can be linked together with an optional kit to create a dual sub enclosure.

Enclosure Stacking Features

Unique to Alpine, the subwoofer 10-inch is available in a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.

Optimized Performance

The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction, and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz is tuned to 35 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.

General Features:
  • S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure
  • Includes S-W10D4 wired in parallel
  • 600W RMS power handling
  • 2Ω Impedance Ported enclosure design
  • Frequency response: 28-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D

What is in the S-SB10V box:

  • Ported enclosure loaded with one S-W10D4 subwoofer driver
  • Rubber flange protector (installed on the subwoofer)

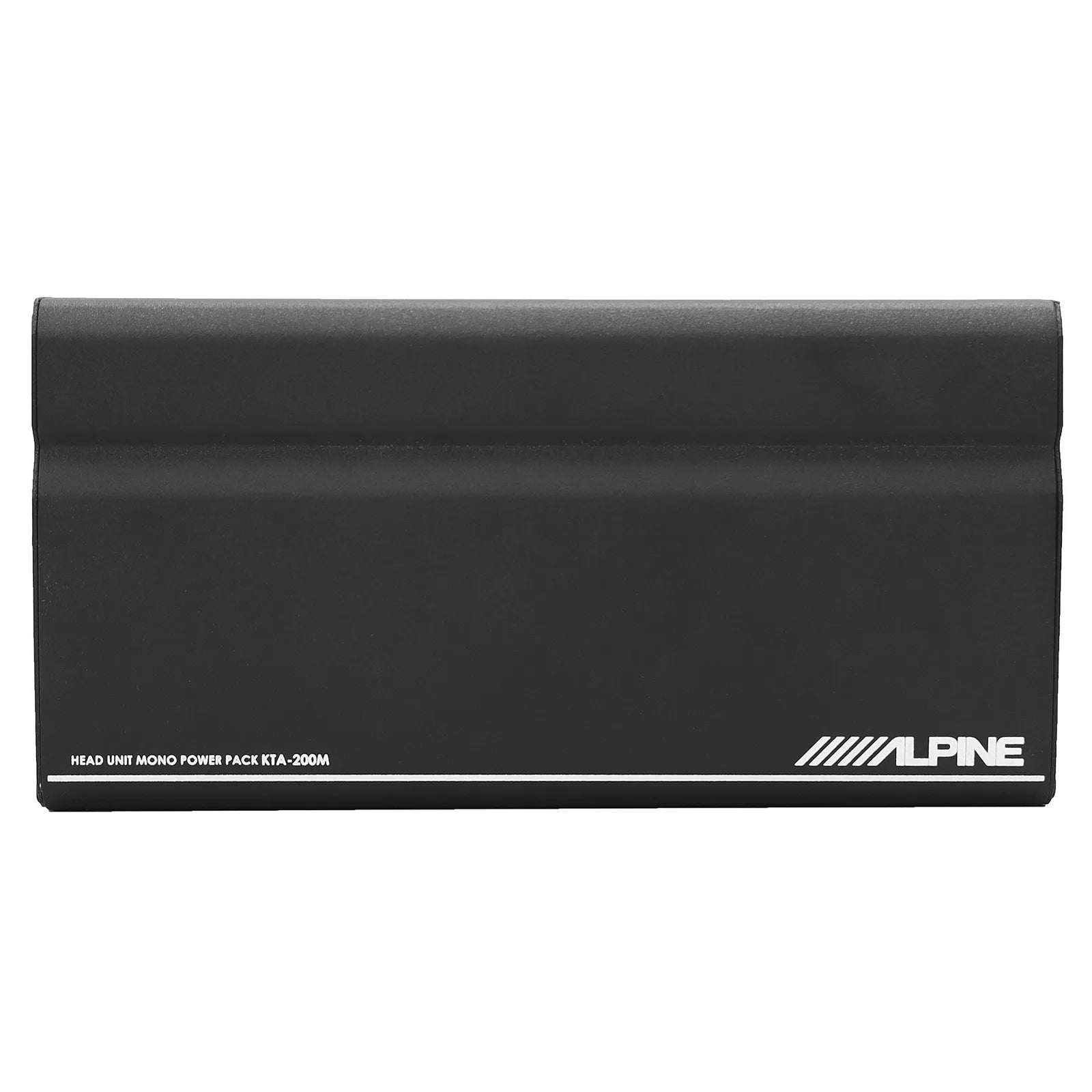

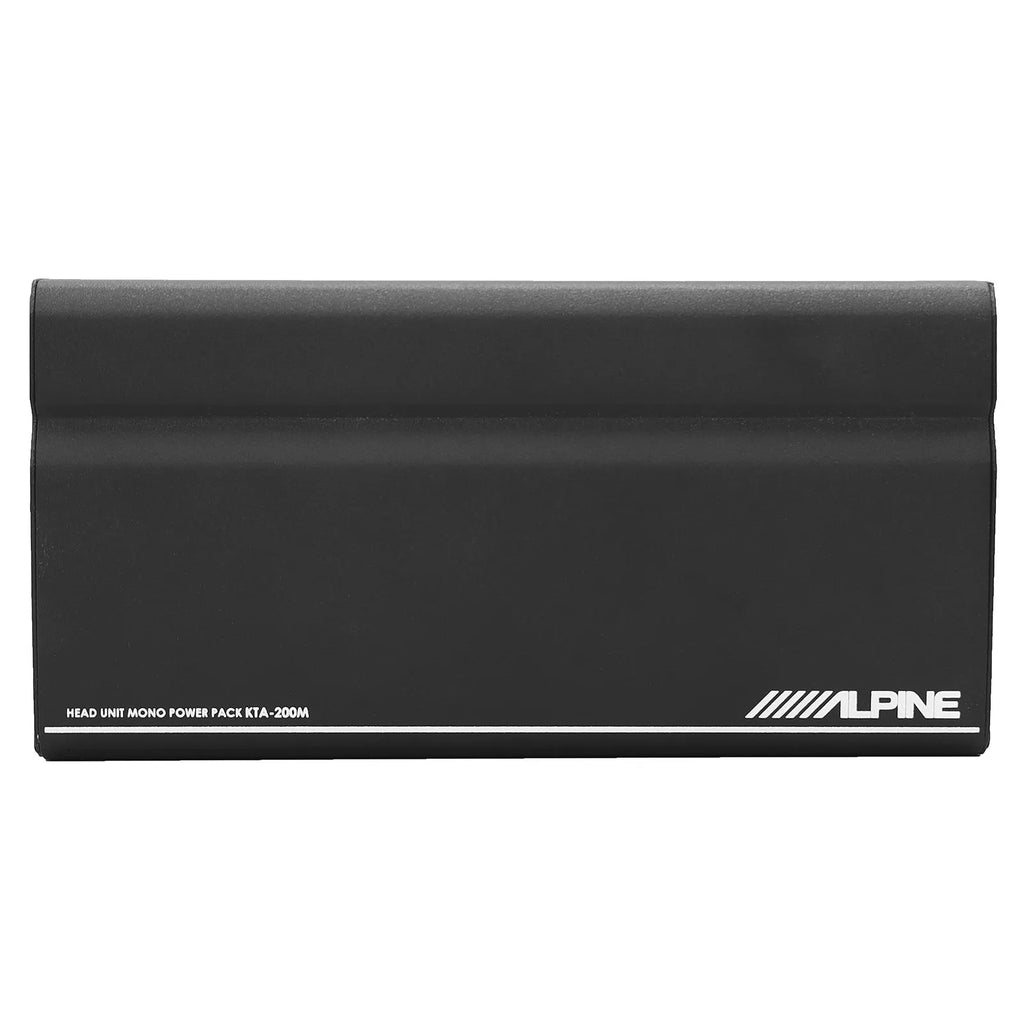

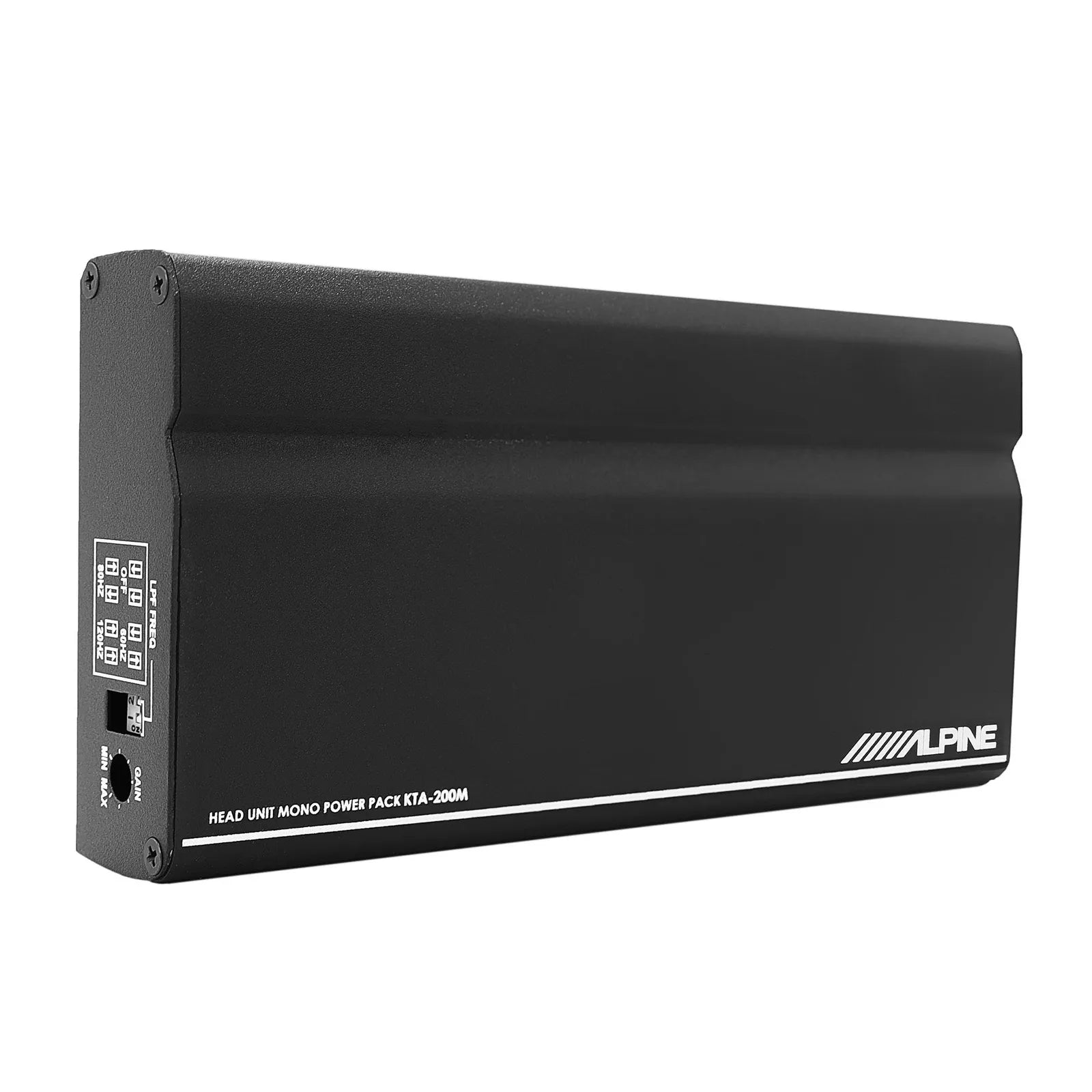

Alpine KTA-200M Compact 200 watts RMS Class D Monoblock Power Pack Amplifier

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique Power Stack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space. The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier, in a compact size, easy installation, and overall power. Both amplifiers, while designed to “stack” behind the iLX-W650, or similar 2-DIN radio, can also be used as standalone solutions in vehicles that don’t have space for a traditional amplifier. the KTA-200M produces 400 watts with Alpine’s DPP technology. During powerful, or “dynamic,” passages of music, DPP will adapt to the needs of the music by adjusting the gain of the amplifier and delivering bursts of power that match the peak demands of the music. Alongside that is the new voltage adapting input circuit to maintain the maximum source signal level without clipping.

General Features:

  • Power Stack capable with the Alpine iLX-W650
  • compact mono subwoofer amplifier
  • Alpine’s Class D Amplifier Circuit with DPP
  • Dynamic Peak Power (DPP) technology adds a burst of power when needed
  • CTA-2006 compliant
  • 100W x 1 RMS @ 4Ω, Power Outputs
  • 200W x 1 RMS @ 2Ω, Power Outputs
  • 400W x 1 DPP @ 4Ω, Power Outputs
  • Signal to Noise Ratio 85dB (ref. 1W into 4Ω)
  • ≤0.1% THD+N (ref. 10W into 2Ω)
  • Single-side 22-pin connector

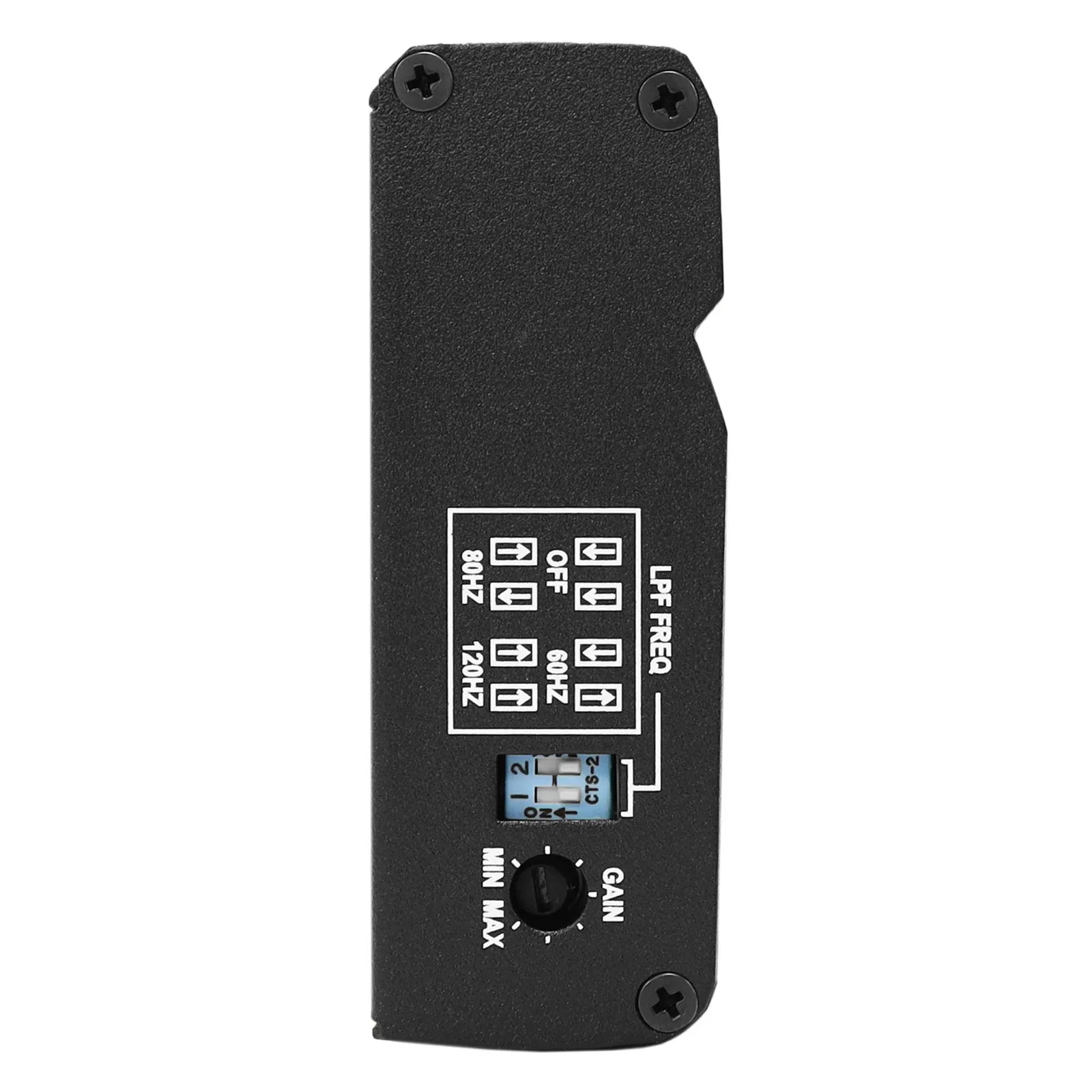

  • selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
  • preamp and speaker-level inputs
  • RCA inputs (selectable, Low range=0.2-4V)
  • Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
  • wiring, hardware, and fuse not included with amplifier
  • Power Stack bracket included for mounting amp behind Alpine iLX-W650 digital multimedia receiver
  • Authorized Dealer
  • 1-year Warranty

What is in the KTA-200M box:

  • Mono amplifier
  • 12" Input/Output/Power harness
  • 1 Head unit (iLX-W650) mounting bracket
  • 2 Universal mounting brackets
  • Four M5x6mm Allen head machine screws (3mm)
  • Two M2.6x8mm Machine screws
  • Four 3/8" Screws
  • Four 8" Zip Ties
  • Owner's Manual (English/ French/ Spanish)
  • Warranty information
  • Online product registration information
  • FCC Compliance Statement
  • KTA-200M Owner's Manual
