Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-30MW Mono and KTA-30FW 4-Channel Weather Resistant Amplifiers

by Alpine
Save 20%
Original Price $1,500.00
Current Price $1,199.85
Availability: Translation missing: en.general.icons.icon_check_circle icon 50 in stock, ready to be shipped

Notify me when back in stock

Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-30MW Mono and KTA-30FW 4-Channel Weather-Resistant Amplifiers

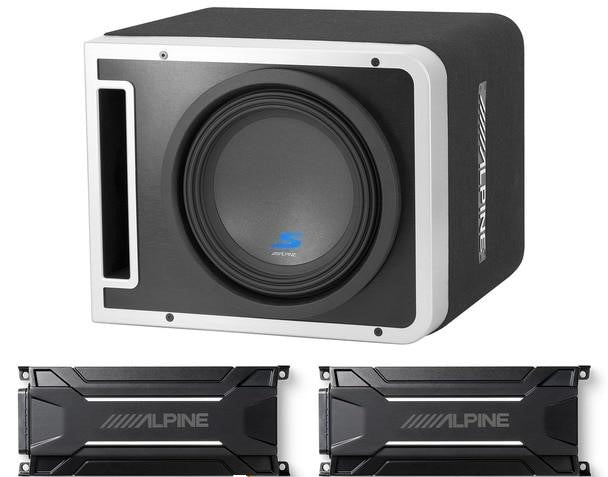

Alpine S-SB10V 10" Vented Loaded Halo Enclosure with Alpine KTA-30MW Mono and KTA-30FW 4-Channel Weather-Resistant Amplifiers - This bundle includes an Alpine S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure, an Alpine KTA-30MW Mono Tough Power Pack Amplifier 200 RMS x 1 at 4-Ohms / 300 RMS x 1 at 2-Ohms, an Alpine KTA-30FW 4-Channel Weather Resistant Tough Power Pack Amplifier, a pry kit, and an Alpine cozy.

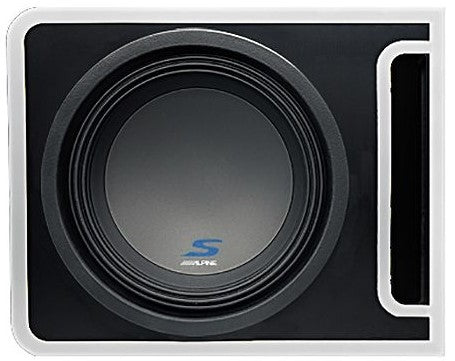

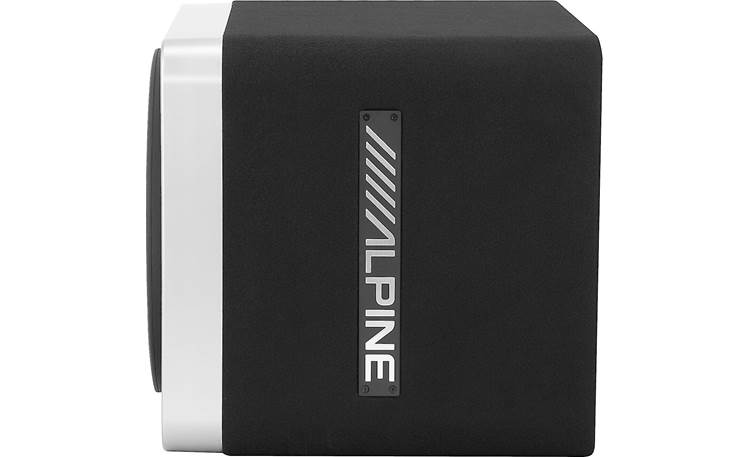

Alpine S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure
Includes S-W10D4 wired in parallel
600W RMS power handling
2 Impedance
Ported enclosure design
Frequency response: 28-200 Hz
Vented enclosure tuning frequency: 36 Hz
Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D

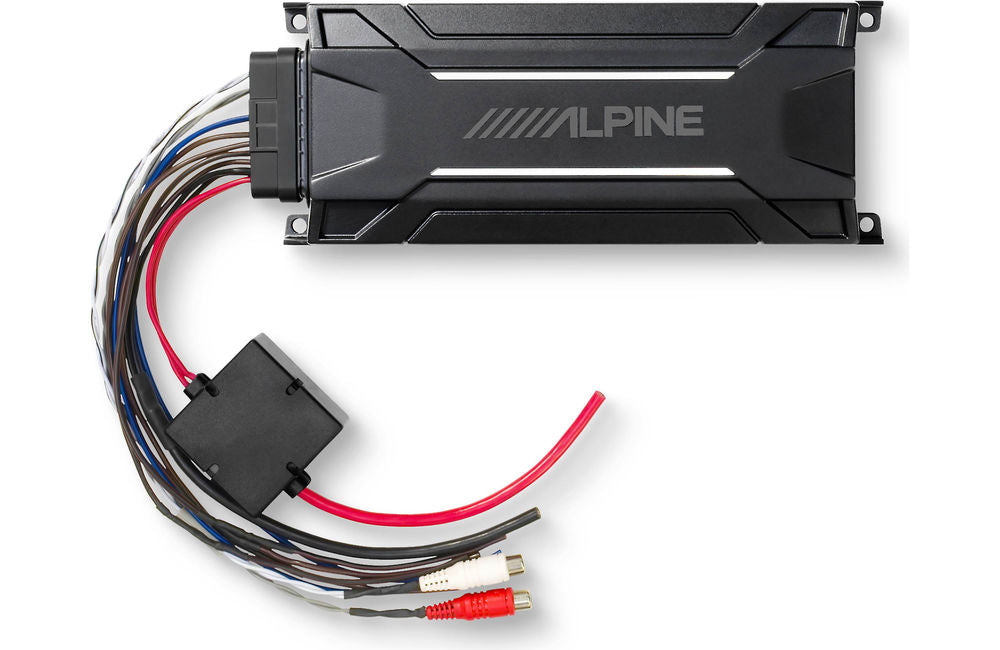

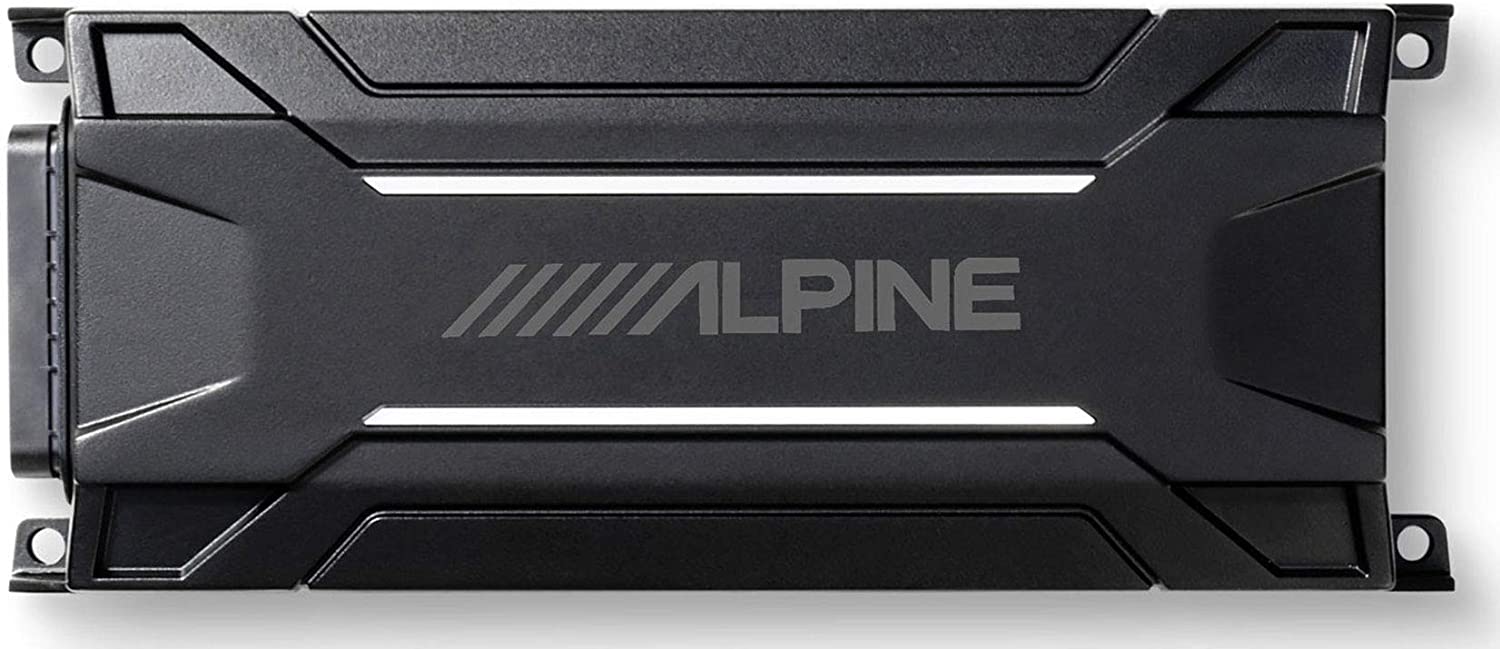

Alpine KTA-30MW Mono Tough Power Pack Amplifier 200 RMS x 1 at 4-Ohms / 300 RMS x 1 at 2-Ohms
Specifications:
Alpine's Class D amplifier circuit with Dynamic Peak Power (D.P.P.)
Weather resistant (IP66 rating)
300W x 1 D.P.P. (2, 14.4V, 1% THD+N)
CTA-2006-B Specifications: 200W RMS x 1 (4, 14.4V, 1% THD+N)
82dB S/N (ref. 1W into 4)
>0.05% THD
OEM-grade Tyco 26-pin connector with pigtail wire harness
Speaker/RCA inputs (Selectable, High range=0.5-10V, Low range=0.2-4V)

Sound control:
Crossovers: Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable)
Input gain settings (variable)
2ch input

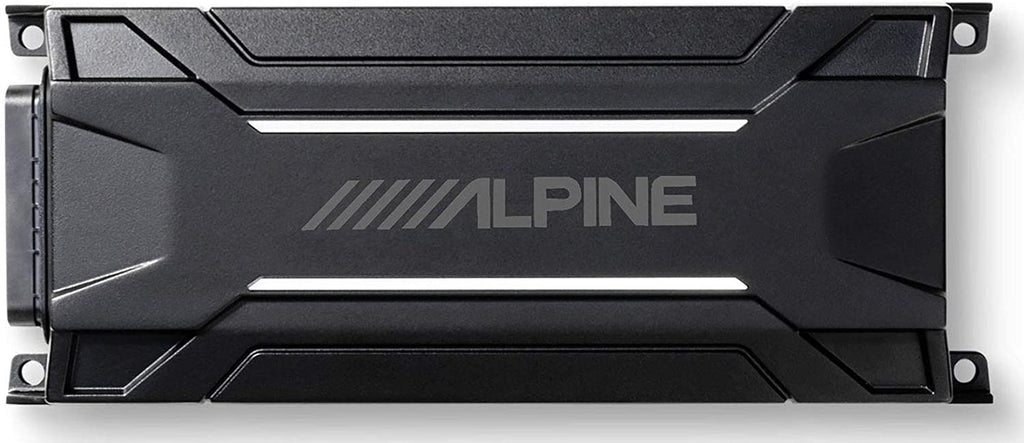

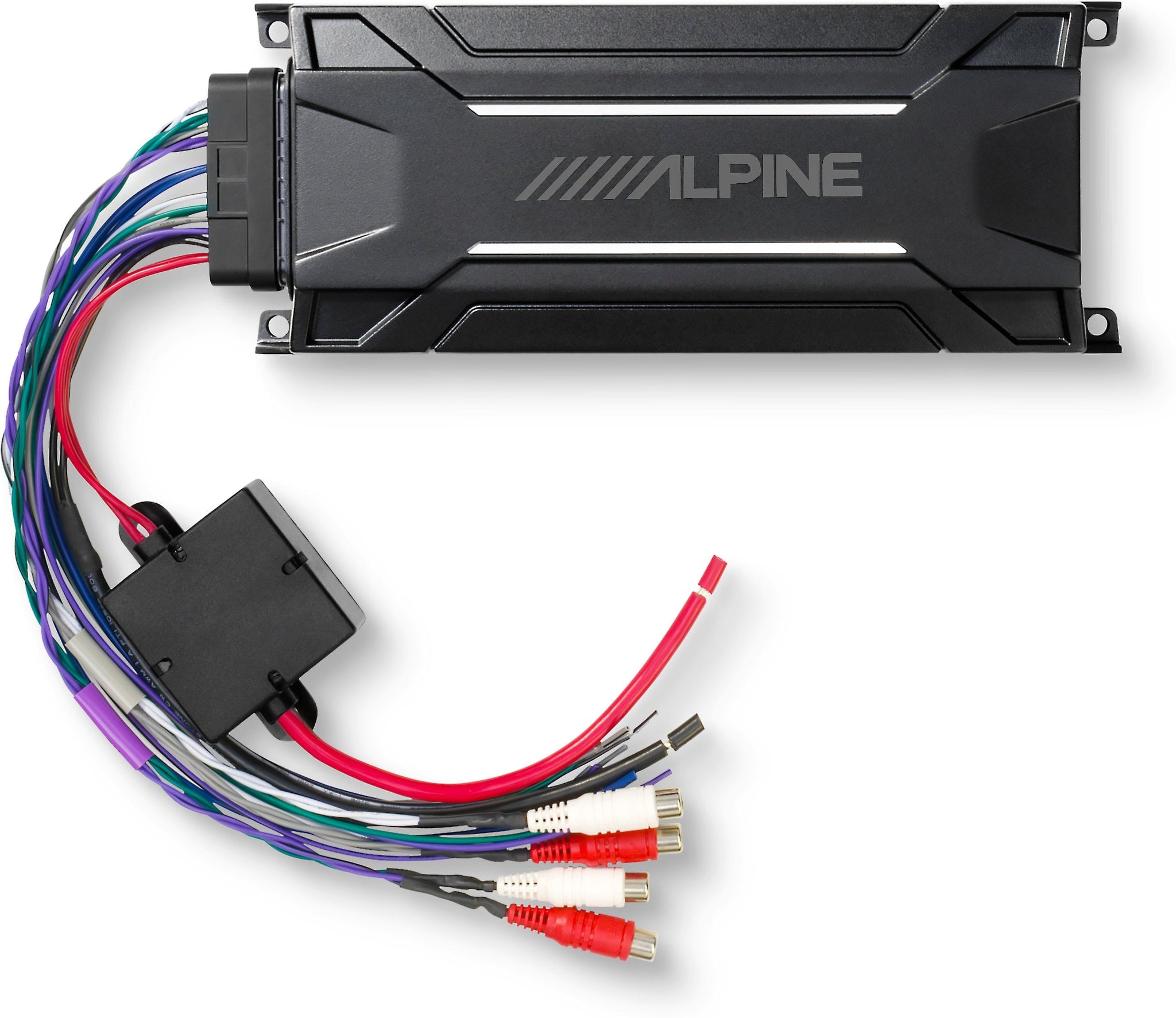

Alpine KTA-30FW 4-Channel Weather Resistant Tough Power Pack Amplifier
Specifications:
Alpine's Class D amplifier circuit with Dynamic Peak Power (D.P.P.)
Weather resistant (IP66 rating)
150W x 4 D.P.P. (2/4, 14.4V, 1% THD+N)
CTA-2006-B Specifications: 75W RMS x 4 (2/4, 14.4V, 1% THD+N)
82dB S/N (ref. 1W into 4)
>0.05% THD

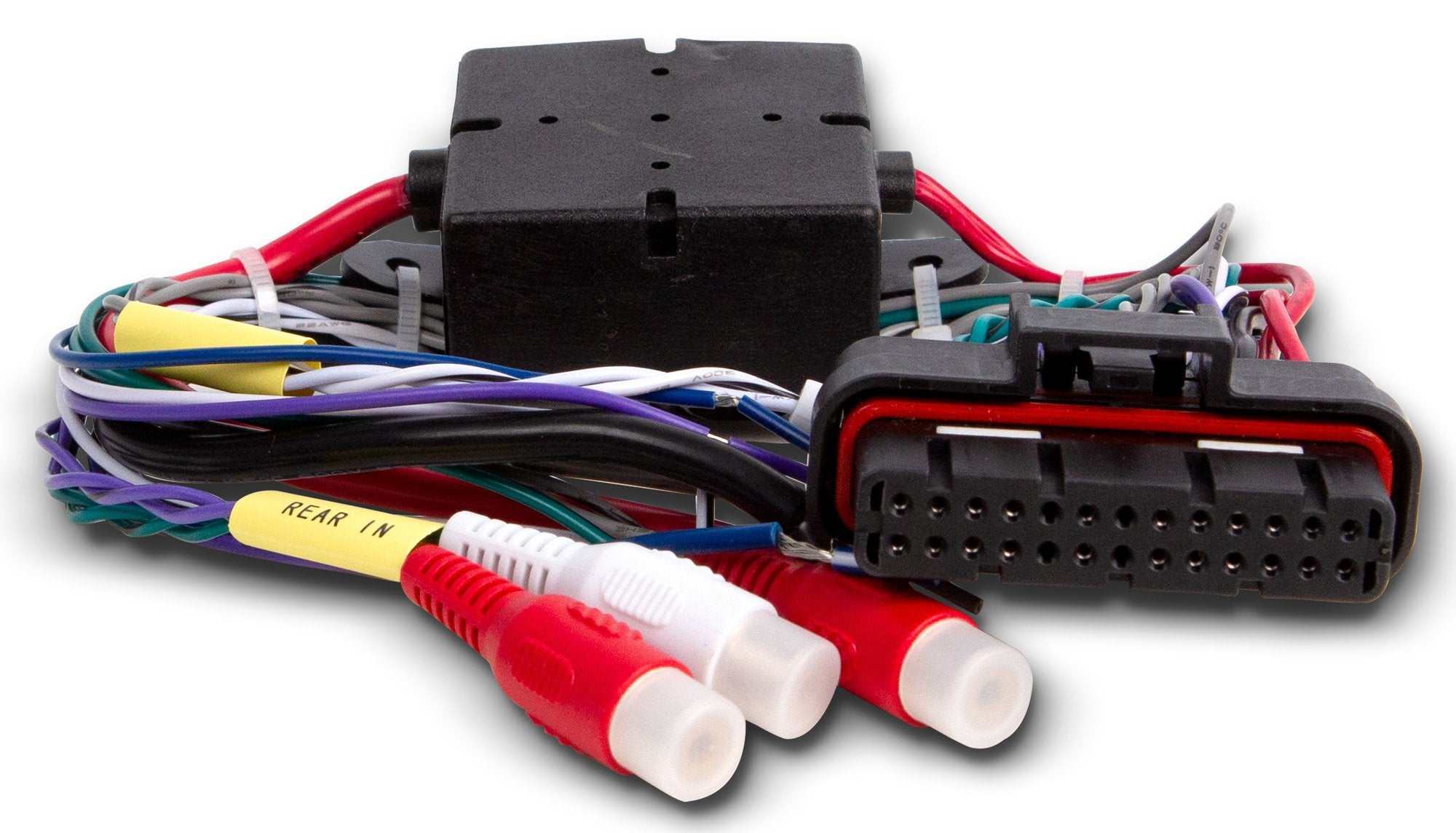

OEM-grade Tyco 26-pin connector with pigtail wire harness
Speaker/RCA inputs (Selectable, High range=0.5-10V, Low range=0.2-4V)
