Alpine S-SB10V-PWR Halo 10" Bass Package Includes S-SB10V linkable 10" ported sub enclosure and KTA-200M compact 200-watt mono amplifier

by Alpine
Sold out
Original Price $899.89
Current Price $579.90
Availability: translation missing: en.general.icons.icon_check_circle icon Out of stock

Notify me when back in stock

Alpine S-SB10V-PWR Halo 10" Bass Package Includes S-SB10V linkable 10" ported sub enclosure and KTA-200M compact 200-watt mono amplifier

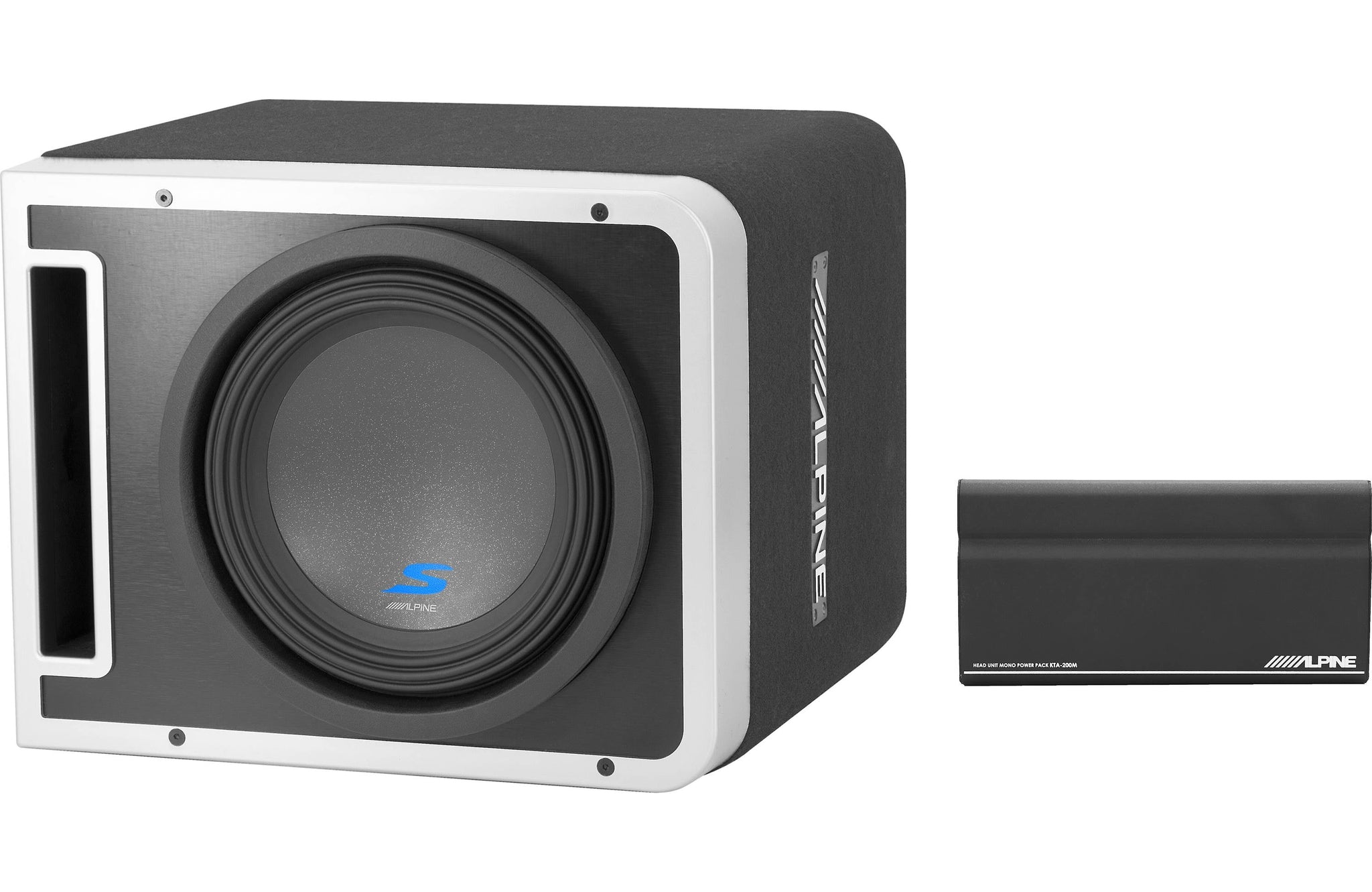

Lively up your bass with this Alpine package

Alpine combined two of their most forward-thinking products for this S-SB10V-PWR bass package: the KTA-200M power pack subwoofer amplifier and the S-SBV10 Halo Series 10" loaded ported sub enclosure. You get a propulsive pairing that'll fill your ride with the vibrant thump only solid bass can provide.

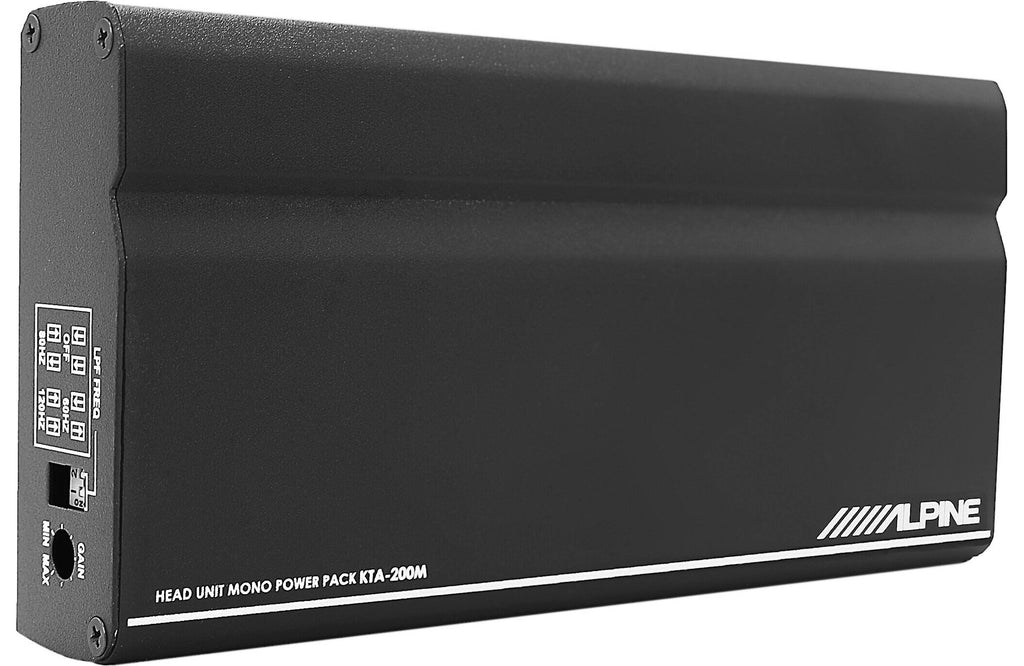

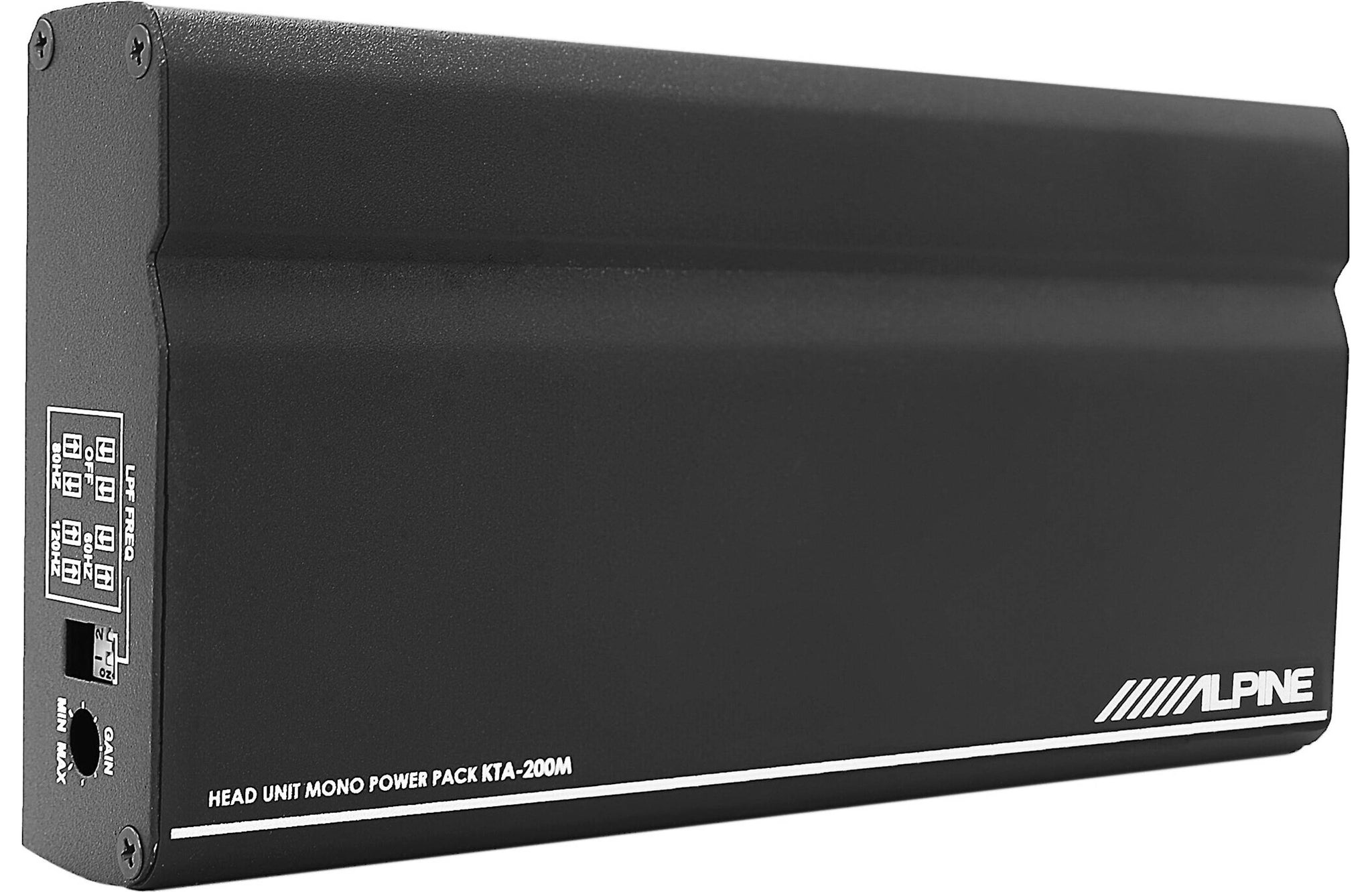

Kicking compact amp

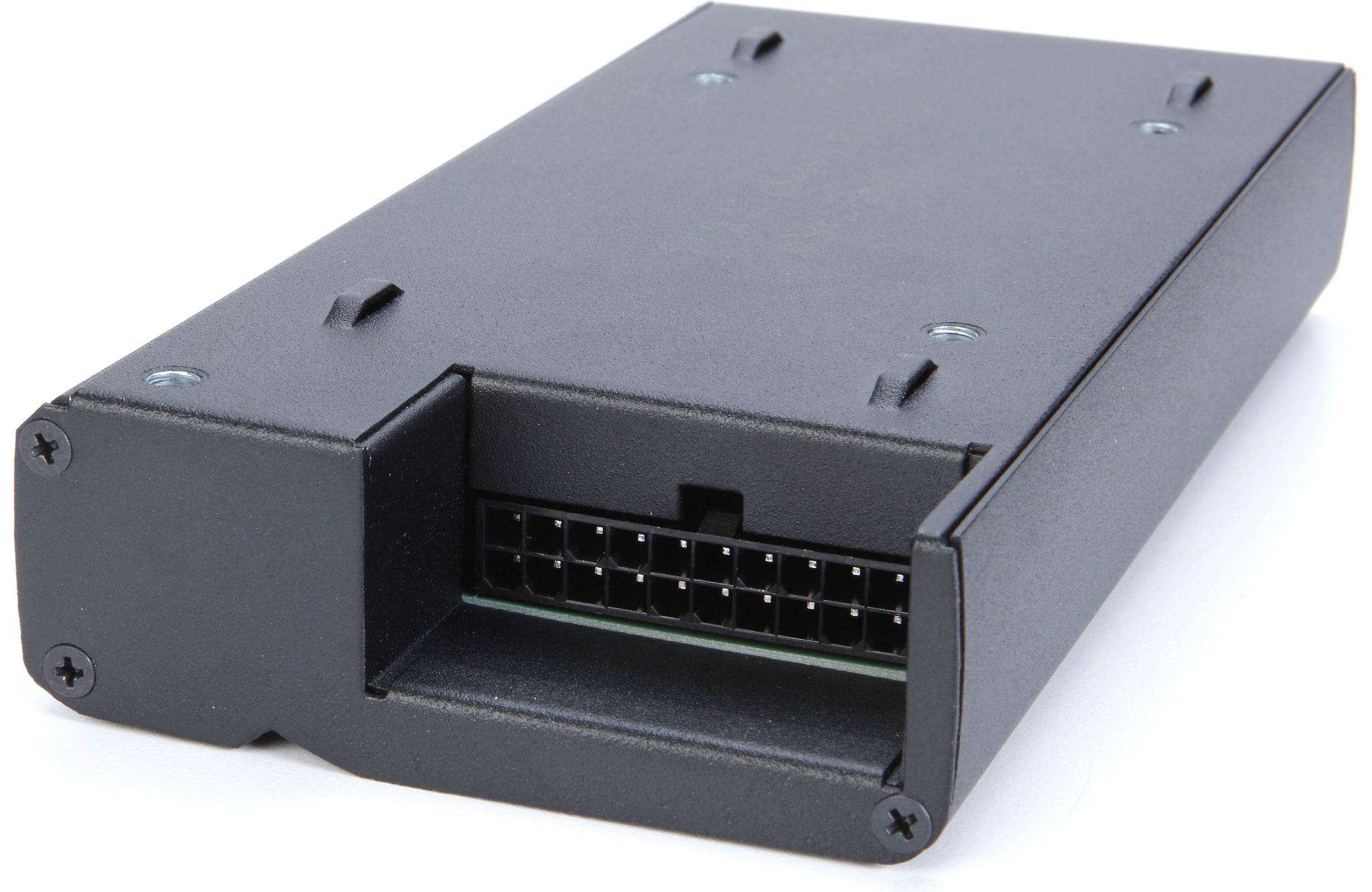

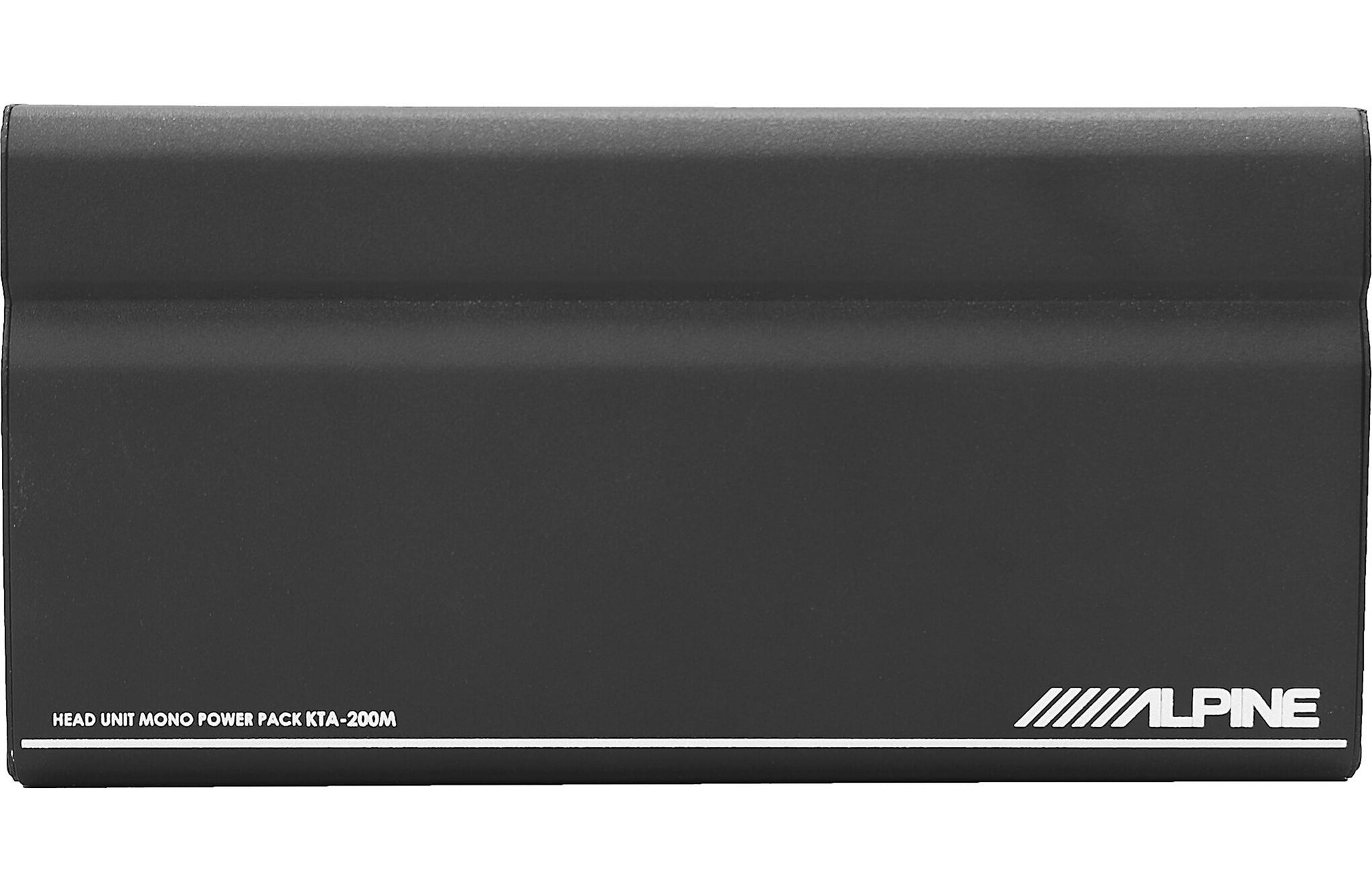

Alpine's KTA-200M power pack subwoofer amplifier sends out up to 200 watts RMS to the sub from a chassis about the size of your hand. The amp uses Alpine's Dynamic Peak Power (DPP) technology to deliver a quick energy boost when needed, virtually doubling the amplifier's output power on musical peaks.

PowerStack Installation

The KTA-200M includes a PowerStack bracket for mounting the amp in your dash behind Alpine's shallow chassis iLX-W650 digital multimedia receiver. The combined depth of receiver and amp is still less than 5", so it'll fit in a wide variety of vehicles. The receiver and sub amp together make a feature-filled and powerful sound system that you'll enjoy for many miles.

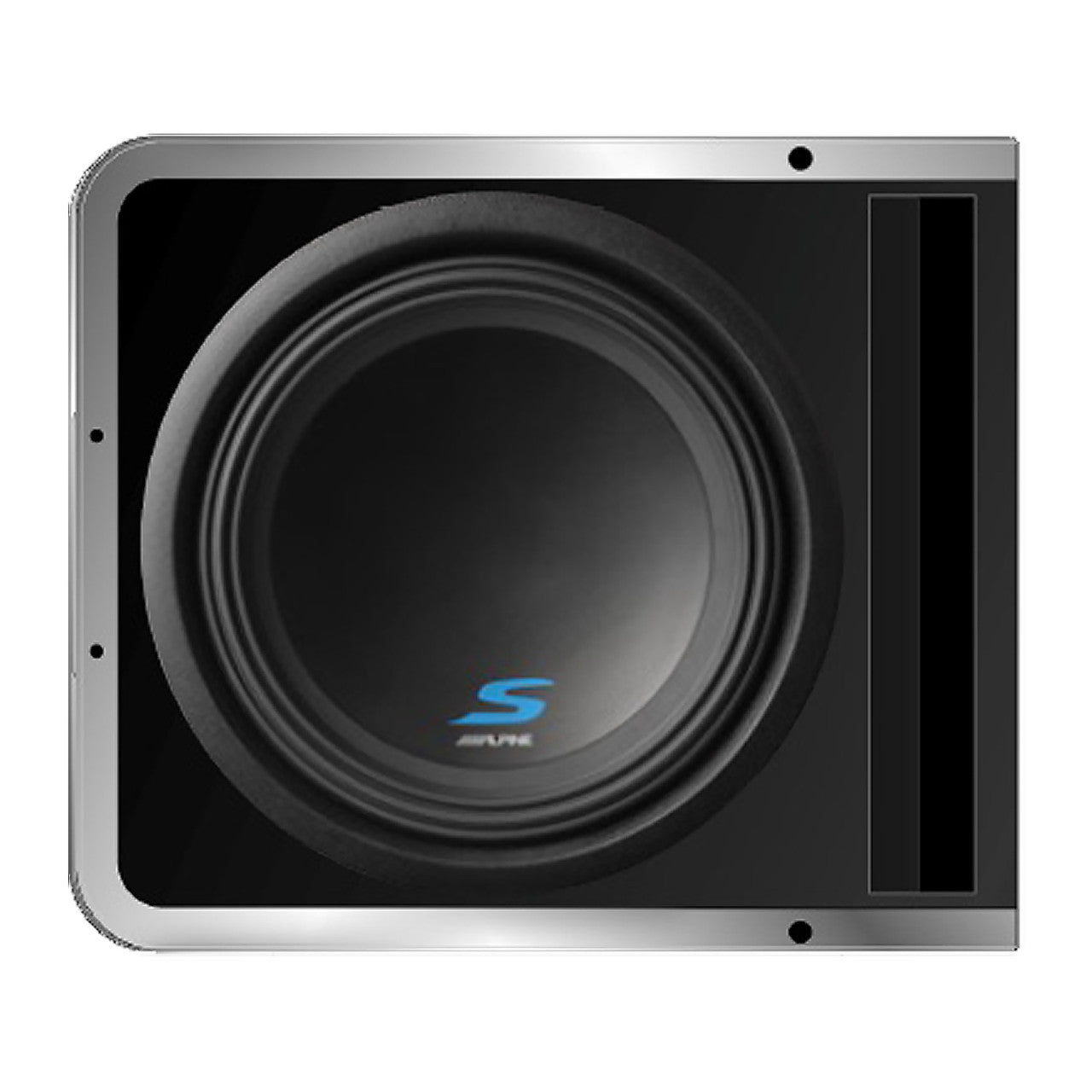

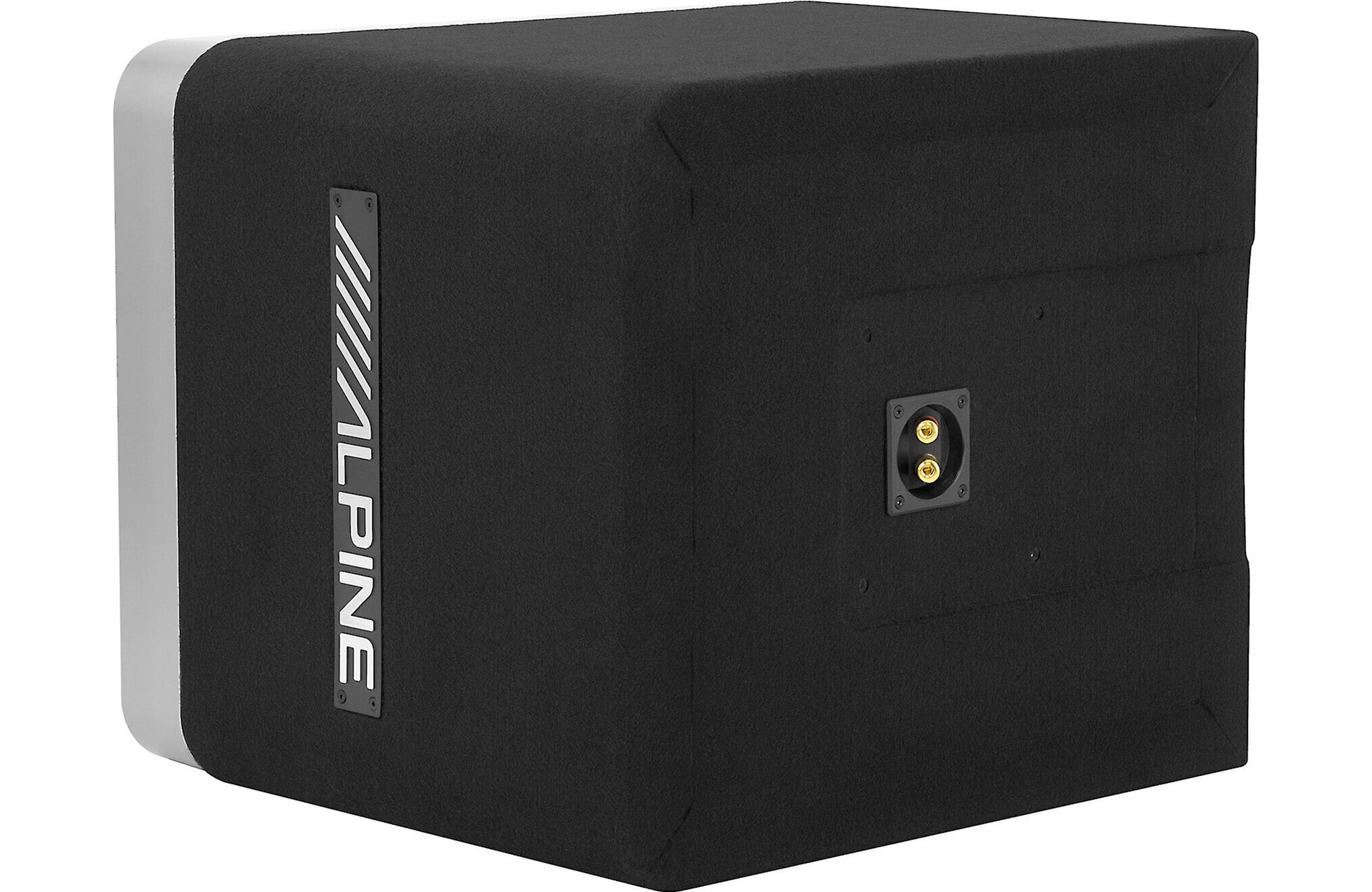

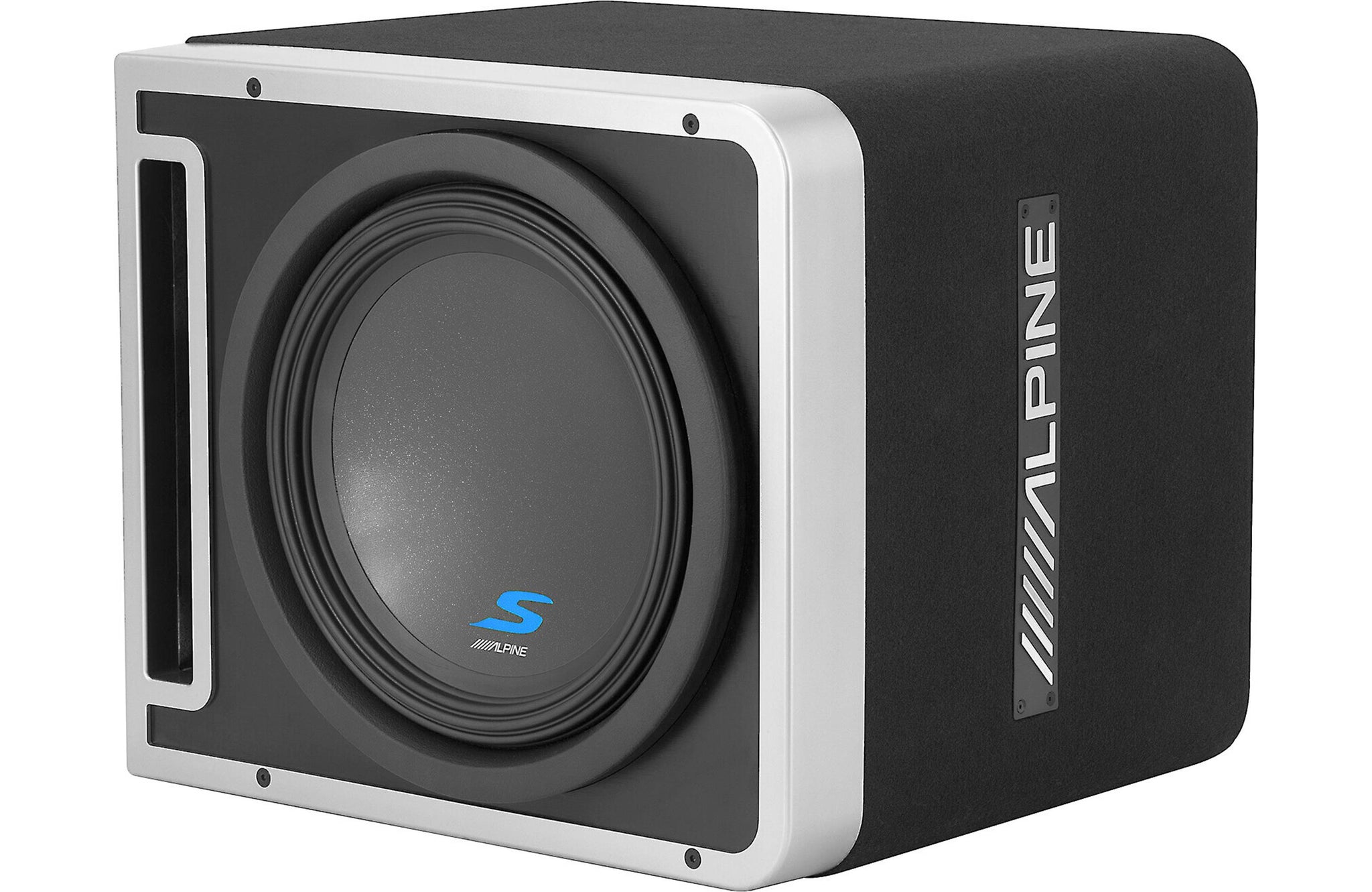

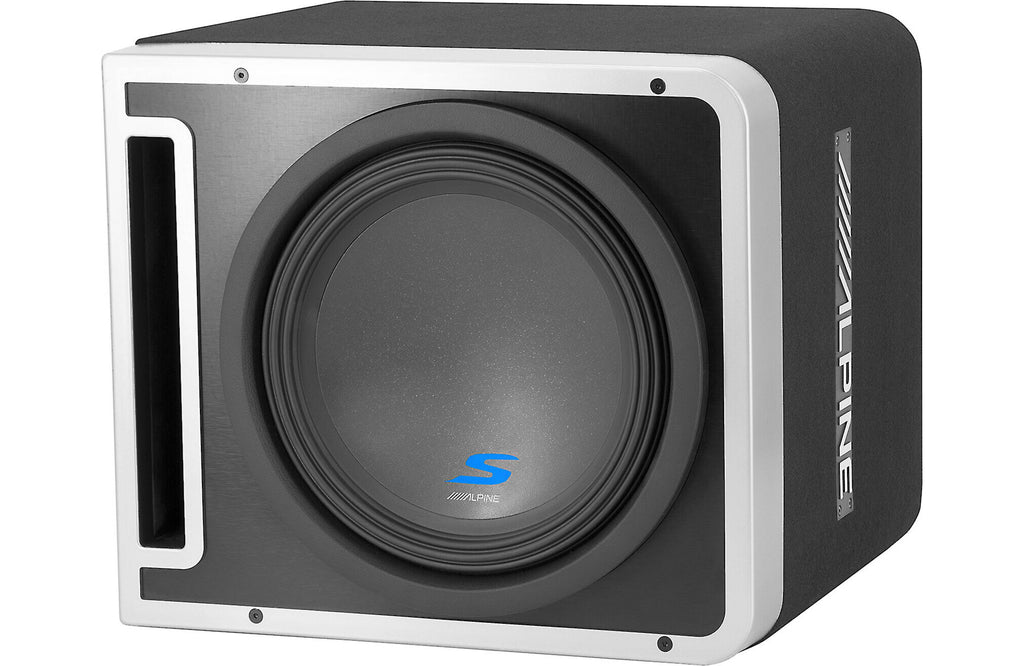

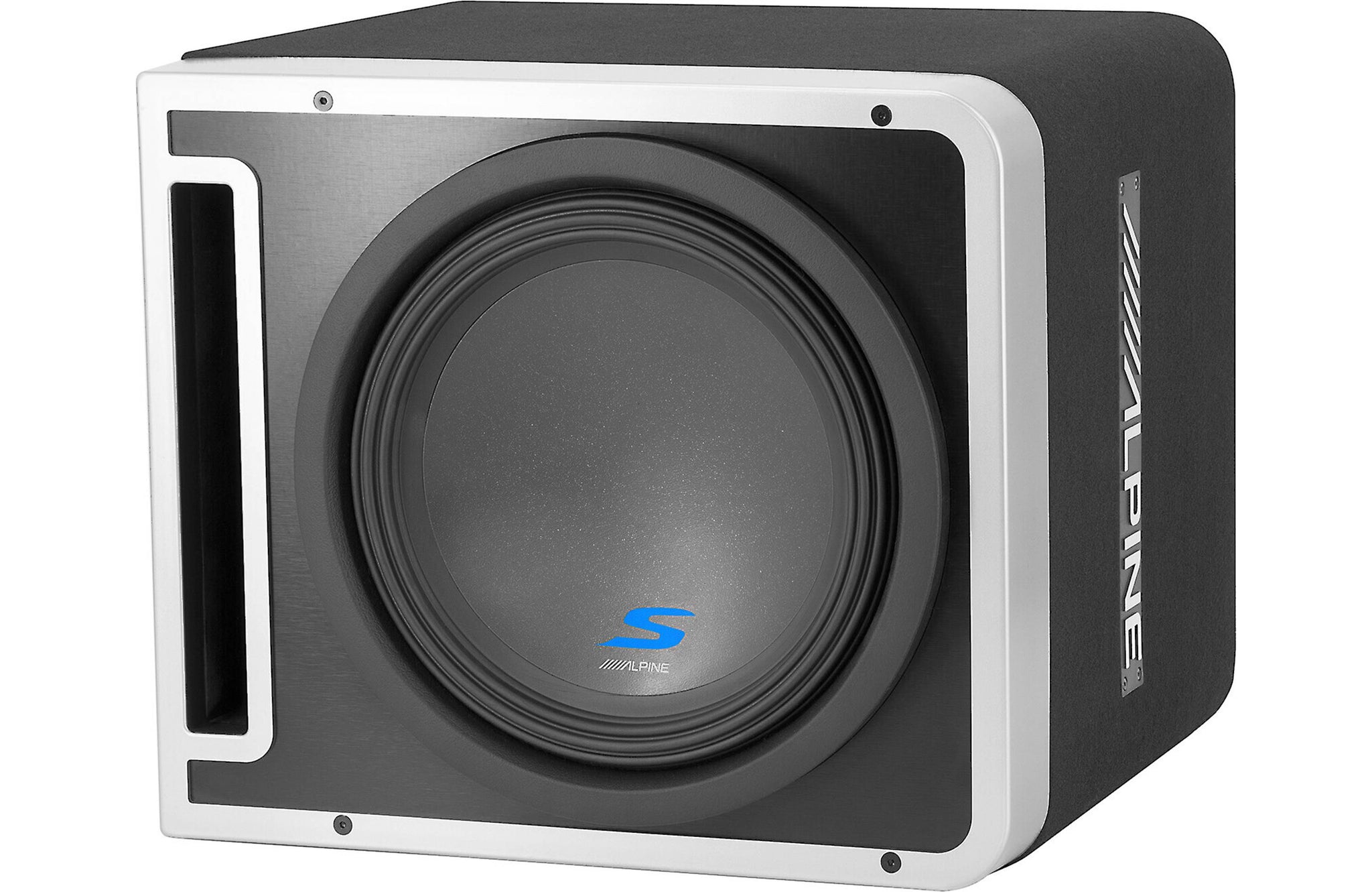

Rugged Halo Series box and 10" sub

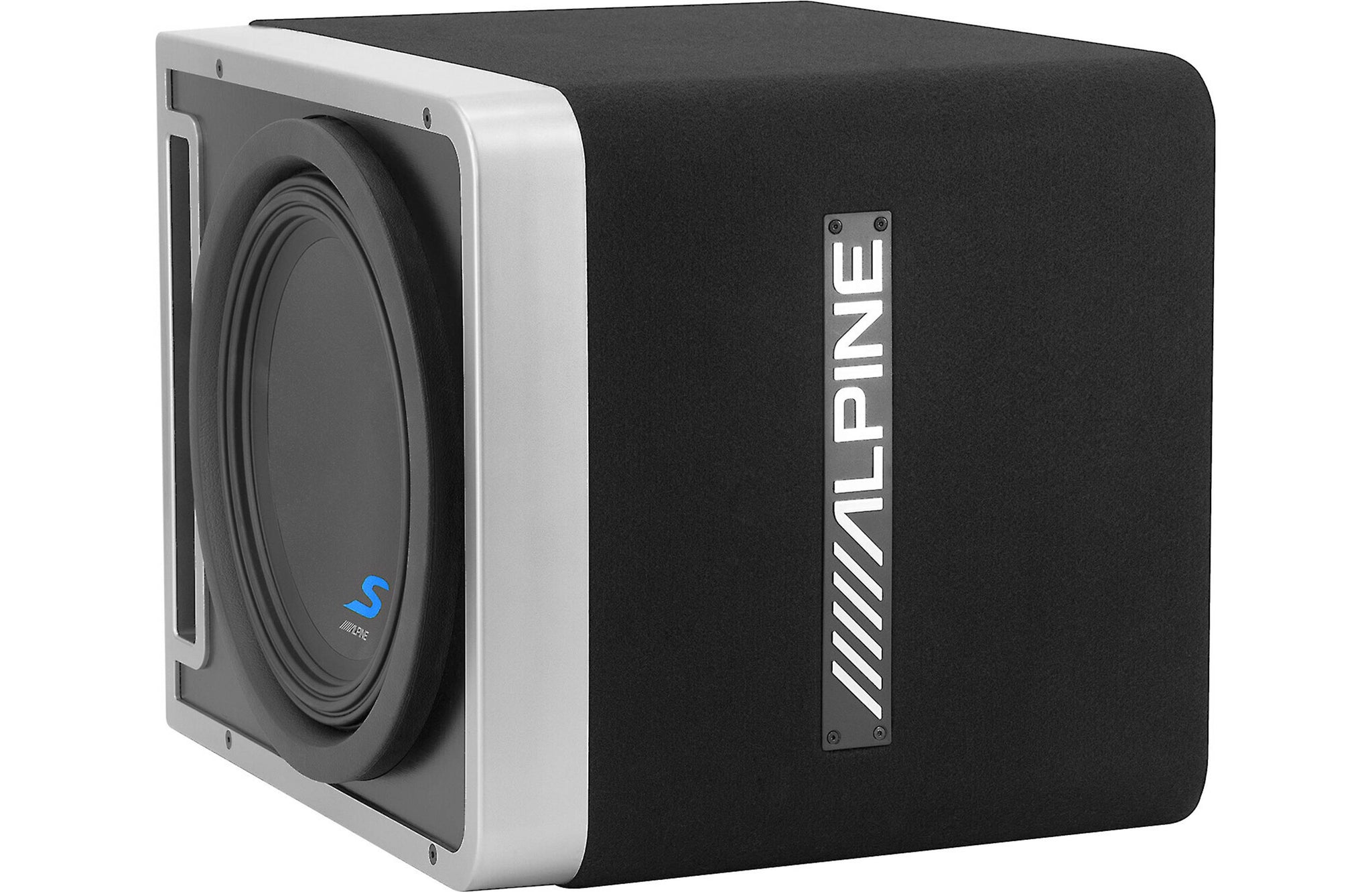

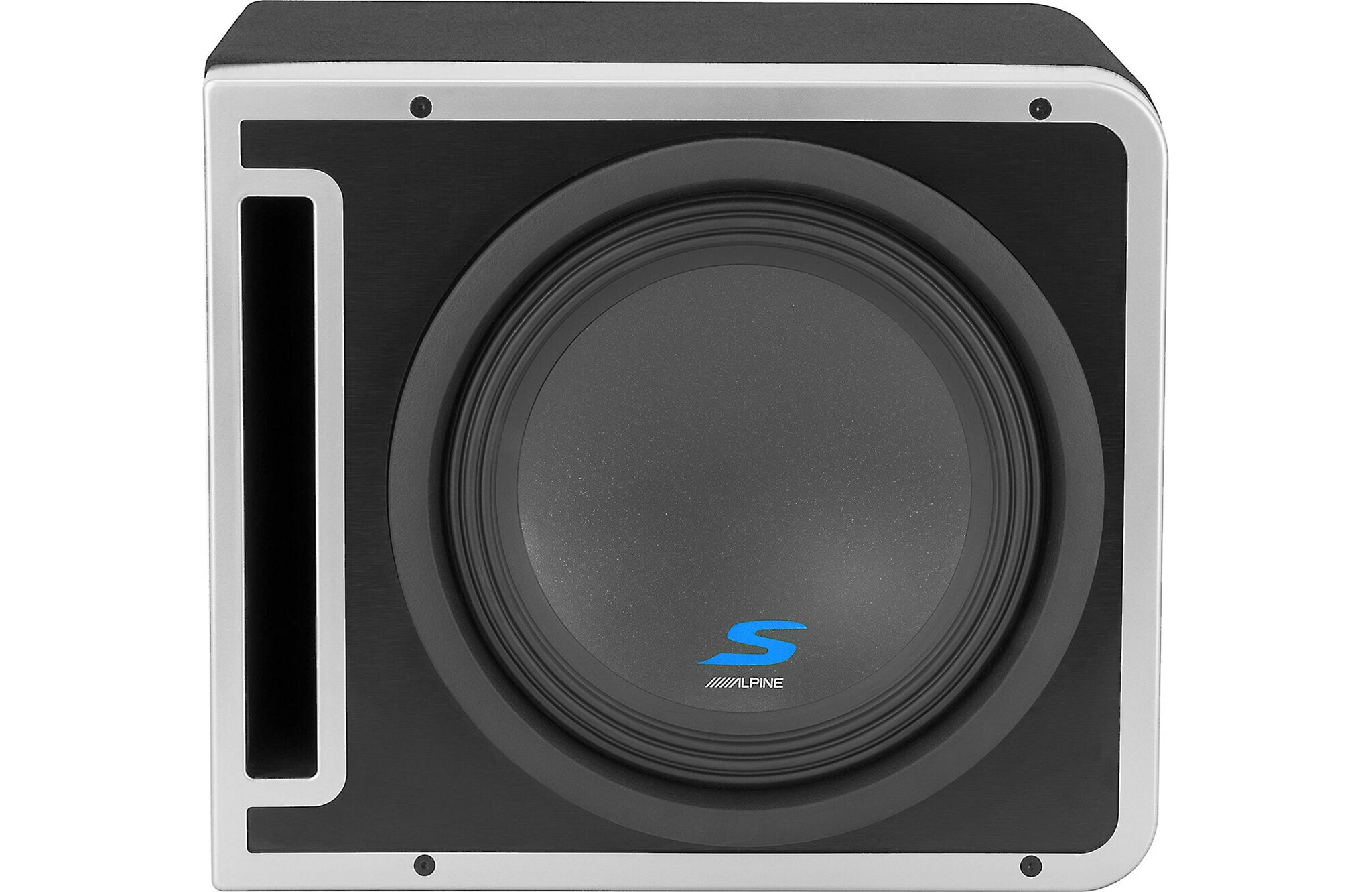

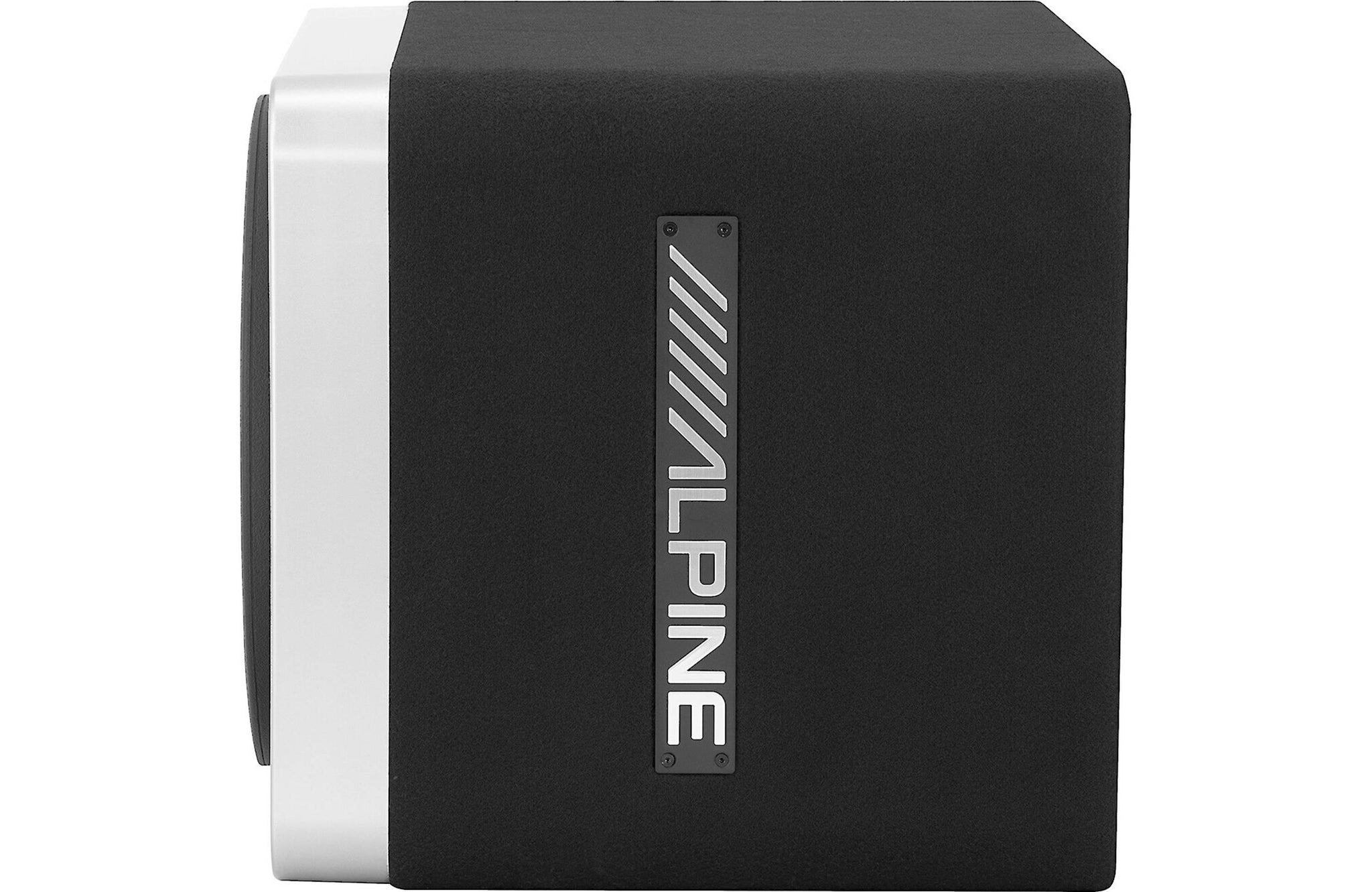

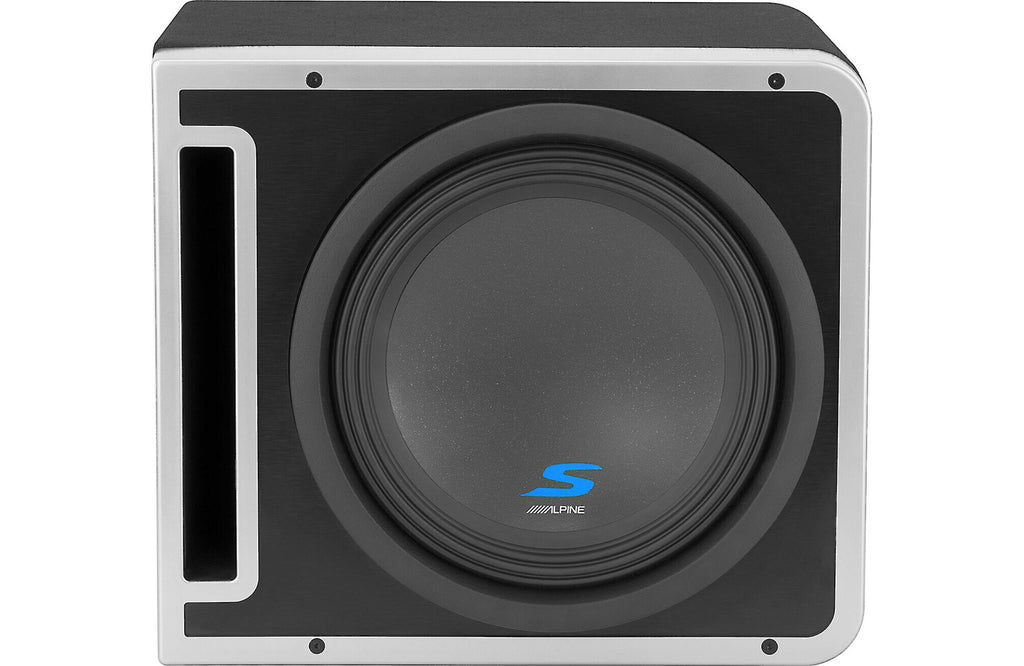

The S-SB10V comes loaded with Alpine's S-W10D4 subwoofer wired for 2-ohm impedance. The sub's Kevlar-reinforced cone and Santoprene surround give you solid bass response at power levels up to 600 watts RMS. The ported enclosure is tuned to 36 Hz to maximize performance.

Double the fun

This Halo Series sub enclosure sounds great on its own, but when you want to expand your system, you can add a second Halo bass package to create a single two-speaker system with twice the power and double the impact. You can link two S-SB10V boxes using Alpine's KTX-H10 linking kit (sold separately). Heavy-duty steel front and rear linking brackets connect the enclosures for a compact, sturdy dual-subwoofer solution. The silver linking brackets match the enclosure trim for a neat, coordinated look.

Product highlights:

  • package includes Alpine KTA-200M mono sub amp and S-SB10V ported enclosure with 10" subwoofer
KTA-200M 200-watt compact amplifier:
  • 200 watts RMS x 1 at 4 ohms or 2 ohms
  • CTA-2006 compliant
  • Dynamic Peak Power (DPP) technology adds a burst of power when needed

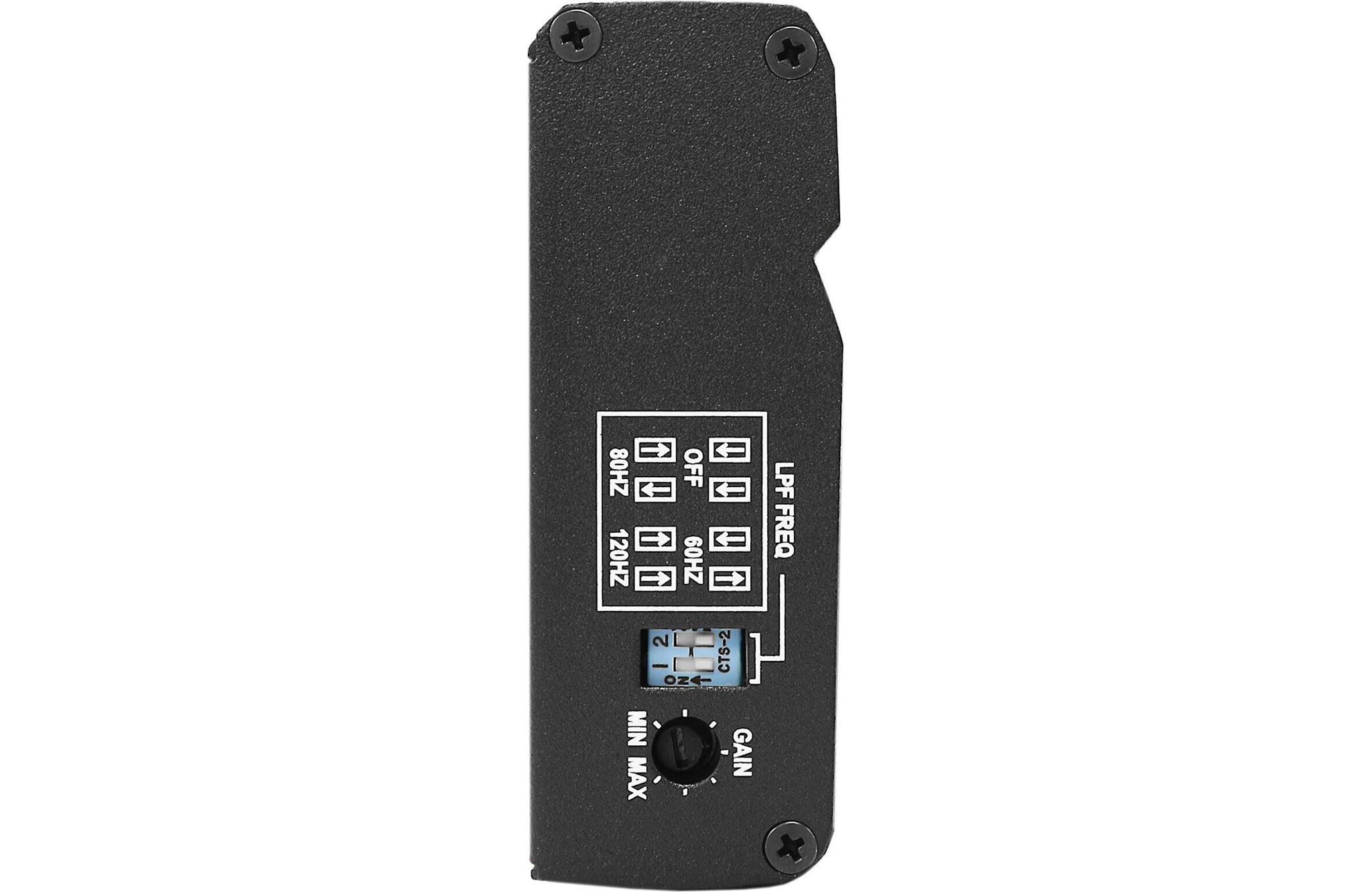

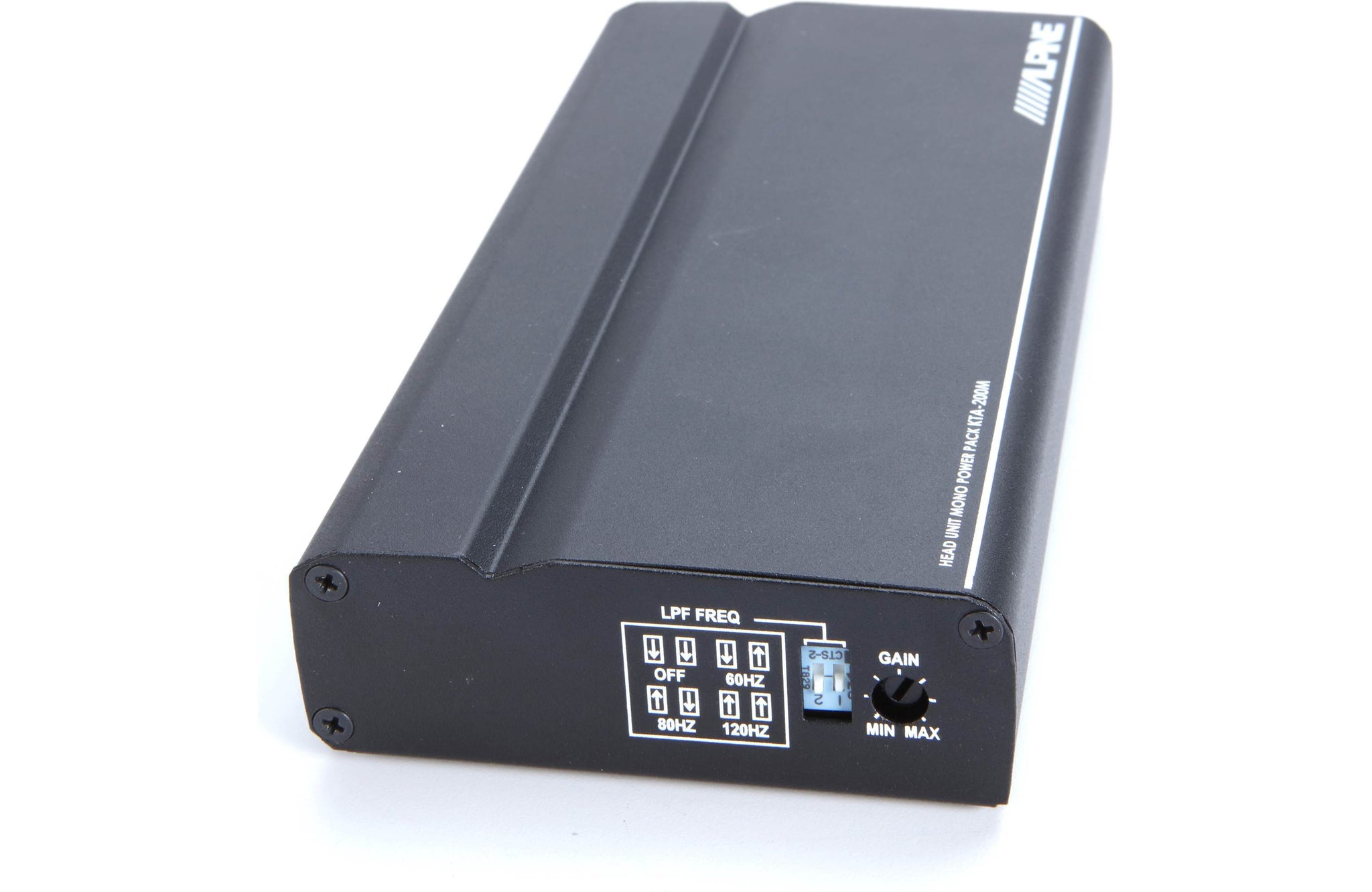

  • selectable low-pass filter (60, 80, 120 Hz at 12 dB/octave)
  • preamp and speaker-level inputs
  • PowerStack bracket included for mounting amp behind Alpine iLX-W650 digital multimedia receiver (item #500ILXW650)
  • wiring, hardware, and fuse not included with amplifier
    • 12-gauge power and ground leads and a 20A fuse recommended
  • dimensions: 7-3/4"W (with wiring) x 1-3/8"H x 3-9/16"D
  • warranty: 1 year
S-SB10V Halo Series 10" linkable ported subwoofer enclosure:
  • loaded with Alpine's S-W10D4 subwoofer
  • linkable to second S-SB10V enclosure with linking kit (sold separately)
  • Kevlar-reinforced pulp cone with Santoprene rubber surround
  • power handling: 600 watts RMS
  • frequency response: 28-200 Hz
  • 2-ohm impedance
  • dimensions: 16"W x 12-3/4"H x 15"D
  • warranty: 1 year
  • MFR # S-SB10V-PWR

What's in the box:

  • Alpine S-SB10V:
  • Ported enclosure loaded with one S-W10D4 subwoofer driver
  • Rubber flange protector (installed on subwoofer)

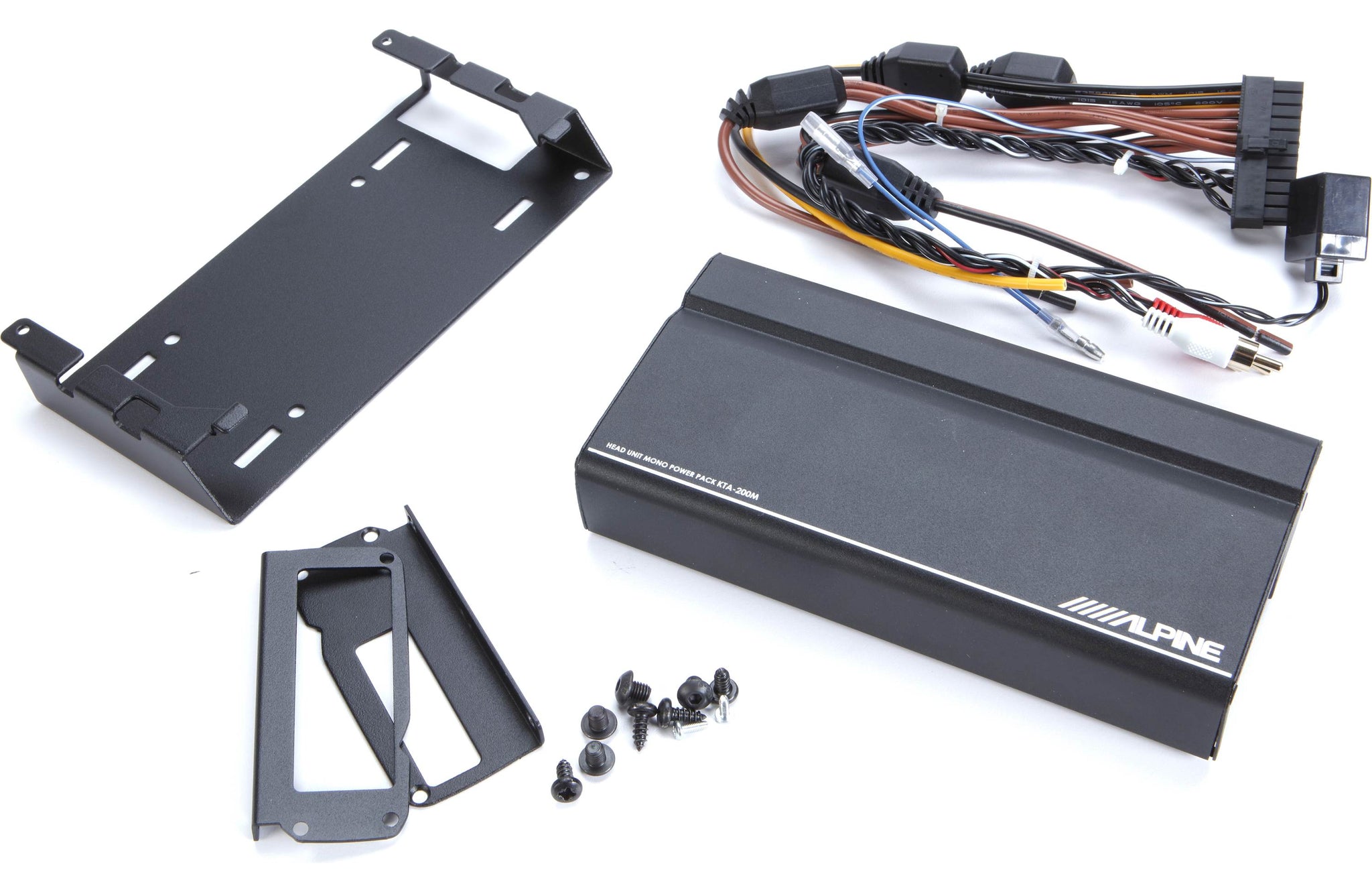

  • Alpine KTA-200M:
  • Mono amplifier
  • 12" Input/Output/Power harness
  • 1 Head unit (iLX-W650) mounting bracket
  • 2 Universal mounting brackets
  • Four M5x6mm Allen head machine screws (3mm)
  • Two M2.6x8mm Machine screws
  • Four 3/8" Screws
  • Four 8" Zip Ties
  • Owner's Manual (English/ French/ Spanish)
  • Warranty information
  • On-line product registration information
