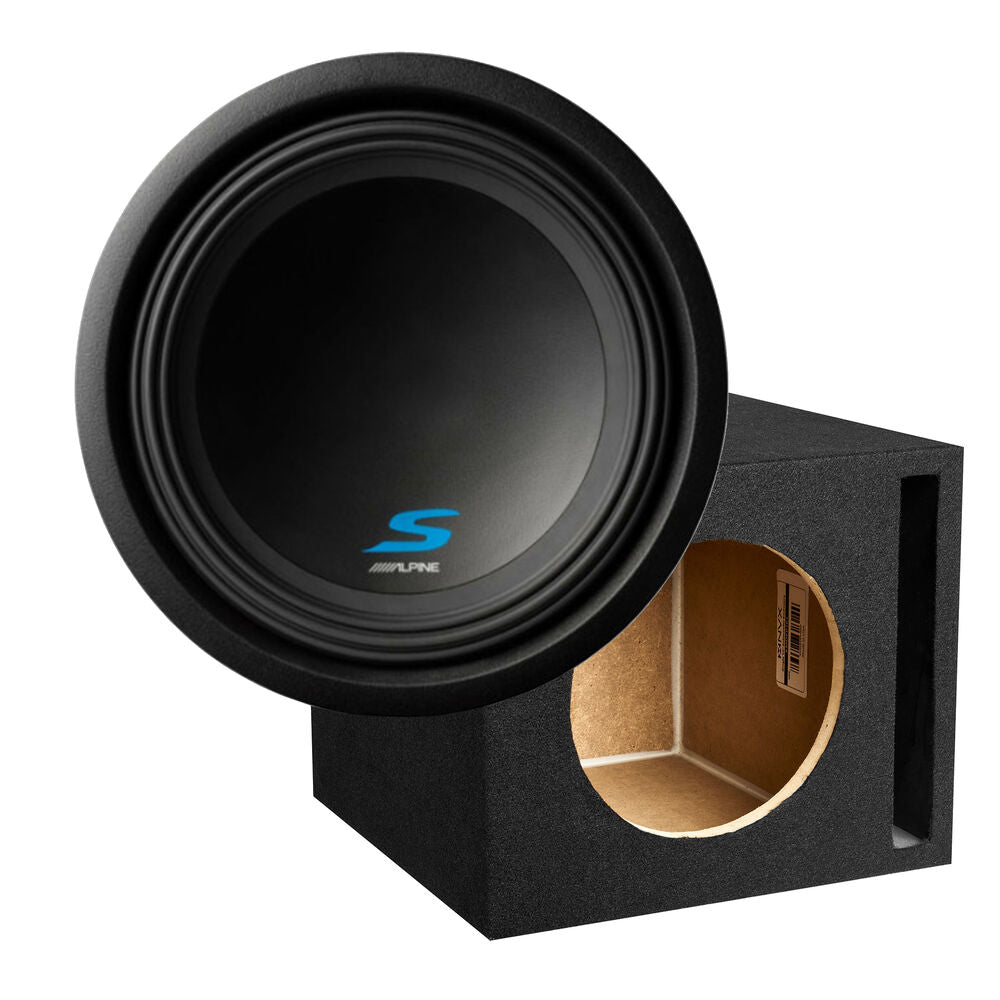

Alpine S-W10D2 Car Subwoofer 1800W 10" Dual 2 Ohm Car Subwoofer with Ported Box

by Alpine
Save 43%
Original Price $400.00
Current Price $229.95
Availability: Translation missing: en.general.icons.icon_check_circle icon 300 in stock, ready to be shipped

Notify me when back in stock

Alpine S-W10D2 1800W Max (600W RMS) 10" S-Series Dual 2 Ohm Car Subwoofer with Absolute VGS10 Ported Subwoofer Box

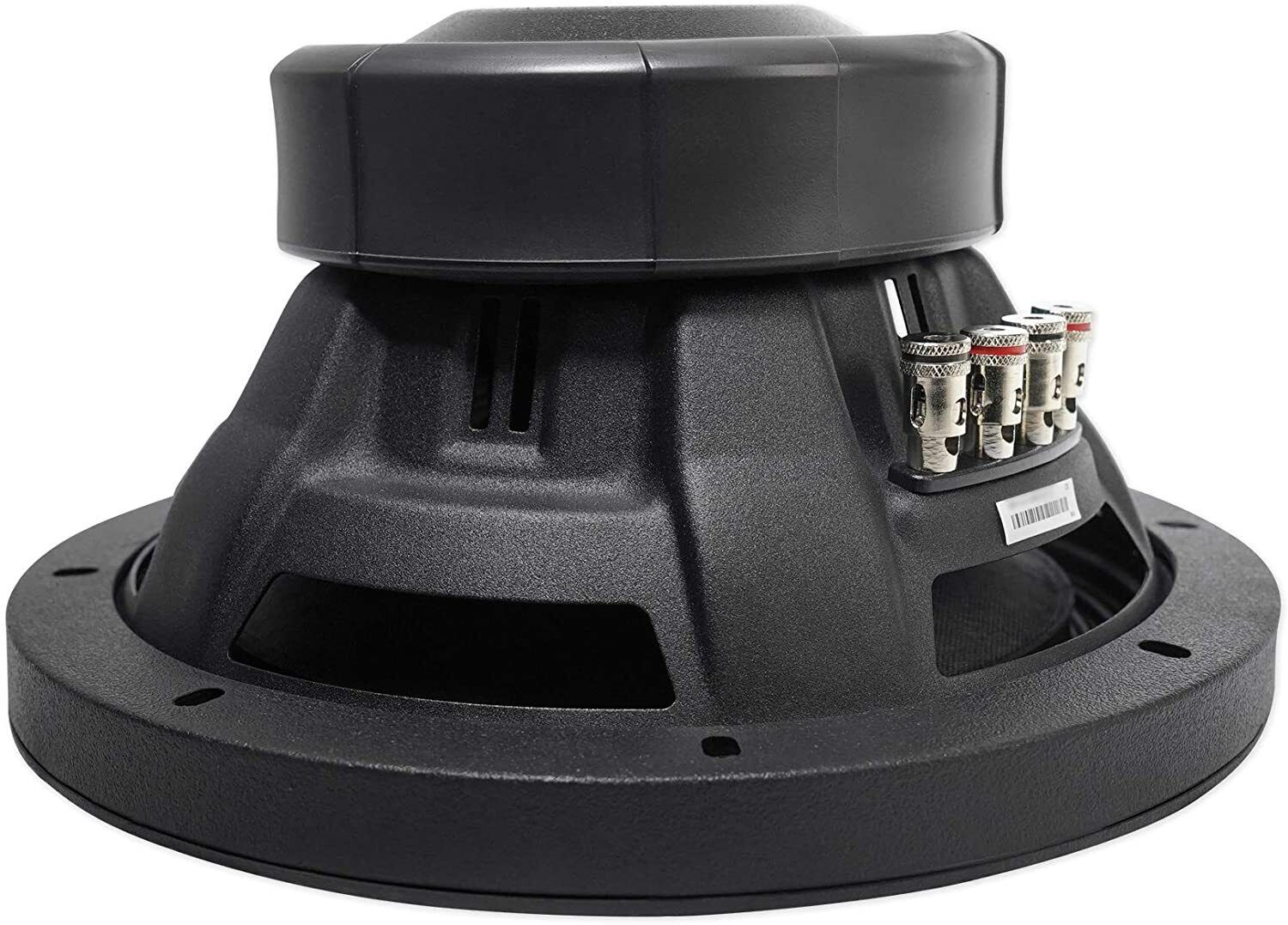

Alpine introduces the all-new S-Series Subwoofers; their unique design substantially improves bass output and provides installation versatility. Each S-Series subwoofer uses a custom-stamped steel frame and is available in twelve, ten, and eight-inch. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents, a vented back plate to help cool the subwoofer voice coil and motor parts, and a shallow design to help fit in smaller spaces.

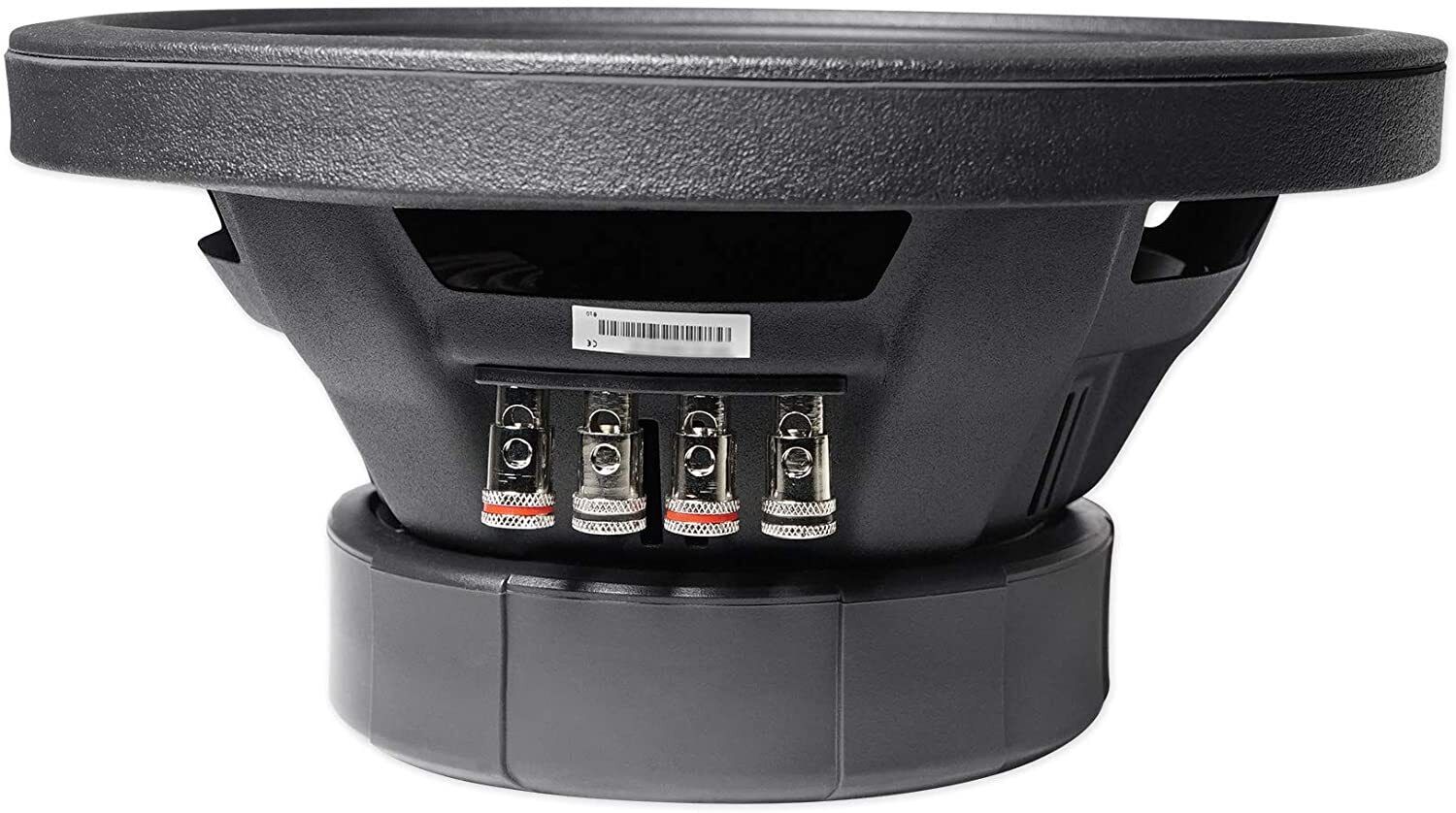

The S-Series Subwoofers incorporate two strontium ferrite magnets stacked together, providing increased motor strength and excursion, ultimately delivering an accurate bass to your music. The convenient push-type insert terminals with a dual voice coil jumper system will significantly reduce installation time. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal. At the same time, the concealed mount gasket system creates a clean, finished appearance for any vehicle.

General Features:

  • 10" 2 ohm S-Series (Type-S) Subwoofer
  • RMS Power Handling: 600 watts
  • Peak Power Handling: 1800 watts
  • Recommended power range: 250- 600W RMS

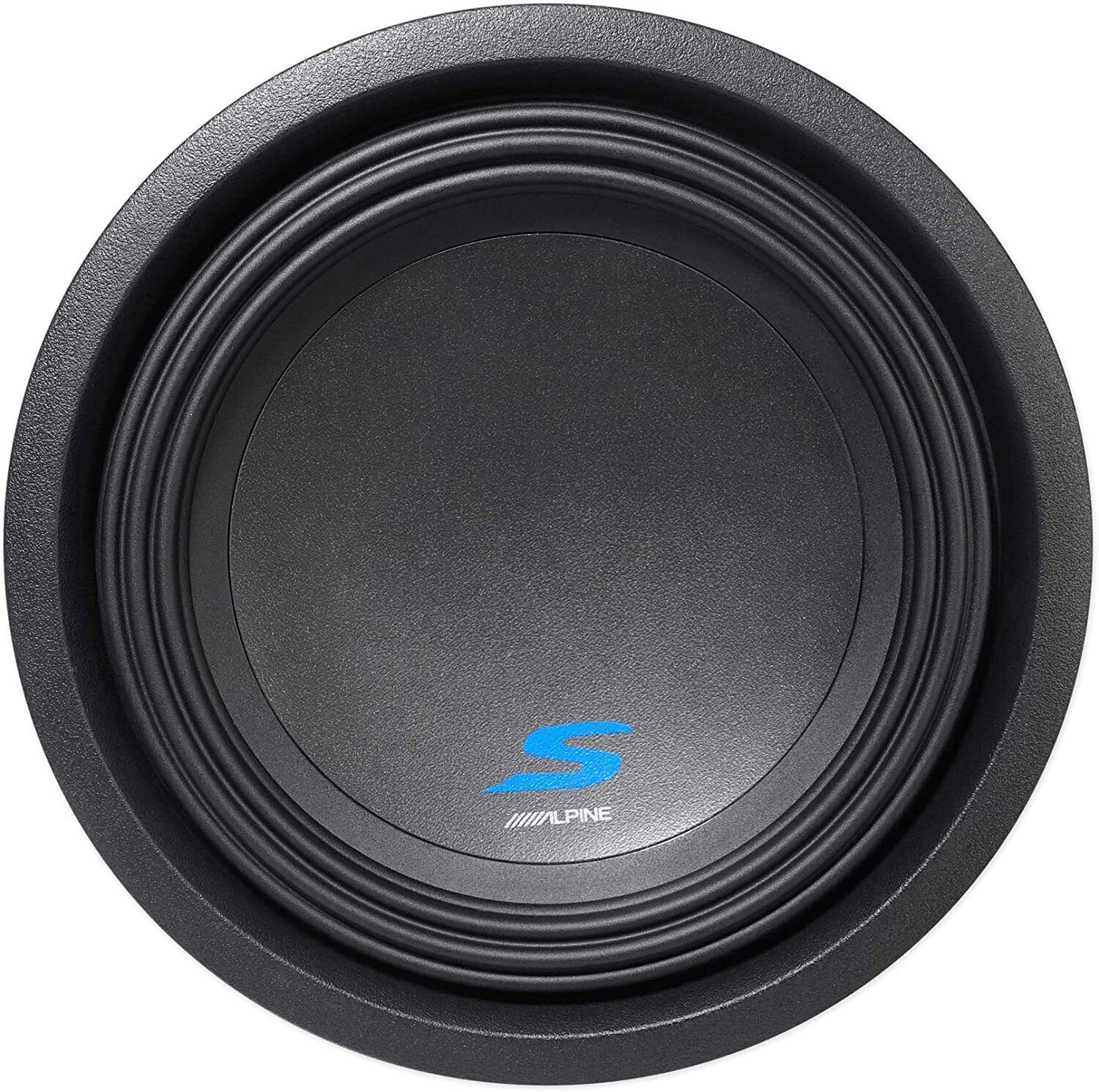

  • Pulp/Kevlar Cone

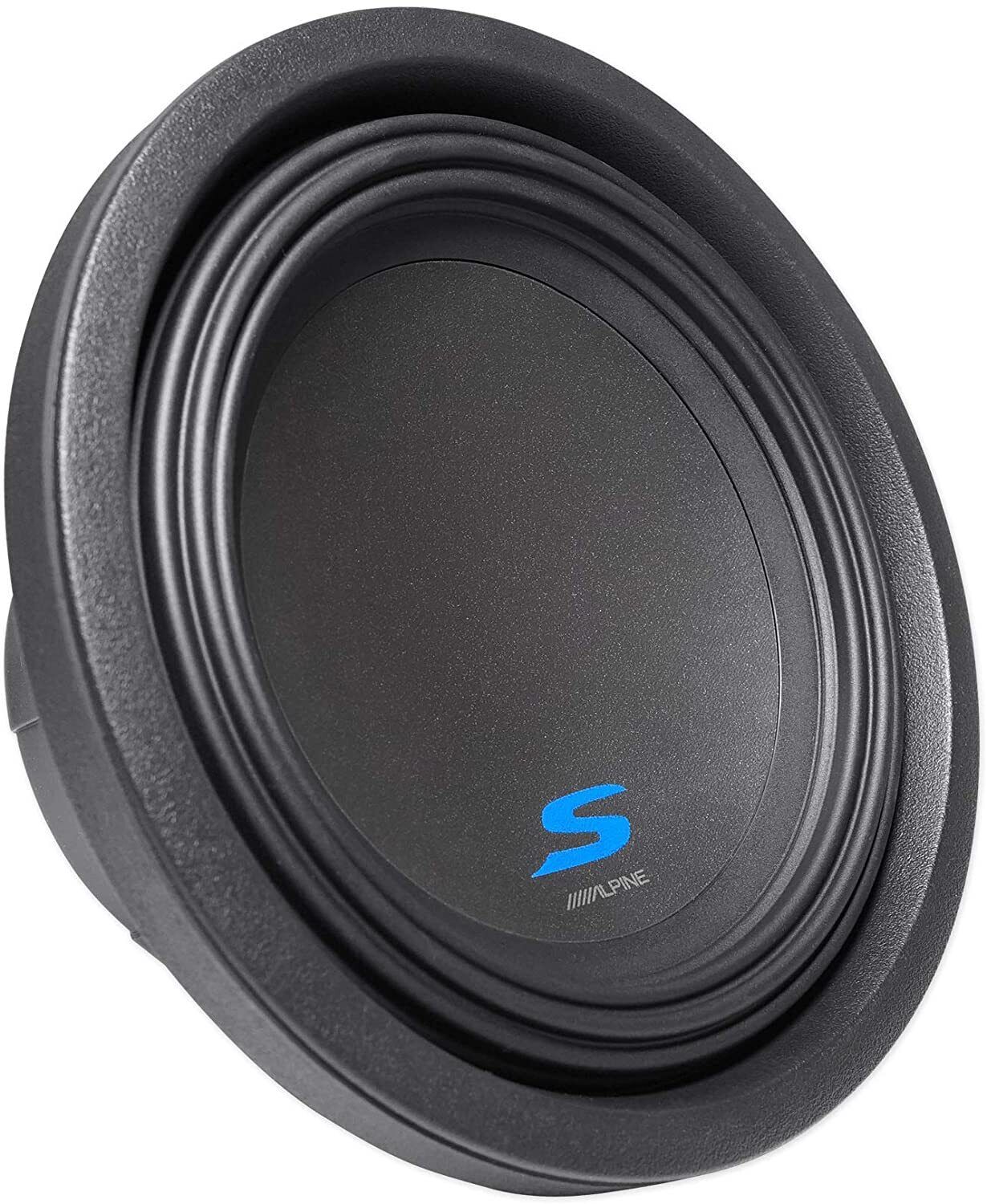

  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads

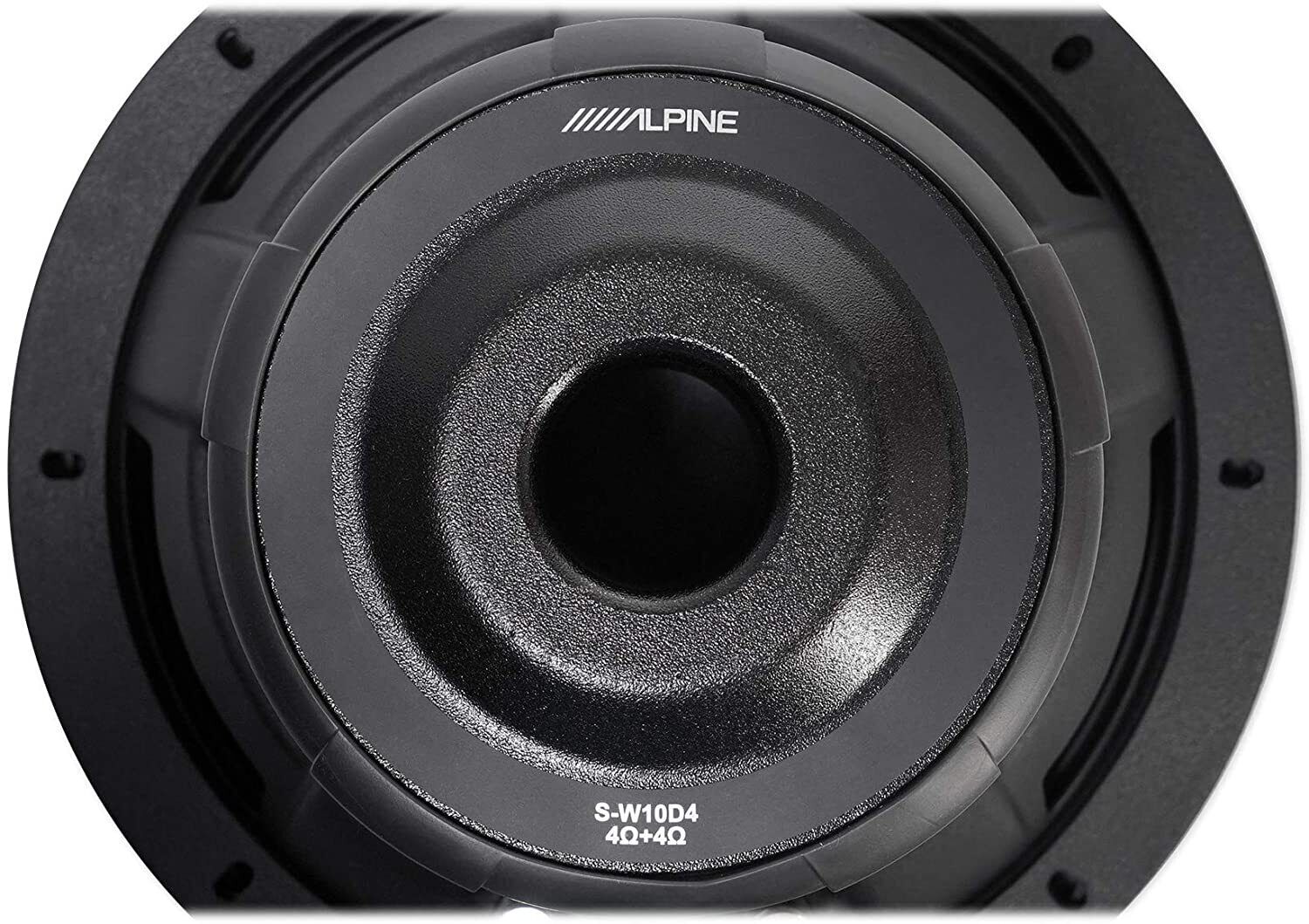

  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket
  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil

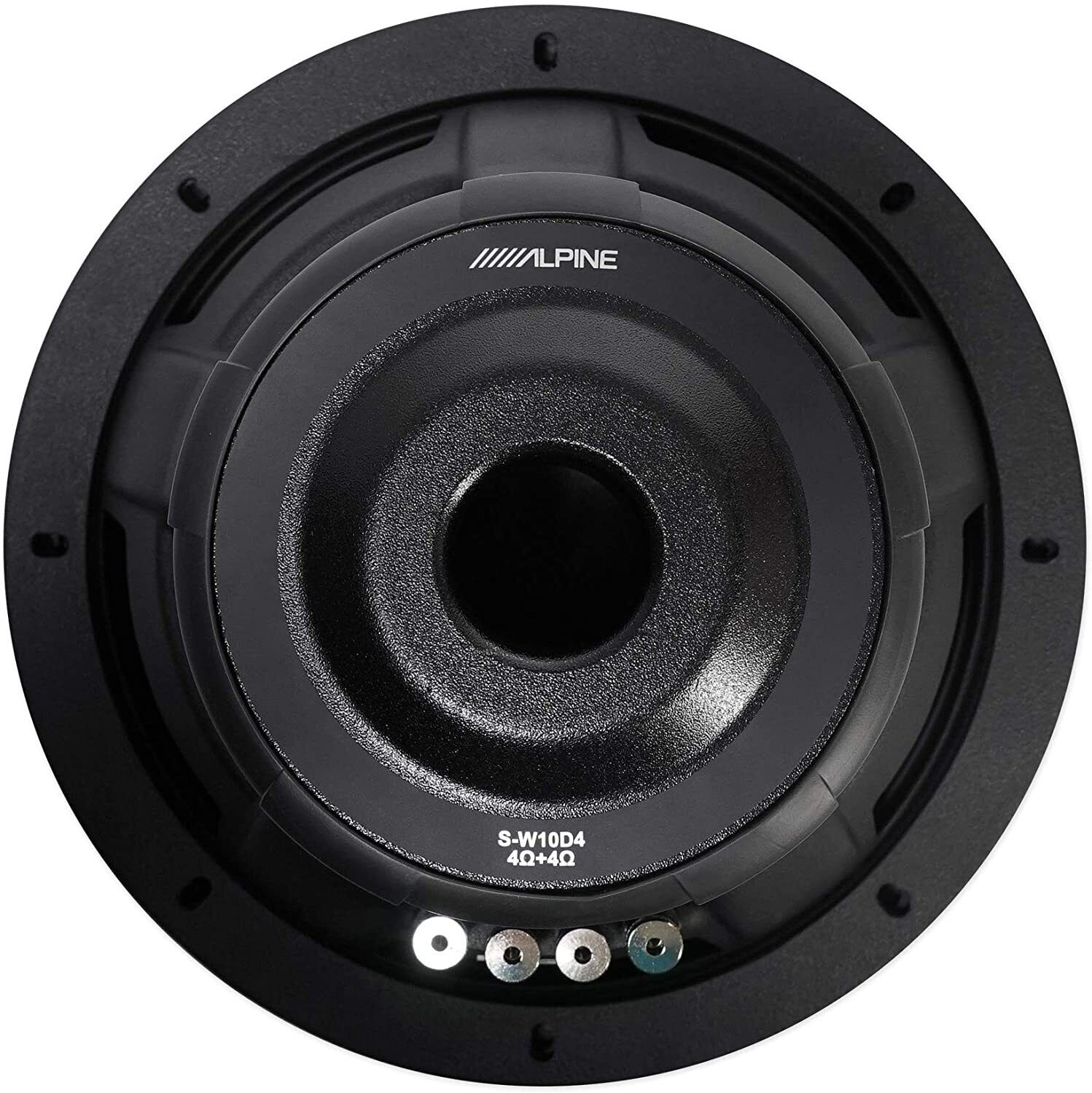

  • High-Grade Strontium Ferrite Magnets
  • Top-mount depth: 4-11/16"
  • Cutout diameter: 8-13/16
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 33 Hz
  • Authorized Dealer
  • 1-year Manufacturer's Warranty
What is in the S-W10D2 package:

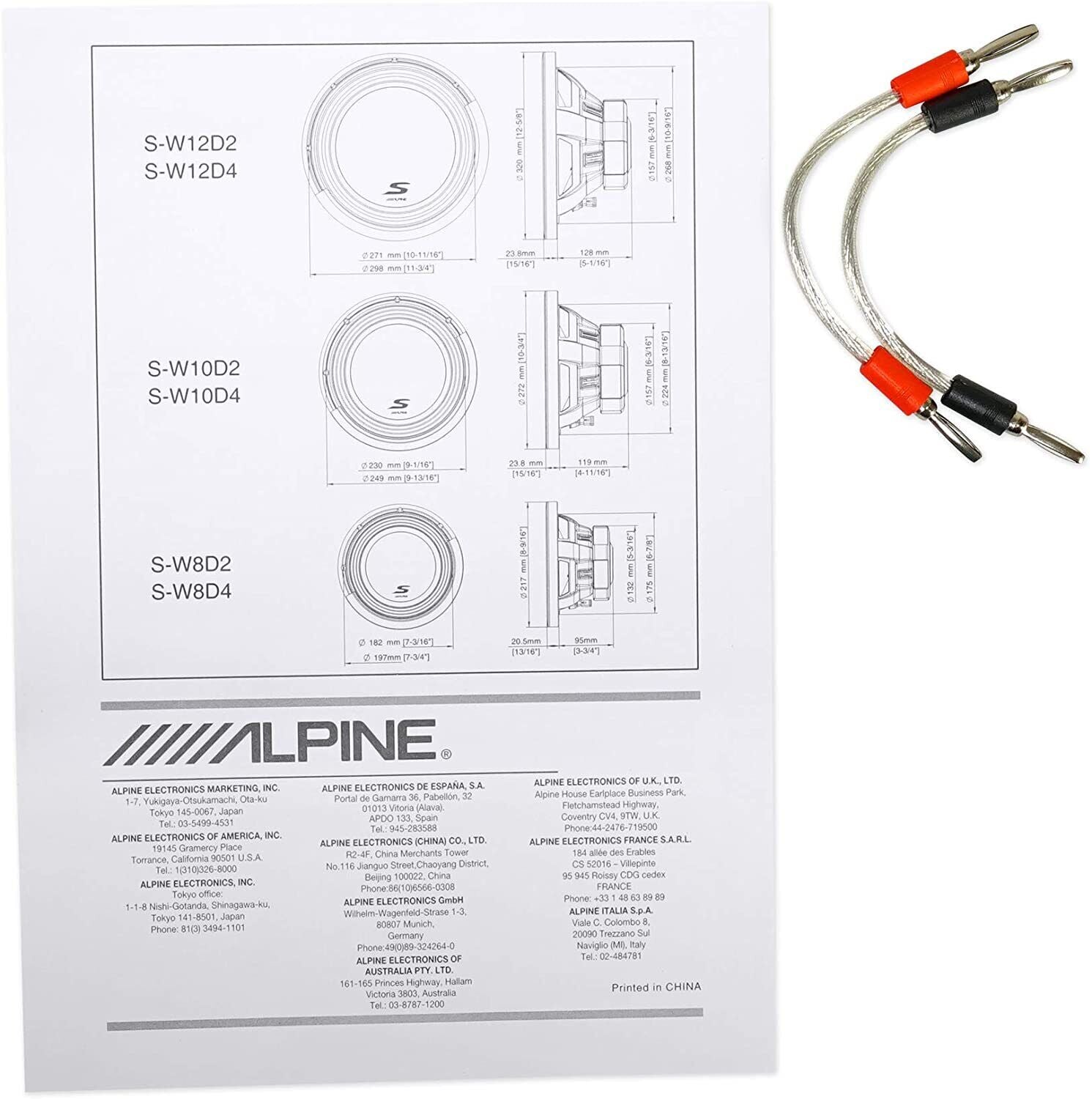

  • S-W10D2 owner's manual
  • One 10" Dual 2-ohm voice coil subwoofer
  • 1 Rubber concealing ring
  • Two 3" jumper cables (each has a single banana connector on each end)
  • Subwoofer Application Guide
  • Online product registration information
  • Warranty Information
