Alpine S-W10D4 1800W 10" S-Series Dual 4 Ohm Car Subwoofer

by Alpine
Save 44%
Original Price $319.90
Current Price $179.95
Availability: Translation missing: en.general.icons.icon_check_circle icon 300 in stock, ready to be shipped

Notify me when back in stock

Alpine S-W10D4 1800W Max (600W RMS) 10" S-Series Dual 4 Ohm Car Subwoofer

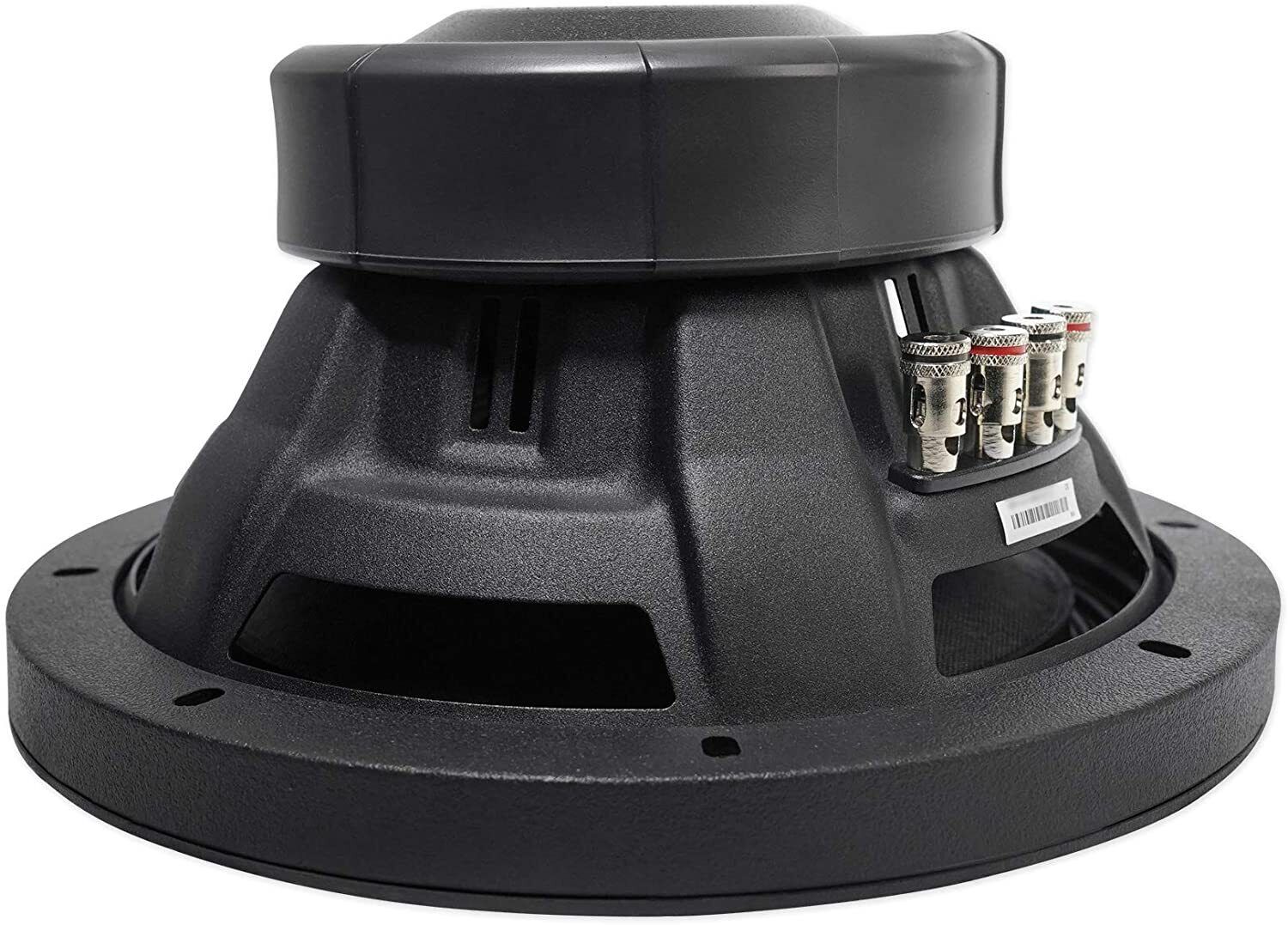

Alpine introduces the all-new S-Series Subwoofers; their unique design substantially improves bass output and provides installation versatility. Each S-Series subwoofer uses a custom-stamped steel frame and is available in twelve, ten, and eight-inch. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents, a vented back plate to help cool the subwoofer voice coil and motor parts, and a shallow design to help fit in smaller spaces.

The S-Series Subwoofers incorporate two strontium ferrite magnets stacked together, providing increased motor strength and excursion, ultimately delivering an accurate bass to your music. The convenient push-type insert terminals with a dual voice coil jumper system will significantly reduce installation time. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal. At the same time, the concealed mount gasket system creates a clean, finished appearance for any vehicle.

General Features:

  • 10" 4 ohm S-Series (Type-S) Subwoofer
  • RMS Power Handling: 600 watts
  • Peak Power Handling: 1800 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket

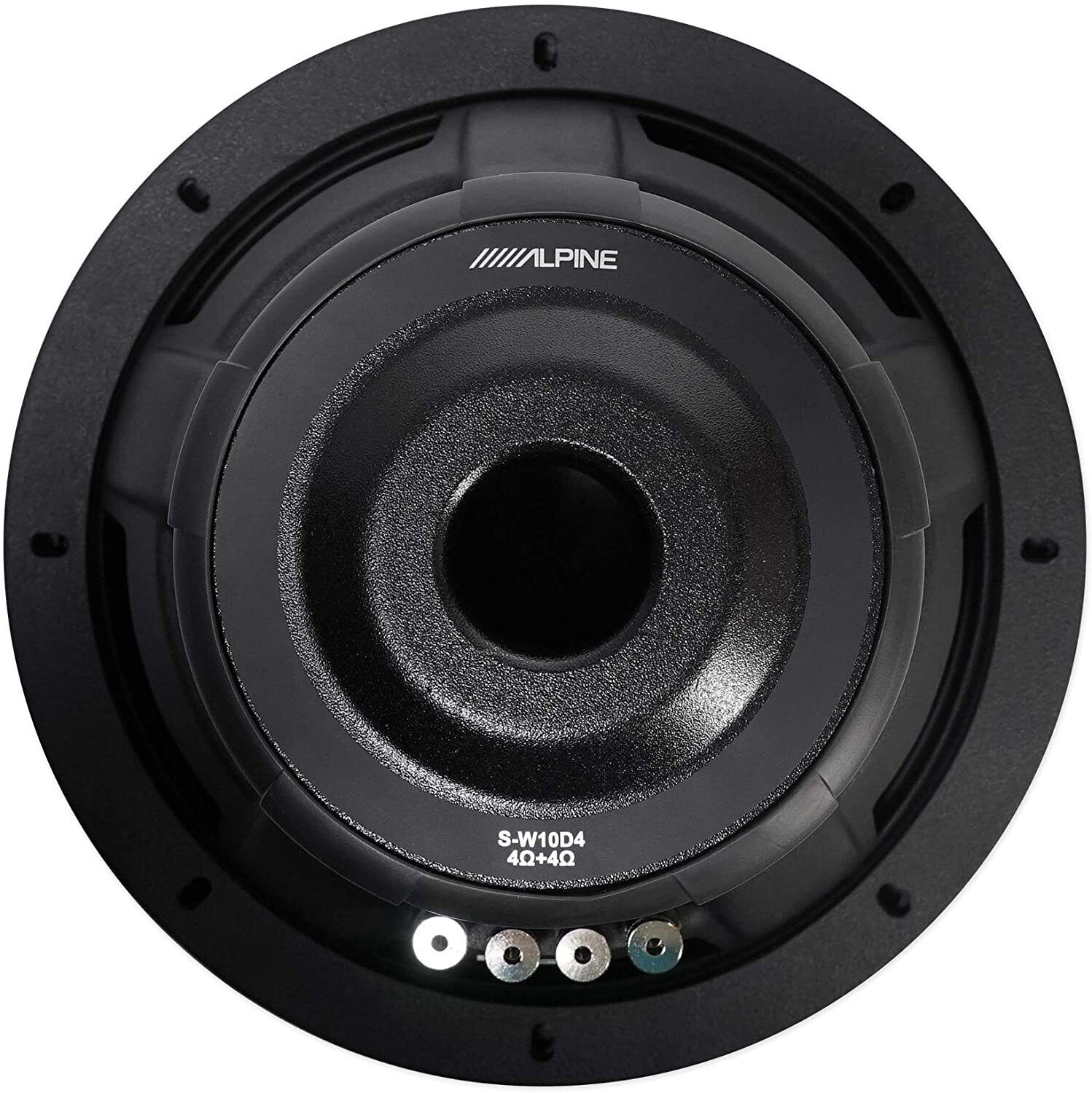

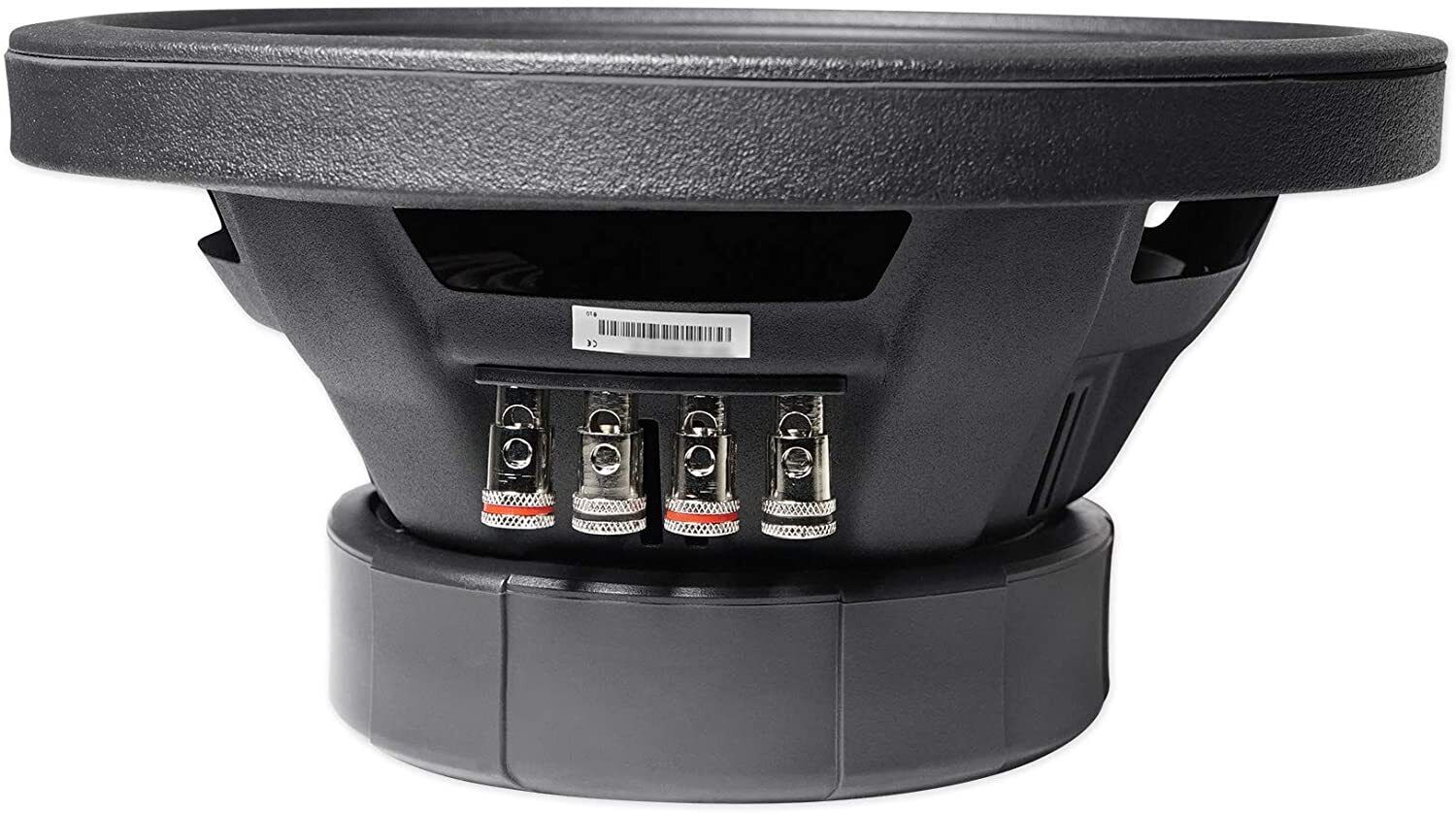

  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High-Grade Strontium Ferrite Magnets
  • Top-mount depth: 4-11/16"
  • Cutout diameter: 8-13/16
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 33 Hz
  • Authorized Dealer
  • 1-year Manufacturer's Warranty

What's in the S-W10D4 package:

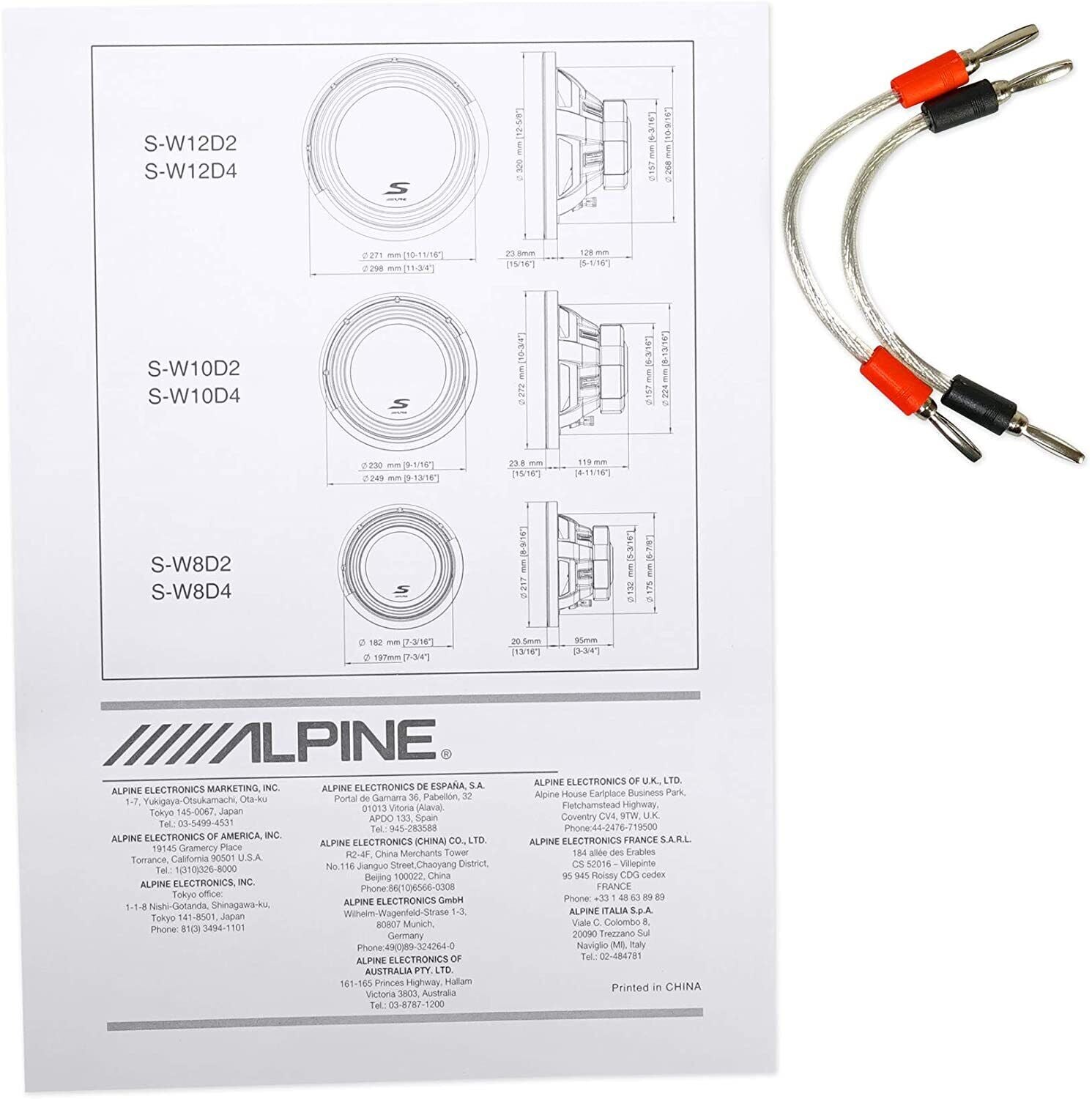

  • S-W10D4 owner's manual
  • One 10" Dual 4-ohm voice coil subwoofer
  • Two 3" jumper cables
  • Subwoofer Application Guide
  • Online product registration information
  • Warranty information
