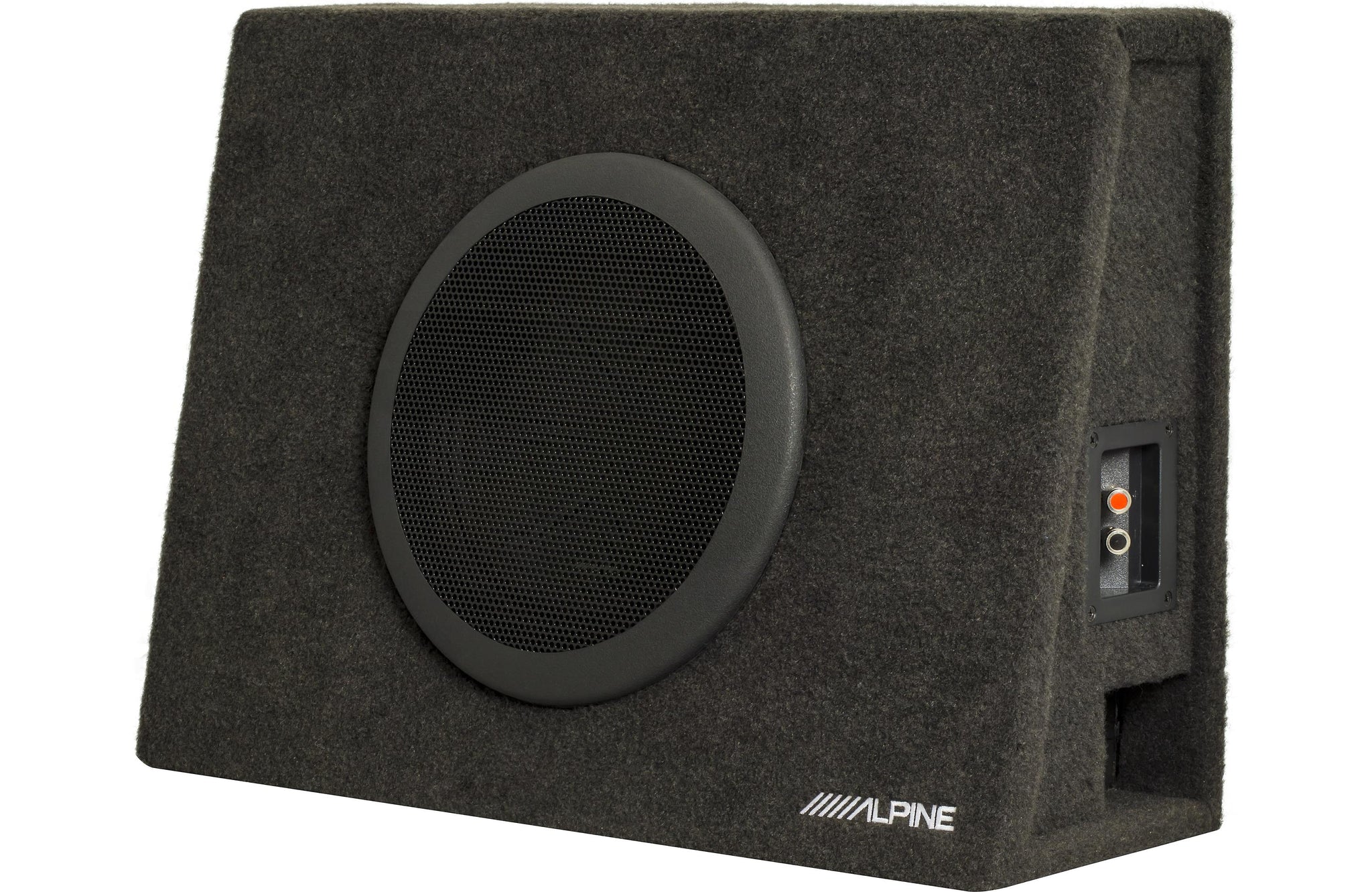

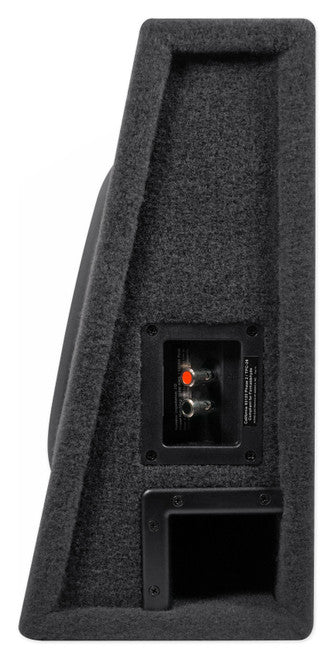

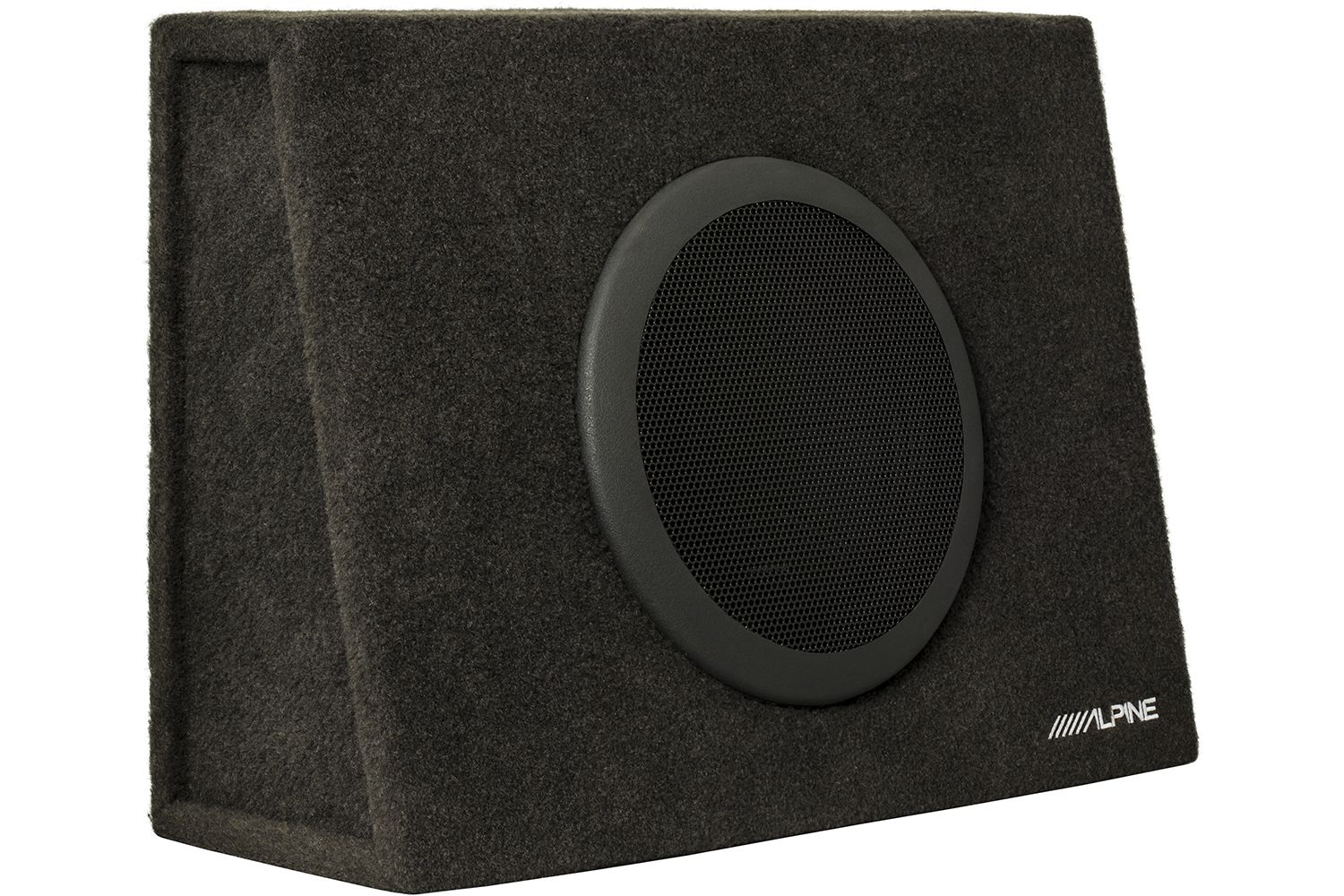

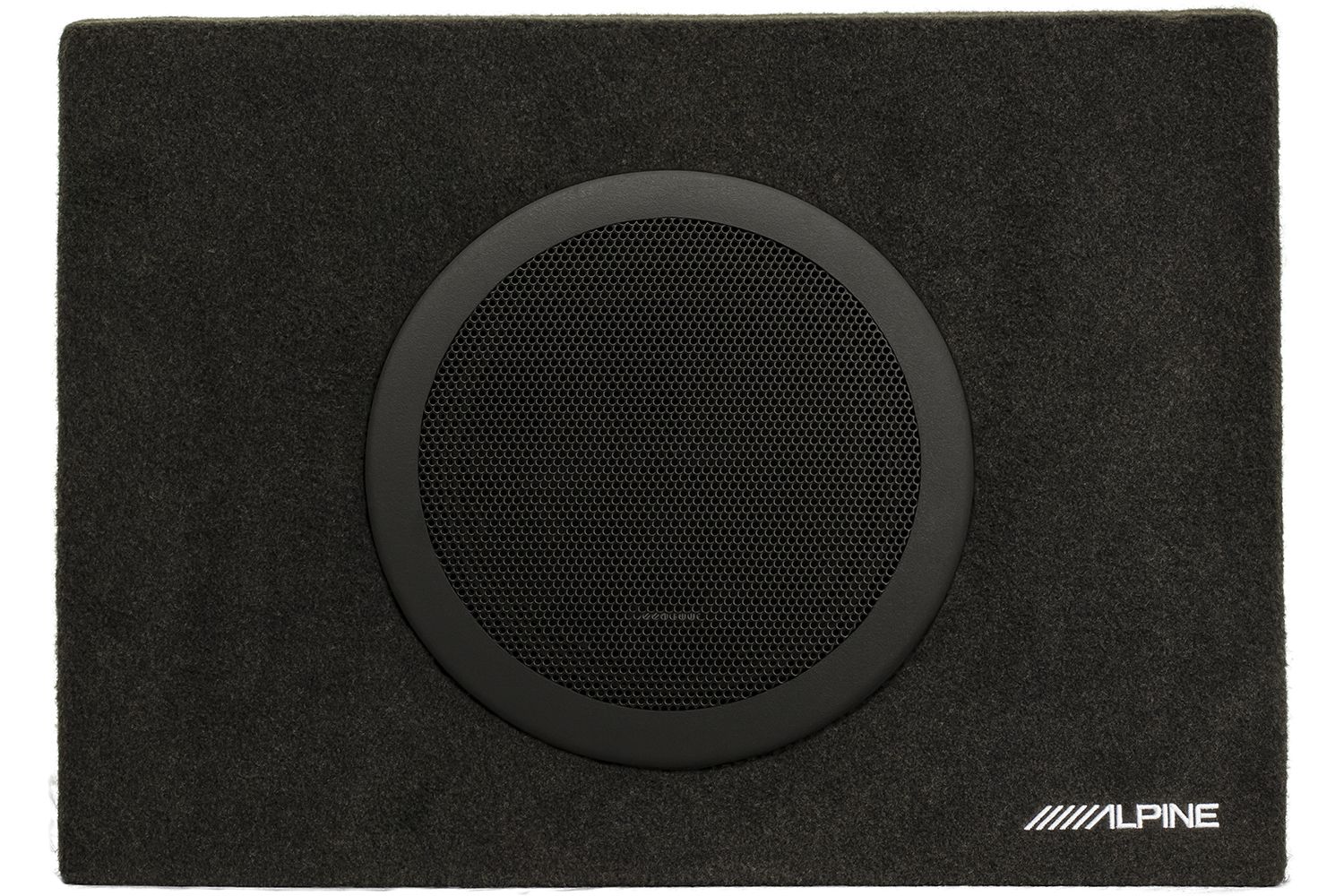

Alpine SBT-S10V Truck Loaded 1000W Single 10" Ported Subwoofer Enclosure
Alpine SBT-S10V Truck Loaded SWT Enclosure 1000W Peak (350W RMS) Single 10" Loaded Ported Subwoofer Enclosure
With a compact wedge-style design and shallow mount, the SBT-S10V (2-ohm system) is a perfect fit for truck applications, with a design that works in small spaces. The Alpine logos on the front and the bottom offer convenient visibility options when mounted horizontally or vertically. Creates a symmetrical magnetic field with evenly distributed flux density to reduce distortion while improving power handling and output significantly. Provides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package. The High-Amplitude Multi Roll Surround Design allows for extreme excursions without sacrificing valuable cone area. FEA Optimized for linearity and made with injection-molded Santoprene ®, the HAMR surround is a key part of the suspension system that provides accurate, distortion-free control at extreme excursions.
More Bass, Less Space
With a compact wedge-style design and shallow mount, the SBT-S10V (2-ohm system) is a perfect fit for truck applications, with a design that works in small spaces.
Two-Way Alpine Logo Flexibility
The Alpine logos on the front and the bottom offer convenient visibility options when mounted horizontally or vertically.
Significant Output in a Compact Package with 4 Unique Alpine Subwoofer Technologies
Radial Vented VC Heat Sink & Airflow Management System
Actively manages voice coil temperatures by forcing air directly across the heat sink system.
Subwoofer Features:
- 10" SWT Series Single 2-ohm Shallow Mount Subwoofer
- Peak Power Handling: 1000 watts
- RMS Power Handling: 350 watts
- Recommended Power Range: 100W - 350W
- Poly-Mica Dust Cap & Pulp-Kevlar
- Polyurethane Foam Surround, featuring H.A.M.R. Surround Technology
- Spiral Cut Aluminum Former
- 65mm Voice Coil with High-Temp 4-Layer SVC Winding
- Frequency Response: 28 - 200 Hz
- Sensitivity: 84.8 dB
- Authorized Dealer
- 1-year Manufacturer's Warranty
Enclosure Features:
- Ported angled / wedge-style truck enclosure
- 3/8" medium-density fiberboard (MDF) construction
- Automotive-grade dark grey carpet
- 8AWG Push Terminals
- Protective mesh subwoofer grilled included
- Dimensions: 7"D x 22"W x 16"H
What's in the SBT-S10V package:
- Ported enclosure loaded with one 10" woofer
- 2 Mounting plates
- Six 1/2" Self-tapping screws
- Owner's manual (English/ French/ Spanish)
- Installation notes
- Warranty information
- Online product registration information
