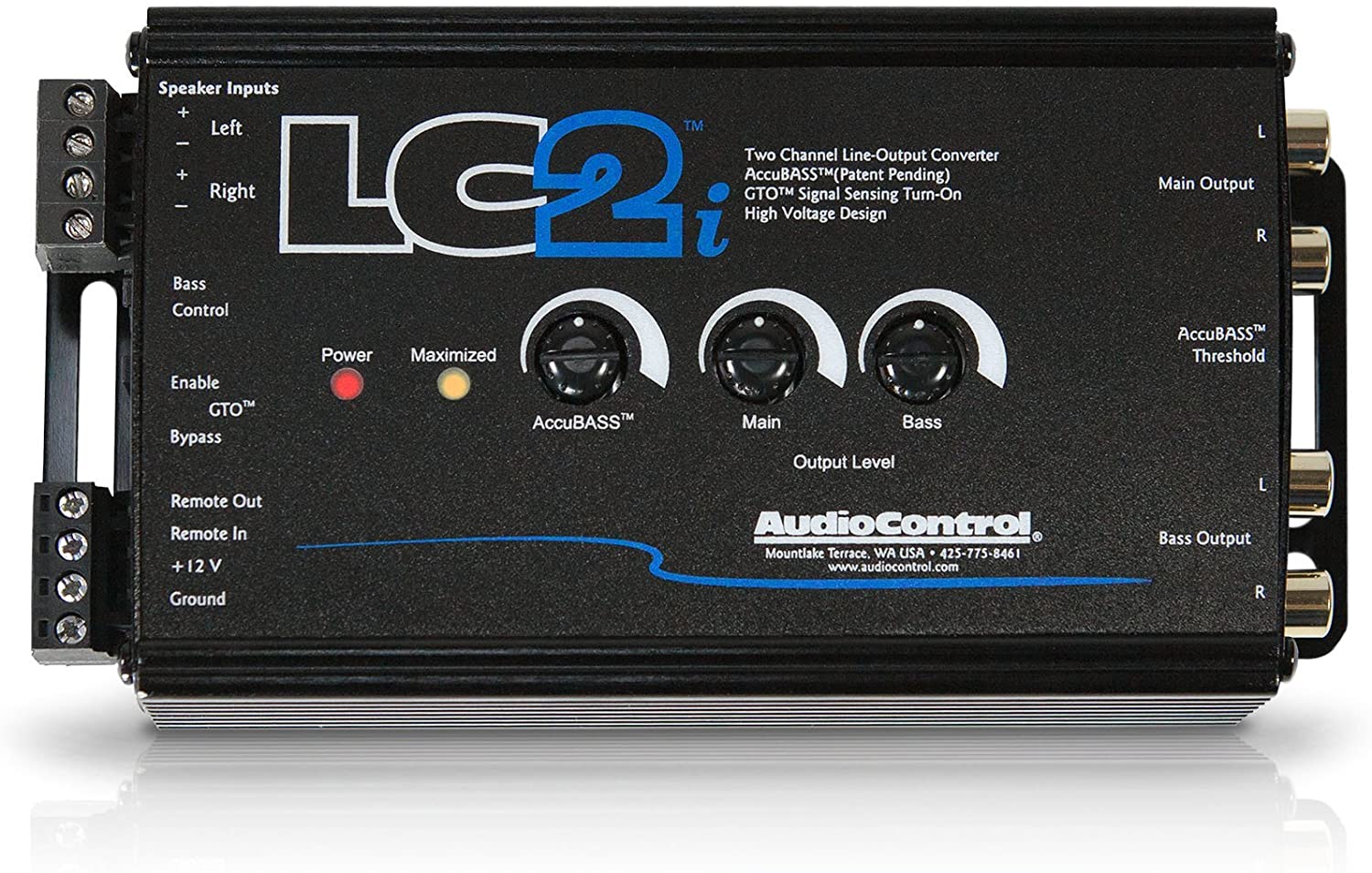

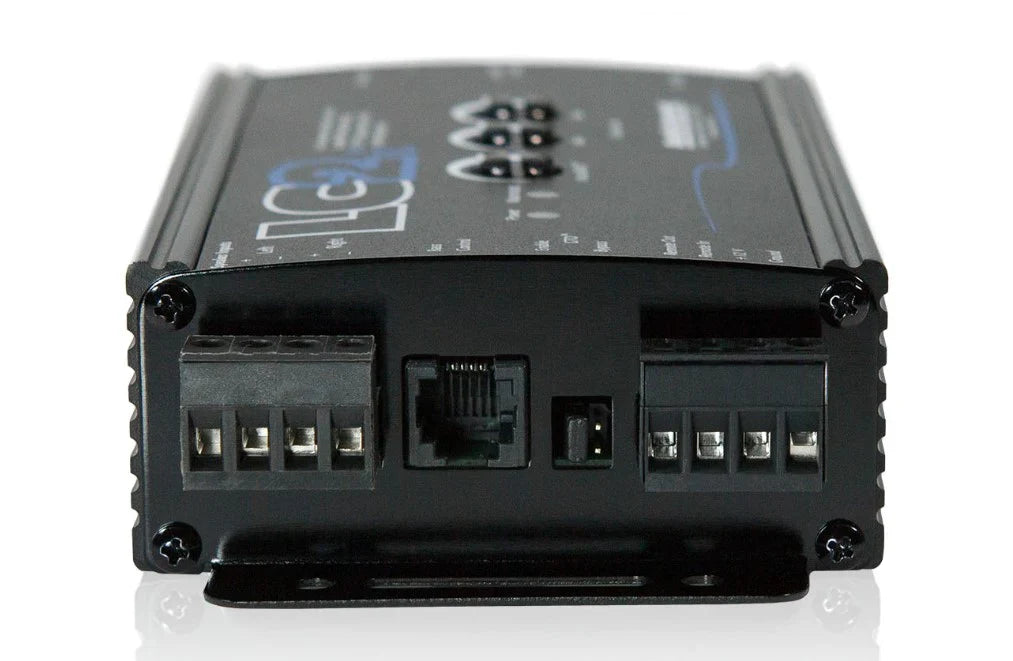

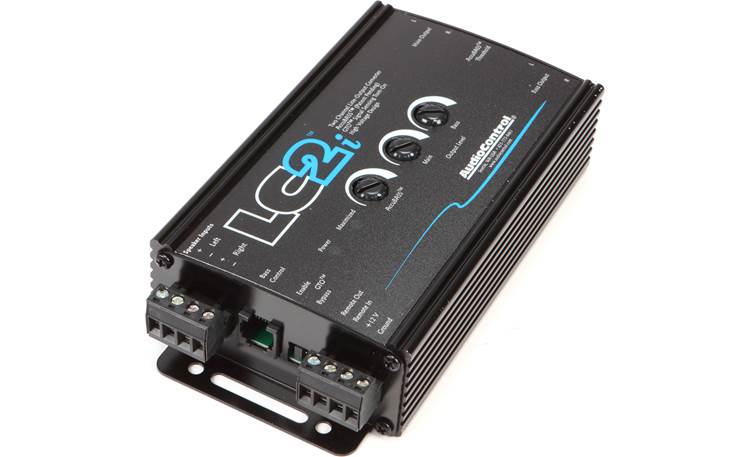

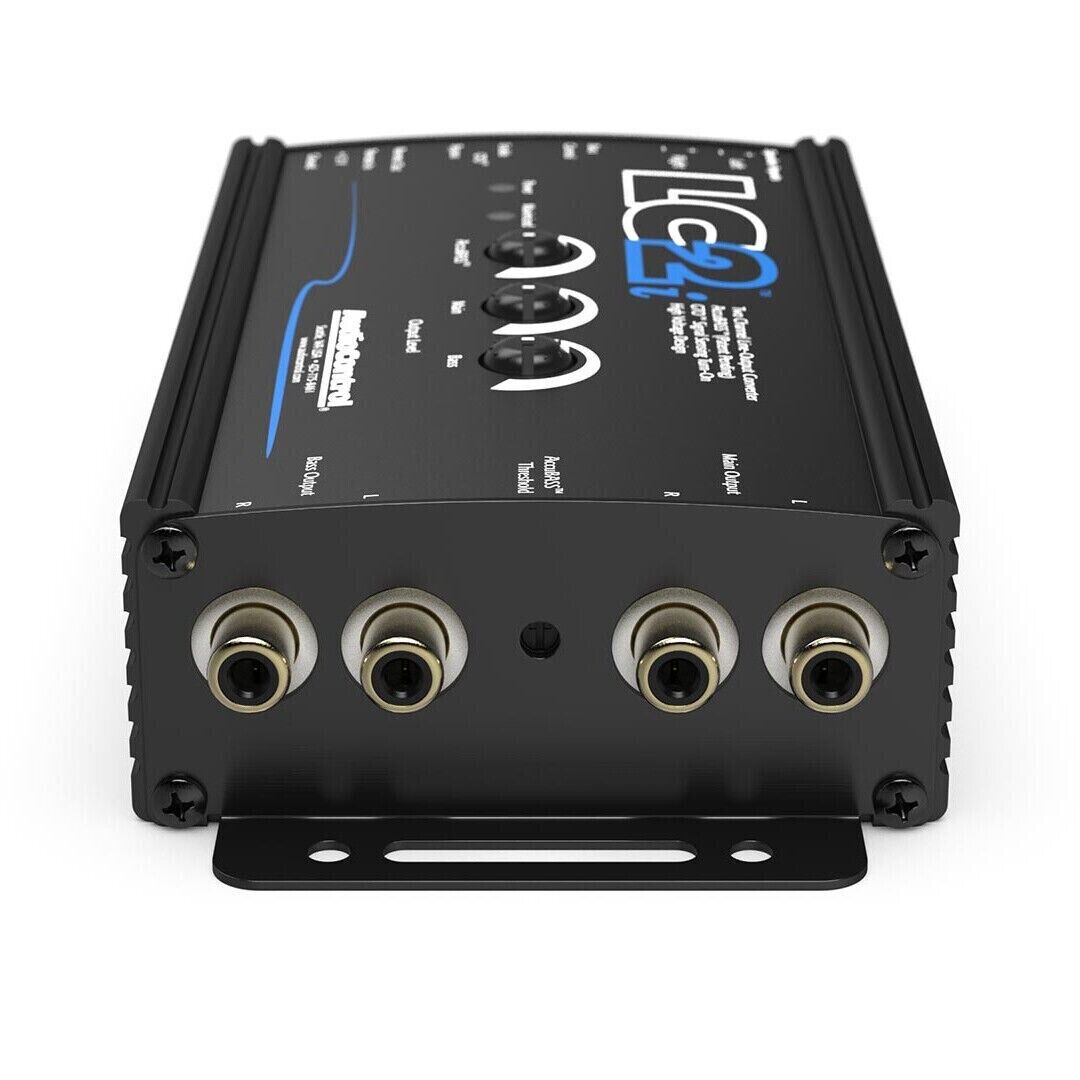

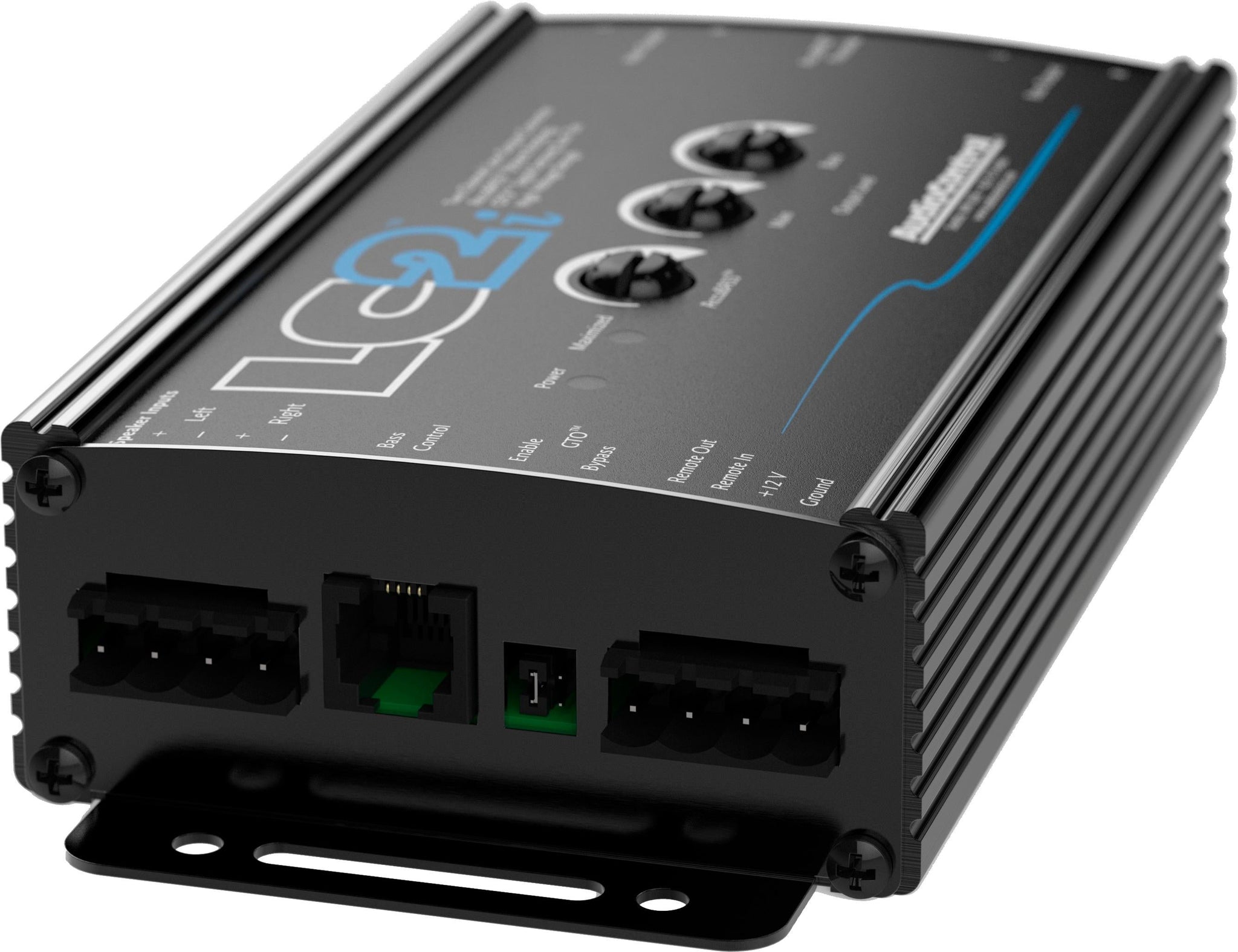

Audio Control LC2i 2 Channel Line Out Converter Subwoofer control

Save 45%
Original Price $199.99
Current Price $109.00
Availability: Translation missing: en.general.icons.icon_check_circle icon 299 in stock, ready to be shipped

Notify me when back in stock

 Audio Control LC2i 2 Channel Line Out Converter Accubass and Subwoofer Control for amps to your factory system

The LC2i is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality preamp signals that can then be directed to after-market processors and amplifiers. As a result, users can enjoy maximum sound quality while maintaining factory volume and steering wheel controls.

General Features:

  • Two channels of active speaker level inputs - Accepts 400-watt signals per channel
  • AccuBASS processing for correction of bass roll-off
  • Fixed and variable outputs with discrete-level controls
  • GTO - Signal sensing inputs
  • The 12-Volt trigger that will turn on LC2i
  • Dual amplifier
  • 9.5-volt preamp outs
  • Level matching controls
  • 12 Volt trigger output
  • Input for optional subwoofer level control: AudioControl ACR-1
  • Dimensions: 6-3/8"W x 3-1/8"D x 1-1/2"H
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

The LC2i Specifications

  • Maximum speaker level input: 400 watts per channel
  • Maximum Preamp Output: 9.5Vrms / 13V peak
  • Optional Dash Level Control Remote: +0dB / -19dB
  • Frequency response: 10 Hz - 100,000 Hz; ±1dB
  • Total harmonic distortion: 0.01%
  • Signal to Noise ratio: >110dB
  • Input Impedance: 20K ohms
  • Output Impedance: 150 ohms
  • Power draw: 150 mA
  • Recommended fuse rating: 1 Amp
  • Weight: 1 pound.

What is in the package:

  • LC2i owner's manual
  • Two-Channel line-output converter
  • Quality Control Certificate
