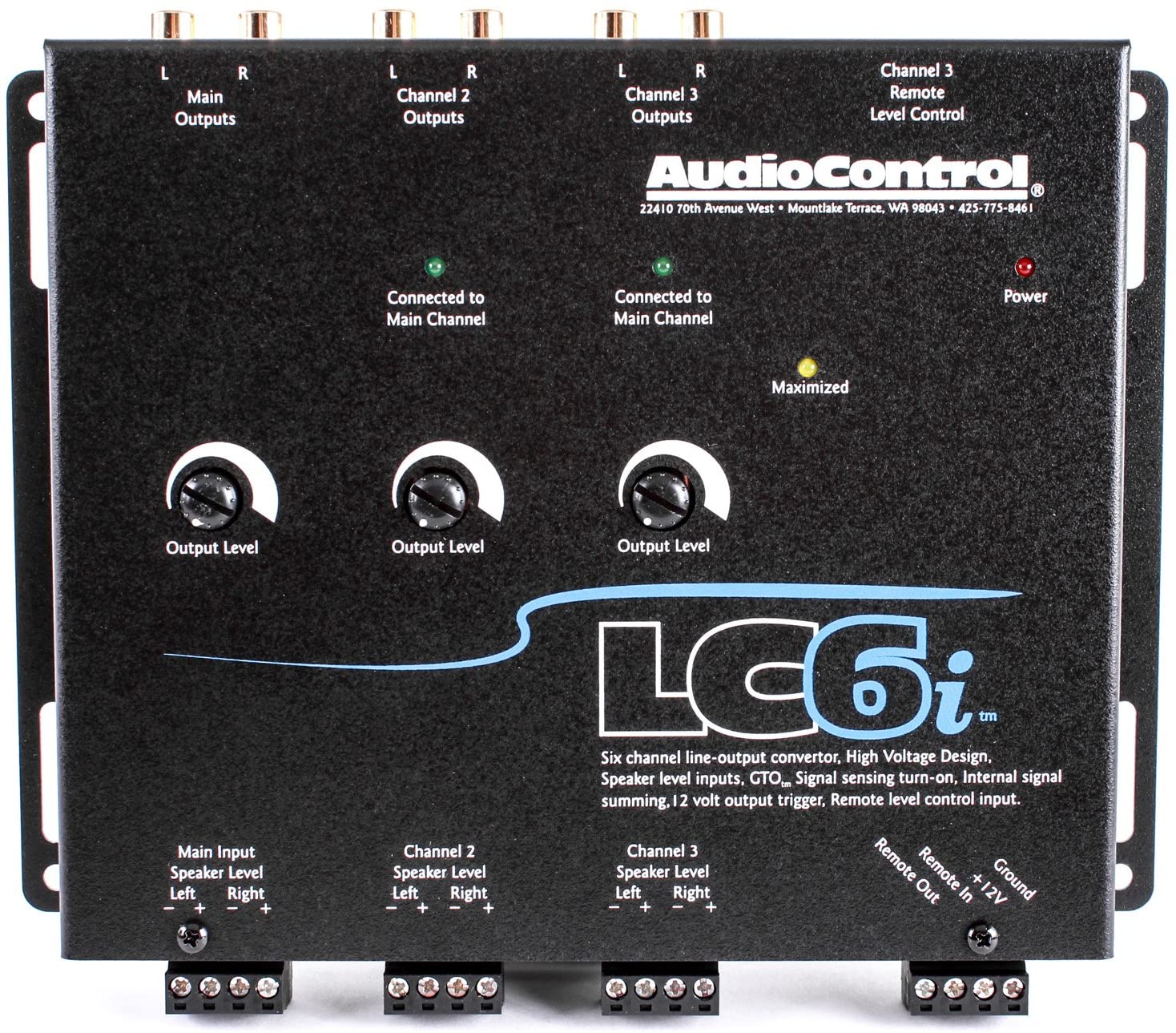

Audio Control LC6i
6 Channel Line Out Converter with Internal Summing for add aftermarket amps to a factory system
Audio Control LC6i 6 Channel Line Out Converter with Internal Summing for adding aftermarket amps to a factory system
AudioControl continues to simplify OEM integration with the new LC6i Six Channel Line Output Converter with internal summing. The LC6i is built on the same technology as its predecessor, the LC6. The LC6i converts speaker-level inputs from a factory radio or factory amplifier into high-quality pre-amp signals. The addition of internal summing capabilities and improved GTO™ signal-sense turn-on make the LC6i the perfect way to solve your OEM headaches.
The LC6i allows for the addition of aftermarket processors and amplifiers while maintaining the use of the factory volume and steering wheel controls. Internal signal summing and AudioControl’s new GTO™ signal-sense turn-on make the LC6i a perfect OEM interface for a performance audio system.
The LC6i follows in the steps of the rampantly successful LC8 Eight Channel Line Output Converter, offering all the same features for 6 channel systems at a reduced price. The LC6i accepts speaker level signals, both crossed-over, and full range, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be overcome by summing them together, internally, to provide a full-range preamp signal.
The LC6i provides the type of clean pre-amp signals installers are familiar with. Those who desire custom control over the sound can easily add one of AudioControl’s many crossovers or equalizers which offer unlimited system design flexibility, clearly different than traditional OEM interfaces.
- Six Input and Output Channels
- 6 Speaker Level Inputs - Can Accept 400-Watt Signals!
- Signal sensing inputs
- Internal Channel Summing
- AutoMode inputs
- Level matching controls
- 12-volt trigger output
- Line Output Converter:
- A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal
- Input for optional subwoofer level control: AudioControl ACR-1
- Color: Black
- Weight: 3.5 lbs
- Size: 8.00" W x 6.00" D x 1.20" H
- Authorized Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
- Maximum speaker-level input: 400 watts @ 4 ohms
- Maximum output level: 9.5Vrms
- Output gain: +/-12 dB
- Frequency response: 10Hz-22kHz
- Total harmonic distortion: 0.01%
- Input Impedance: 20K Ohms
- Power supply: High headroom PWM switching
- Power draw: 200mA
- Recommended fuse rating: 1 Amp
- Remote Trigger Output Current: 1 Amp
What is in the LC6i box:
- 6-Channel line-output converter
- Instructions/Specs/Warranty (on packaging)
- Quality Control Certificate
- AudioControl LC6i owner's manual
