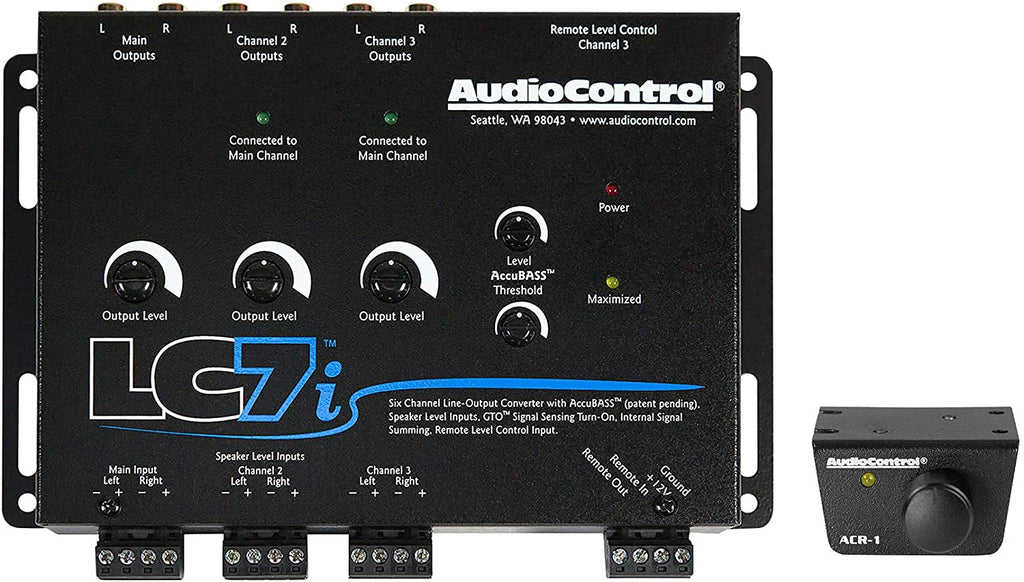

Audio Control LC7i & ACR-1
6 Channel Line Out Converter with bass restoration adds aftermarket subs and amps to a factory system & ACR-1 Dash Remote
Audio Control LC7i 6 Channel Line Out Converter with bass restoration adds aftermarket subs and amps to a factory system & ACR-1 Dash Remote

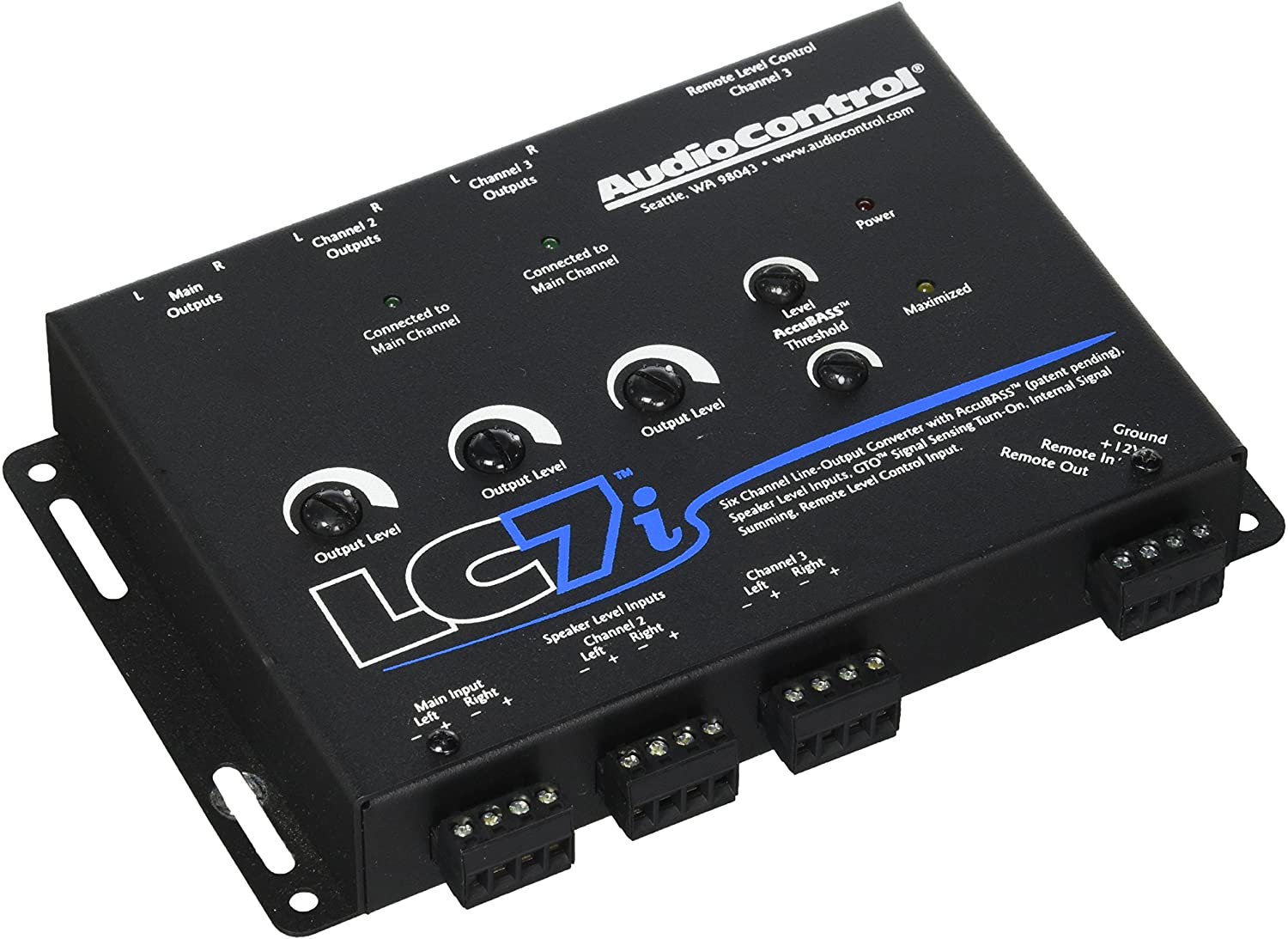

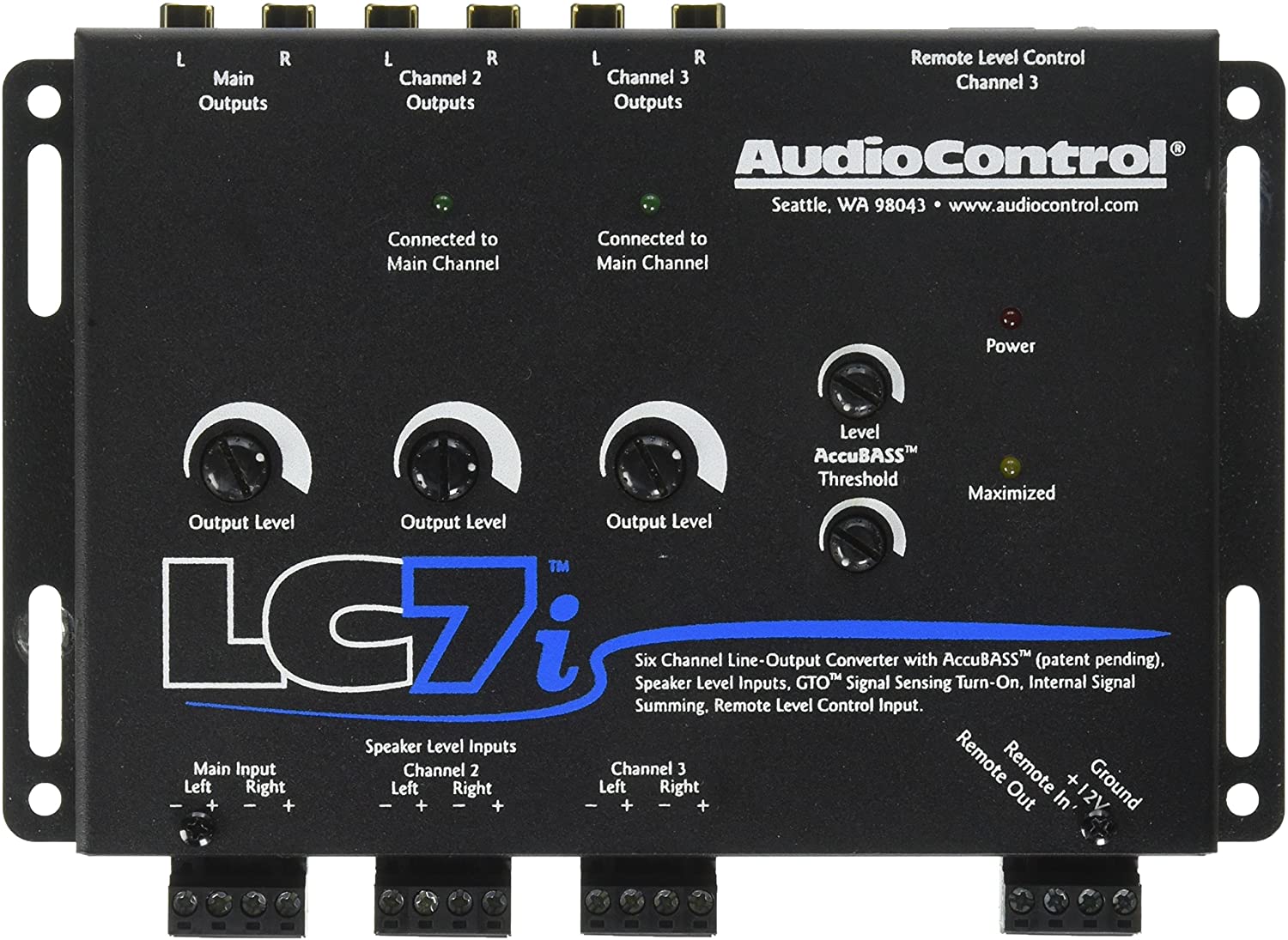

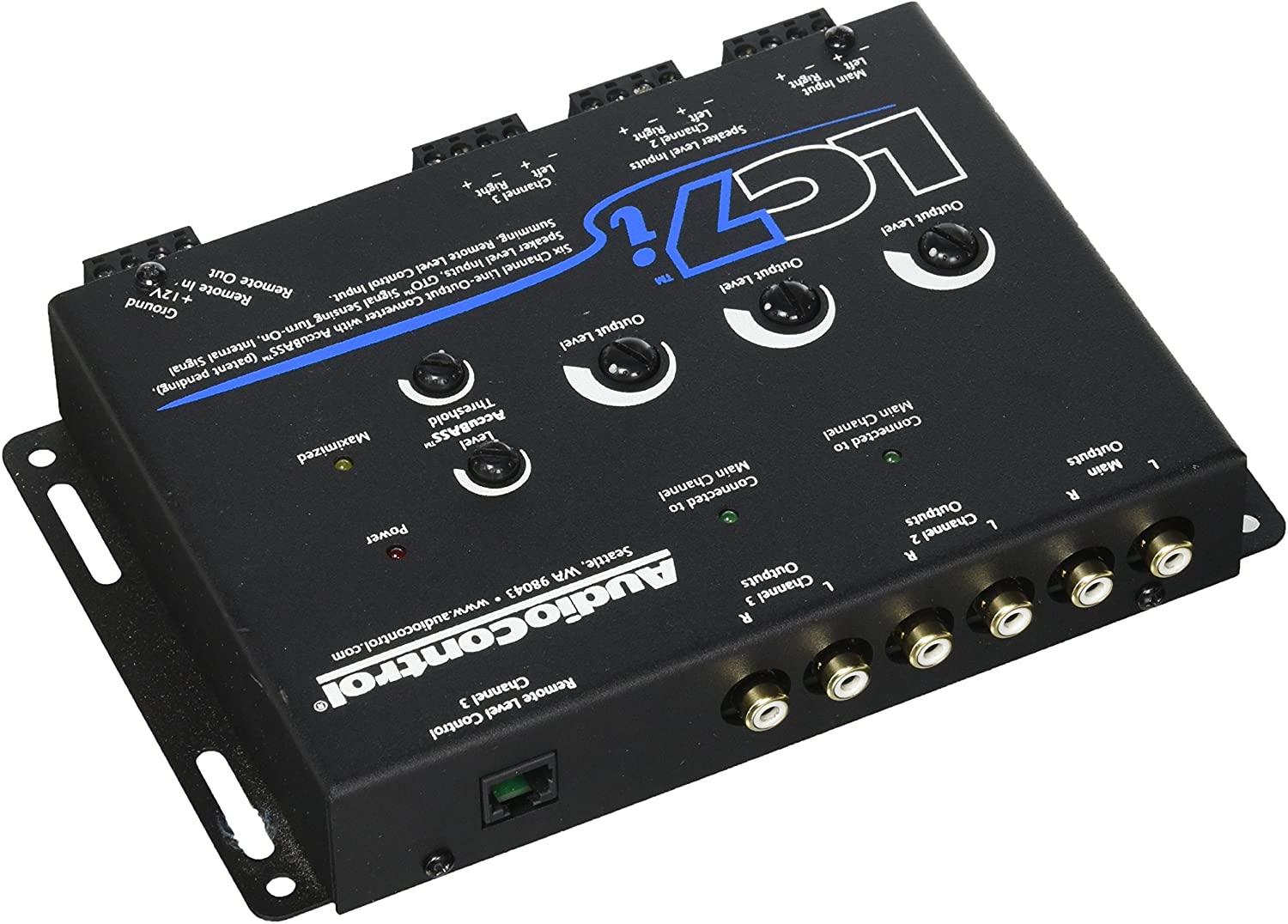

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory-installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!
Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS™. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS™ circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

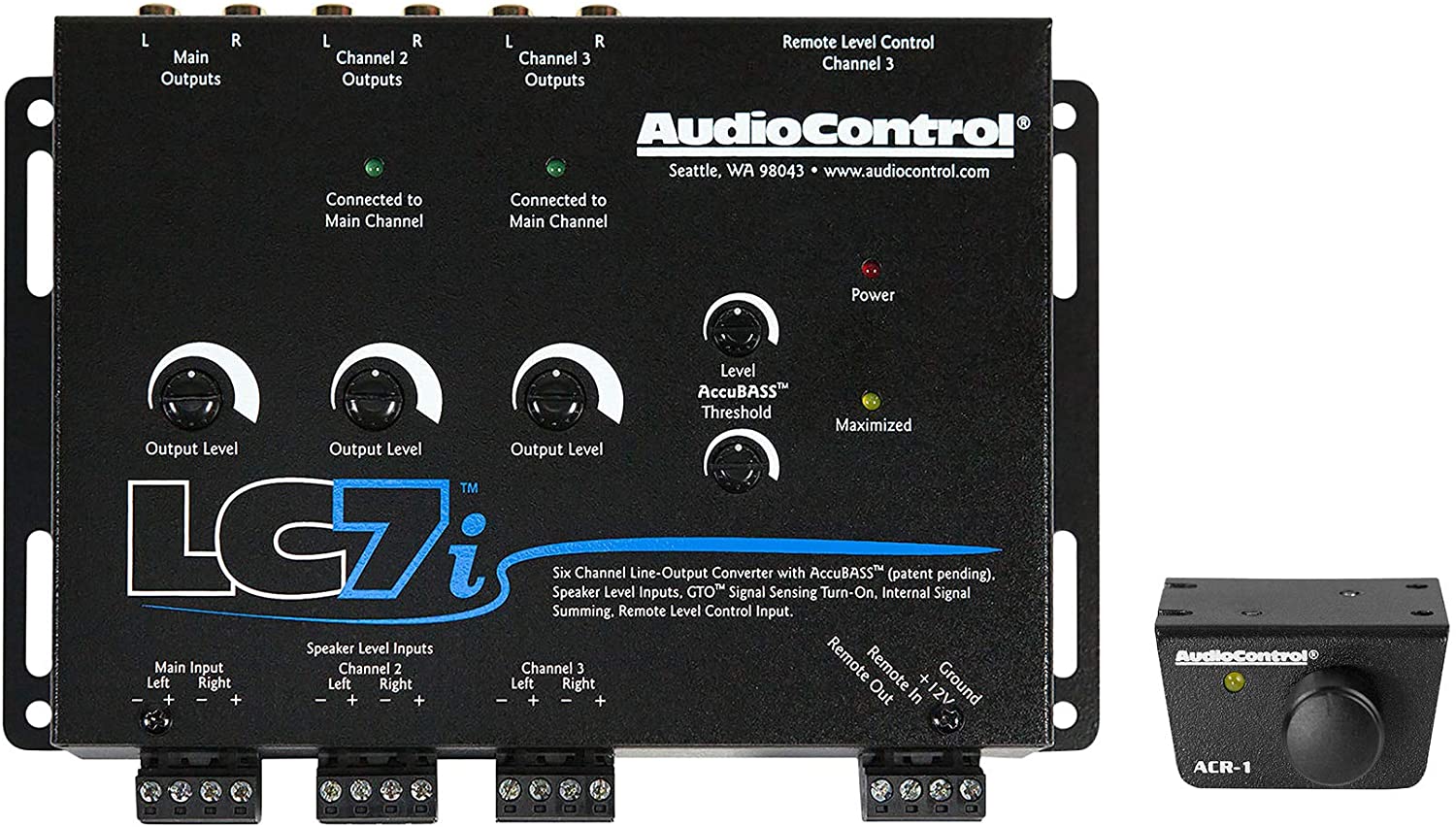

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low-frequency output.
Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20-foot cable and removable mounting enclosure (for custom dash installations).s.
General Features:
- Six Input and Output Channels
- 6 Speaker Level Inputs - Can Accept 400-Watt Signals!
- Signal sensing inputs
- GTO (Great Turn-On) Circuit
- Internal Channel Summing
- AutoMode inputs
- Level matching controls
- 12-volt trigger output
- Line Output Converter:
- A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal
- Input for optional subwoofer level control: AudioControl ACR-1
- Color: Black
- Weight: 3.0 lbs
- Size: 7.5" W x 4.72" D x 1.22" H
- Authorized Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
LC7i Specifications:
- Maximum speaker-level input: 400 watts @ 4 ohms
- Maximum output level: 8.5Vrms
- Output gain: ±15 dB
- Frequency response: 10Hz - 22,000 Hz
- Total harmonic distortion: 0.01%
- Input Impedance: 20 Kohms
- Output Impedance: 150 ohms
- Power supply: High headroom PWM switching
- Power draw: 350mA
- Recommended fuse rating: 2 Amp
- Remote Trigger Output Current: 1 Amp
What is in the LC7i box:
- 6-Channel line-output converter
- Instructions/Specs/Warranty (on packaging)
- Quality Control Certificate
- AudioControl LC7i owner's manual

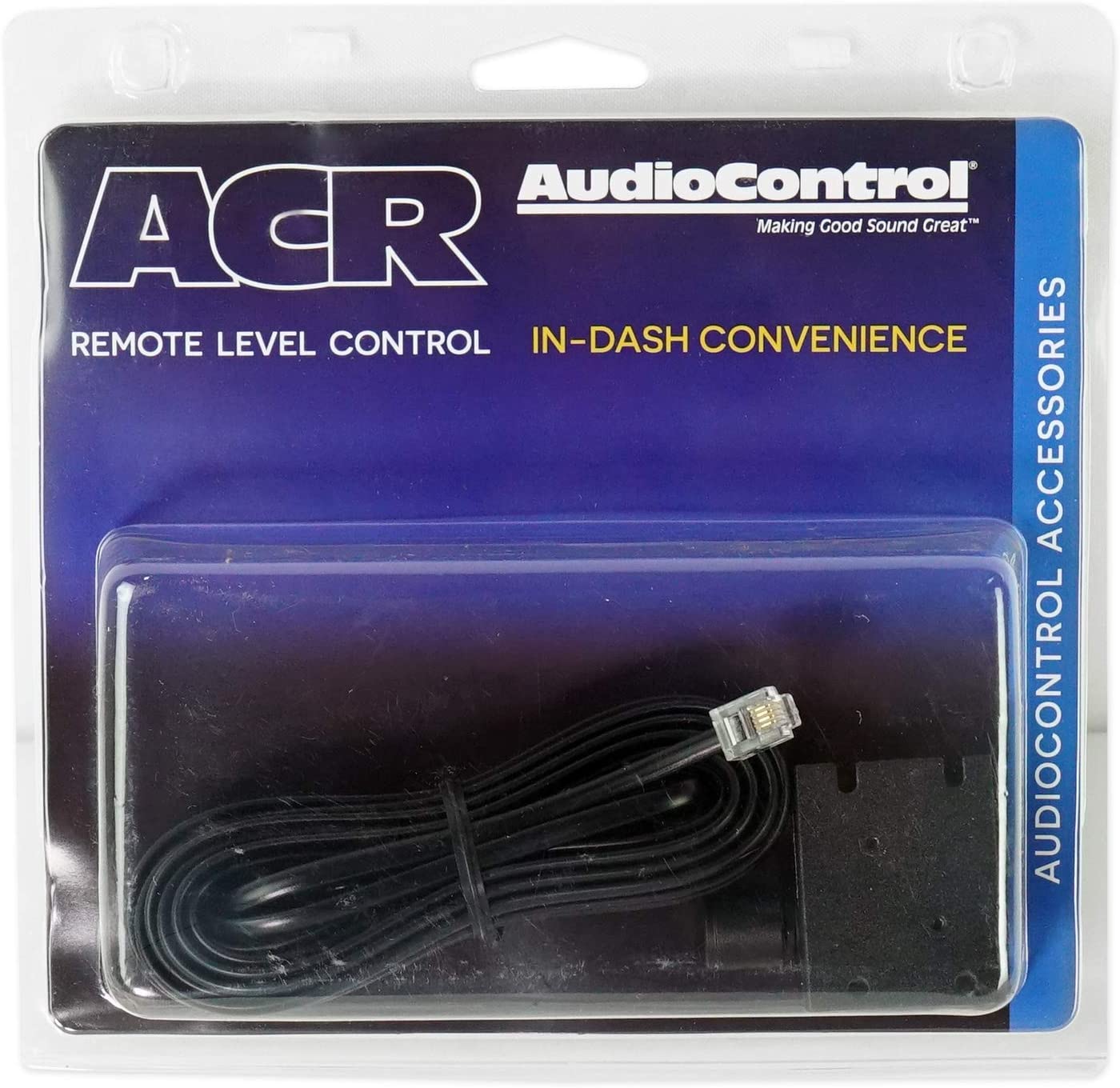

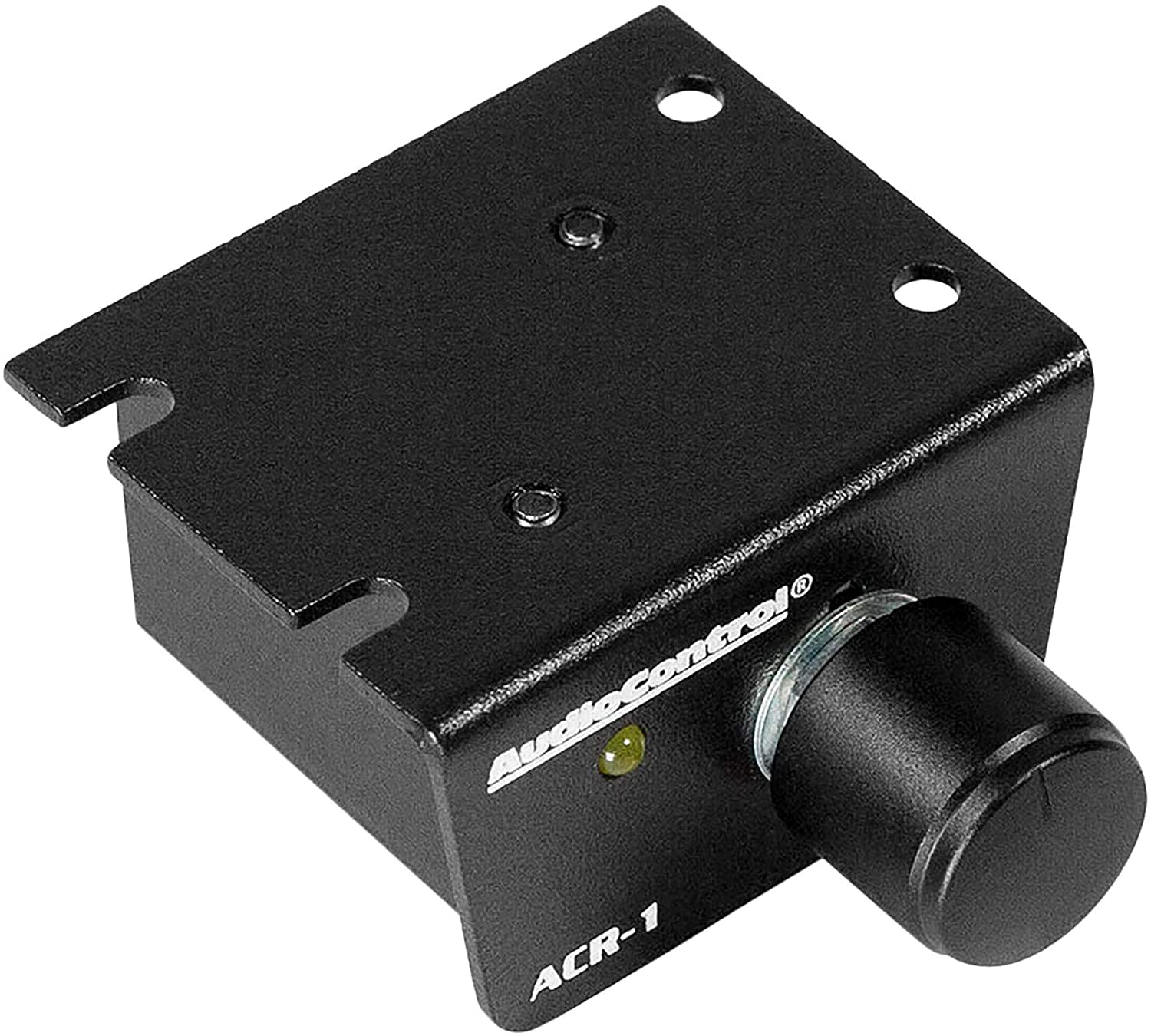

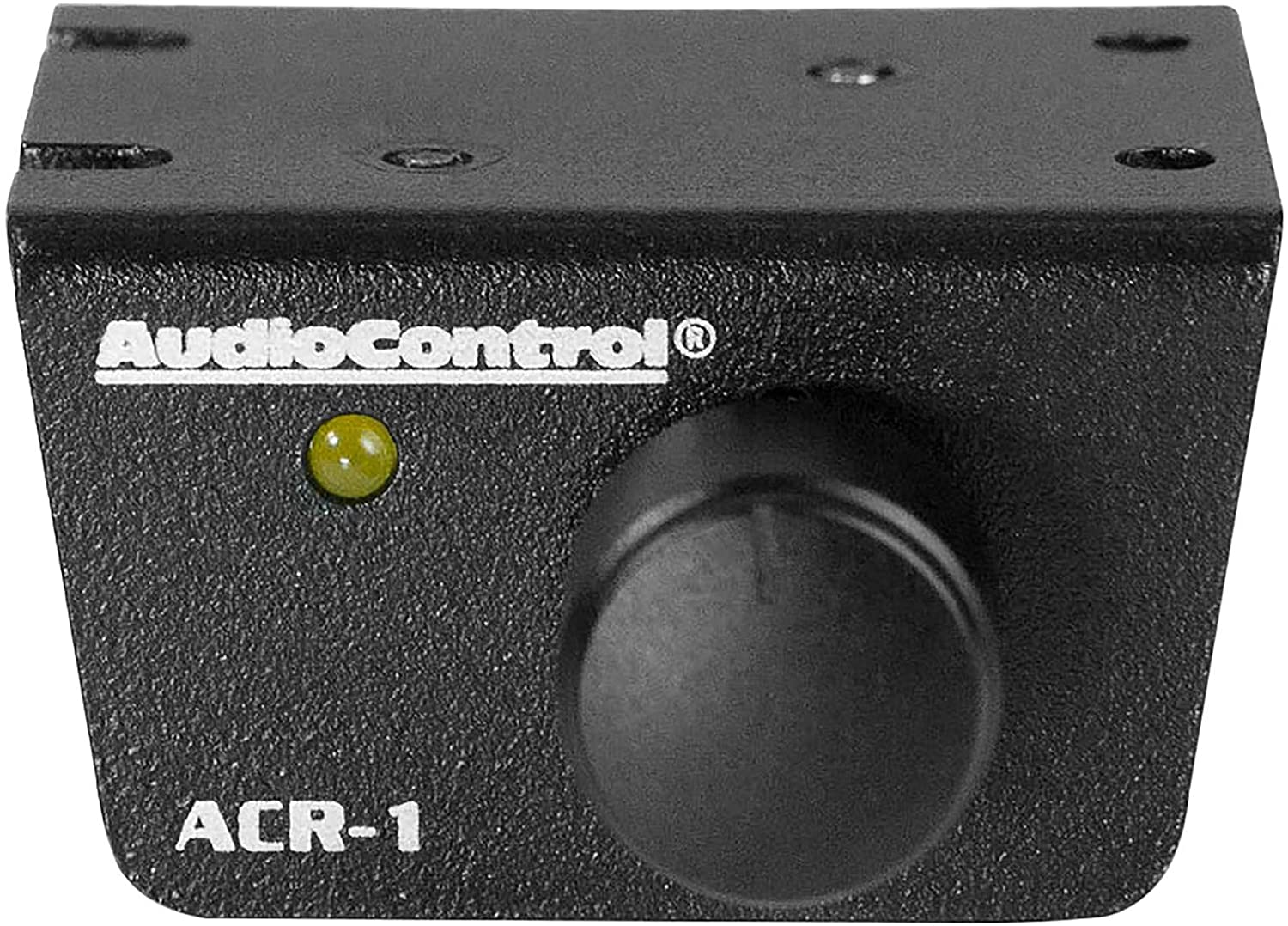

AudioControl Remote ACR-1 Dash Mount Wired Remote Level Control for Select AudioControl Sound Processors
Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20-foot cable and removable mounting enclosure (for custom dash installations).s.
General Features
- Wired Remote Level Control
- Mounts on the dash using built-in bracket
- Detachable mounting plate
- Works with select AudioControl sound processors
- Direct replacement remote for the Epicenter
- Includes 20' power cable
- Authorized Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
- 6XS
- ACM-1.300
- The Epicenter® Concert Series
- LC2i
- LC6i
- LC7i
- Overdrive Plus
- Matrix Plus
- LC-4.800
- LC-6.1200
- LC6
- LC8
- Original Epicenter® (bypass not supported)
- Remote dash mount control
- 20' RJ-14 cable. Mounting Instructions on packaging
- ACR-1 owner's manual
