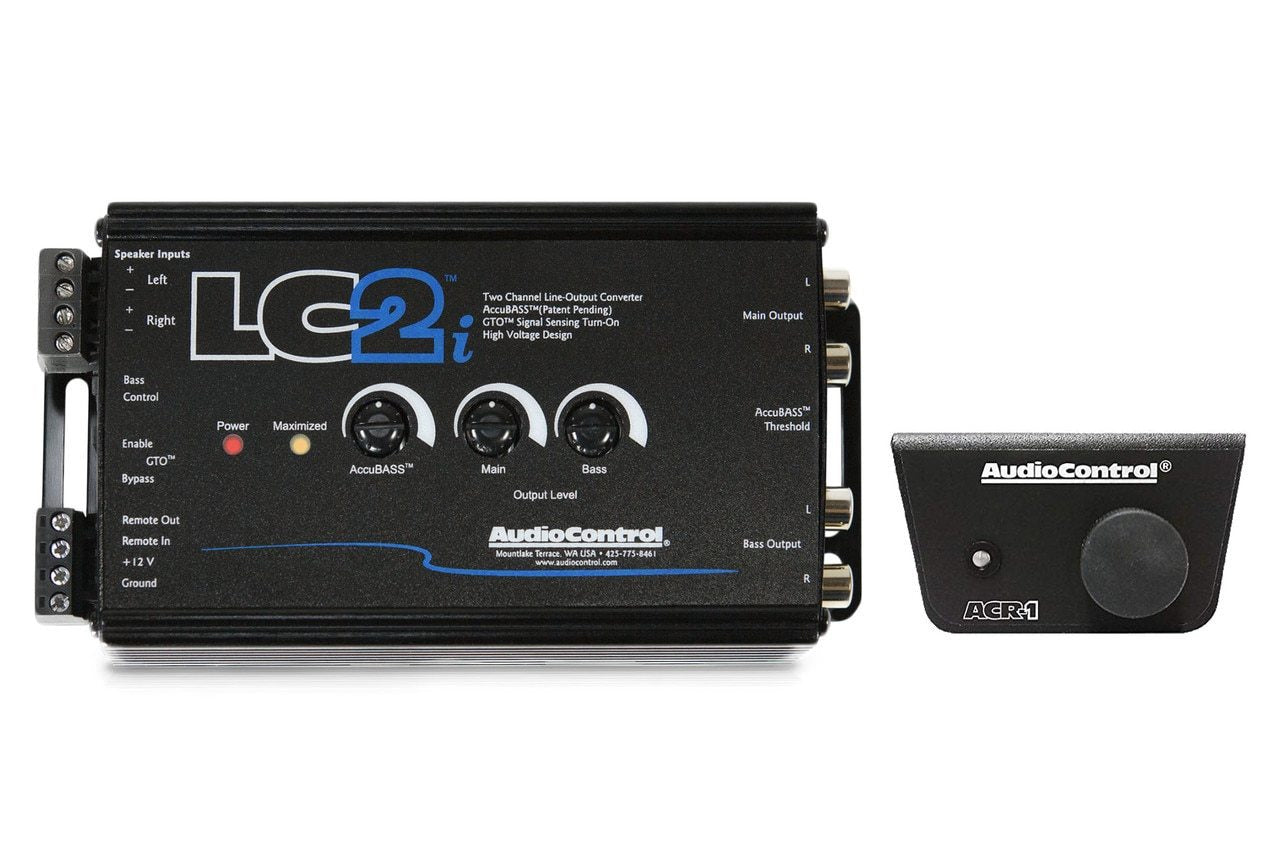

Audiocontrol Lc2I 2 Channel Line Out Converter with Accubass and ACR-1 Subwoofer Remote Control

Audio Control LC2i 2 Channel Line Out Converter Accubass and Subwoofer Control for amps to your factory system & ACR-1 Dash Remote

The LC2i is a compact, two-channel processor with active input circuitry. It can accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can be directed to after-market processors and amplifiers. Users can enjoy maximum sound quality using factory volume and steering wheel controls.

General Features:

• Two channels of active speaker level inputs - Accepts 400-watt signals per channel.
• AccuBASS processing for correction of bass roll-off
• Fixed and variable outputs with discrete-level controls
• GTO - Signal sensing inputs
• The 12-Volt trigger that will turn on LC2i
• Dual amplifier
• 9.5-volt pre-amp outs
• Level matching controls
• 12 Volt trigger output
• Input for optional subwoofer level control: AudioControl ACR-1
• Dimensions: 6-3/8"W x 3-1/8"D x 1-1/2"H
• Authorized Internet Dealer
• 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

The LC2i Specifications

• Maximum speaker level input: 400 watts per channel
• Maximum Preamp Output: 9.5Vrms / 13V peak
• Optional Dash Level Control Remote: +0dB / -19dB
• Frequency response: 10 Hz - 100,000 Hz; ±1dB
• Total harmonic distortion: 0.01%
• Signal to Noise ratio: >110dB
• Input Impedance: 20K ohms
• Output Impedance: 150 ohms
• Power draw: 150 mA
• Recommended fuse rating: 1 Amp
• Weight: 1 pound

What's in the box:

• Two-Channel line-output converter
• Instructions/Specs/Warranty (on packaging)
• Quality Control Certificate
• AudioControl LC2i owner's manual

AudioControl Remote ACR-1 Dash Mount Wired Remote Level Control for Select AudioControl Sound Processors

General Features

• Wired Remote Level Control
• Mounts on the dash using built-in bracket
• Detachable mounting plate
• Works with select AudioControl sound processors
• Direct replacement remote for the Epicenter
• Includes 20' power cable
• Authorized Dealer
• 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

What is in the ACR-1 box:

• Remote dash mount control
• 20' RJ-14 cable. Mounting Instructions on packaging
• AudioControl ACR-1 owner's manual
