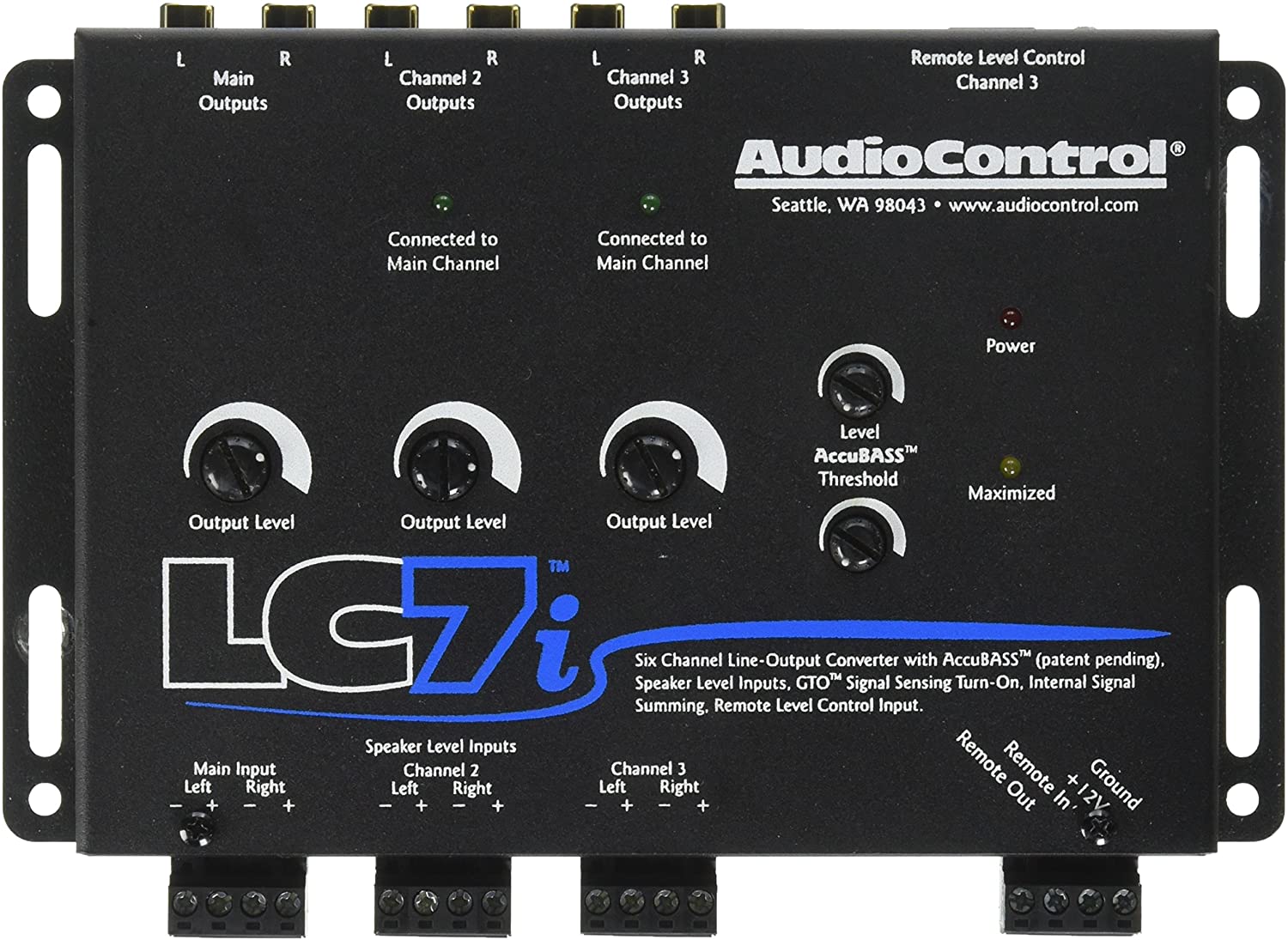

AudioControl LC7i
6 Channel Line Out Converter with bass restoration adds aftermarket subs and amps to a factory system

Audio Control LC7i 6 Channel Line Out Converter with bass restoration adds aftermarket subs and amps to a factory system

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory-installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS™. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS™ circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low-frequency output.

Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20-foot cable and removable mounting enclosure (for custom dash installations).s.

General Features:

• Six Input and Output Channels
• 6 Speaker Level Inputs - Can Accept 400-Watt Signals!
• Signal sensing inputs
• GTO (Great Turn-On) Circuit
• Internal Channel Summing
• AutoMode inputs
• Level matching controls
• 12-volt trigger output
• Line Output Converter:
• A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal

• Input for optional subwoofer level control: AudioControl ACR-1

• Color: Black
• Weight: 3.0 lbs
• Size: 7.5" W x 4.72" D x 1.22" H
• Authorized Dealer
• 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

LC6i Specifications:

• Maximum speaker-level input: 400 watts @ 4 ohms
• Maximum output level: 8.5Vrms
• Output gain: +/-12 dB
• Frequency response: 10Hz-22kHz
• Total harmonic distortion: 0.01%
• Input Impedance: 20K Ohms
• Output Impedance: 150 ohms
• Power supply: High headroom PWM switching
• Power draw: 350mA
• Recommended fuse rating: 2 Amp
• Remote Trigger Output Current: 1 Amp

What is in the box:

• 6-Channel line-output converter
• Instructions/Specs/Warranty (on packaging)
• Quality Control Certificate
• AudioControl LC7i owner's manual
