Crux VRFMB-78N Rear & Front-view Camera Integration for 2015 and Up Mercedes-Benz w/ NTG5 / 5.1 Systems

by Crux
Sold out
Original Price $723.90
Current Price $361.95
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

Notify me when back in stock

Crux VRFMB-78N Rear & Front-view Camera Integration for 2015 and Up Mercedes-Benz w/ NTG5 / 5.1 Systems

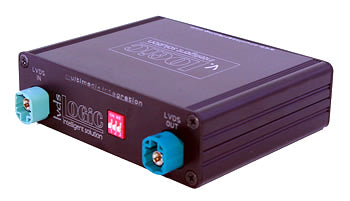

The CRUX VRFMB-78N is a Rear-vision and Front-vision integration interface for Select Mercedes Benz vehicles equipped with the NTG5 & NTG5.1 Infotainment Systems. It seamlessly integrates with the factory installed system for activating both cameras

General Features:

Rear-view camera input with Dynamic Guidelines
Control by factory infotainment
On-screen display and setup
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, rear-view camera,
reverse gear)
Front camera input
Front camera input can also be used as an Auxiliary Video Input (CRUX part# AUX-MB2, OBD2 Audio Aux coding, may be required to create an Auxiliary Audio Input) (Sold separately).
Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
Forced rear-view camera option
Manual return from rear-view and front camera (cancellation of automatic switching)
Compatible with all factory video accessories (e.g. rear-view camera, DVD-changer, etc.)
Plug & Play installation

Compatibility:
Mercedes-Benz
2015 – 2018 A-Class (W176)
2015 – 2018 B-Class (W24)
2015 – 2018 C-Class (W205)
2015 – 2016 E-Class (W212)
2015 – 2018 CLA (C117)
2015 – 2018 CLS (W218)
2016 – 2018 GLA (X156)
2016 – 2018 GLC (X205)

2017 – 2018 GL-Class (X166)
2017 – 2018 G-Class (G-Wagon) (W463)
2016 – 2018 ML-Class (W166)
2015 – 2016 E-Class Coupe (C207)
2016 – 2018 GLE (C292)
2015 – 2018 GLS (X166)
2015 – 2018 AMG-GT (C190)
2016 – 2018 SLC (R172)
2015 – 2018 V-Class (W447)

Compatible Infotainment System

COMAND Online NTG5, Audio20 NTG5.1
with 4pin HSD LVDS connector on the monito
