Crux DKGM-C2S Radio Replacement with Single DIN Dash Kit for GM Class II Vehicles 2002 – 2013
Crux DKGM-C2S Radio Replacement with Single DIN Dash Kit for GM Class II Vehicles 2002 – 2013

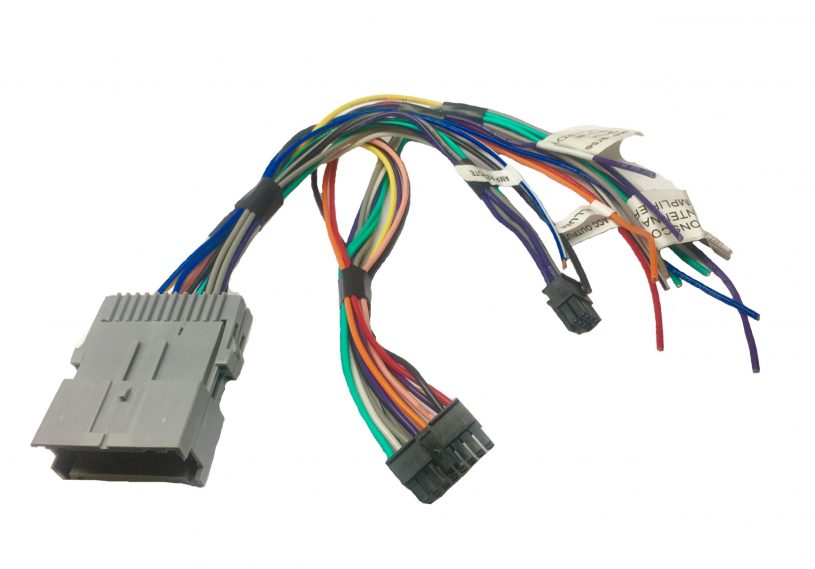

The CRUX DKGM-C2S is a premium interface for select General Motors Class II Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM Class II Data bus vehicles for Bose Amplified and Non-Amplified Systems. A single DIN radio replacement dash kit is included in the kit to make the installation quick and easy.
General Features:
Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
– Supports Bose, Y-91 and non-amplified audio systems.
– Retains chime functions such as: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
– Retains RAP (Retained Accessory Power).

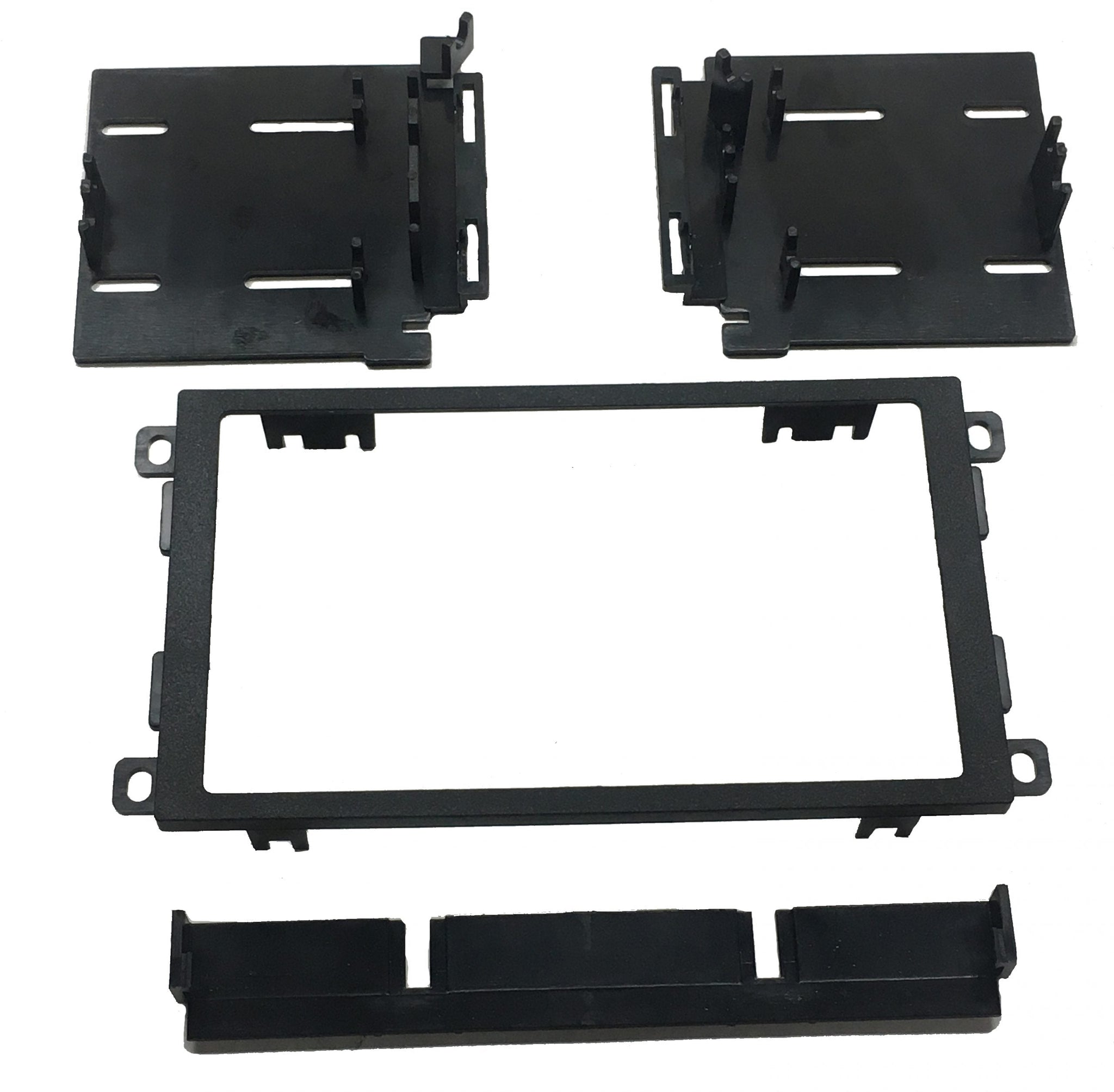

– Single DIN Dash Kit included.
– EIA color coded wiring for easy installation.
****NOTE****
If Steering Wheel Controls need to be retained, please select the following kit:
DKGM-48S Combo Category Includes Single-DIN Installation Kit with SWRGM-48
Compatibility:
GMKIT-C2S: Combo Category Includes SINGLE-DIN Installation Kit with SOCGM-17C
BUICK
2004 – 2005 Century*
2005 – 2007 LaCrosse*
2004 – 2007 Rainier*
2003 – 2005 Rendezvous*
2005 – 2007 Terraza*
CADILLAC
2004 – 2006 Escalade
CHEVROLET
2003 – 2006 Avalanche
2000 – 2005 Cavalier
2004 – 2013 Colorado
2005 – 2013 Corvette*
2004 – 2007 Express
2000 – 2005 Impala*
2000 – 2005 Monte Carlo*
2003 – 2004 S-10
2003 – 2006 Silverado
2007 – 2007 Silverado Classic
2003 – 2006 SSR
2003 – 2006 Suburban
2003 – 2006 Tahoe
2002 – 2009 Trailblazer
2005 – 2008 Uplander
2003 – 2005 Venture GMC
2004 – 2011 Canyon
2002 – 2009 Envoy
2003 – 2007 Savana
2003 – 2006 Sierra
2007 – 2007 Sierra Classic
2003 – 2006 Yukon
HUMMER
2003 – 2007 H2
2005 – 2009 H3
ISUZU
2003 – 2008 Ascender
OLDSMOBILE
2001 – 2004 Alero*
2002 – 2004 Bravada*
2000 – 2004 Silhouette*
PONTIAC
2001 – 2005 Aztec*
2001 – 2005 Grand Am*
2004 – 2008 Grand Prix*
2000 – 2006 Montana*
2000 – 2005 Sunfire*
SAAB
2005 – 2008 9-7X
SATURN
2005 – 2007 Relay
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
*Analog Steering Wheel Controls. See pages 5 to 8 of the manual for Steering Wheel Control functions.
