Crux SWRGM-49 Radio Replacement w/ SWC Retention for GM LAN 29-Bit Vehicles 2006 – 2015 w/ Bose Amplified & Non-Amplified Systems

Crux SWRGM-49 Radio Replacement w/ SWC Retention for GM LAN 29-Bit Vehicles 2006 – 2015 w/ Bose Amplified & Non-Amplified Systems

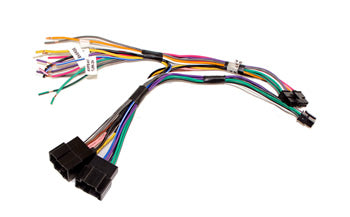

The CRUX SWRGM-49 is a premium interface for select General Motors LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. This enhanced interface is also pre-programmed for retention of steering wheel controls.

General Features:

Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
Pre-programmed to retain factory Steering Wheel Controls.
iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
Supports Bose, non-Bose and Y-91 audio systems.
Retains chime functions.
Retains factory back-up camera (if present).
EIA color coded wiring for easy installation.

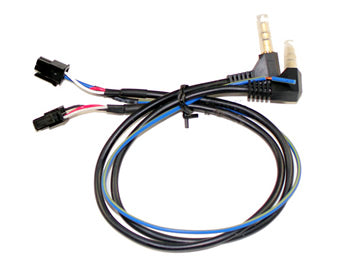

Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
Note:
This product Does Not retain Onstar. Please select SOOGM-16 to retain all factory features and OnStar

This product Does Not include a dash kit. Please select DKGM49 to have SWRGM-49 and dash kit

Compatibility Notes:

BUICK
2008 – 2017 Enclave
2006 – 2011 LucerneCADILLAC
2007 – 2014 Escalade
2007 – 2009 SRXCHEVROLET
2007 – 2013 Avalanche*
2007 – 2008 Equinox
2008 – 2016 Express Van**
2006 – 2013, Impala / Impala SS
2014, – 2016 Impala Classic
2006 – 2007 Monte Carlo
2007 – 2013 Silverado 1500-3500 Pickup*
2007 – 2014 Suburban*
2007 – 2014 Tahoe*
2009 – 2017 Traverse GMC
2007 – 2016 Acadia*2017 Acadia Classic
2008 – 2017 Savana**
2007 – 2013 Sierra 1500-3500 Pickup*
2007 – 2014 Yukon*/XL*
HUMMER
2008 – 2009 H2
PONTIAC
2007 – 2009 TorrentSATURN
2007 – 2009 Outlook
2008 – 2009 VueSUZUKI
2007 – 2008 XL7
NOTES:
* Not compatible with 2012-up SUVs/trucks that are equipped with factory-installed Navigation radios. For those vehicles, use SWRGM-49A (which is compatible); see below.
** Not compatible with diesel-powered Express and Savana vans.
1. Supports Rear Entertainment System with special order harness #CJA2333A, sold separately.
2. Does not support OnStar.
