Crux VRFMB-78A Rear- & Front-view Integration for 2012 – 2016 Mercedes-Benz w/ NTG4.5 Systems

Crux VRFMB-78A Rear- & Front-view Integration for 2012 – 2016 Mercedes-Benz w/ NTG4.5 Systems

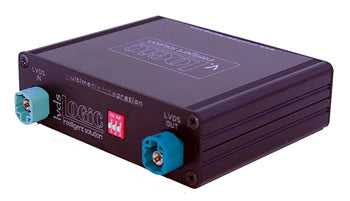

The CRUX VRFMB-78A is a Rear-vision and Front-vision integration interface for Select Mercedes Benz vehicles equipped with the NTG4.5 Infotainment System. It seamlessly integrates with the factory installed system for activating both cameras. This Best in Class Interface offers an enhanced operational capability for switching between video sources via the factory Infotainment COMAND knob.

General Features:

Rear-view camera input with Dynamic Guidelines
On-screen Display options can be Controlled by the factory COMAND Knob
Rear-view and Front-view camera inputs
Front camera input can also be used as an Auxiliary Video Input (Crux AUX-MB1 for Auxiliary Audio Input Option — Sold separately)
Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
Forced rear-view camera option
Manual return from rear-view and front camera (cancellation of automatic switching)
Compatible with all factory video accessories (e.g. rear-view camera, DVD-changer etc.)

Compatibility:

Mercedes-Benz
2013 – 2015 A-Class (W176)
2013 – 2016 B-Class (W246)
2013 -2014 CLA 250 (late 2014)
2012 – 2016 C-Class (W204)
2012 – 2016 C-Class (C204)
2012 – 2016 CLS (C218)
2012 – 2016 E-Class (W212)
2012 – 2016 E-Class (C207)

2013-2016 G Wagon (G463)

2013-2016 GL (X166)
2014 – 2016 GLA (X156)
2011 – 2016 GLK (W204)
2012 – 2016 ML (W166)
2012 – 2016 SLK (R172)
2013 – 2016 SL (R231)

COMAND Online NTG4.5 & Audio20 NTG4.5

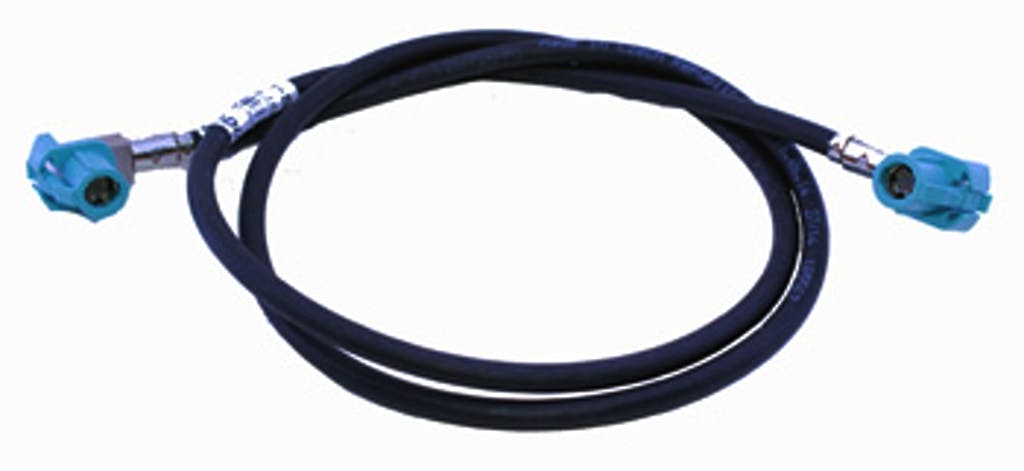

6” / 7″ monitor and 4pin HSD LVDS connector
