Diamond Audio HX400.2 2-Channel 400W RMS Full Range Class D Amplifier

Save 58%
Original Price $1,139.98
Current Price $479.99
Availability: Translation missing: en.general.icons.icon_check_circle icon 301 in stock, ready to be shipped

Notify me when back in stock

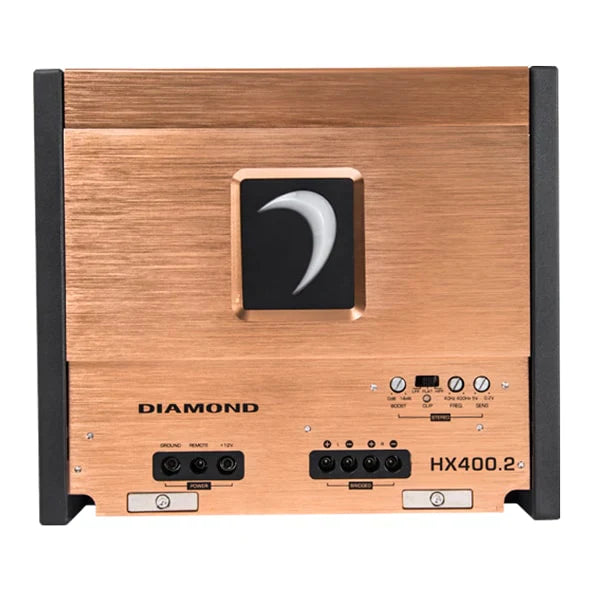

 Diamond Audio HX400.2 2-Channel 400W RMS Full Range Class D Amplifier

Audiophile-grade high tolerance components - 4-layer PCB board with balanced differential inputs - full-range digital class-d Ir chip sets - fine-tuned variable - crossover and phase control- top mounted controls for convenient amplifier adjustment turn to hex series amplifiers for superior sound quality and unparalleled power for the ultimate audiophile system set up. Composed of high-tolerance grade components and tuning adjustments to fit your listening desires, hex series amplifiers are the choice for those who expect the best!

General Features:

  • Amplifier 2 Channel
  • RMS Power(2Ω) 350 W X 2
  • RMS Power (4Ω) 200 W X 2
  • RMS Bridge (mono 2Ω) N/A
  • RMS Bridge (mono 4Ω) 700 W X 1
  • RMS Bridge (stereo 4Ω) N/A
  • Topology Full-Range Class D
  • Power Supply Full PWM
  • Power Supply (Threshold) 10.0VDC – 17.0VDC
  • Idle Current (0.7A)
  • Distortion - THD (1KHz@4Ω) 0.06%
  • Distortion - S/N Ratio (A weight @ 1W) -80dBA
  • Distortion - S/N Ratio (A weight @ FP) -95dBA
  • Input Sensitivity Low 200mV – 5.0V
  • Input Sensitivity High N/A
  • Input Impedance - Low Input Level 20 KΩ
  • Input Impedance - High Input Level N/A
  • Output Impedance 0.011Ω
  • Damping Factor (50Hz@4Ω) >250
  • Bandwidth (-3dB) 10Hz-35kHz
  • Crossover (-12 dB/ Oct) Variable High-Pass 40Hz - 400Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass 40Hz - 400Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic N/A
  • FUSE Ratings - ATC 25A X 2
  • Dimension - Length x Width x Height - Inches(mm) 8.75″ x7.67″ x 2″ (222 x 195 x 51.5 mm)
