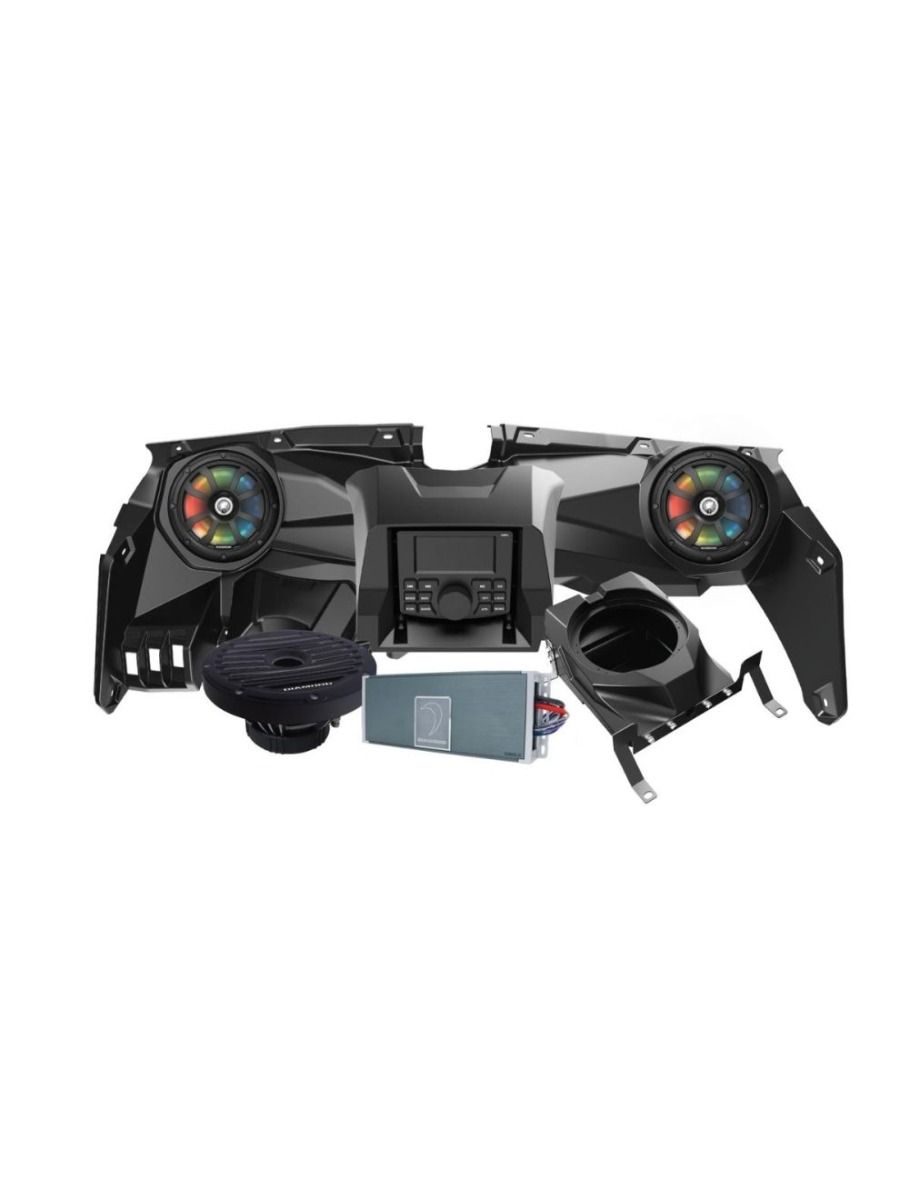

Diamond Audio MSX3KM2 Can-Am X3 Dash Audio Speaker Kit

Speaker Specifications:

• 6.5" 2-Way Power Sports All-Weather Coaxial Speaker
• 125W RMS / 250W MAX Power Handling
• Ultra Compact Motor Structure
• Integrated LED Lighting Option (DALEDLC remote control sold seperately)
• Plug-n-Play Wire Harness Equipped With EZ Compatible LED Connection
• High Impact and High Strength HDPE Speaker Panel
• 2-Way 10" Pod Speaker System(Pair)
• 1" Tweeter Titanium Dome
• US Manufactured 2" High-Temperature Coated Voice Coil
• 200W RMS/400W MAX Power Handling
• IP65 Marine Grade Compliant, 100% UV Stable
• Y35 Motor Structure With Max Xmax Suspension
• Molded injection ASA Grill and Enclosure With UV Coating
• 3/16 Stainless Metal Mesh Grill
• Integrated DIGITAL LED Lighting In Speakers and Enclosure
• 6" Passive Design For Bass Boost

Subwoofer

10-inch / 250mm Sealed/Vented Marine Subwoofer (MS104SL)

• 4Ω Impedance
• 200W RMS, 400W MAX
• Single Voice Coil
• Mounting Diameter: 9.22” / 234.3mm
• Mouthing Depth: 4.74” / 120.3mm
• Outside Diameter: 10.91” / 277.0mm

Amplifier

4-Channel Full Range Class D Waterproof Amplifier (DXM800.4D)

• 200 W x 4 @ 2Ω
• 125 W x 4 @ 4Ω
• 400 W x 1 @ 4Ω bridged

Dimensions:

• 11.56” x 4.33 x 1.7 “
• 293.6 (L)x 110 (W) x 43.2 (H) mm

Head Unit

Dash Kit (DMR3) Specifications:

• 25Wx4 RMS / 50Wx4 MAX Power
• Bluetooth A2DP Bluetooth Wireless Streaming
• 3” Bonded TFT Color LCD
• AM/FM Tuner
• F/R/Sub RCA Pre-Outs
• Waterproof Rating IP66
