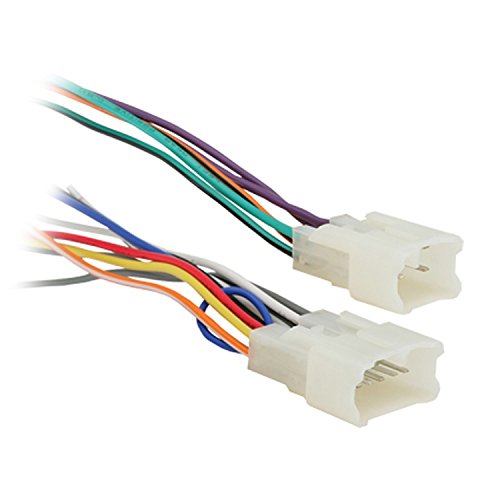

Metra 70-1761 Radio Wiring Harness For Toyota 87-Up Power & Speaker

METRA 70-1761 Wiring Harness For Toyota 87-Up Power 4 Speaker

Interchange Part Number: American International TWH950, Metra 70-1761, Scosche TA02B

For Non-Amplified Vehicles, Some Vehicles will have an add-on amp that follows the wires back to the amp and unplug the amp.

Color Codes:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Black with White Stripe - Factory Amplifier Ground
• Blue - Power Antenna / Factory Amplifier Remote Turn On
• Blue with White Stripe - Factory Amplifier Remote Turn on
• Orange – Dash Light Dimmer/Illumination
• Orange with White Stripe - Dash Light Dimmer/Illumination
• Brown - Mute / Not Used
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

General Features:

• 1989-1992 GEO PRIZM
• 1996-1997 LEXUS LX 450
• 1998-2006 LEXUS LX 470
• 2013-2016 SCION FR-S
• 2013-2016 SCION FRS
• 2012-2015 SCION IQ
• 2005-2016 SCION TC
• 2004-2006 SCION XA
• 2004-2015 SCION XB
• 2008-2014 SCION XD
• 2013-2016 SUBARU BRZ
• 2016-2018 SUBARU CROSSTREK
• 1986-1990 SUBARU DL
• 2016-2018 SUBARU FORESTER
• 2015-2018 SUBARU IMPREZA
• 2015-2017 SUBARU LEGACY
• 2015-2017 SUBARU OUTBACK
• 2016-2018 SUBARU WRX
• 2016 SUBARU XV CROSSTREK
• 1987-2016 TOYOTA 4RUNNER
• 1995-2016 TOYOTA AVALON
• 2018-2019 TOYOTA C-HR
• 1987-2017 TOYOTA CAMRY
• 1986-2006 TOYOTA CELICA
• 1987-2019 TOYOTA COROLLA
• 2017-2018 TOYOTA COROLLA IM
• 1987-1992 TOYOTA CRESSIDA
• 2000-2006 TOYOTA ECHO
• 2007-2014 TOYOTA FJ CRUISER
• 2001-2019 TOYOTA HIGHLANDER
• 1987-2002 TOYOTA LAND CRUISER
• 2005-2013 TOYOTA MATRIX
• 1985-2006 TOYOTA MR2
• 2000-2006 TOYOTA MR2 SPYDER
• 1992-1997 TOYOTA PASEO
• 1989-1995 TOYOTA PICKUP
• 1991-1997 TOYOTA PREVIA
• 2001-2020 TOYOTA PRIUS
• 1996-2018 TOYOTA RAV4
• 2001-2020 TOYOTA SEQUOIA
• 1998-2020 TOYOTA SIENNA
• 1999-2009 TOYOTA SOLARA
• 1986-1998 TOYOTA SUPRA
• 1993-1998 TOYOTA T-100 PICKUP
• 1995-2020 TOYOTA TACOMA
• 1987-1998 TOYOTA TERCEL
• 2000-2020 TOYOTA TUNDRA
• 1987-1990 TOYOTA VAN
• 2009-2015 TOYOTA VENZA
• 2007-2017 TOYOTA YARIS
