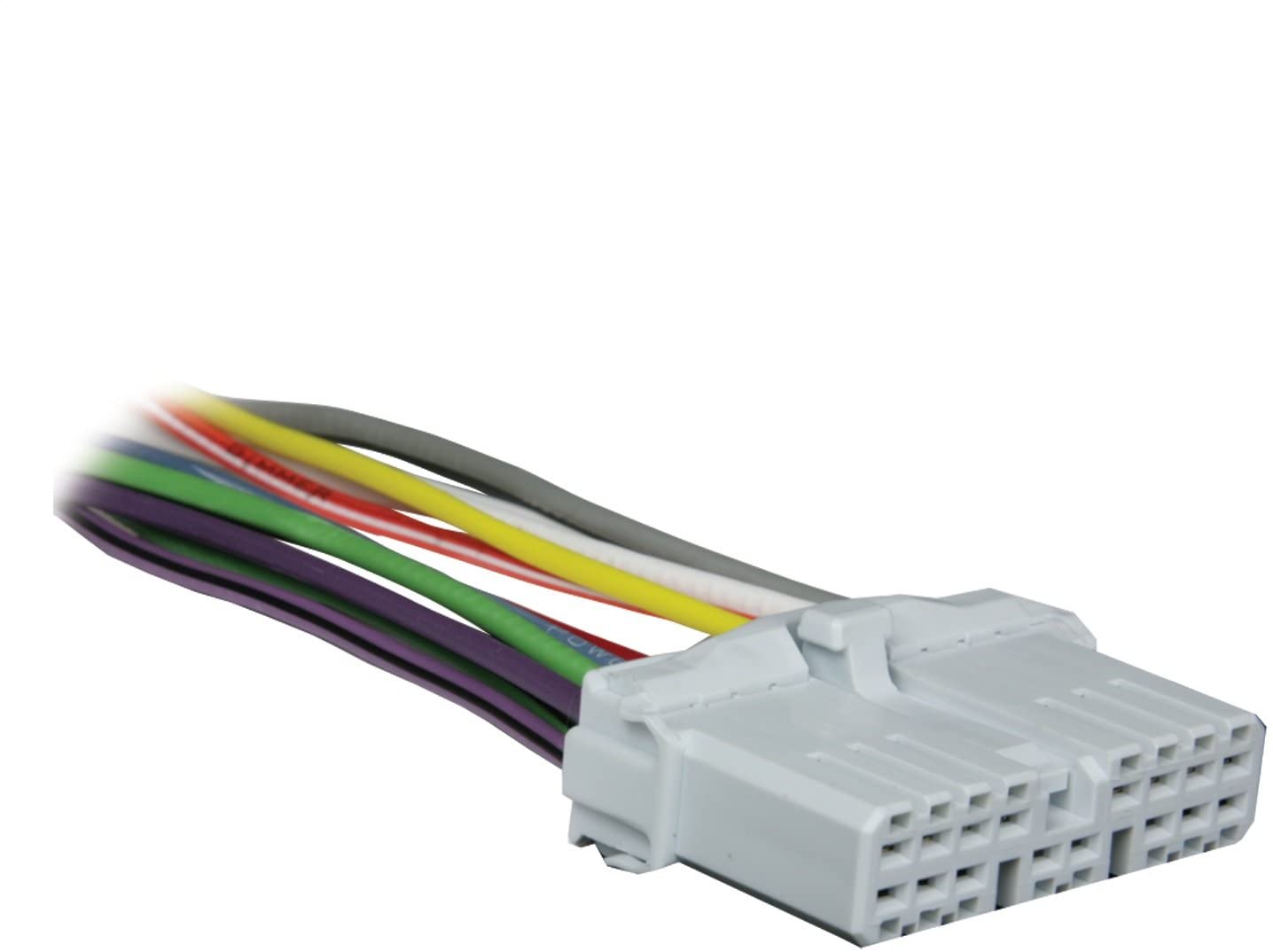

Metra 71-1720 Reverse Wiring Harness for Select 1986-1998 Honda/Acura Vehicles

Metra 71-1720 Reverse Wiring Harness for 1986-1998 Honda/Acura Vehicles Factory Radio
Plugs into OEM Radio Power/4 Speaker 16-pin connector for select 1986-1998 Honda and Acura vehicles Harness is designed to plug into the factory radio and Can be used to repair a harness where the plugs have been cut off or damaged

General Features:

• Plugs Into Oem Radio
• 1986-1998 Honda or Acura
• Powers Speaker
• For select 1986-1998 Honda and Acura vehicles
• Power/4 Speaker
• 16-pin connector
• Harness is designed to plug into the factory radio

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
