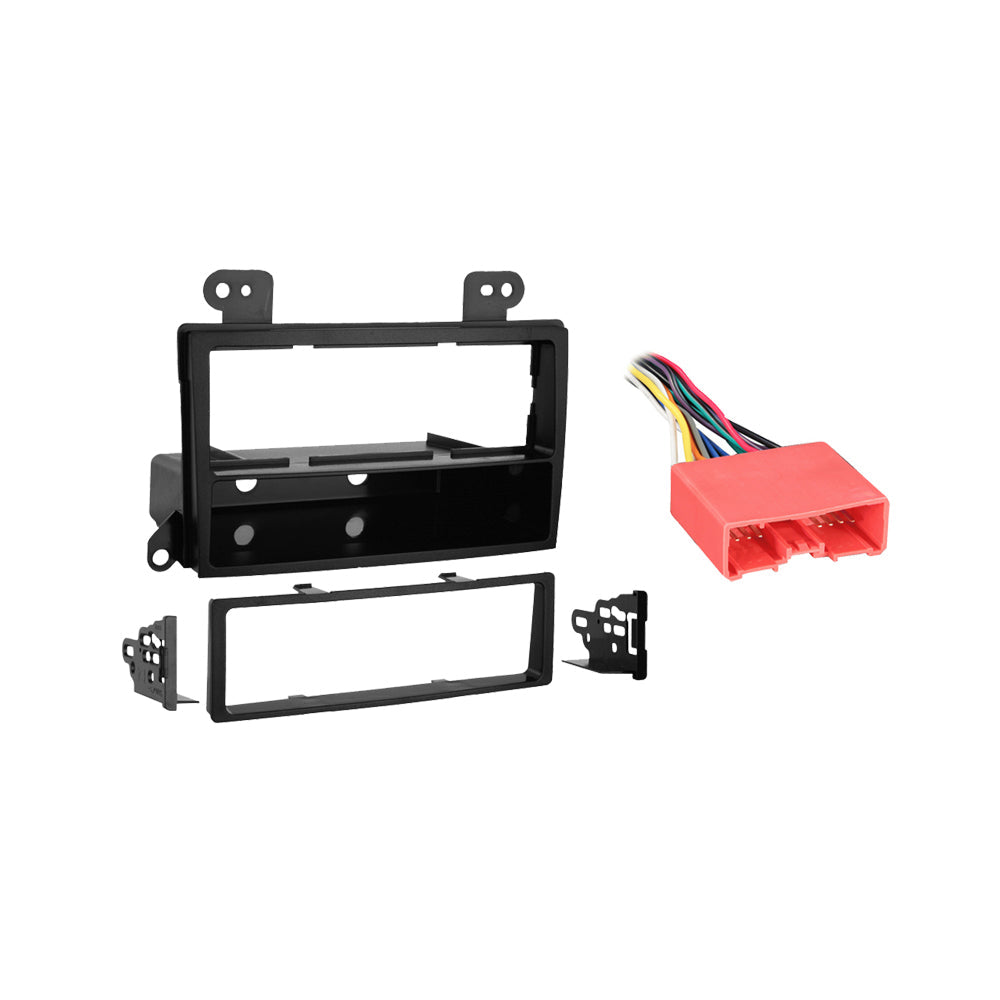

Metra 99-7502 2000 - 2006 Mazda MPV Single Din Installation Kit & Harness

Metra 99-7502 2000 - 2006 Mazda MPV Single Din Installation Kit & 70-7903 Harness

General Features:

• Allows for installation of an aftermarket Single-Din car stereo
• Compatible with select 2000-2006 Mazda MPV
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant black
• Authorized Internet Dealer
• 1-Year Manufacturer's Warranty

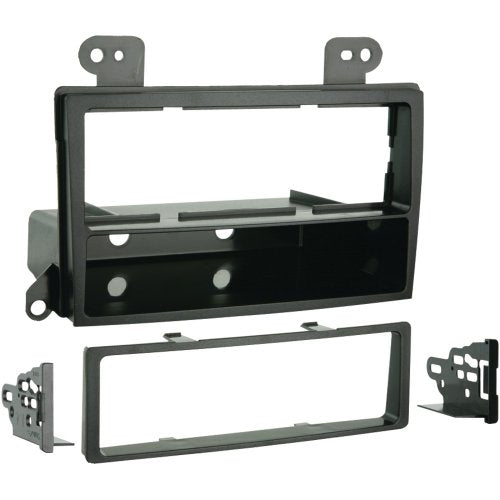

Kit Includes:

• Radio housing
• Trim plate
• ISO Snap in Brackets
• Step-by-step instructions

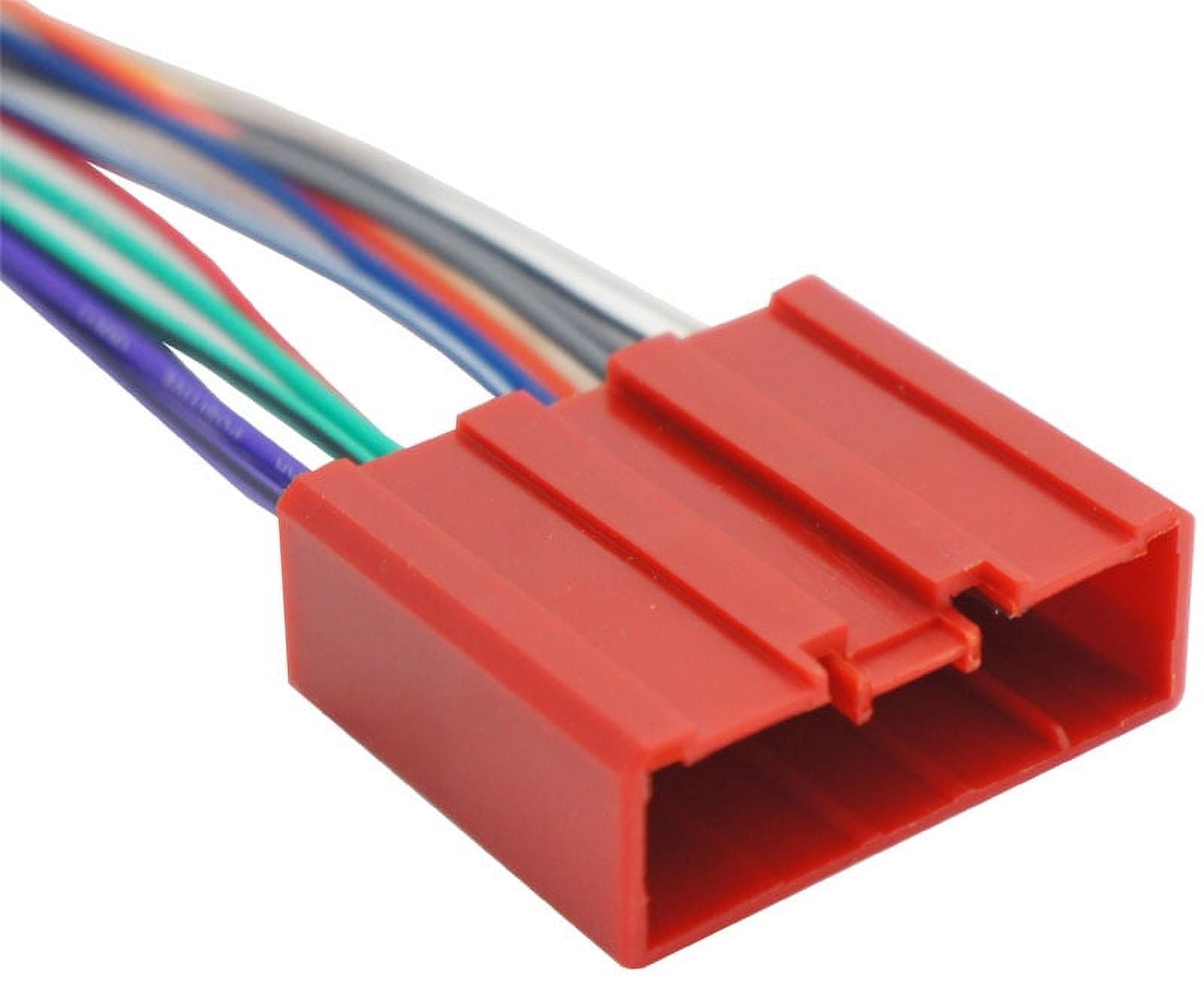

Metra 70-7903 Wiring Harness for 2001-up Mazda

• Plugs into car harness at radio
• Power/4 Speaker
• 24-pin connector
• For select 2001-2007 Mazda vehicles
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)
