Neumann Digital Input Module (DIM 1)

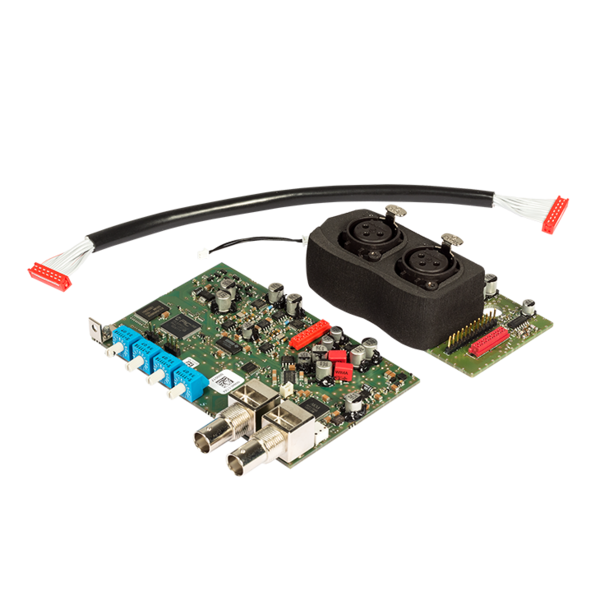

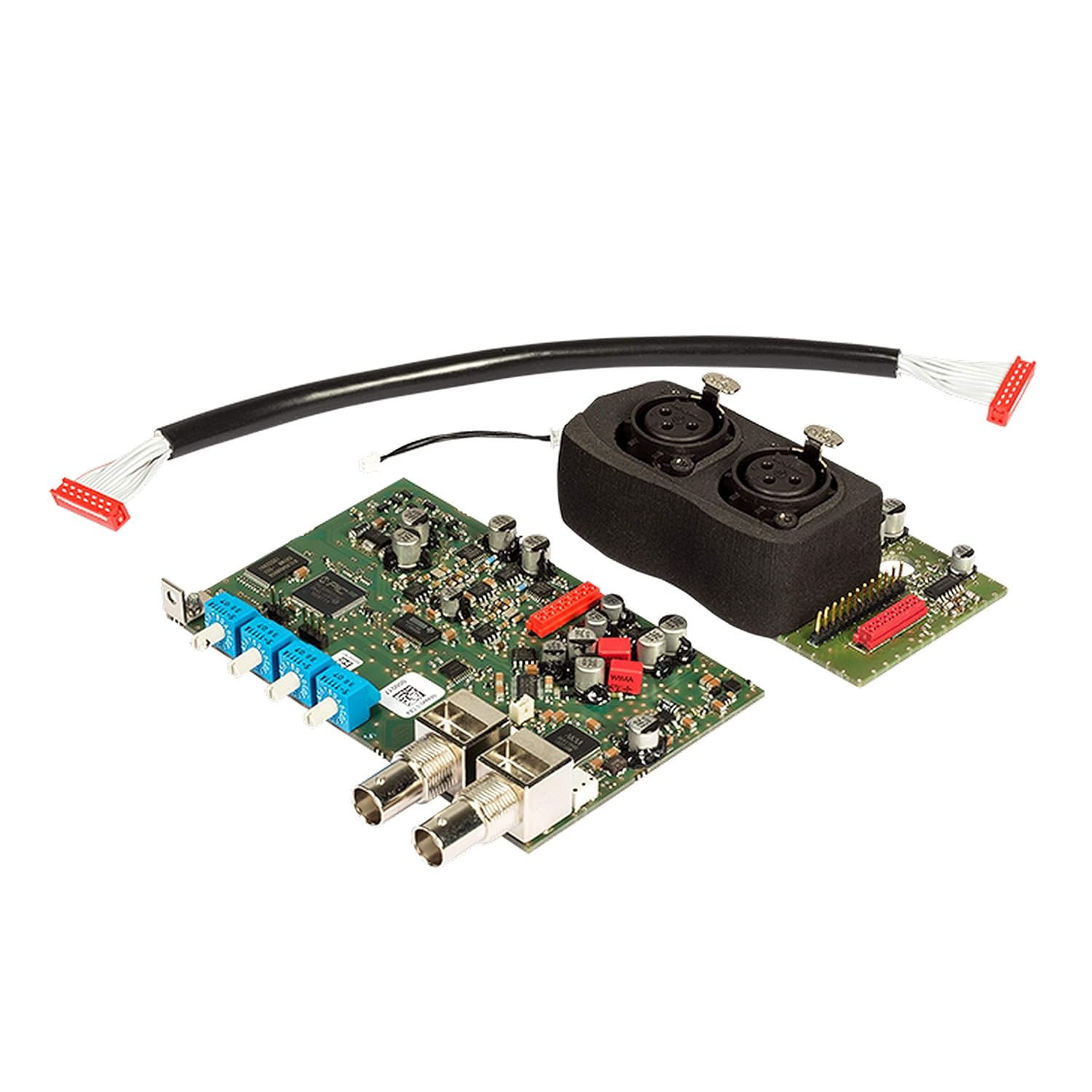

The Neumann DIM 1 is a Digital Input Module that adds 192 kHz 24-bit XLR and BNC digital inputs and a BNC digital output for digital signal interconnectivity. It features 400 ms of delay for lipsync adjustment and fine resolution for time-of-flight adjustment. The DIM 1 can be retrofitted to the Neumann KH 420 speaker.
General Features:
- Formats: BNC (AES3, S/P-DIF), XLR (AES3)
- Impedance: BNC, unbalanced: 75 Ω (input/output), XLR, balanced: 110 Ω (input)
- Input Switching: Analog, Digital A, Digital B, Digital A+B (all available with and without delay)
- Digital Converter: 16 ... 24-bit DAC, Δ∑, Sampling Rate: 32 ... 192 kHz
- Digital Sensitivity: -18 dBFS
- D-A Dynamic Range: 120 dB
- Audio-Video/Lip Sync and Time-of-Flight Delay Range: 0 ... 409.5 ms
- Audio-Video/Lip Sync Max. Frames: 0 ... 10.2 (40 ms) frames, 0 ... 12.3 (33 ms) frames
- Resolution, Time/Distance: 0.1 ms / 3.4 cm (1 3/8")
- Latency D-A (A-D-A): 0.22 - 1.85 ms (0.54 ms)
