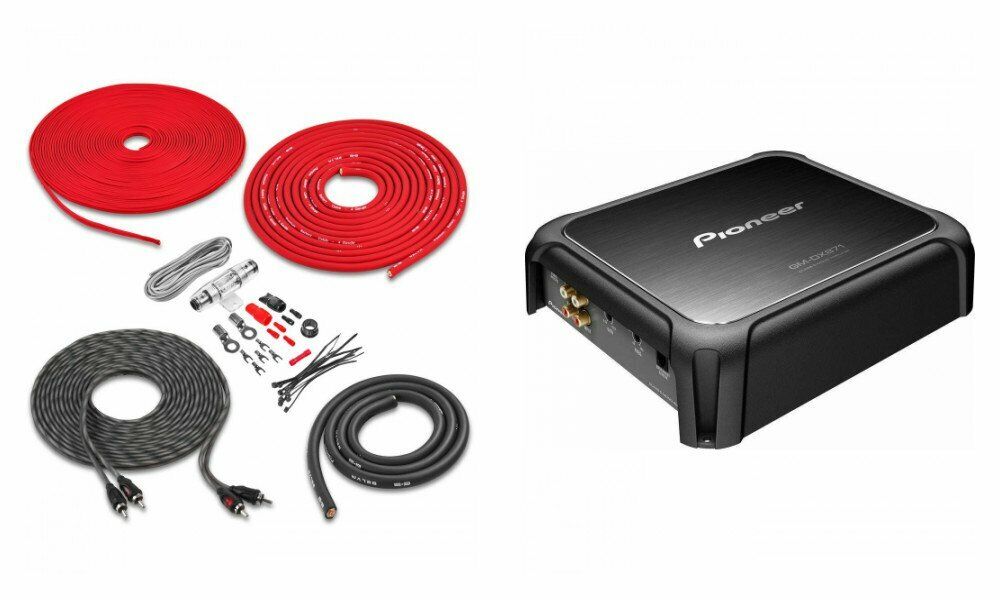

Pioneer GM-DX971 2400W Max 1-CH Monoblock Class-D Car Audio Amplifier + 4 Gauge Amp Kit

by Pioneer
Save 28%
Original Price $499.99
Current Price $359.99
Availability: Translation missing: en.general.icons.icon_check_circle icon 301 in stock, ready to be shipped

Notify me when back in stock

Pioneer GM-DX971 2400W Max 1-CH Monoblock Class-D Car Audio Amplifier with Remote Bass Control + Absolute KIT4 4 Gauge Amp Kit

GM-DX971 is a 1-channel subwoofer amplifier that can deliver up to 1,200 watts RMS to your subwoofer for powerful bass producing a strong and heavy beat. Highly efficient Class D technology and CTA-2006 complaint keep this powerful amp running and designed for a small chassis that fits many out-of-the-way spaces. The speaker-level inputs allow the installation of this amp into a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. The amp's got a low-pass filter that lets you quickly sharpen and focus the bass on suiting your vehicle's interior and a wired remote boost that lets you control the amount of bass boost from the front seat. This limited-edition amp uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance.

General Features:

  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating: 4 ohms: 500 watts x 1 channel
  • RMS Power Rating: 2 ohms: 800 watts x 1 channel
  • RMS Power Rating: 1 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
  • Low level: 200mV - 6.5 volts
  • Frequency Response: 10 - 240 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 75 dB
  • Variable low-pass filter: 40 - 240 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 120A
  • 4 AWG gauge power and ground wiring are recommended for installation.
  • Dimensions: 1-3/4" W x 1-5/8" L x 3/4" H
  • Authorized Internet Dealer
  • 1-year Manufacture Warranty

What’s in the GM-DX971 package:

  • 1-Channel Subwoofer Amplifier
  • Three 40-amp ATO fuses (installed)
  • Bass Boost Remote Control
  • Bass Boost Remote Control Cable
  • Speaker Level to RCA Input Adapter
  • Installation Screws X 4
  • Wire Terminal Tool
  • Owner's manual (English/ French)
  • 1-Year Warranty Sheet
