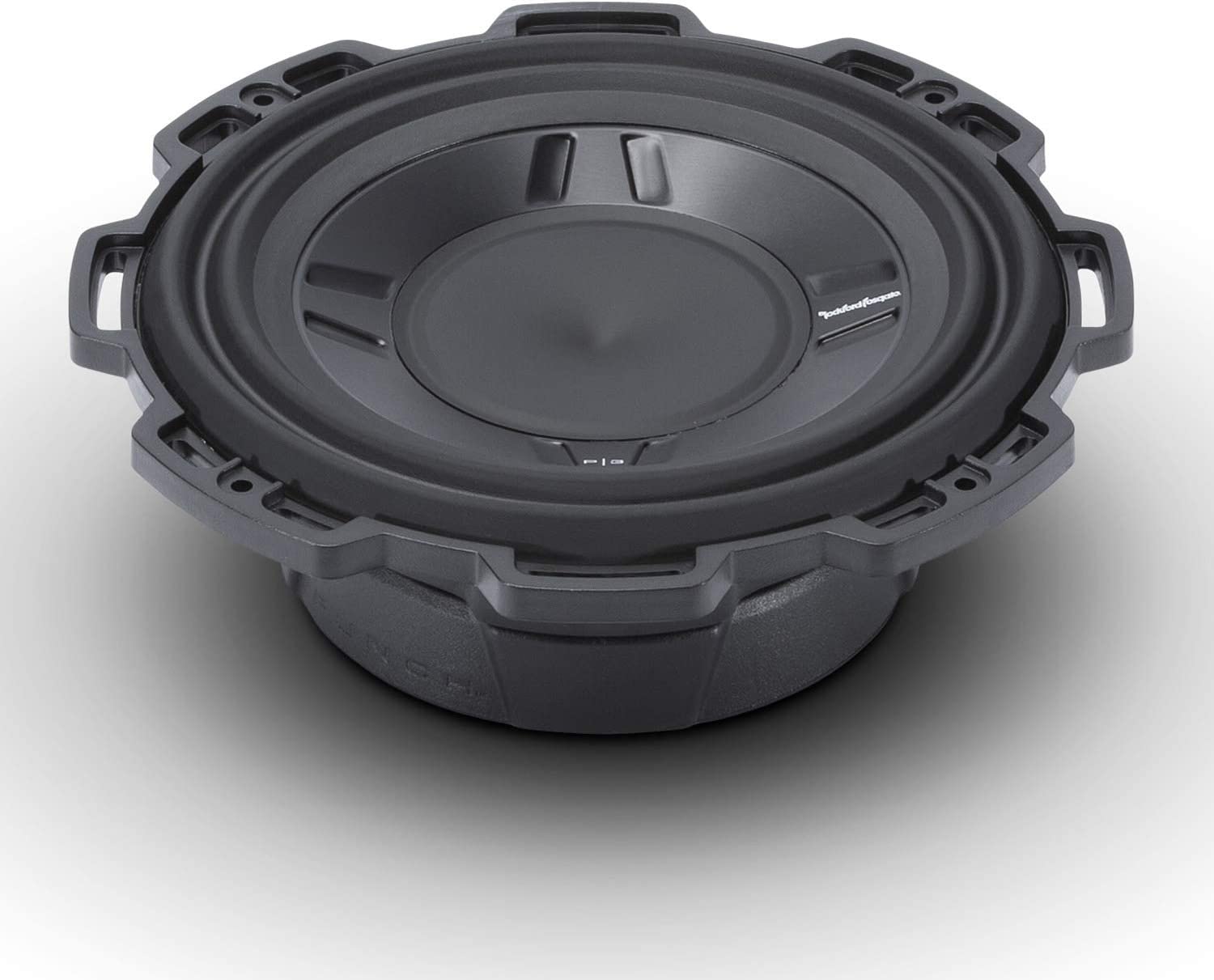

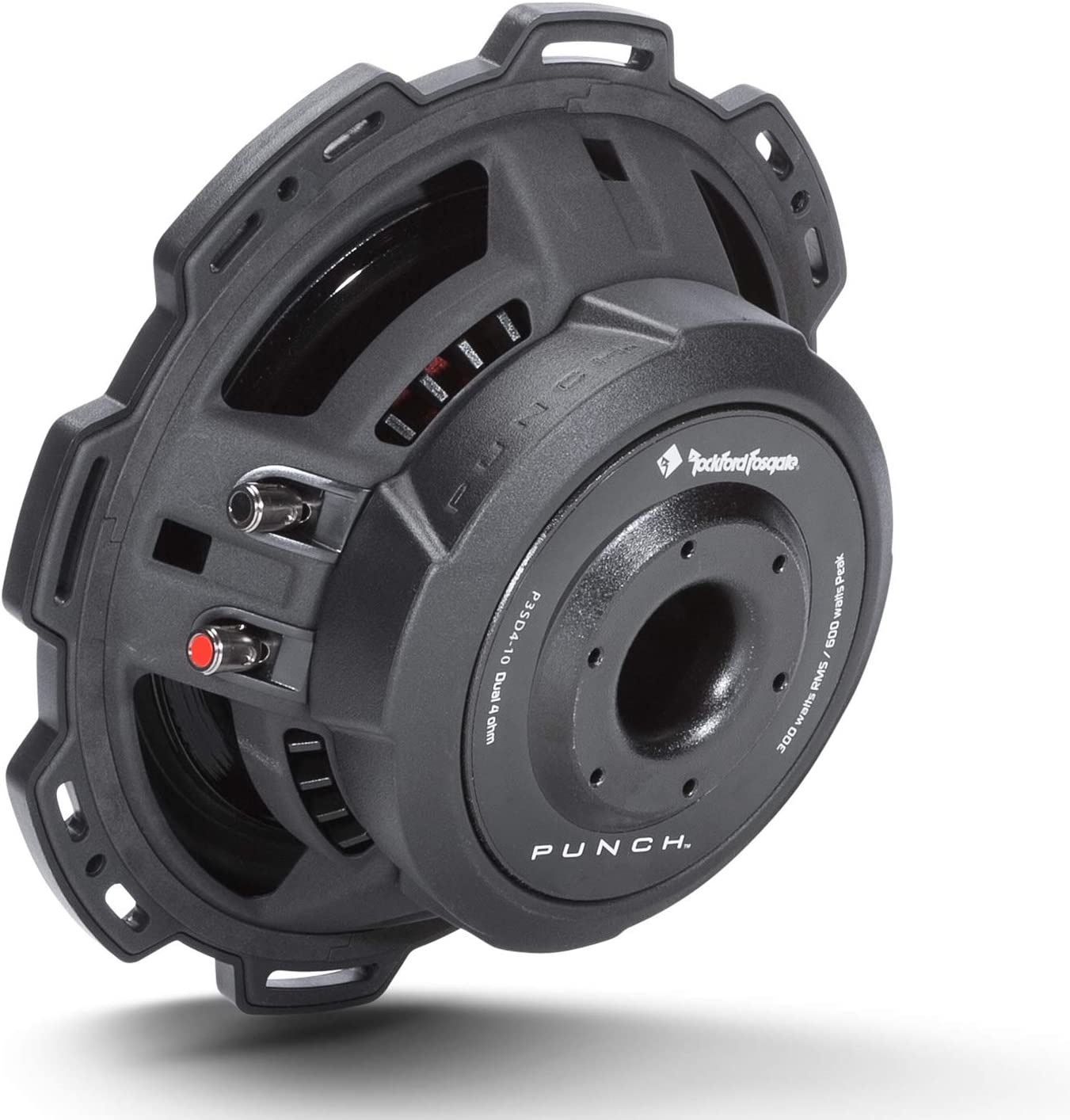

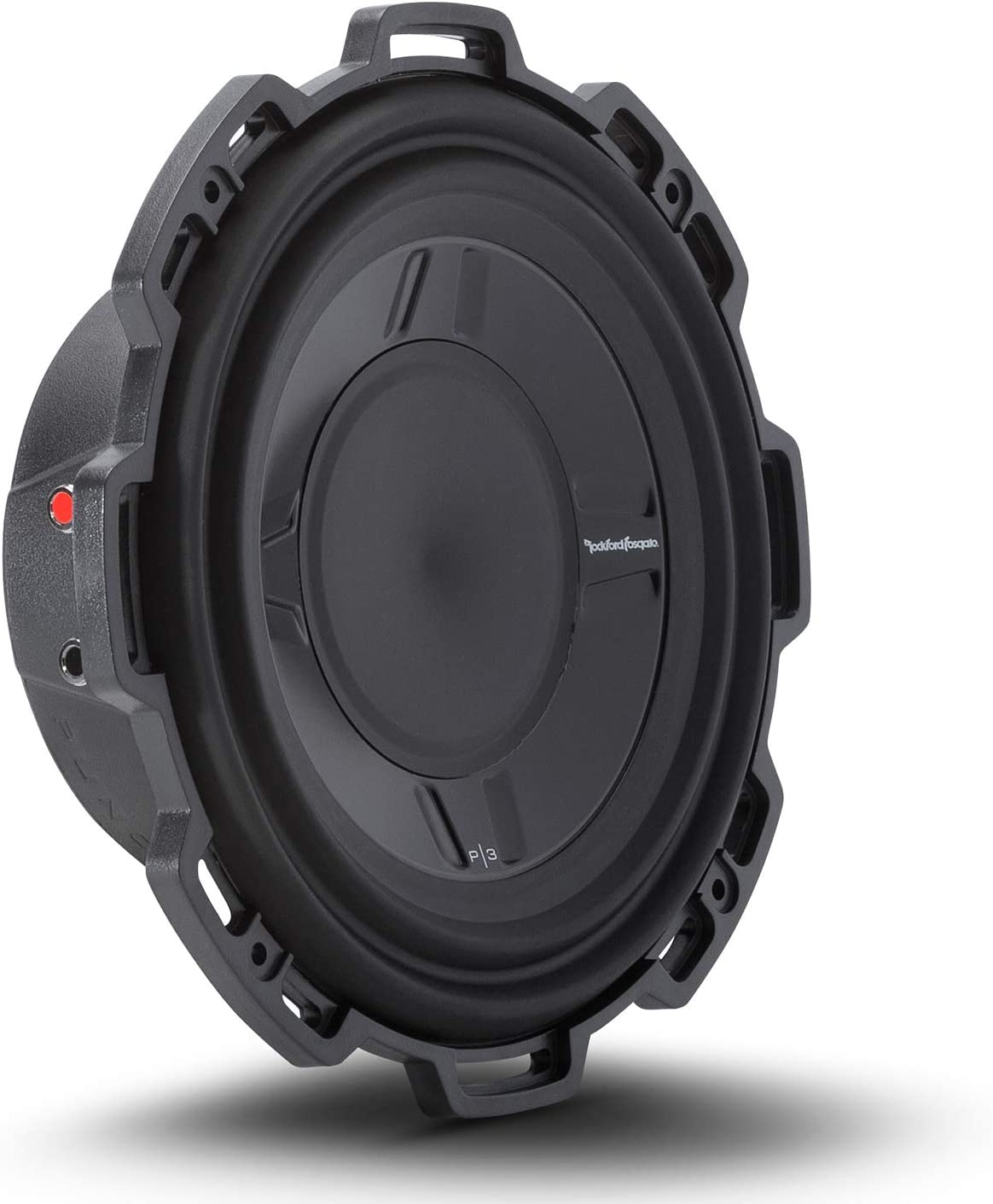

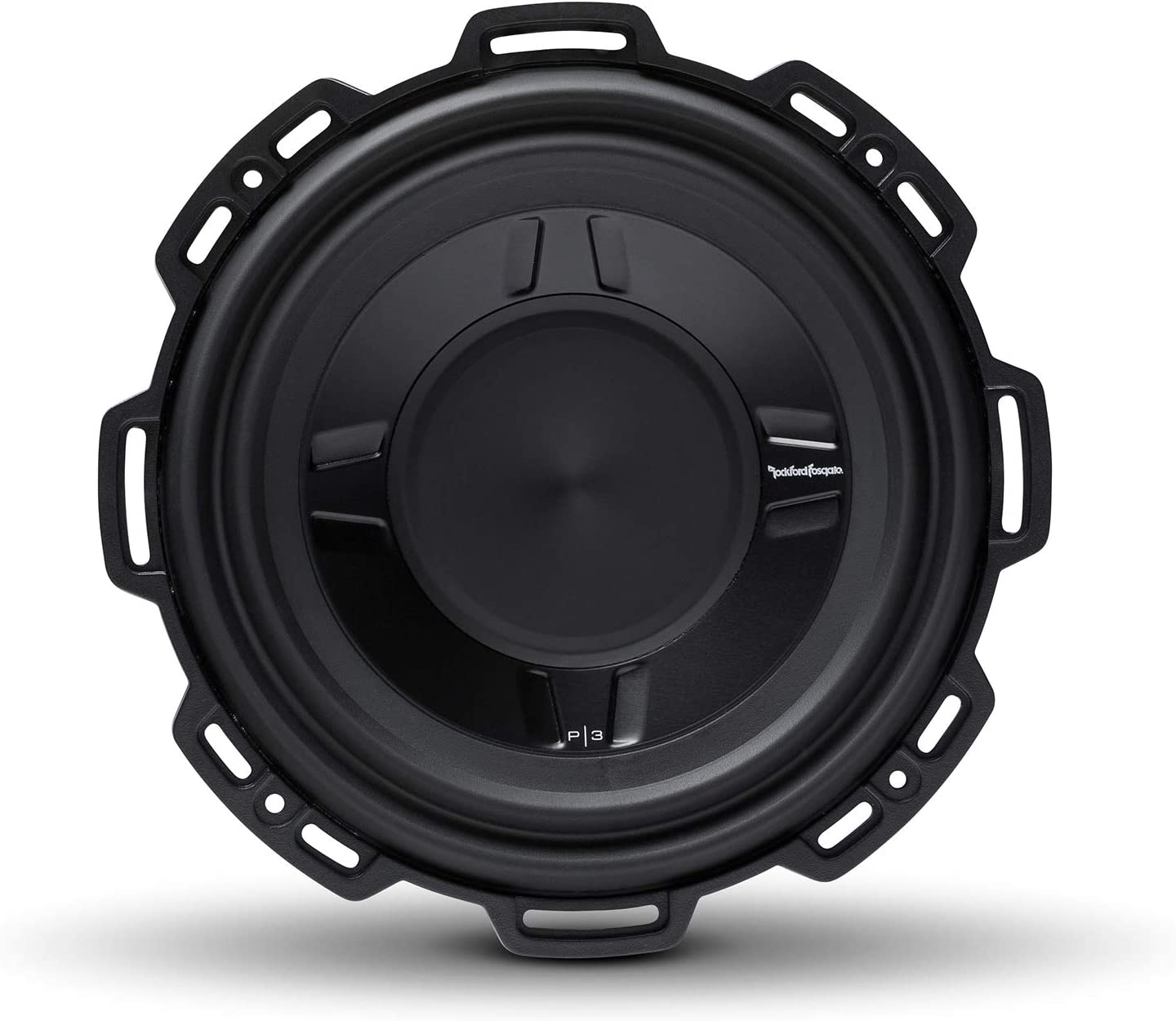

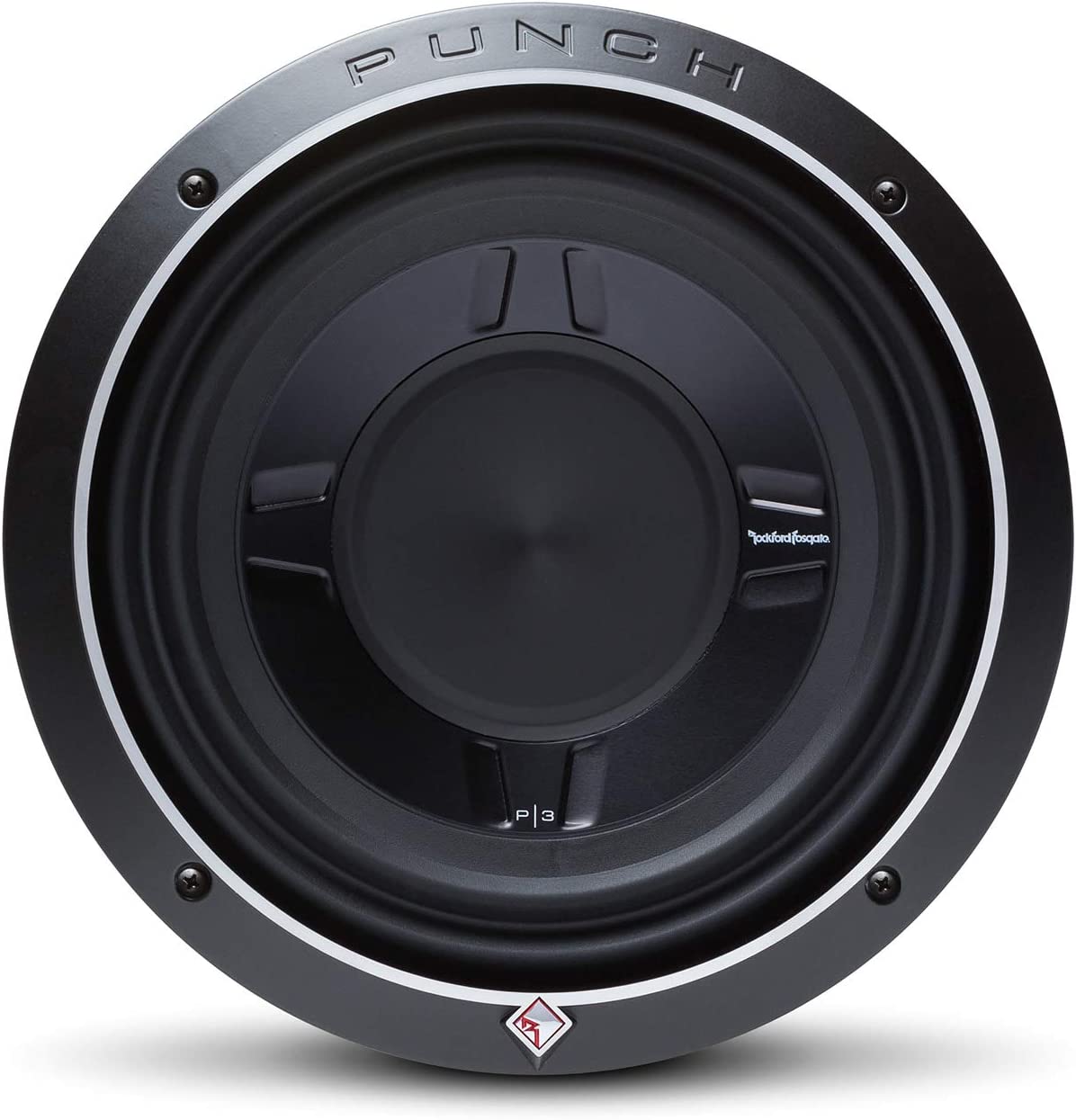

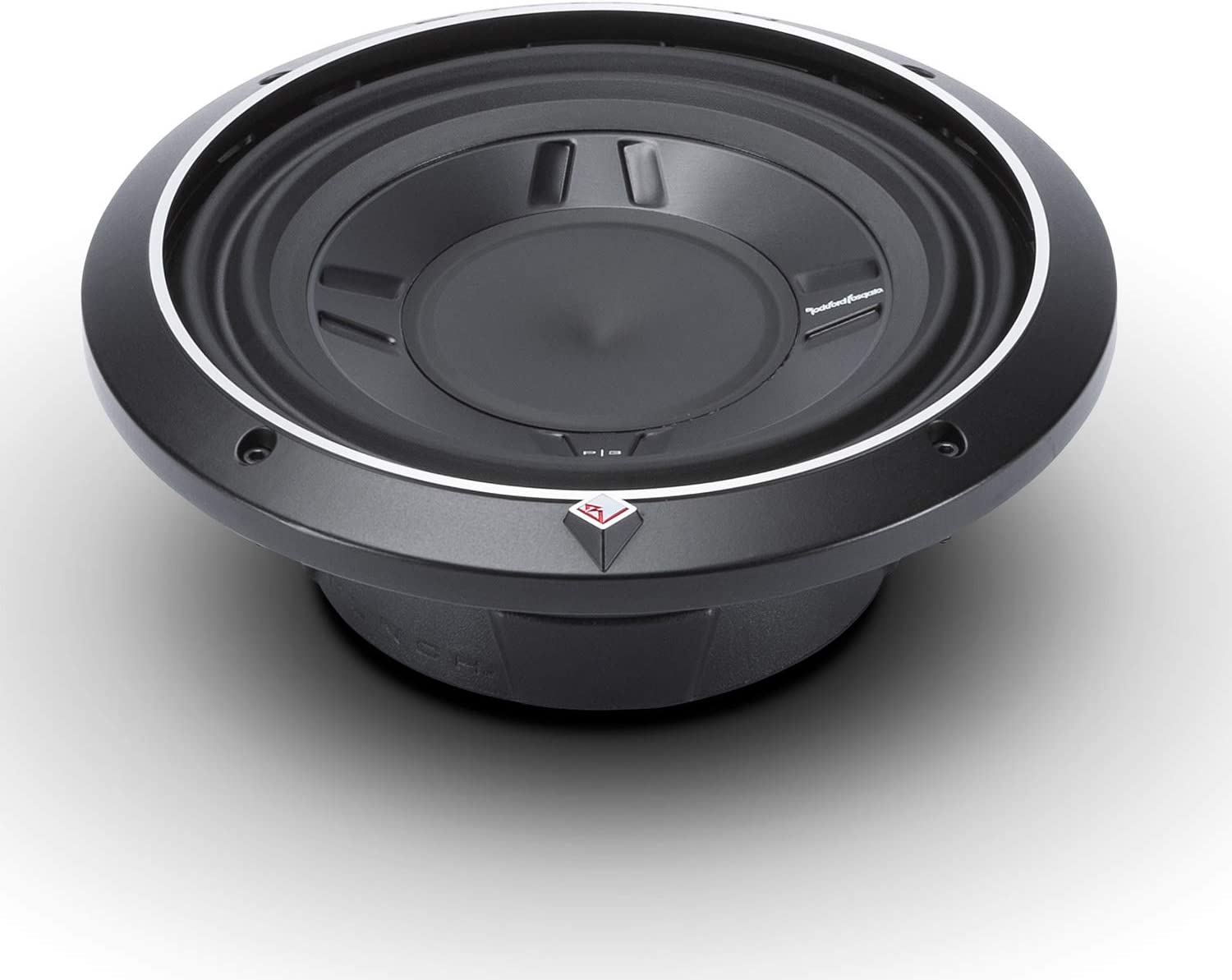

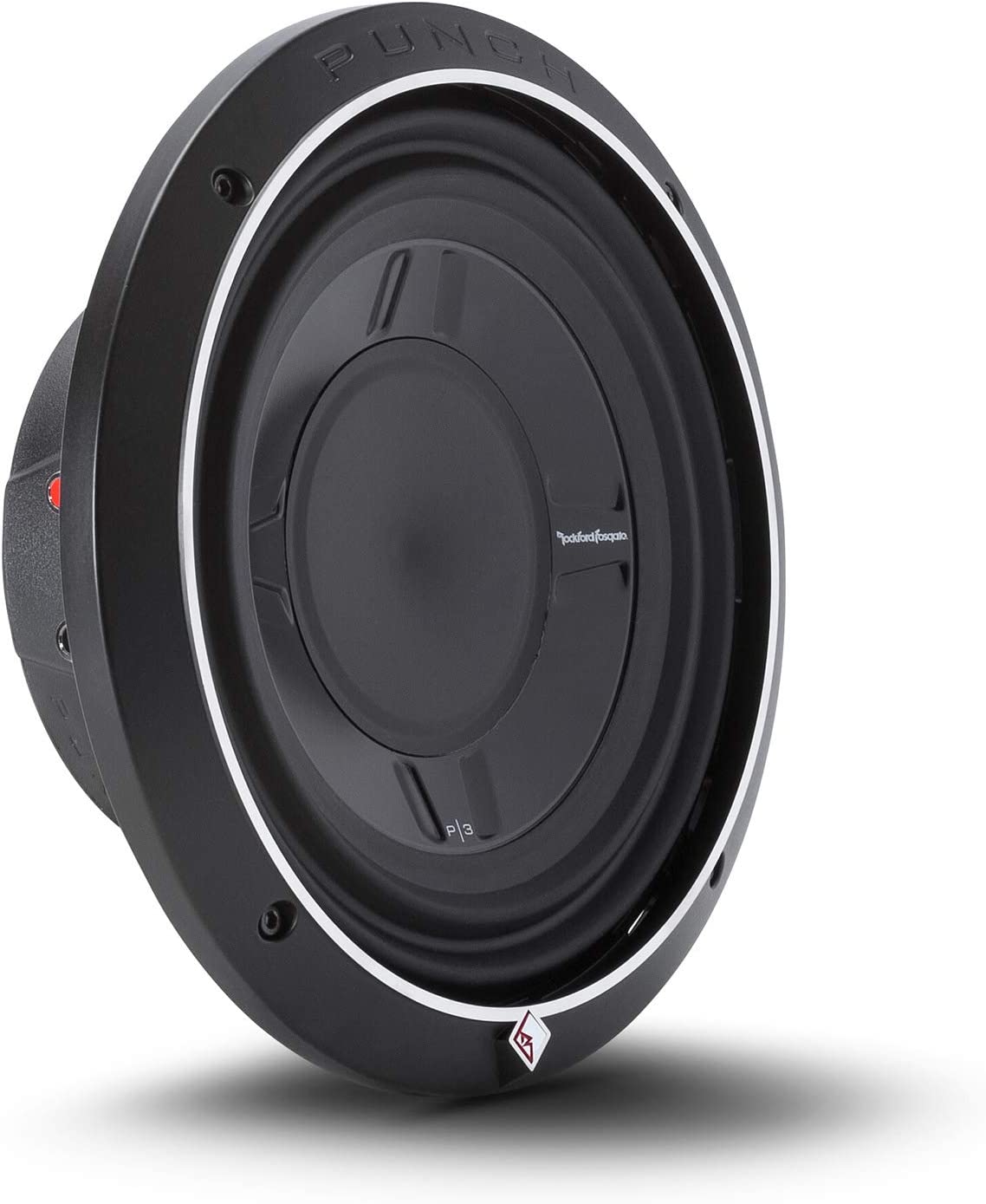

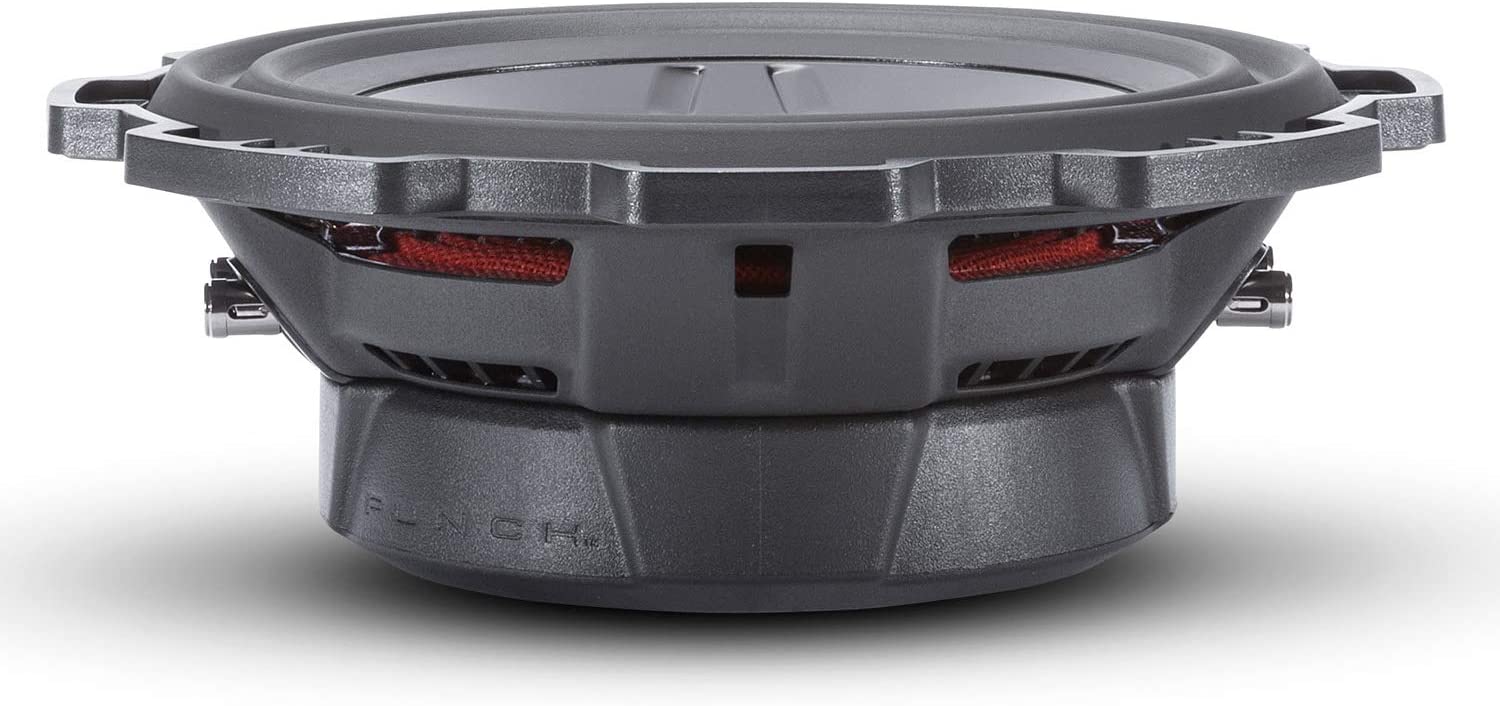

Rockford Fosgate P3SD4-12 12" Shallow Mount Subwoofer Truck Car ATV RV
Rockford Fosgate P3SD4-12 P3SD412 12" 800W Shallow Mount Car Subwoofers Subs
Rockford's bass pedigree
Rockford Fosgate's Punch Stage 3 subwoofers come from a long line of high-performance subs that deliver real-deal bass. Now, shallow-mount Punch Stage 3 subs make it easier to get impressive low-end in smaller or hard-to-fit vehicles.
Advanced engineering
The P3SD4-12 shallow-mount 12" sub hangs with its bigger brethren, thanks to advanced materials and engineering. Rockford uses an anodized aluminum cone and dust cap that makes the woofer light and easier to drive yet rigid enough to maintain its shape when you turn it up loud. The M-Roll Santoprene™ surround also provides excellent excursion for maximum output while being durable enough to last.
Powerful bass for a tight space
A low-profile frame houses the sub, with abundant venting to battle overheating and thermal breakdown. At 3.65" deep, this sub will fit into places where no bass has gone before — build a custom enclosure or find a suitable box. The dual 4-ohm voice coils allow you to wire up multiple subs or to coax an optimum performance from your amplifier.
General Features:
- 12" Punch Series Shallow-mount Subwoofer
- Power Handling: Peak: 800 watts
- Power Handling: RMS: 400 watts
- Recommended power range: 200 - 400 watts RMS
- Impedance: Dual 4 ohm
- 2.5" Dual Voice Coil with spun-laced Nomex insulating collar
- Kevlar Fiber Semi-Pressed Paper Cone
- M-Roll Santoprene surround
- Anodized aluminum cone and dust cap
- Dual linear spider with embedded 16 AWG tinsel leads
- Diamond cut cast aluminum trim ring
- Shallow Motor Assembly
- Tear and fatigue-resistant poly-cotton spider
- StampCast basket with integrated spider venting
- Dual 10 AWG compression speaker connections
- Optimized for both sealed and vented enclosures
- Top-mount depth: 3.65"
- Cutout diameter: 11.22"
- Frequency Response: 34 - 250 Hz
- Sensitivity: 85 dB
- Xmax: 8.4 mm
- Magnet weight: 1.45 oz
- Resonance Frequency (Fs): 34 Hz
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What is in the P3SD4-12 package:
- Rockford Fosgate P3SD4-12 owner's manual
- One shallow-mount 12" Dual 4-ohm voice coil woofer
- 1 Aluminum trim ring
- Eight 1-1/8" Allen head self-tapping screws
- 4mm Allen head bit
- Installation and Operation Manual
