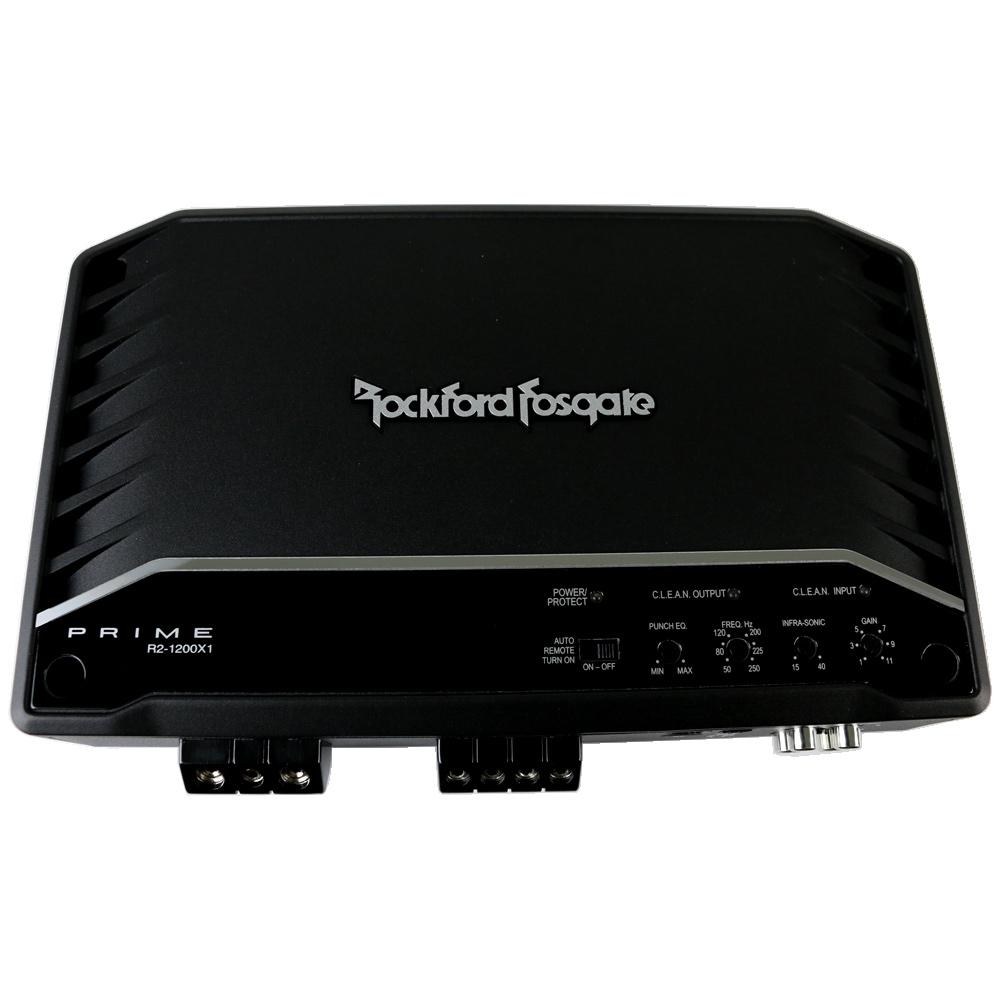

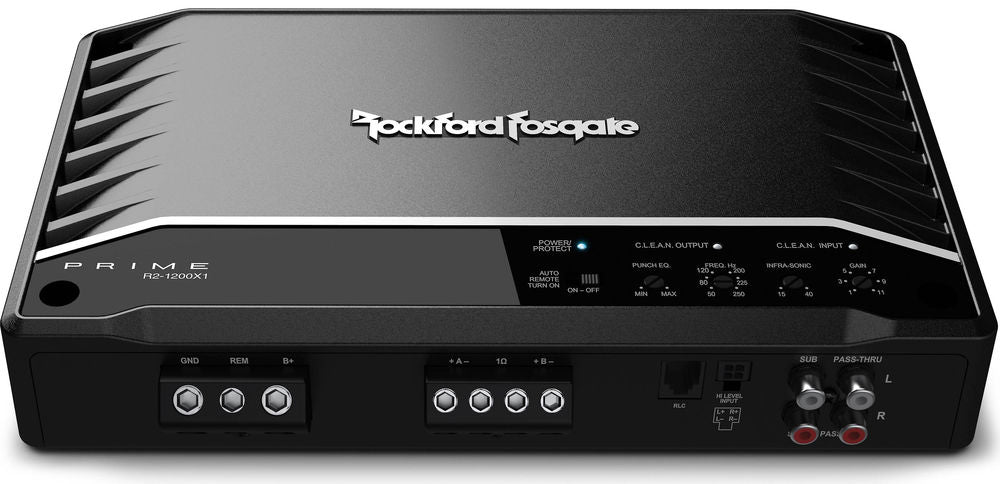

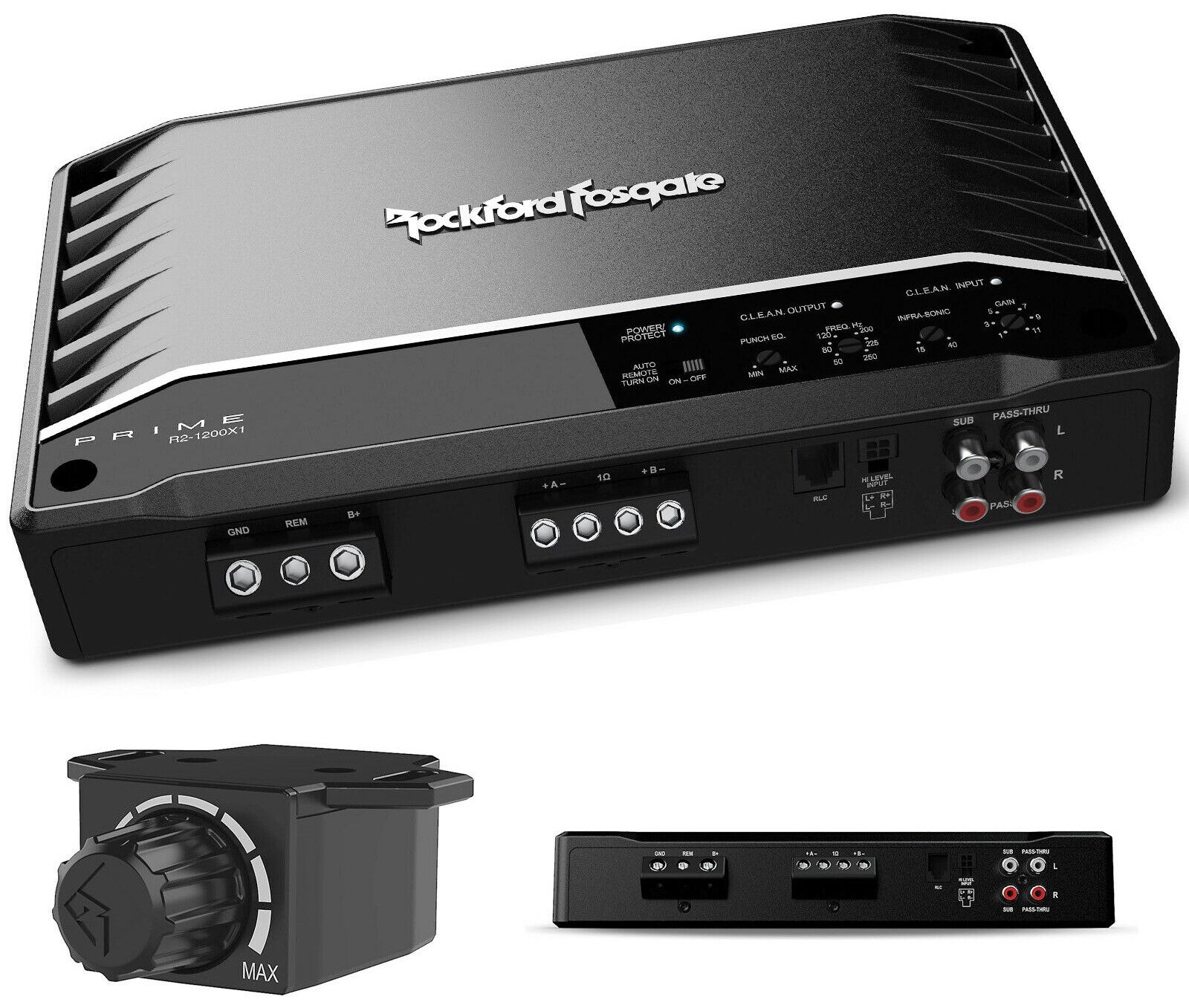

Rockford Fosgate Prime R2-1200X1 mono amplifier
1200W RMS x 1 at 1 ohm monoblock subwoofer amplifier

Rockford Fosgate Prime R2-1200X1 mono amplifier 1200W RMS x 1 at 1-ohm monoblock subwoofer amplifier

Primed for performance, the R2-1200X1 is a 1200-watt, class-D amplifier capable of operating at 4Ω, 2Ω, or 1Ω mono. This amplifier is extremely efficient because of its class-D technology, which reduces demand on the vehicle's electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allow you to tune the bass for the desired level of the music.

General Features:

• Rockford Fosgate Prime R2-1200X1
• Class-D Full Range Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 400 watts x 1 chan.
• 2 ohms: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Balanced Differential Inputs with RCA Pass Through Outputs
• High-Level Input Capable
• Defeatable Auto Turn on Circuit
• Features C.L.E.A.N. Set-up
• Variable Input Gain adjustment level
• R.L.C. Remote Level Control
• Variable Infrasonic Filter
• Continuously Variable On-Board Punch EQ
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Full Range Class D
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Input sensitivity:
• Low-Level: 150 mV - 4 V
• High-Level: 450 mV - 12 V
• Frequency Response: 20 Hz - 250 Hz
• Total Harmonic Distortion (THD): >1%
• Low-Pass: 50 Hz - 250 Hz @ 12dB
• Sub Infrasonic: 15 Hz - 40 Hz
• Fuse Rating: 120A
• 4-gauge power and ground wiring are recommended for installation.
• Dimensions: 1.9" x 6.8" x 11.3"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

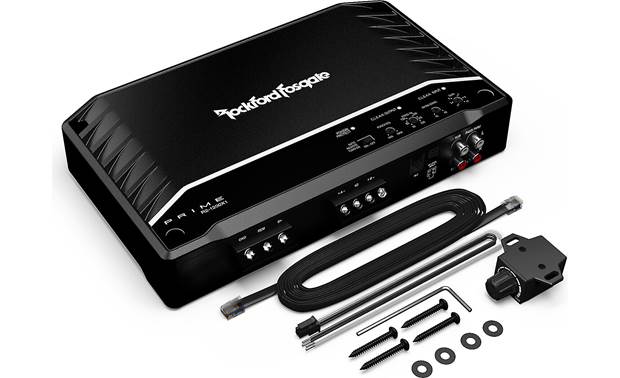

What is in the R2-1200X1 package:

• Mono subwoofer amplifier

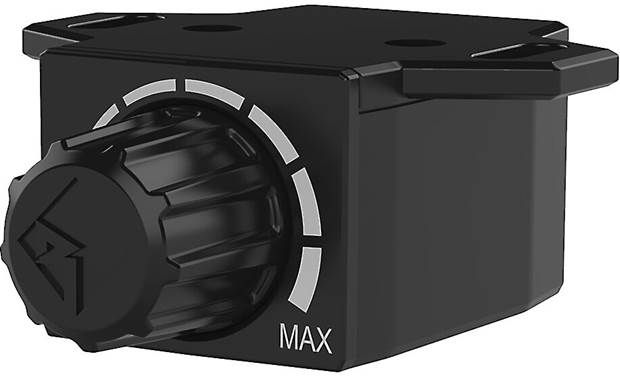

• Wired Remote Level Control module
• 16' Remote cable (RJ-25 connector on both ends)
• One 7" Speaker input harness
• 3mm Allen Hex key
• Four 3/4" Screws
• Two 1/2" Screws
• 5 Flat washers
• 1 Nut
• Installation and Operation Instructions
• Certificate of Performance
• R2-1200X1 owner’s manual
