Rockford Fosgate R2-500X1 Prime 500 Watt 1ohh Mono punch Amplifier Class D | NEW

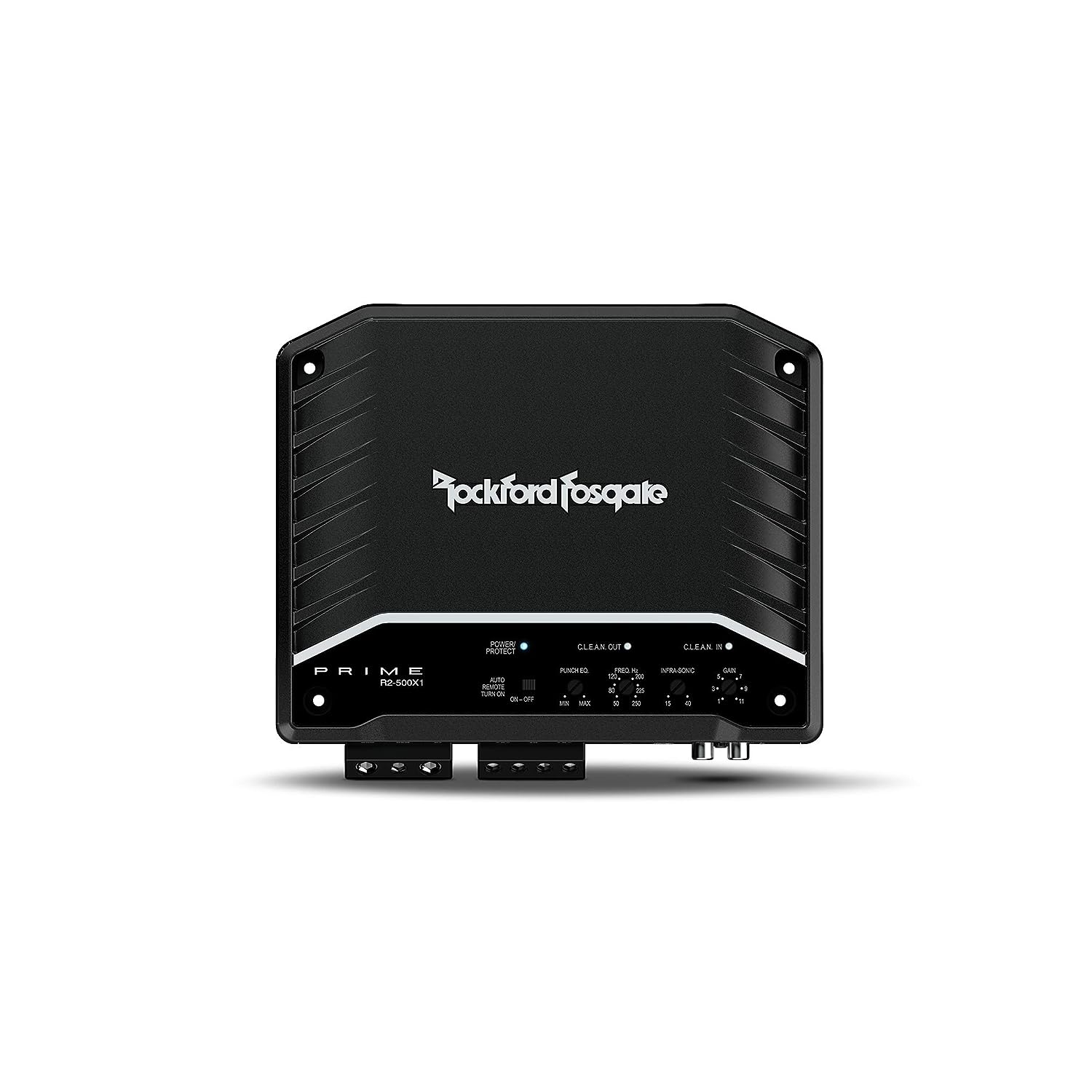

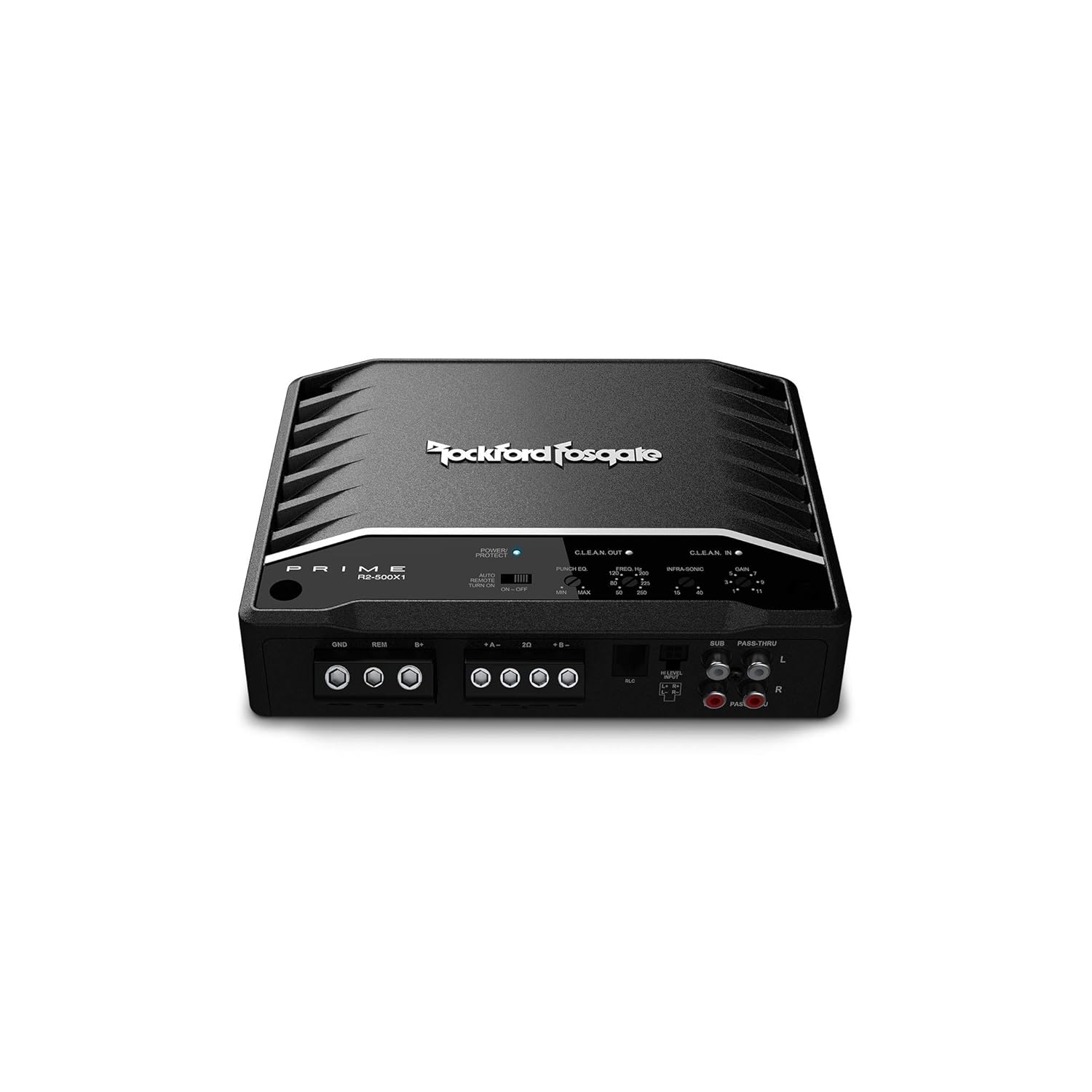

Rockford Fosgate Prime R2-500X1 500W Prime Series Monoblock Subwoofer Class D Amplifier
Primed for performance, the R2-500X1 amplifier is a 500 watt, class-D, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicle's electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
General Features:
- Rockford Fosgate Prime R2-500X1
- RMS Power Rating:
- 4 ohms: 300 watts x 1 chan.
- 2 ohms: 500 watts x 1 chan.
- Total power output: 500 watts

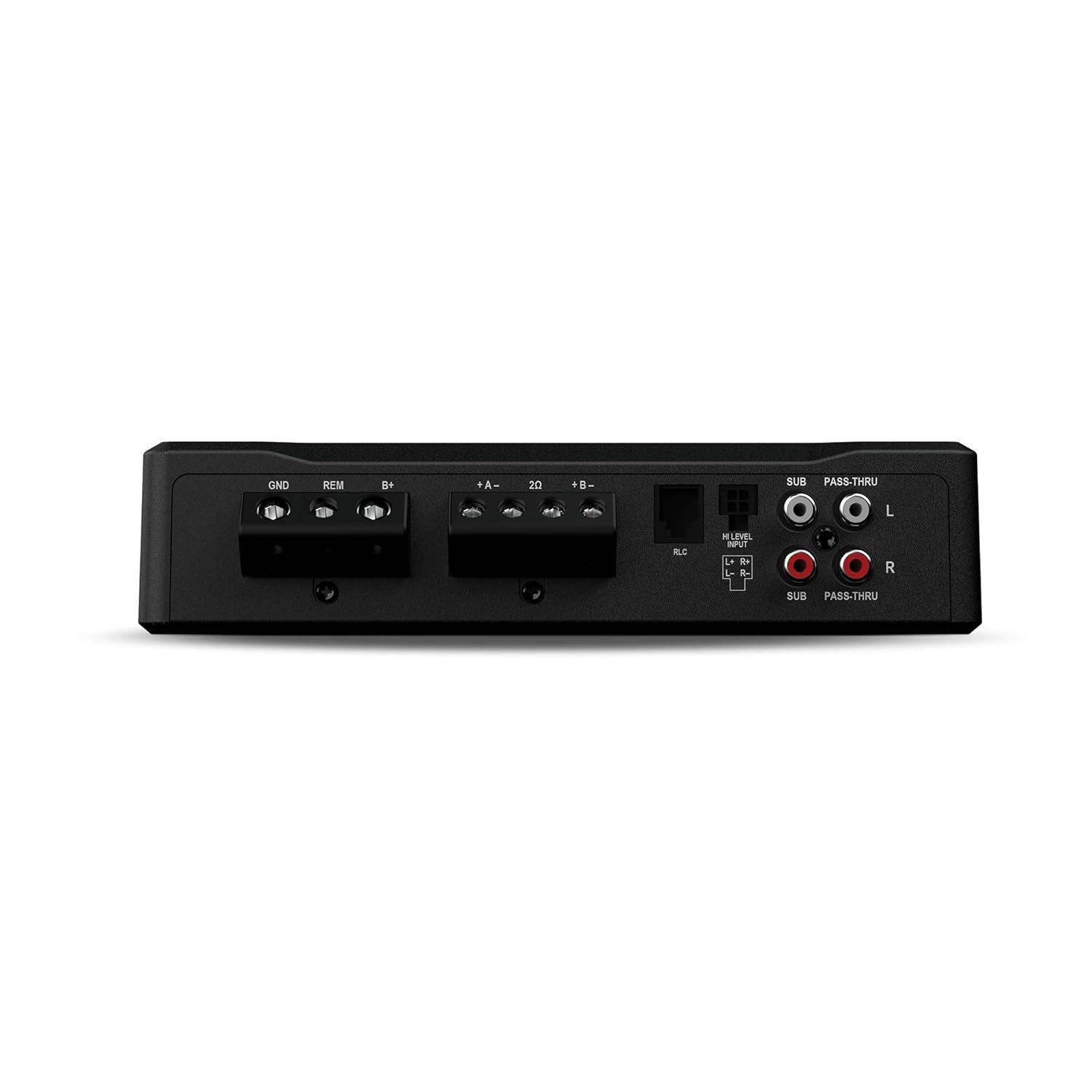

- Balanced Differential Inputs with RCA Pass Through Outputs
- High-Level Input Capable
- Defeat able Auto Turn-On Circuit
- Features C.L.E.A.N. Set-up
- Variable Input Gain adjustment level
- R.L.C. Remote Level Control
- Variable Infrasonic Filter
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Full Range Class D
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Input sensitivity:
- Low-Level: 150 mV - 4 V
- High-Level: 450 mV - 12 V
- Frequency Response: 20 Hz - 250 Hz
- Total Harmonic Distortion (THD): >1%
- Crossover Controls
- Low-Pass: 50 Hz - 250 Hz
- Sub Infrasonic: 15 Hz - 40 Hz
- Recommended Fuse Rating: 80A
- 4 gauge power and ground wiring is recommended for installation
- Dimensions: "1.9" x "6.8" x "8.5"
- Authorized Internet Dealer
- 1 Year Manufacturer's Warranty

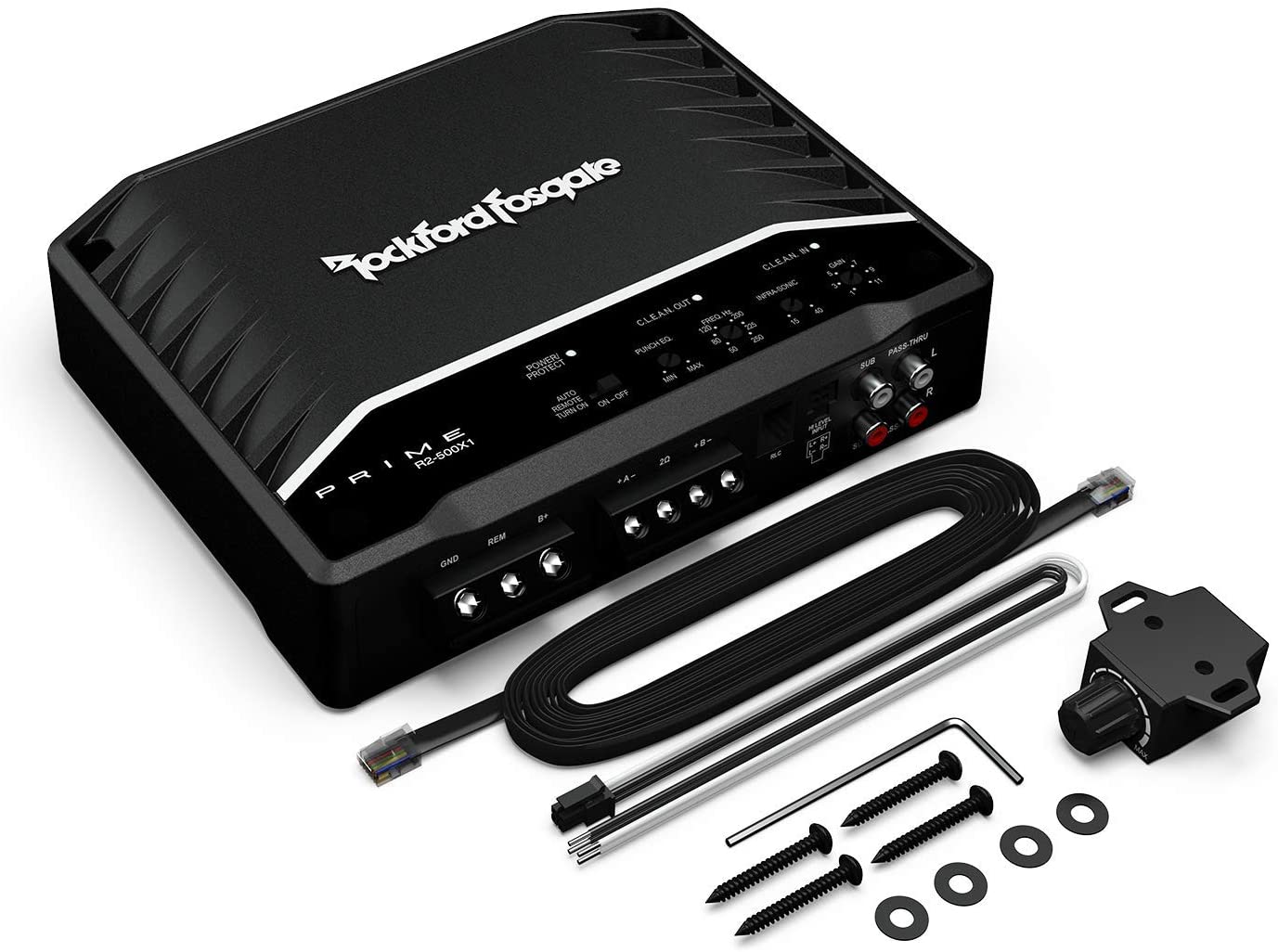

What is in the R2-500X1 package:
- Rockford Fosgate R2-500X1 owner's manual
- Mono subwoofer amplifier

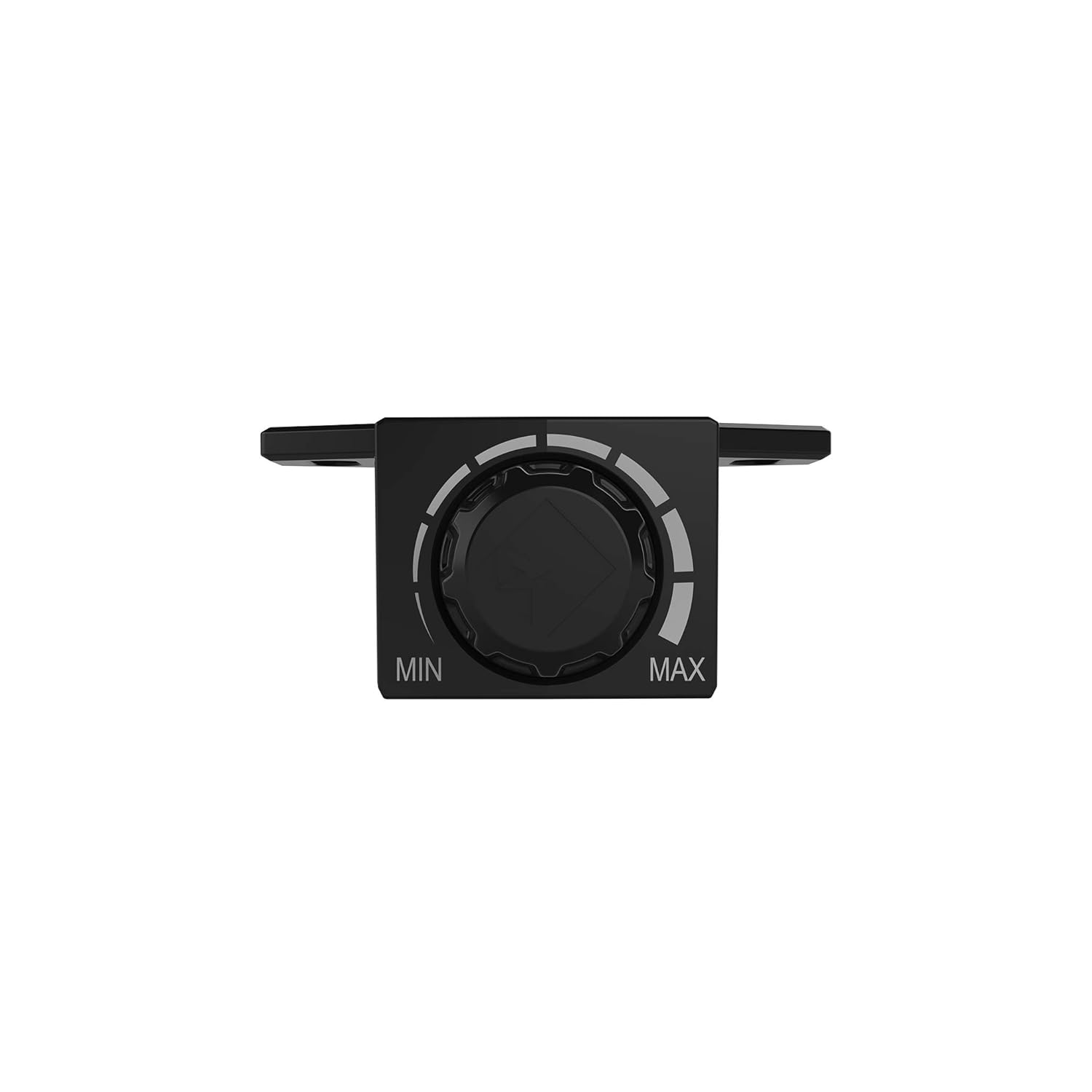

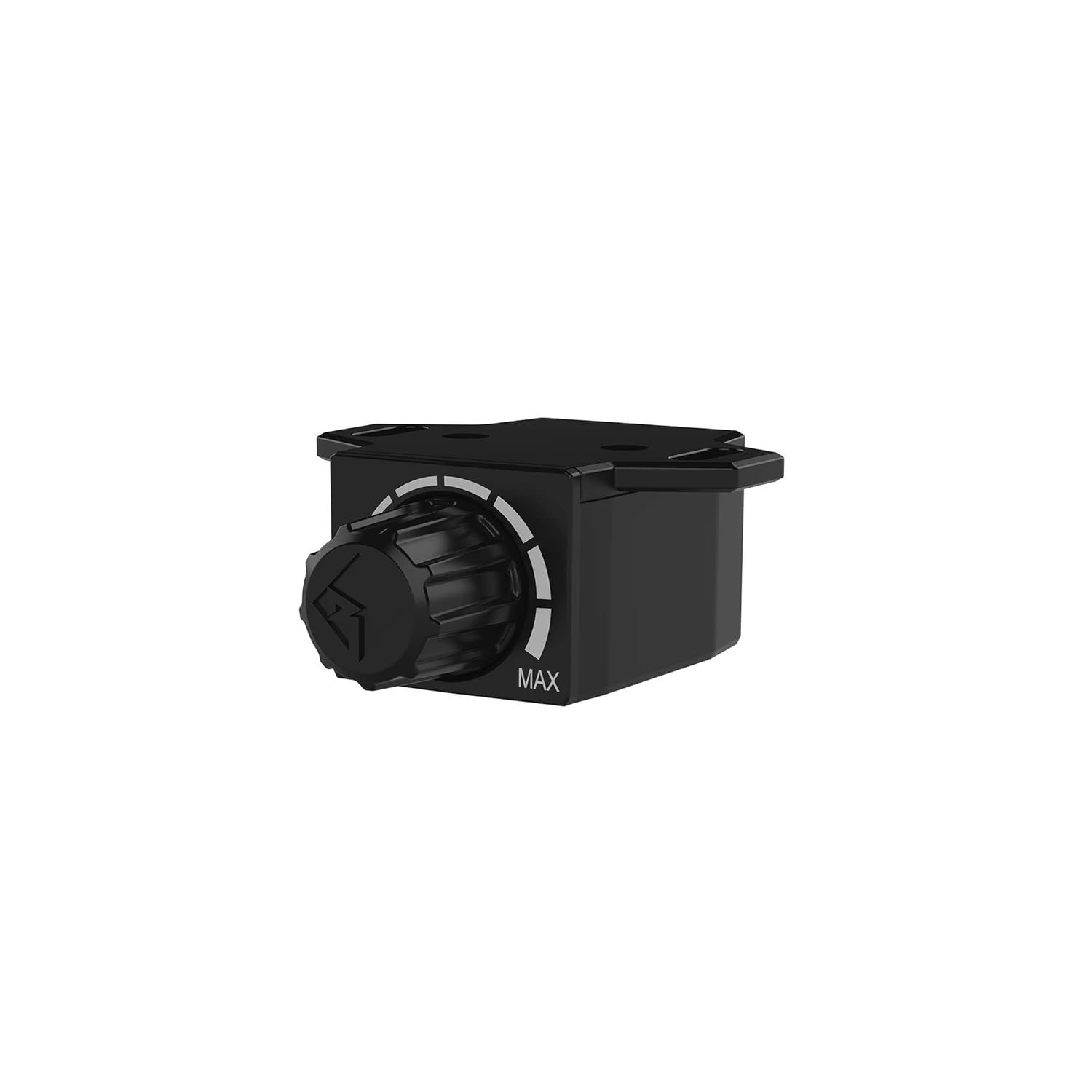

- Wired Remote Level Control module
- 16' Remote cable (RJ-25 connector on both ends)
- One 7" Speaker input harnesses
- 3mm Allen Hex key
- Four 3/4" Screws
- Two 1/2" Screws
- 5 Flat washers
- 1 Nut
- Installation and Operation Instructions
- Certificate of Performance
- Rockford Fosgate contact information
