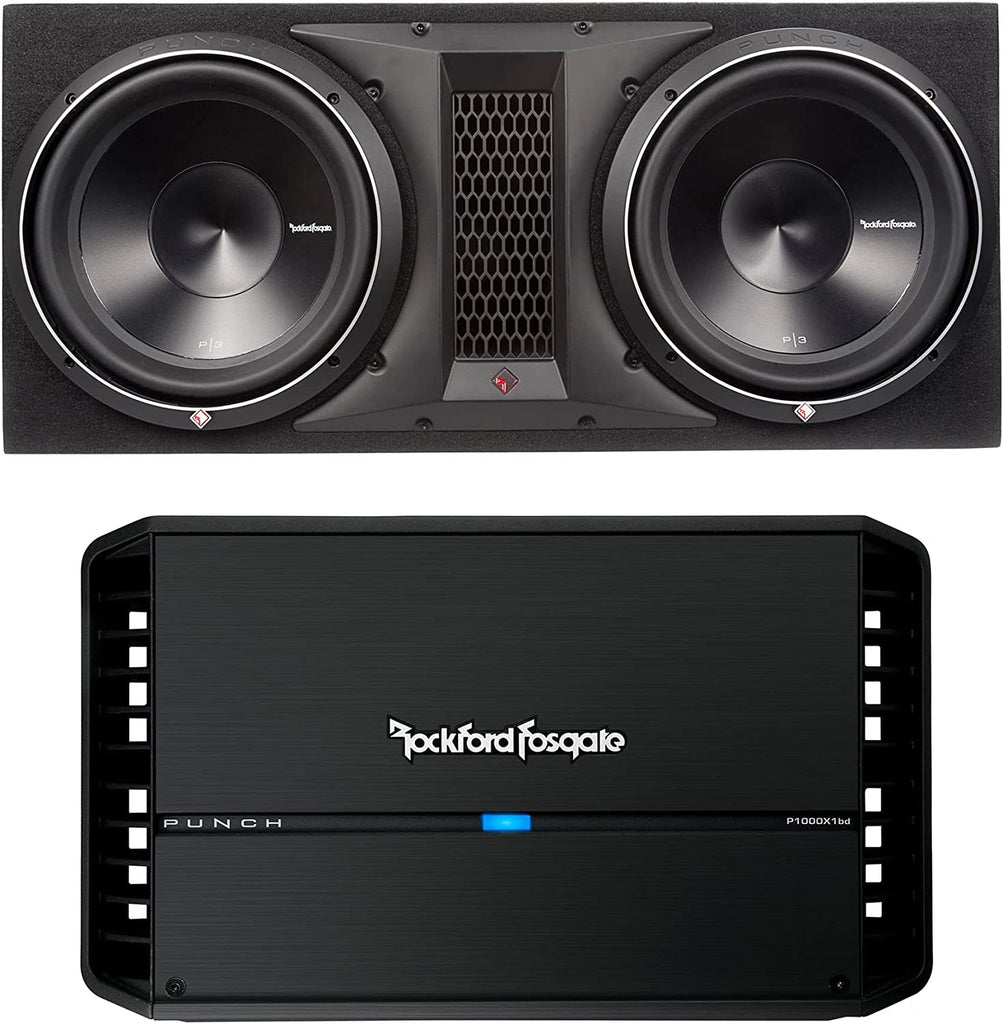

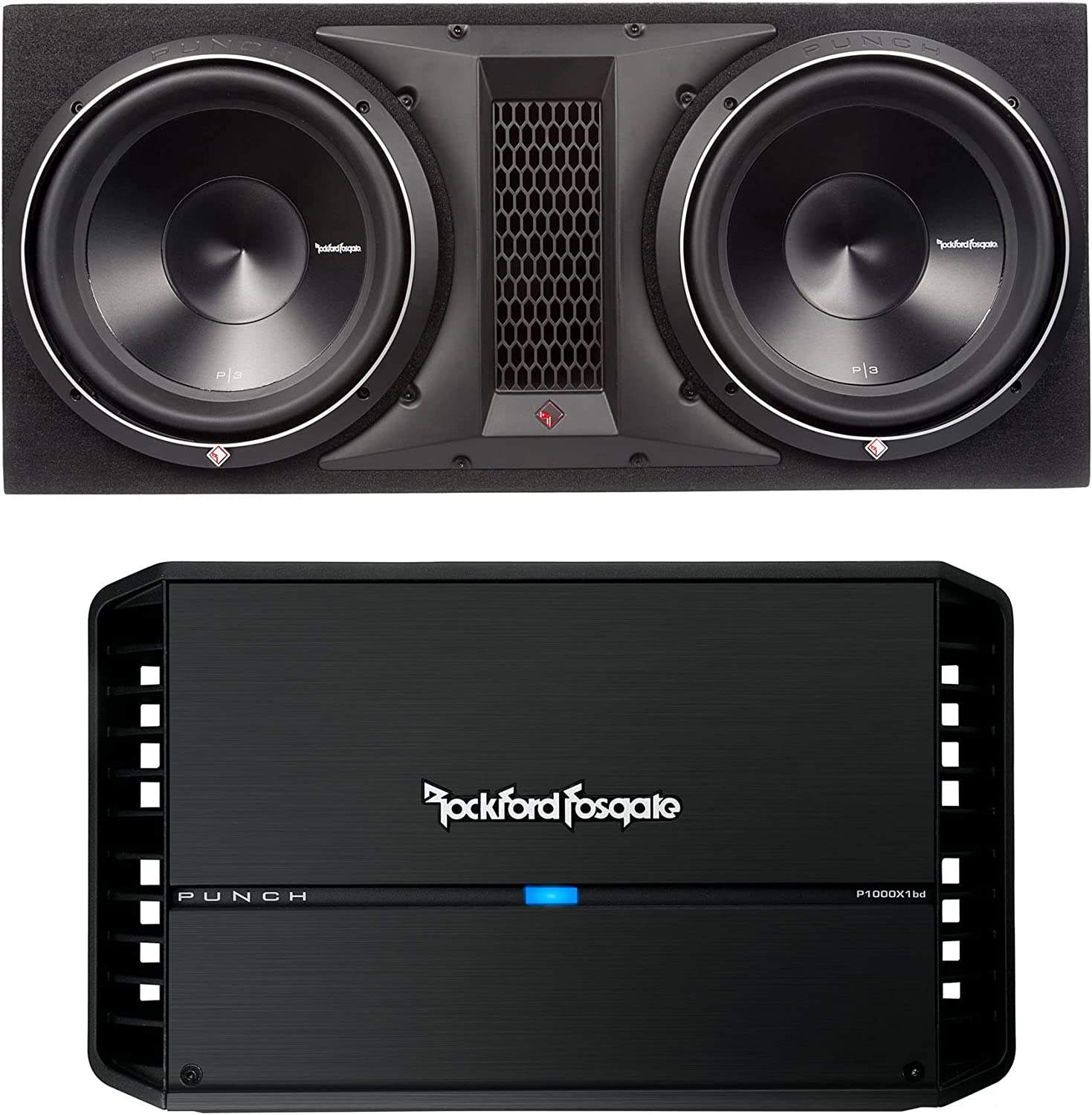

Rockford Fosgate Two Punch P3 12" Subwoofers in a Ported Enclosure with a Punch Series P1000X1bd Amplifier

Rockford Fosgate Two Punch P3 12" Subwoofers in a Ported Enclosure with a Punch Series P1000X1bd Amplifier

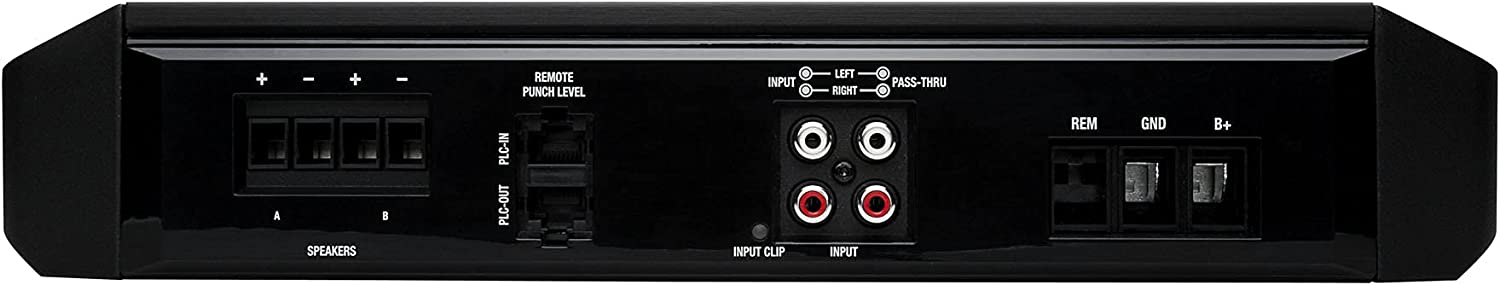

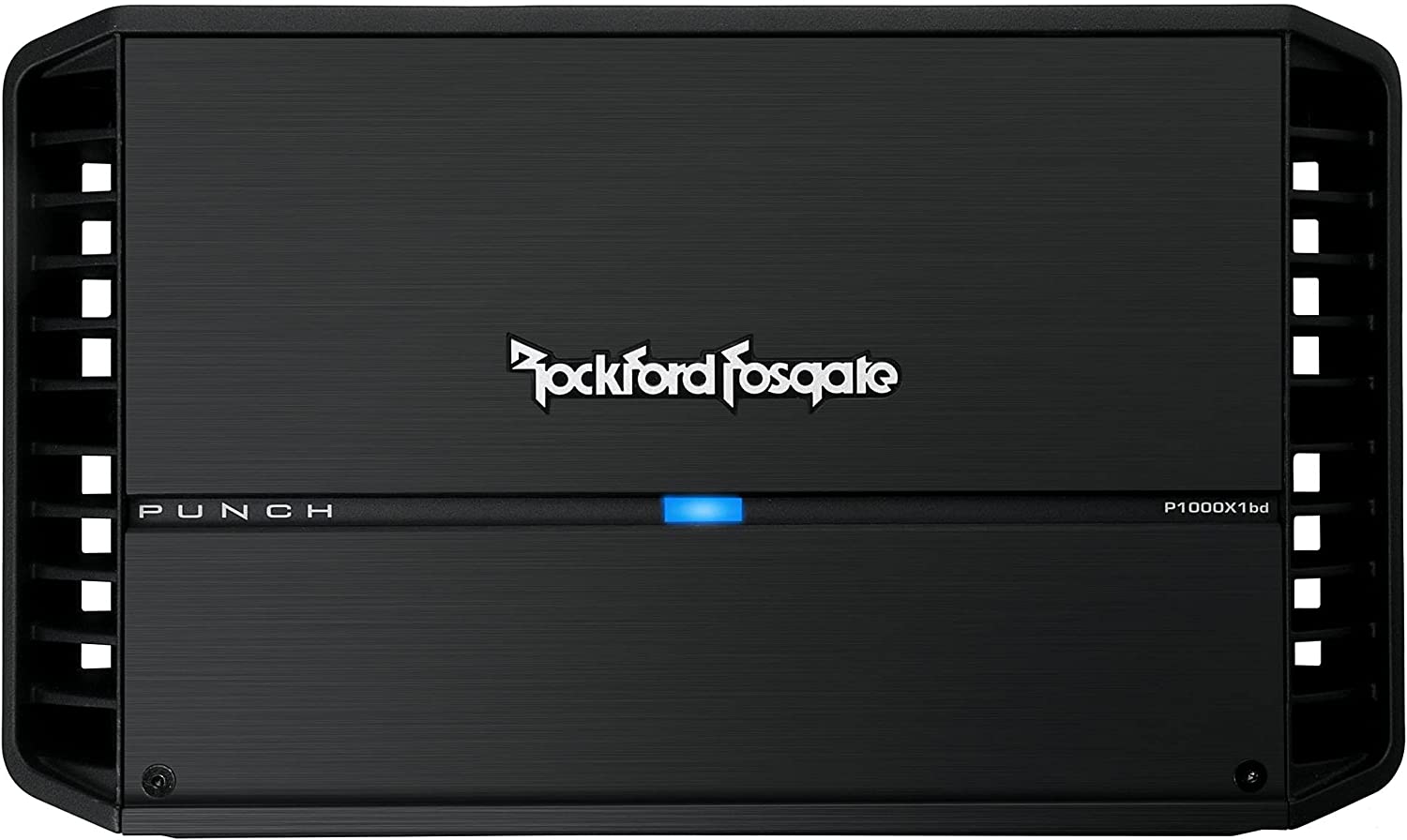

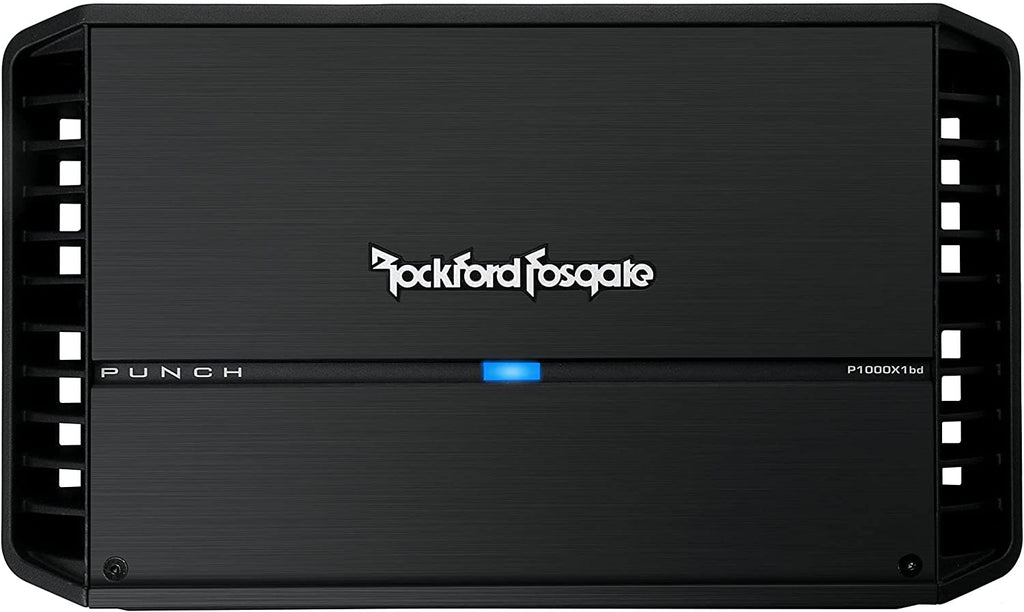

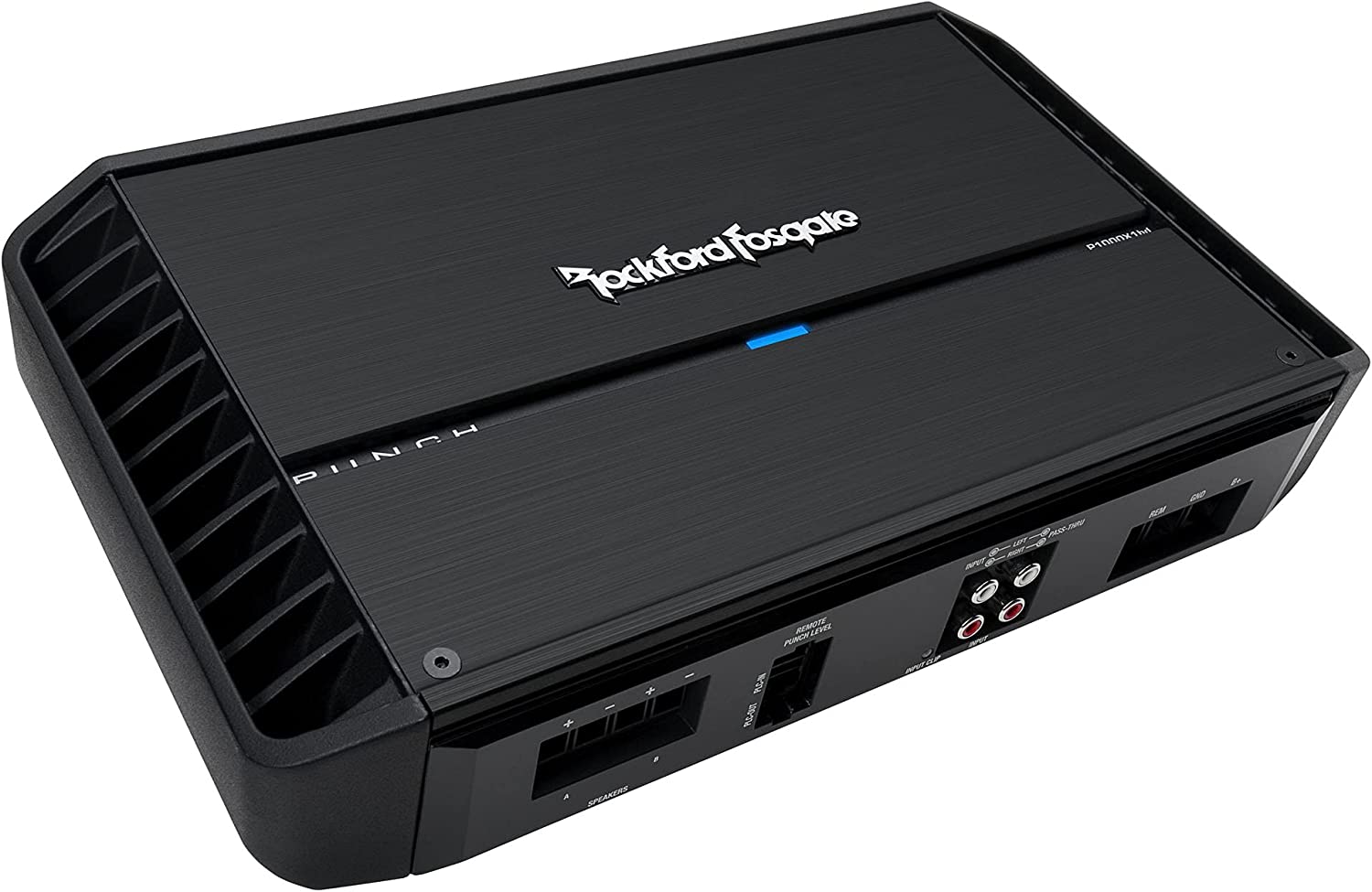

Rockford Fosgate Punch P1000X1bd Mono subwoofer amplifier 1,000 watts RMS x 1 at 1 ohm

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers. With its super-efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low-frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will easily drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers.

General Features:

• Punch BD Series Monoblock Class BD Car Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 channel
• 2 ohms: 500 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• CEA-2006 compliant amplifier
• Features C.L.E.A.N. Set-up with the 10-step set-up procedure
• w/ input/output clip detection and indicator LEDs
• MOSFET power supply
• Muted turn on
• Cast aluminum heatsink
• 12dB/octave Butterworth crossover

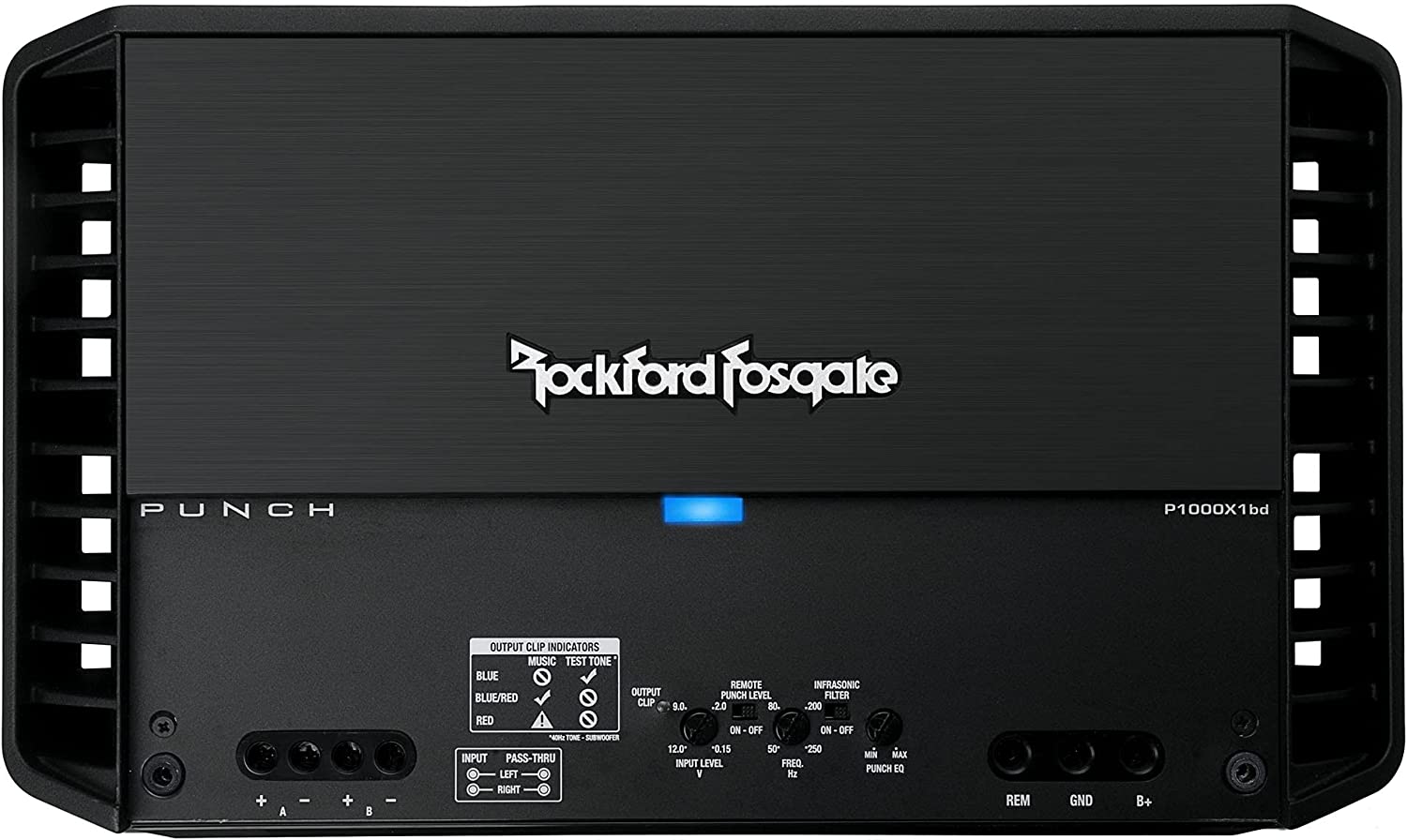

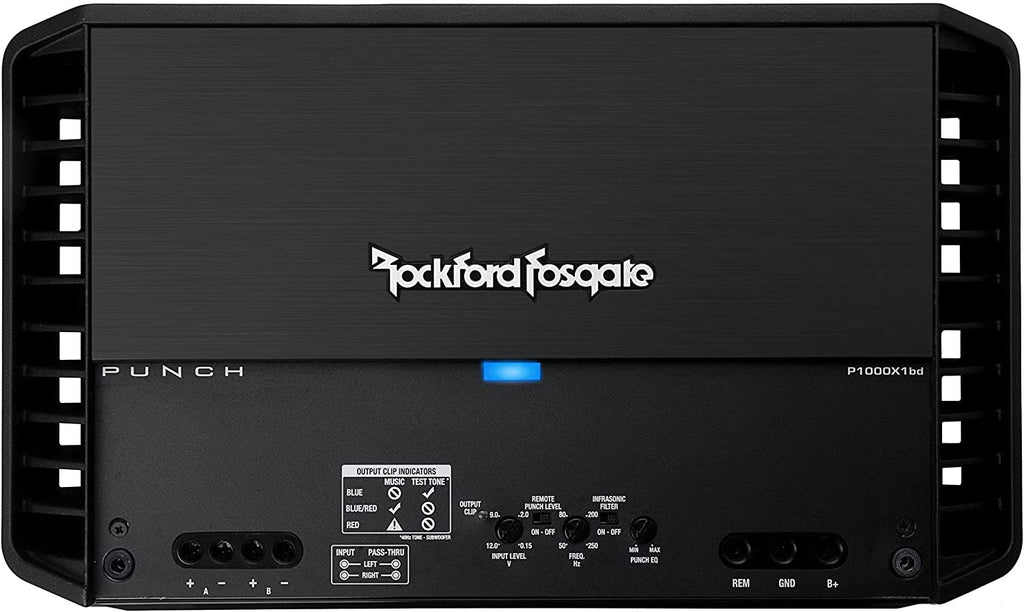

• Stealth top-mounted control panel
• LED power, thermal, and protection indicators
• Nickel-plated captive C-clamp terminals
• Ultra-efficient Class BD circuitry to maximize amplifier power efficiency
• On-board differential inputs eliminate noise picked up by the signal cable
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• High-level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately)
• MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
• Built-in NOMAD is a "real-time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
• Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across the entire amplifier heatsink to efficiently keep the amplifier temperatures low
• DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving the efficiency of the circuit and lowering the operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
• Input sensitivity: 150mV - 12V
• On-board Punch EQ with +18dB boost @ 45Hz.
• Variable low-pass filter: 50-250 Hz
• Selectable infrasonic filter: off / 28 Hz
• Frequency response: 20 - 250 Hz
• Total Harmonic Distortion: <1.0%
• Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
• 8 AWG to 18 AWG speaker wire output terminals
• 4 gauge power and ground wiring is recommended for installation.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What is in the P1000X1bd package:

• P1000X1bd owner's manual
• Mono subwoofer amplifier
• Four 1-1/2" Self-tapping screws
• 5mm Allen wrench
• Quick setup instructions

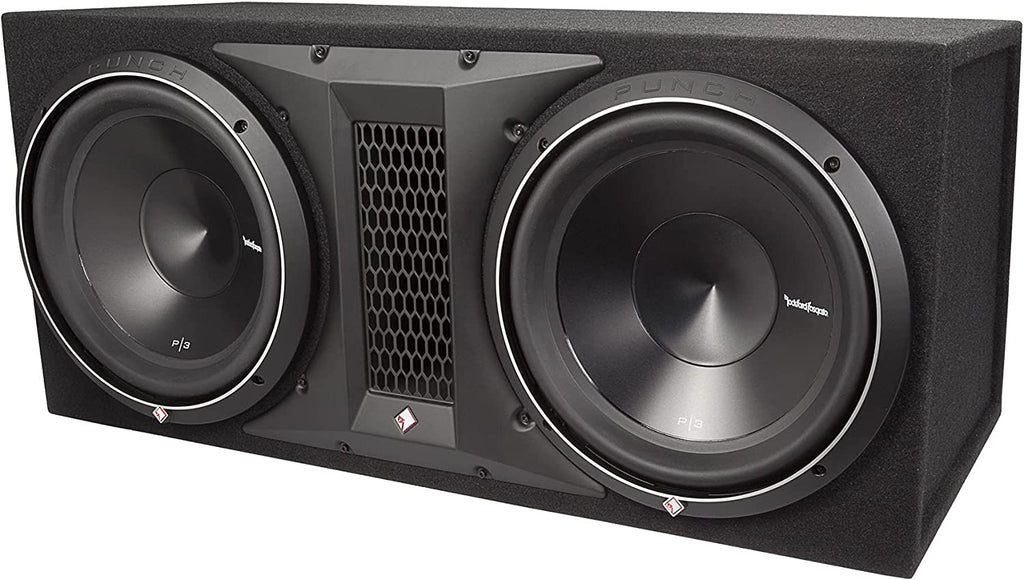

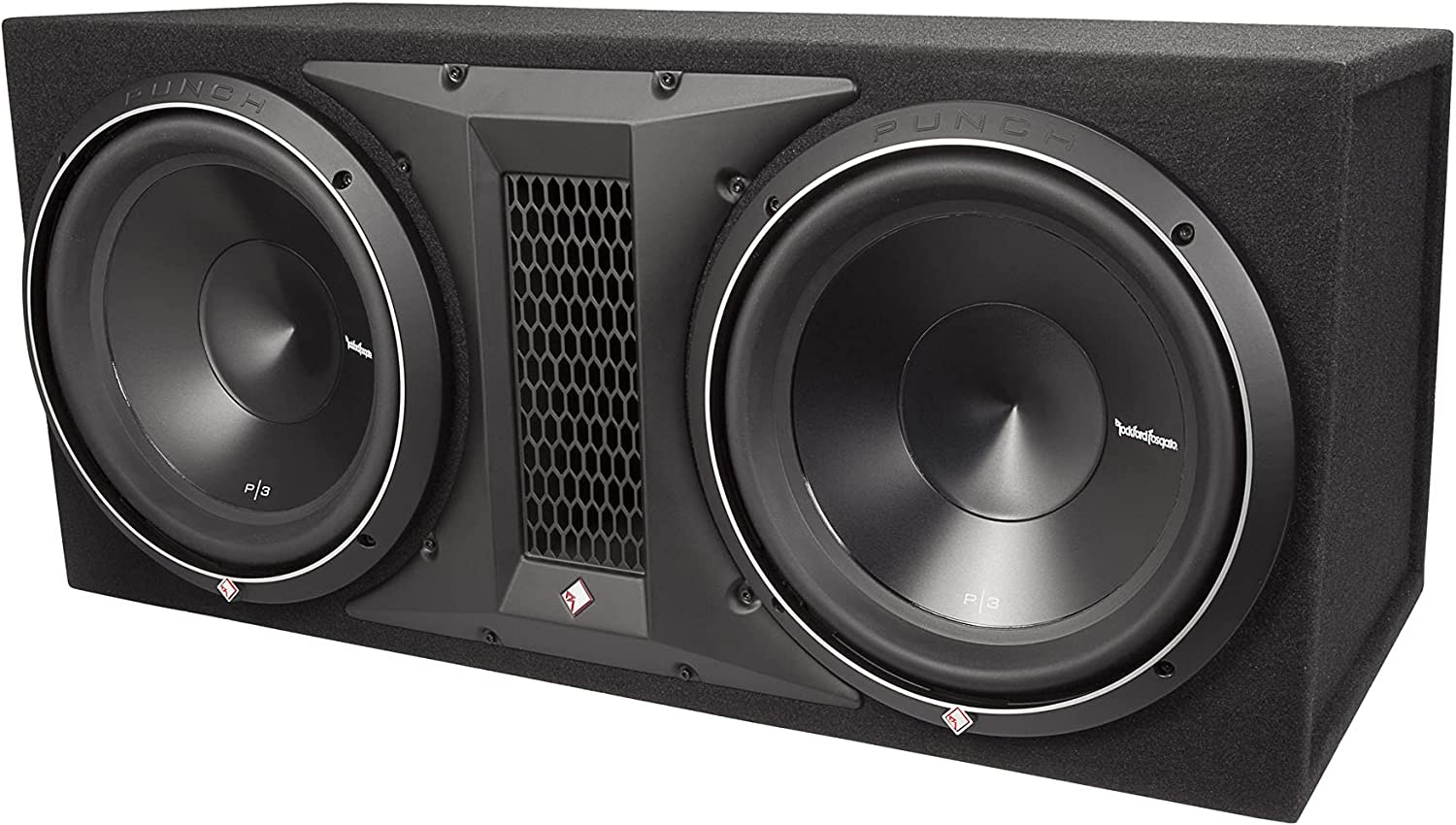

Rockford Fosgate P3-2X12 Punch Dual P3 12" Loaded Enclosure Ported Subwoofer

The P3-2X12 is a dual P3 12” vented enclosure with 1200 Watts RMS power handling wired to a 1-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high-density carpet, and features quick-release compression terminals.

General Features:

Subwoofer Features:

• 12" Punch P3 Series Subwoofers
• Power Handling:
• Peak: 2400 watts
• RMS: 1200 watts
• Recommended power range: 600 - 1400 watts RMS @ 1 ohm
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST Santoprene surround for a larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue-resistant and reduced strain "stitched on" flexible lead wire design
• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.5" voice coil w/ spun-laced Nome insulating reinforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Magnet Weight: 96 oz
• Frequency Response: 27.7 - 250 Hz
• Xmax: 15.9mm
• Sensitivity: 85 dB @ 1 watt / 1 meter
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Enclosure Features:

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• Constructed with durable 5/8" MDF
• High current binding posts
• Proprietary high-flow, low-noise port
• Durable black carpet covering
• Computer-optimized design
• Final Impedance: 1 ohm
• Dimensions: 15-3/4”D x 33-7/8”W x 15-1/8”H
• Shipping Weight: 89.65 Lbs. (40.66 kg)
