Soundstream MR5.2000D Rubicon Water-Resistant 5Ch Amplifier
Soundstream MR5.2000D Rubicon Water-Resistant 5Ch Amplifier

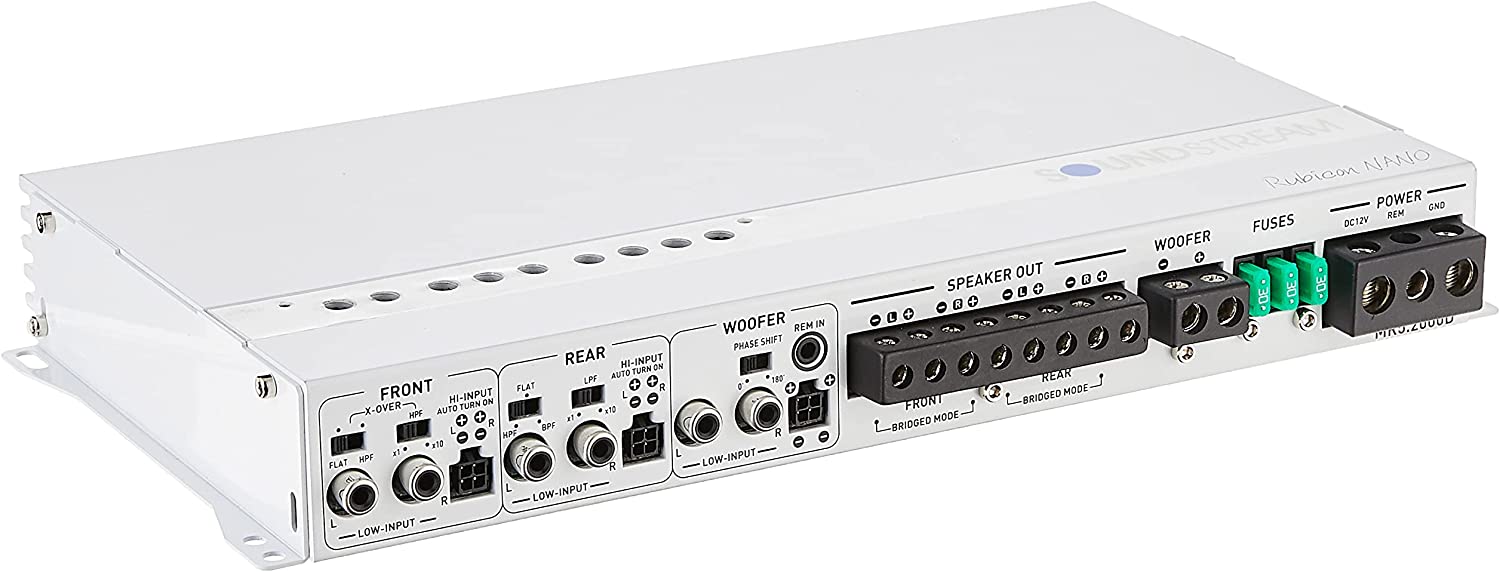

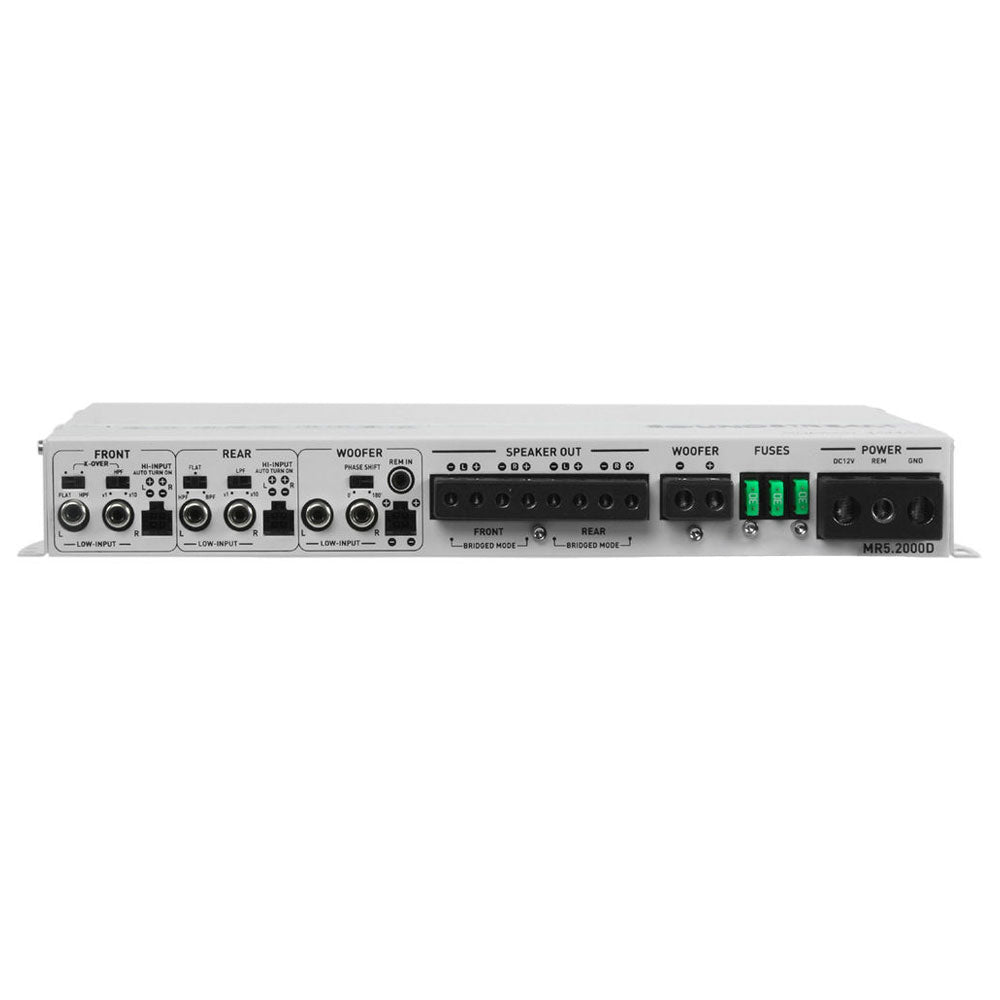

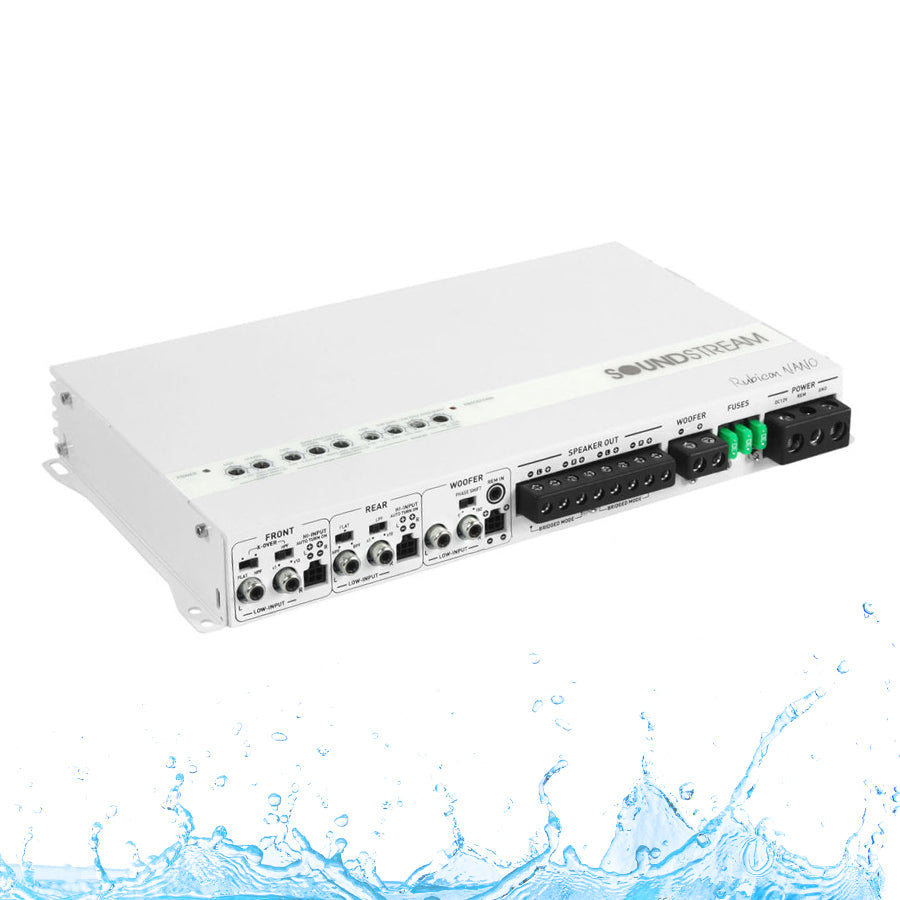

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice this amplifier’s color; that’s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.
General Feature
- Max Power 2,000 Watts
- RMS Power @ 4Ω 75W x 4 + 300W
- RMS Power @ 2Ω 100W x 4 + 500W
- RMS Bridged @ 4Ω 200W x 2 + 500W(2Ω)

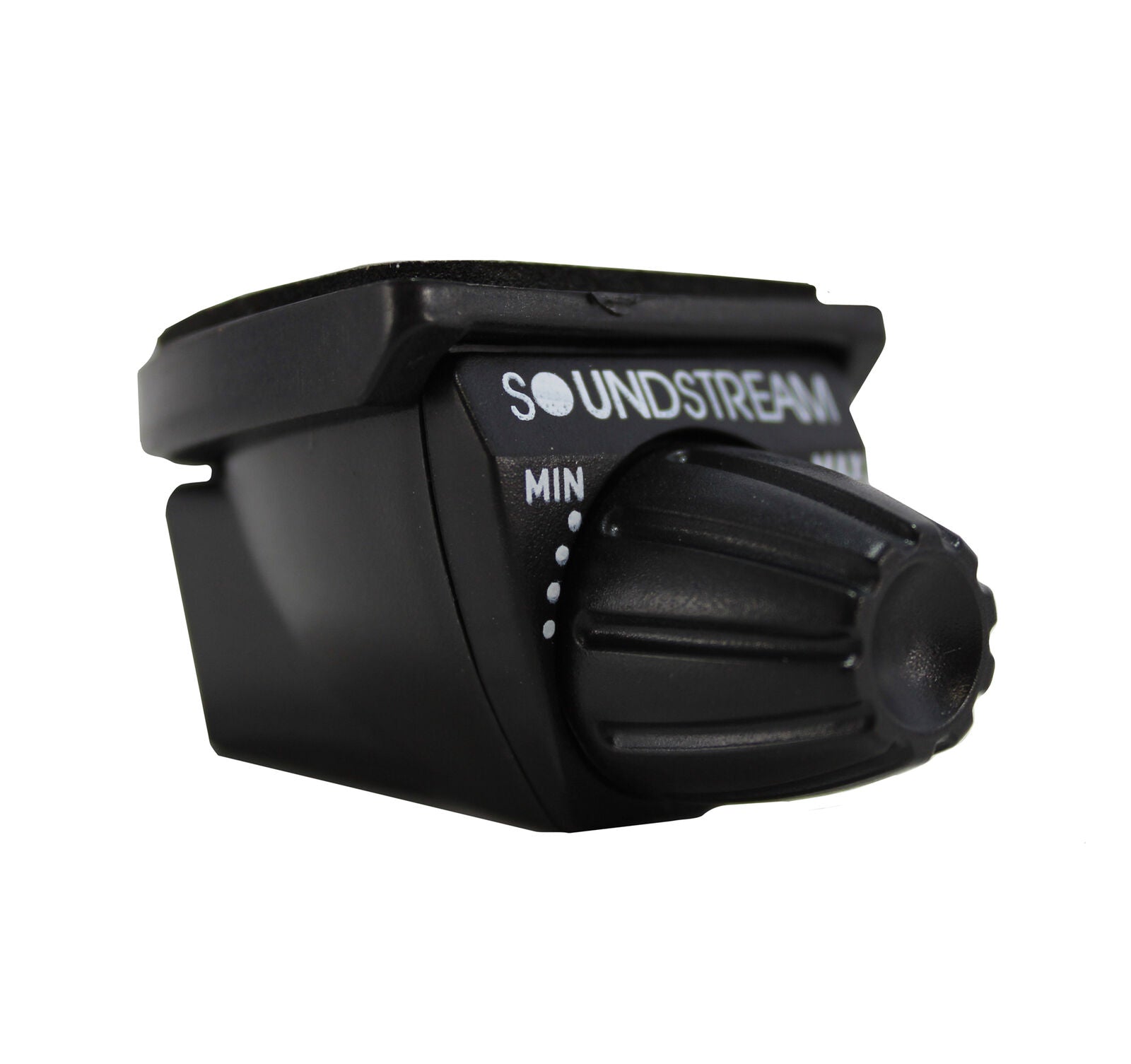

- Remote Gain Control Included
- Low Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
- High Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
- Bass Boost 0-18dB (Ch 5)
- Bass Boost Frequency 45Hz (Ch 5)
- Subsonic Filter 20Hz-50Hz (Ch 5)
- Frequency Response 10Hz-50KHz (Ch 1-4) / 10Hz-150Hz. (Ch 5)
- S/N 104dB
- Input Sensitivity 200Mv-6V
- THD <0.05%
- Operation Voltage 9V-16V DC
- Fuse Rating 30A x 3
- Dimensions
- (8.25″W x 2.75″H) 12″ L
- Rubicon Water-Resistant 5Ch Amplifier
- RMS Power 4Ω 75W x 4 + 300W
- RMS Power 2Ω 100W x 4 + 500W
- RMS Bridged 4Ω 200W x 2 + 500W (2Ω)
