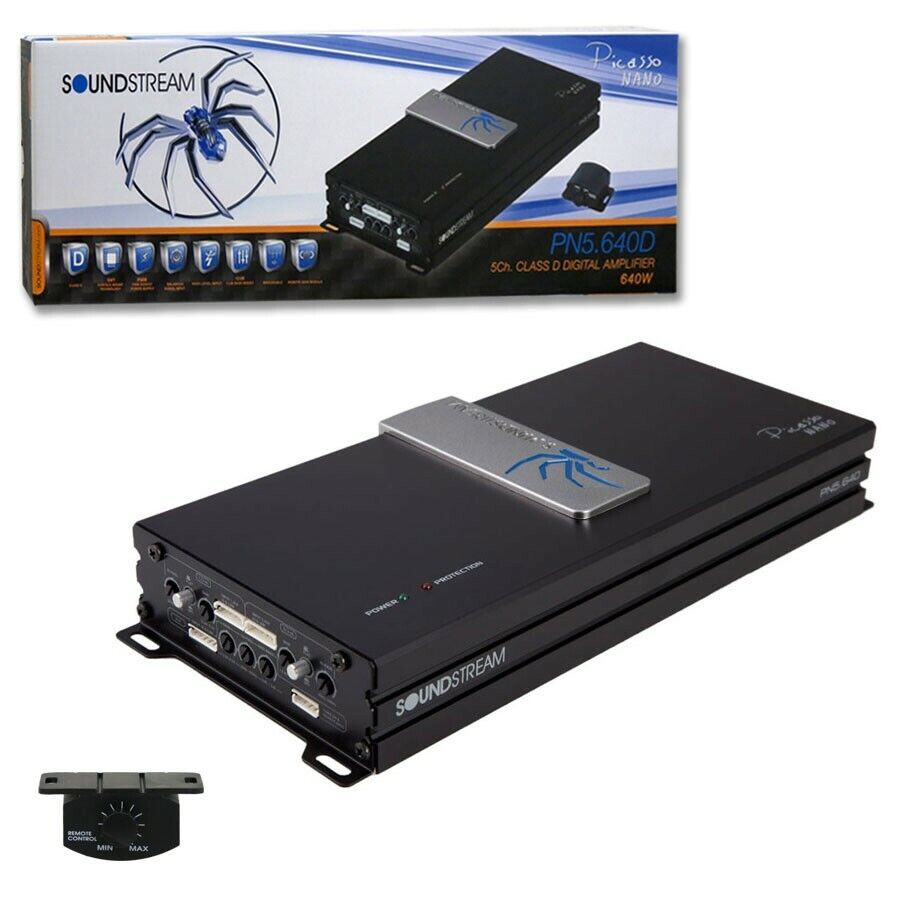

Soundstream PN5.640D Picasso Nano Series Class D 5ch Amplifier
Soundstream PN5.640D Picasso Nano Series Class D 5ch Amplifier
General Features:
When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music-amplifying equipment can have such an amazing output. What’s more, in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.
You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, the amplifier does not get heated up after a half-hour of continuous music playing at high volume. Thanks to the full-range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.
General Features:
- Picasso Nano Series 5-Channel Class D Car Amplifier
- RMS Power Rating: 4 ohms: 60 watts x 4 channel + 200 watts
- RMS Power Rating: 2 ohms: 80 watts x 4 channel + 350 watts
- RMS Power Rating: 4 ohms, Bridged: 160 x 2 channel
- Max power output: 640 watts
- Full Pulse Width Modulated MOSFET power supply
- SMD technology on double-sided PCB
- Soft turn-on circuit
- Thermal and speaker short protection circuitry
- Dash mount remote bass level control included
- Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
- Sensitivity: 70 dB
- Speaker-level (high-level) inputs
- Variable low-pass filter (35-250 Hz, 24 dB/octave)
- Subsonic filter (12 dB at 10-50 Hz)
- 4 gauge power and ground wiring is required for installation
- Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
- Dimensions: 4.75"W x 10.3"L x 2"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

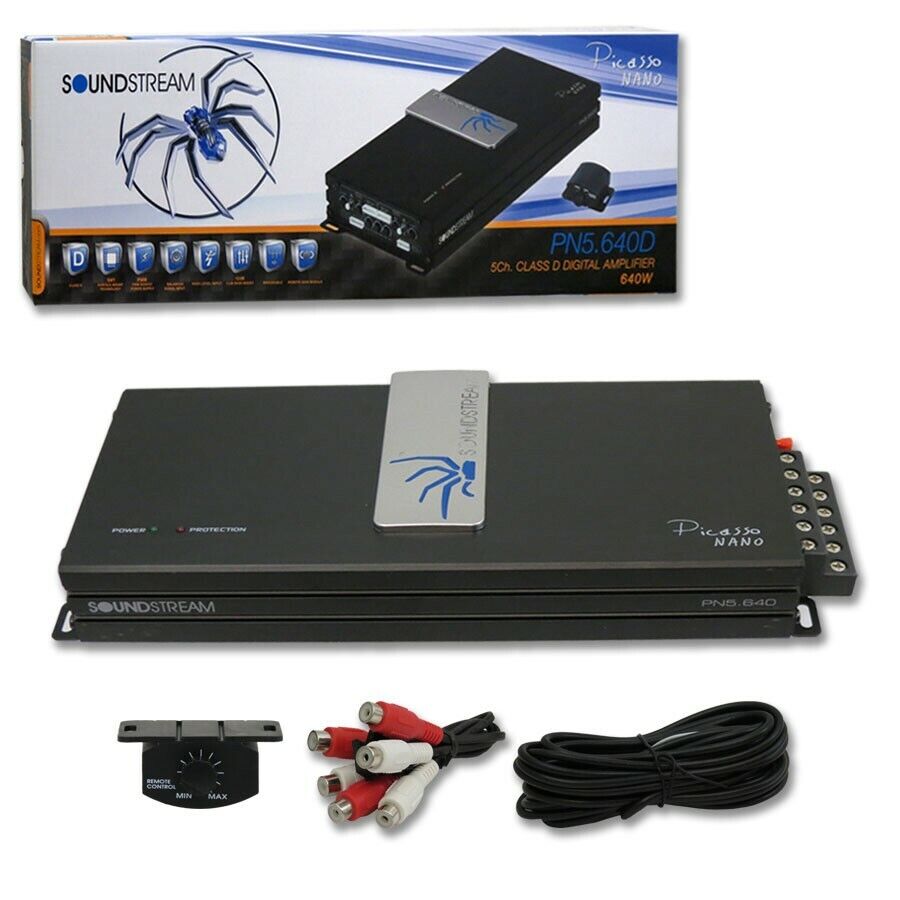

What's in the PN5.640D package:
- PN5.640D owner's manual
- 5-channel amplifier
- One 40 amp ATO fuse (installed)
- Three 4" RCA input harnesses
- Three 7" Speaker level input harnesses
- Wired remote control
- 16-1/2' Remote control cable
- Four 5/8" Self-tapping screws
- Two 1/2" Self-tapping screws
