Xvive Audio U3 2.4 GHz Microphone Wireless System

Xvive Audio U3 2.4 GHz Microphone Wireless System

THE SYSTEM

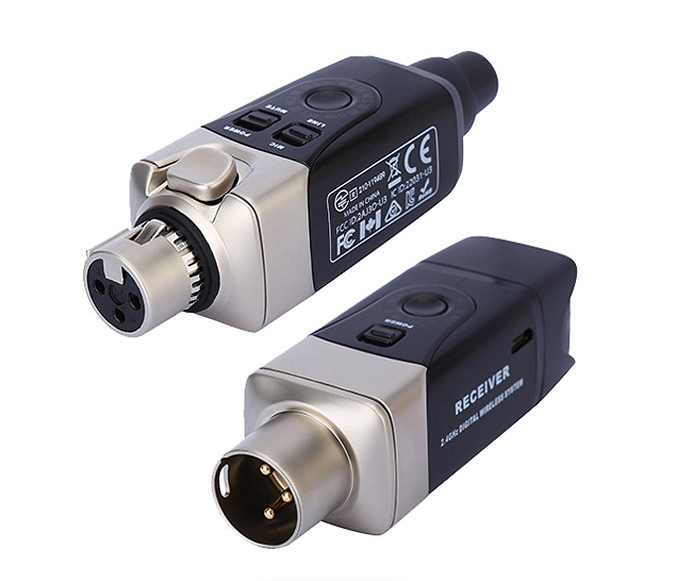

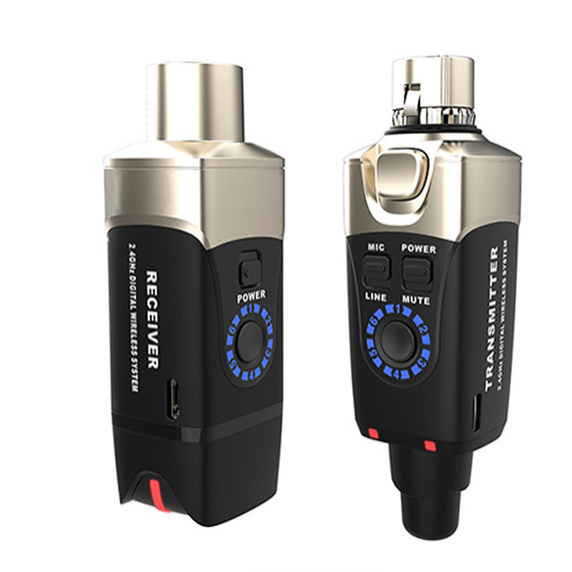

The system consists of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable, or snake.

YOUR TRUE VOICE

The U3 system features high-resolution, 24-bit / 48 kHz audio, an extensive and smooth frequency response between 20 Hz and 20 kHz, and a signal-to-noise ratio of 107 decibels. Sing or speak without compromising the quality of your voice or yicrophone!

HOLD ON TO POWER

The internal battery in the transmitter and receiver lasts 5 hours. Both units can be charged simultaneously using the included dual-USB cable and any standard 5V USB charger. Depending on the charger's current, charging takes between 1.5 and 2.5 hours.
singer with u3

APPLICATIONS

The basic application is to run wirelessly from a dynamic microphone to a soundboard—live, at home or in the studio. But there’s a lot more you can do with the U3 System!

FREE VOICE

The U3 system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians… anyone who wants to move freely while speaking or performing to an audience!

BYPASS THE MIXER

If you need to address a crowd through powered speaker cabinets, you don’t need a cable or a mixer! Just connect your U3 receiver directly to the cabinet's XLR input.

CONTROL YOUR RANGE

The U3 receiver can be connected to an XLR cable or snake, meaning that the transmitter’s signal doesn’t have to reach the soundboard or monitor desk—it can broadcast to the front of the stage, or any central and convenient location.

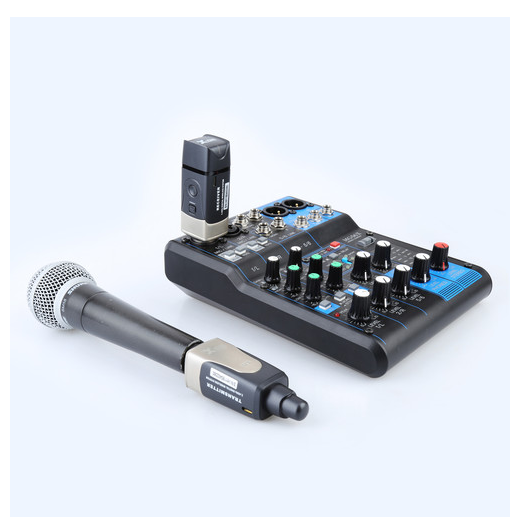

U3 receiver in mixer

GET AMPED

Beyond aocal applications, the U3 system can also be used with microphones for guitar amplifiers, anddirect audio signals from balanced XLR outputs, fsuch asmulti-effect processors or keyboards.

PA FRIEND

Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors. For stereo and multiple mono PA and DJ systems, check out the U3D!

WIRELESS, CONDENSED

The U3C is a version of the U3 designed for condenser microphones, and any other sound sources that require 48V or 12V of phantom power (such as active DI boxes or preamps that don’t supply phantom power).

FREE INSTRUMENTS

Use the U3 to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones, and accordions! If you use a condenser microphone, make sure to choose the U3C.

FREEDOM ON VIDEO

The U3 system can connect microphones to DSLR cameras—provided you have an adapter to run between the XLR receiver and the camera’s (usually 3.5 mm) audio input. Remember to use the U3C when connecting condenser microphones.

General Features:

•     U3     U3C
• WIRELESS TYPE
•     2.4 GHz ISM worldwide open band     2.4 GHz ISM worldwide open band
• BIT DEPTH / SAMPLE RATE
•     24-bit / 48 kHz     24-bit / 48 kHz
• SWITCHABLE CHANNELS
•     6     6
• SIMULTANEOUS CHANNELS
•     6     6
• MODE
•     Input: Mic / Line     Phantom Power: 12V / 48V
• FREQUENCY RESPONSE
•     20 Hz – 20 kHz (-3dB)     20 Hz – 20 kHz (-3dB)
• DYNAMIC RANGE
•     110 dB (-3 dB)     103 dB (-3 dB)
• MICROPHONE COMPATIBILITY
•     Dynamic and battery-powered condenser microphones     Condenser microphones
• SIGNAL-TO-NOISE RATIO
•     110 dB     110 dB
• TOTAL HARMONIC DISTORTION
•     0.2%     0.2%
• LATENCY
•     5 ms     5 ms
• OPERATING RANGE
•     27.5 m / 90 ft (line-of-sight)     27.5 m / 90 ft (line-of-sight)
• Battery
• TYPE
•     Rechargeable Lithium-ion (internal)     Rechargeable Lithium-ion (internal)
• BATTERY LIFE
•     5 hrs     3-7 hrs
• CHARGING TIME
•     2.5 hrs (full charge)     2.5 hrs (full charge)
• CHARGING VOLTAGE
•     5V (USB)     5V (USB)
• USABLE WHILE CHARGING
•     Yes     Yes
• Transmitter
• MODEL
•     U3T     U3CT
• POWER
•     N/A     12V / 48V (onboard phantom)
• MODE
•     Input: Mic / Line     Phantom Power: 12V / 48V
• CONNECTOR
•     XLR (female)     XLR (female)
• DIMENSIONS
•     31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"     31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
• WEIGHT
•     93 g / 3.3 oz     107.73 g / 3.8 oz
• MUTE
•     Yes     Yes
• Receiver
• MODEL
•     U3R     U3RT
• CONNECTOR
•     XLR (male)     XLR (male)
• DIMENSIONS
•     98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"     98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
• WEIGHT
•     92 g / 3.2 oz     92 g / 3.2 oz

U3 Microphone Wireless System

• U3 Complete Dynamic System
•     High-fidelity plug-and-play wireless system for dynamic microphones
•     24-bit / 48 kHz digital audio with low distortion and wide frequency response
•     Stable 2.4 GHz wireless connection with a range of up to 90 feet
