Yorkville Sound M810-2, 10+2 Channel Stereo Box Mixer - 2x400W

Yorkville Sound M810-2, 10+2 Channel Stereo Box Mixer - 2x400W

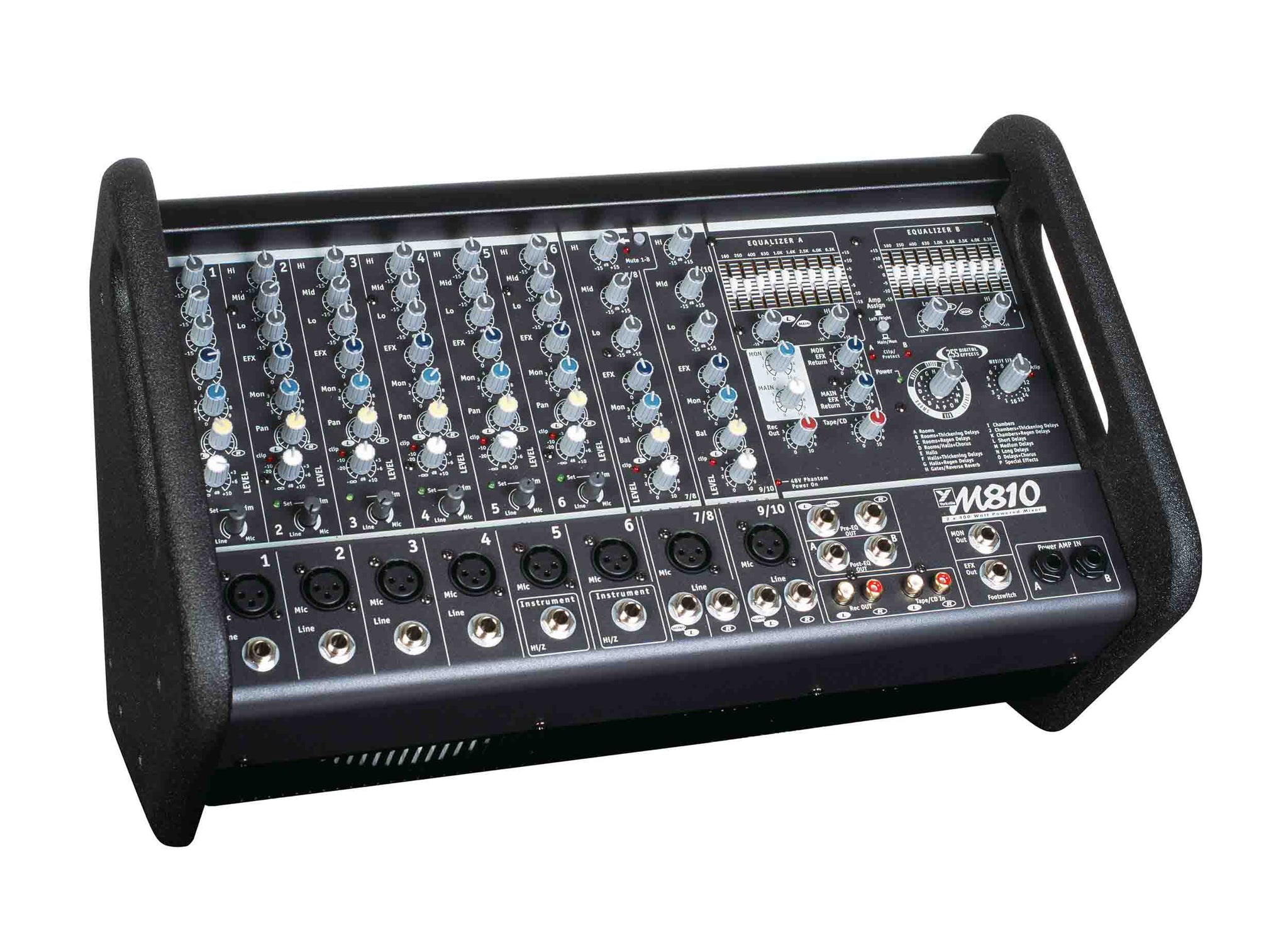

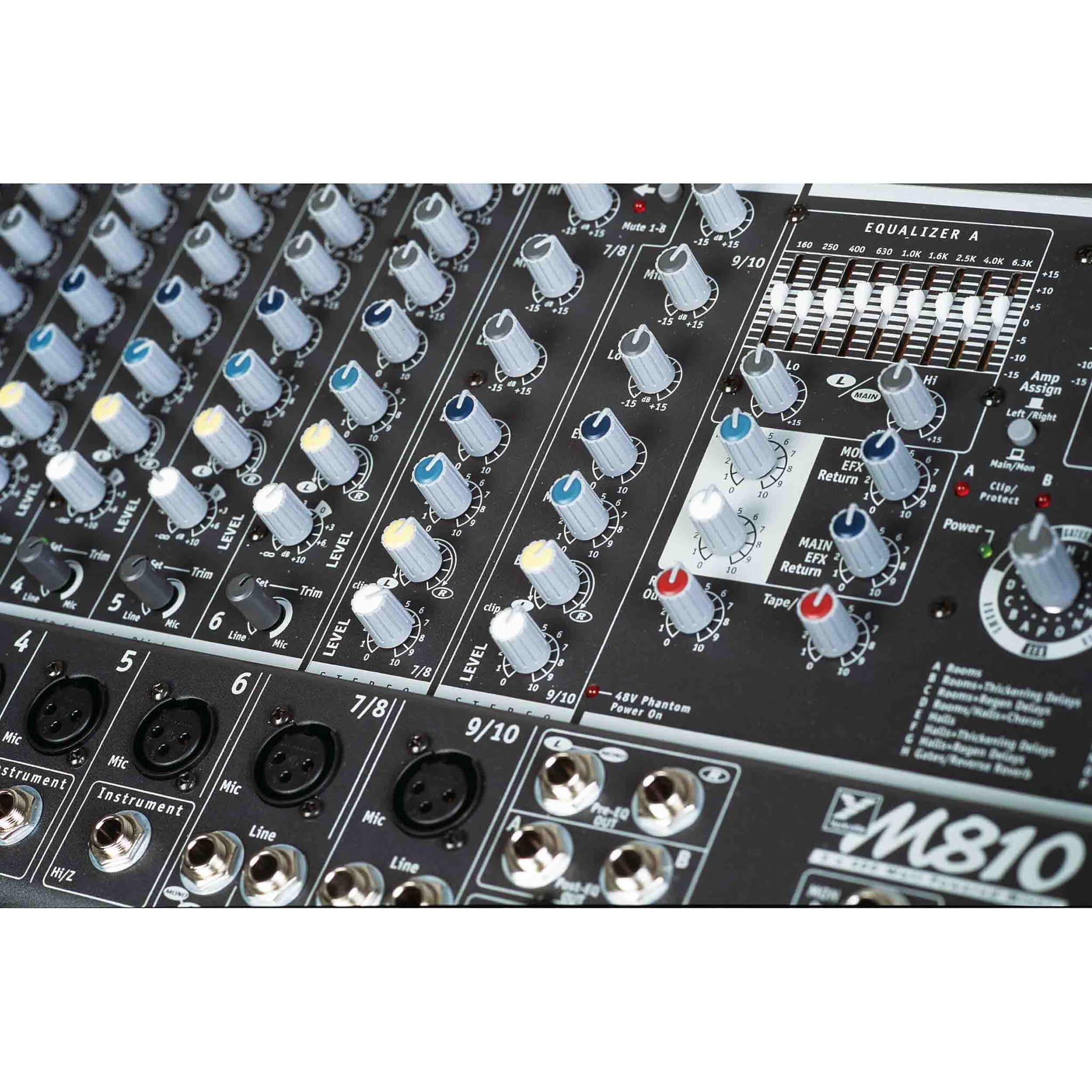

The Yorkville Sound M810-2, 2x 400w, 10 inputs Mixer/Amp lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer makes these new 'wedge' mixers an ideal high power, high quality powered mixer solutions. High-powered high-efficiency class-H power amplifiers, newly designed input strips, on-board DSP, a new, more effective master EQ section and ten very useful and usable input channels complete the new 'wedge' mixer packages.

Product Specification:

• Number of Channels: 10
• Mono Channel EQ: Low, Mid, High
• Stereo Channel EQ: Low, Mid, High
• Channel Effects: All Channels
• Monitors Effects:  Yes
• Balance Controls: Ch. 7 - 10
• Pan Controls: Ch. 1 - 6
• Channel Overload Protection: Ch. 1 - 6
• Inputs - XLR (bal): 8
• Inputs - 1/4": 10
• Inputs - RCA (unbal): 1 Pair
• Mute Switches: Global 1 - 8
• Activity / Solo LED: Trim Set Ch. 1 - 6
• Clip / Mute LED: All Channels
• Phantom Power: 48V + LED Indicator
• Internal Effects: 24 Bit stereo, 16 Effects with Parameter Pot
• Auxiliary Sends: Effect - Monitor
• Effects Send: Yes
• Effects Return: Internal
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: Stereo RCA Pair
• Max Gain to Line Out -Mic Input (dB): 84
• Max Gain to Line Out -Line Input (dB): 82

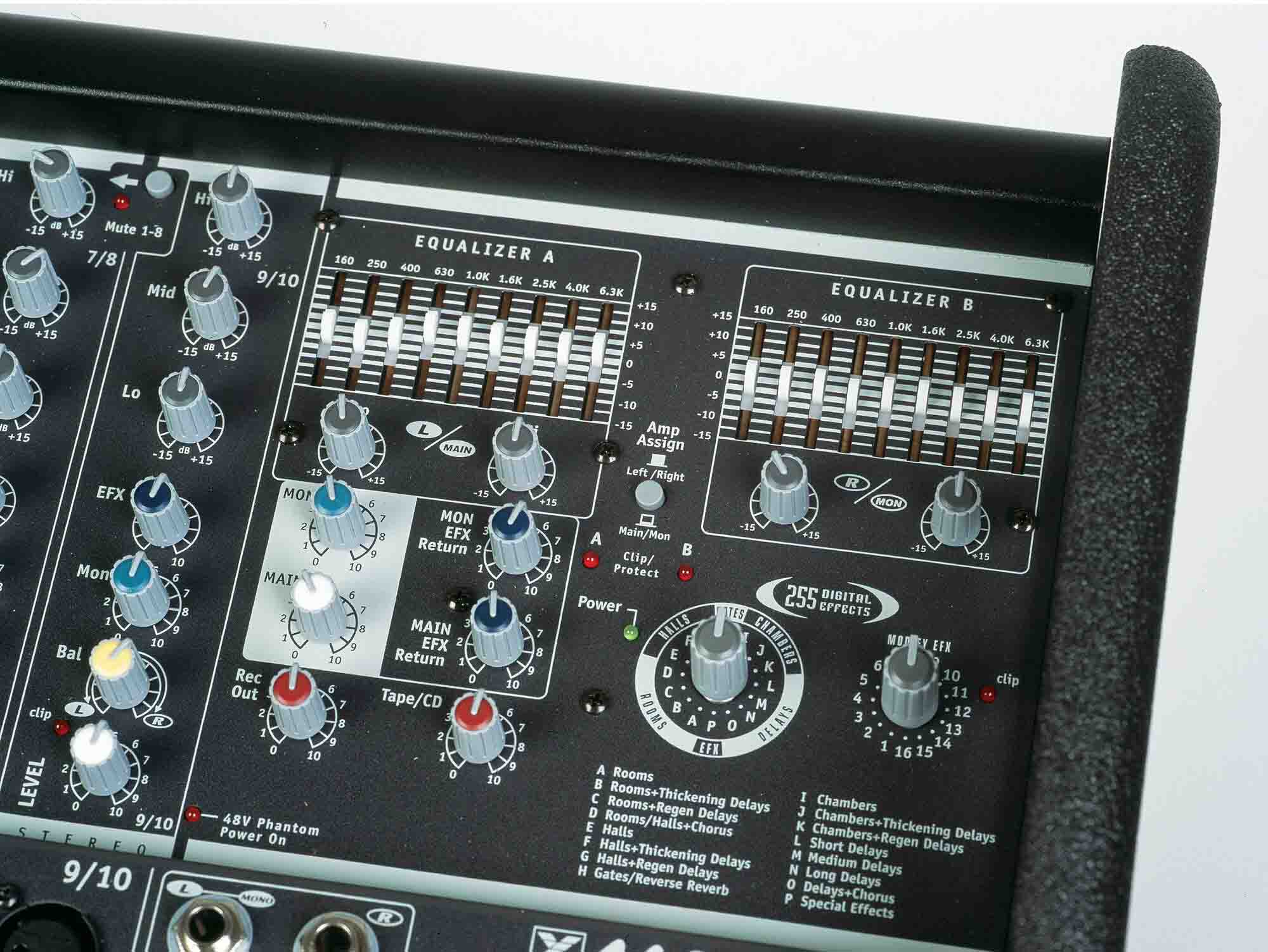

• Master EQ -1 (type/Channels/Range -dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving
• Monitor EQ -1 (type/Channels/Range-dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving
• Main Outputs (Line Level): 2 x 1/4inch TRS
• Main Amp Inputs (Line Level): 2 x 1/4inch TRS
• Monitor Outputs (Line Level): 1 x 1/4inch TRS

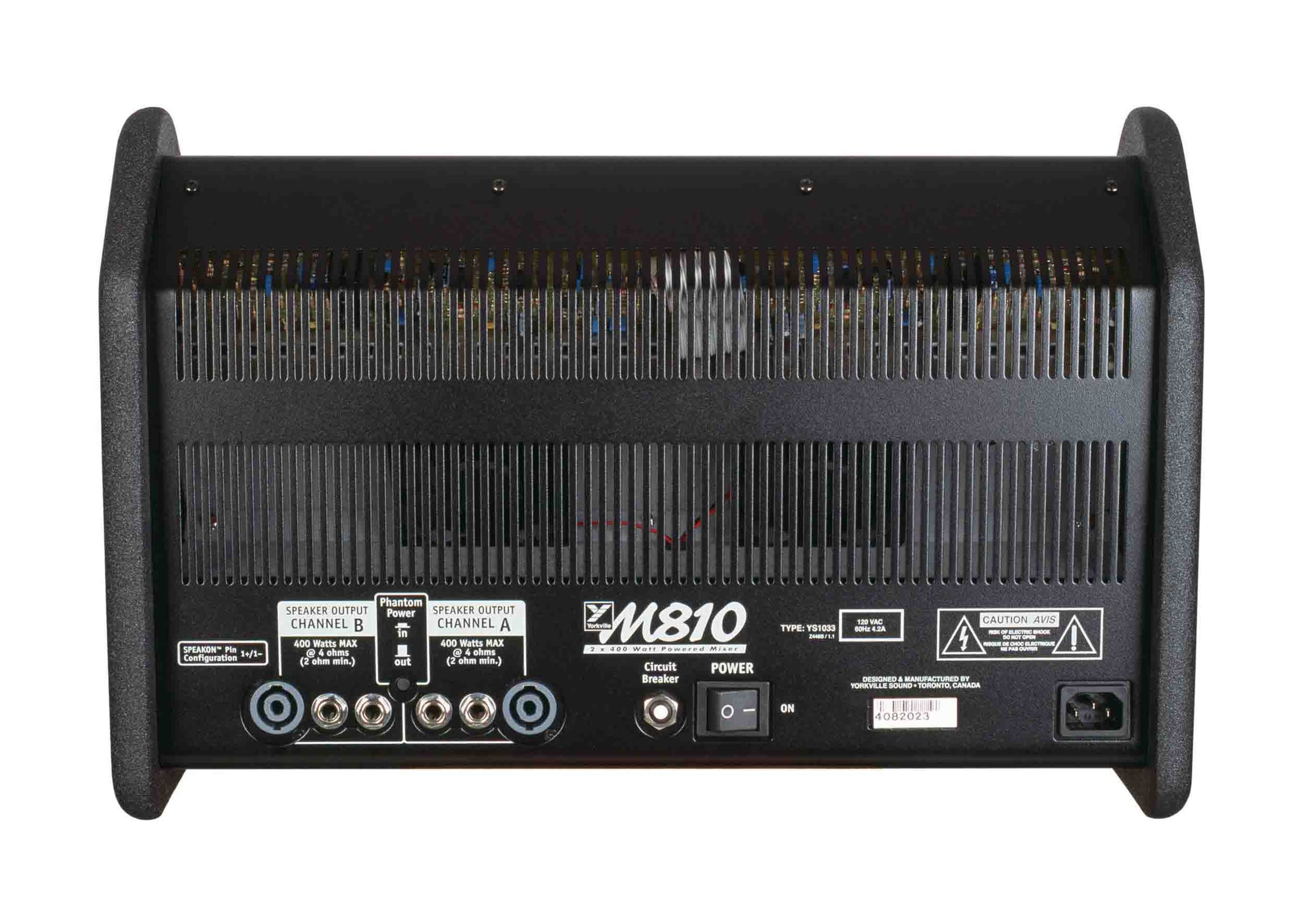

• Outputs - Amp A - 1/4" Jacks:  2
• Outputs - Amp A - Speakon 4-pin: 1
• Outputs - Amp B - 1/4" Jacks: 2
• Outputs - Amp B - Speakon 4-pin: 1
• Mixer - Signal to Noise Ratio (dB): 105
• Mixer - Freq Resp (Tone and EQ Flat,2dB): 20 - 20,000
• Mixer- Input Ref Noise to line out @150 Ohms(dBv): -119
• Mixer THD (Main out w/ -10dB input): 0.0001
• Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 250
• Amp A - Power Output @ 4 Ohms: 400
• Amp A - Power Output –other: 400 @ 2 ohms
• Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz): 250
• Amp B - Power Output @ 4 Ohms: 400
• Amp B - Power Output –other: 400 @ 2 ohms
• THD - 1kHz (dB): 0.001
• THD - 20Hz-20kHz (dB): 0.005
• Hum and Noise (un / Aweight -dB): 0.94392523364486
• Typical crosstalk -1 kHz (dB-:  better than -60db
• Input Impedance - Bal/Unbal (Ohms): 20k / 10k ohms
• Input Sesitivity (Vrms Sine): 1.4
• CMRR @ 60Hz (min/typ): -37db / -60db
• Max Votage Gain (dB): 29
• Power Consumption (typ/max): 4.2A @ 60Hz / 2.2A @ 50Hz
• Protection: Thermal, Short Circuit, Current, Clip
• Cooling: 2 x 80mm Fans
• Transformer Type: Toroidial
• Finish: Grey and Black Powder Coat
• Chassis Construction: Steel and Aluminum
• Rackmount: Yes (Kit Available - 6U)
• Other Features: Tiltback or Upright Wedge Angles
• Dimensions (DWH, inches): 11.1 x 18.6 x 11
• Dimensions (DWH, cm): 28 x 47 x 28
• Weight (lbs/kg): 28.2 / 12.8
